A2A Transport — Reference

See A2A remotes one leaf turn, not team coordination for the shared visual model.

Preview dependency on the hot path

The checked-in A2A dependencies remain preview packages on the remote-turn path. The client Microsoft.Agents.AI.A2A is pinned to 1.19.0-preview.260822.1; host packages Microsoft.Agents.AI.Hosting.A2A and .AspNetCore use 1.11.1-preview.260625.1. Workflow and Copilot integration packages use stable 1.19.0. These are repository pins, not a statement about every upstream release.

Mitigations (all required): pin the exact validated client/host combination by version + hash; gate the whole path behind Sandbox:AgentExecutionMode; and treat the in-api mode as the rollback path — not a second wire protocol. Advance the pin only after validating against the next A2A release, tracking the line to GA.

This reference catalogues the A2A surface Agentweaver uses, the message-mode semantics, the agent card, and the H1–H7 security model. For the design reasoning behind these choices, read the A2A bridge deep dive. For the pod lifecycle, see Sandbox pods reference and Sandbox pod execution.

1. Package surface

Side	Package	What it provides
Host (in-pod)	Microsoft.Agents.AI.Hosting + Microsoft.Agents.AI.Hosting.A2A	builder.AddAIAgent(name, factory, lifetime).AddA2AServer(...) to register the agent, then app.MapA2AHttpJson(builder, path) — exposes an existing AIAgent over the A2A HTTP+JSON transport as ASP.NET Core endpoints
Client (worker)	Microsoft.Agents.AI.A2A	A2AAgent : AIAgent, constructed from an A2AHttpJsonClient — wraps a remote A2A HTTP+JSON endpoint as a local AIAgent
Underlying SDK	A2A	A2AHttpJsonClient (HTTP+JSON) and A2AClient (JSON-RPC), both IA2AClient — the raw protocol clients the wrapper sits on

The worker never drops to the raw A2A client. It consumes the remote endpoint as an AIAgent via A2AAgent (over A2AHttpJsonClient), which is why the worker's turn executor is untouched: both the local and remote leaf are the same AIAgent abstraction.

HTTP+JSON, not JSON-RPC. A2A defines two wire transports. Agentweaver uses the HTTP+JSON profile on both ends — MapA2AHttpJson on the host, A2AHttpJsonClient on the worker. The JSON-RPC A2AClient is not interchangeable: it posts to the base path and 404s against the HTTP+JSON routes.

Pinning

Keep declared package versions and committed lock-file content hashes together. Client and host currently have different version stamps; validate the complete client/host combination before changing either side.

2. Endpoints

MapA2AHttpJson(builder, path) publishes a fixed, narrow surface under the configured path (default /a2a/agent, on port 8088):

Endpoint	Method	Purpose
…/v1/message:stream	POST	Streaming agent turn over SSE. The only data-plane endpoint. Requires Authorization: Bearer <turn-token>.
…/v1/card	GET	The agent card — capability + security-scheme discovery. A non-empty CardBearerToken enables its separate bearer gate.

So at the default path the live routes are POST /a2a/agent/v1/message:stream and GET /a2a/agent/v1/card. The hosted agent is not CopilotAIAgent directly: it is A2ATurnBridgeAgent (a DelegatingAIAgent registered under the MAF name agentweaver-pod) wrapping the pod's singleton CopilotAIAgent through a purpose-routing runner. Workflow purposes use the Copilot runner; Operator Assistant uses its MCP chat runner. Provider configuration selects a run-bound Copilot capability or BYOK. The A2A server is configured with AgentRunMode.DisallowBackground (turns are synchronous streams, never detached tasks). A startup readiness gate returns 503 for every route except /healthz and /configure until AgentHostStartupService has finished the pod's run-scoped CopilotAIAgent.SetupAsync. Warm-pool pods start in standby and run setup only after /configure.

message:stream is not protected by NetworkPolicy alone. KubernetesSandboxExecutor generates a 256-bit random turn token for each run, sends it to the claimed warm pod in POST /configure, and registers it in IAgentHostTurnTokenRegistry. RemoteAgentProxy reads the token and sets Authorization: Bearer <turn-token> on all turn calls. Because each pod has its own configured token, a token stolen from one run cannot be reused against another run's AgentHost. /configure itself is not bearer-protected because it delivers the token; scoped NetworkPolicy is the guard.

Messages are keyed by messageId and contextId (the worker uses the run id as contextId). The server maintains a per-contextId conversation history, which Agentweaver treats as ephemeral (see §4). The surface is intentionally bounded: a fixed streaming endpoint plus a discovery endpoint, narrower than any ad-hoc executor surface.

3. The agent card (/v1/card)

Card discovery and turn execution use distinct configured application-layer gates.

• The card endpoint is GET {A2APath}/v1/card. A non-empty AgentHost:CardBearerToken requires a matching bearer token; an empty value disables that gate. The options default is empty. AgentHost:Security:GateCardEndpoint is not the value the middleware checks. Turn submission instead checks the runtime TurnBearerToken delivered through configure. Neither bearer is a TLS identity, and the reviewed implementation does not establish OAuth2 discovery or SPIFFE identity.
• Minimized. The card exposes only what the worker needs to bind the transport — no broad capability advertising, no surplus metadata.

Bearer authorization and TLS identity are independent controls. The deployment matrix in H1 distinguishes plain base configuration from production-overlay mTLS; neither establishes a SPIFFE integration.

4. Message-mode semantics

Agentweaver uses A2A in message/stream mode only.

Concern	A2A capability	Agentweaver's use
Per-turn streaming	message:stream (SSE)	Used. One ordered stream per turn carries updates, token deltas, and RunEvent DataParts.
Task lifecycle	submitted/working/input-required/completed + continuation tokens	Not used. No A2A task is ever opened — no task-model tax.
HITL / input-required	task pauses awaiting input	Not used over the wire. HITL is a MAF RequestPort in the worker graph, not an agent turn.
Conversation history	server-side, keyed by contextId	Bypassed. Ephemeral; dies with the pod. Durable resume is Agentweaver's checkpoint store.
Stream replay	none (no Last-Event-ID)	Not relied on. A mid-turn drop re-drives the turn from the last checkpoint.

What crosses the wire

1. The bridge reads revision state and applies per-turn system-prompt context, project/agent identity, API address, and API credential before execution. Prompt context is layered over the pod's startup environment and includes the worker-assembled charter, memory, and assigned skills. One-time run provisioning still occurs through /configure.

Streaming returns assistant text and in-band RunEvent DataParts (application/x-agentweaver-run-event+json). Writable pod-local turns can also return a PreparedWriteback descriptor, captured separately from events. 2. The agent's streaming output — assistant text deltas, accumulated on the worker into the turn result. 3. The RunEvent side-channel, encoded as A2A DataContent parts (media type application/x-agentweaver-run-event+json, via RunEventDataPartCodec) on message:stream, decoded back into RunEvents on the worker. These are forwarded in-band on the same stream today; an external-bus fan-out is a future option, not what ships.

The RunEvent codec is the only Agentweaver-owned shim, and it is transport-independent (any transport would need it). Ordering within a turn is preserved because message:stream is a single ordered SSE stream, re-injected on the worker under a monotonic sequence allocator.

What does not cross the wire

• MAF WorkflowEvents (executor-invoked/completed, request-info) — emitted by the worker graph around the leaf.
• HITL RequestPort suspend/resume — a worker graph construct.
• Checkpoints / session blobs — persisted out-of-band to the DB-backed checkpoint store.
• Pod-local writable implementation turns prepare Git writeback and return a PreparedWriteback DataPart. The worker validates and applies that receipt; not all commit/diff work runs on the shared PVC.

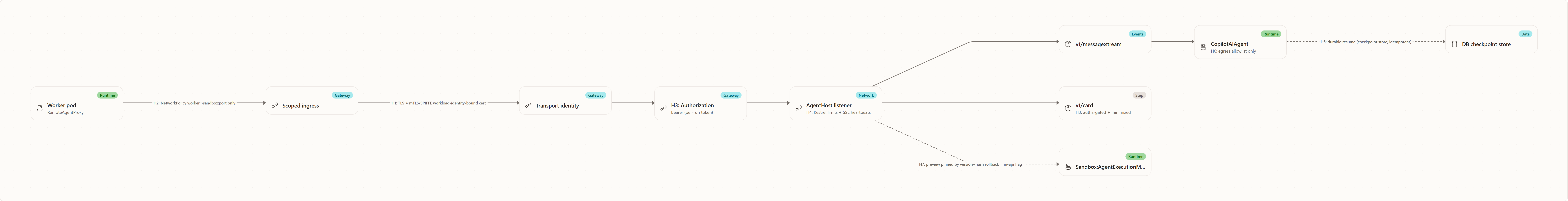

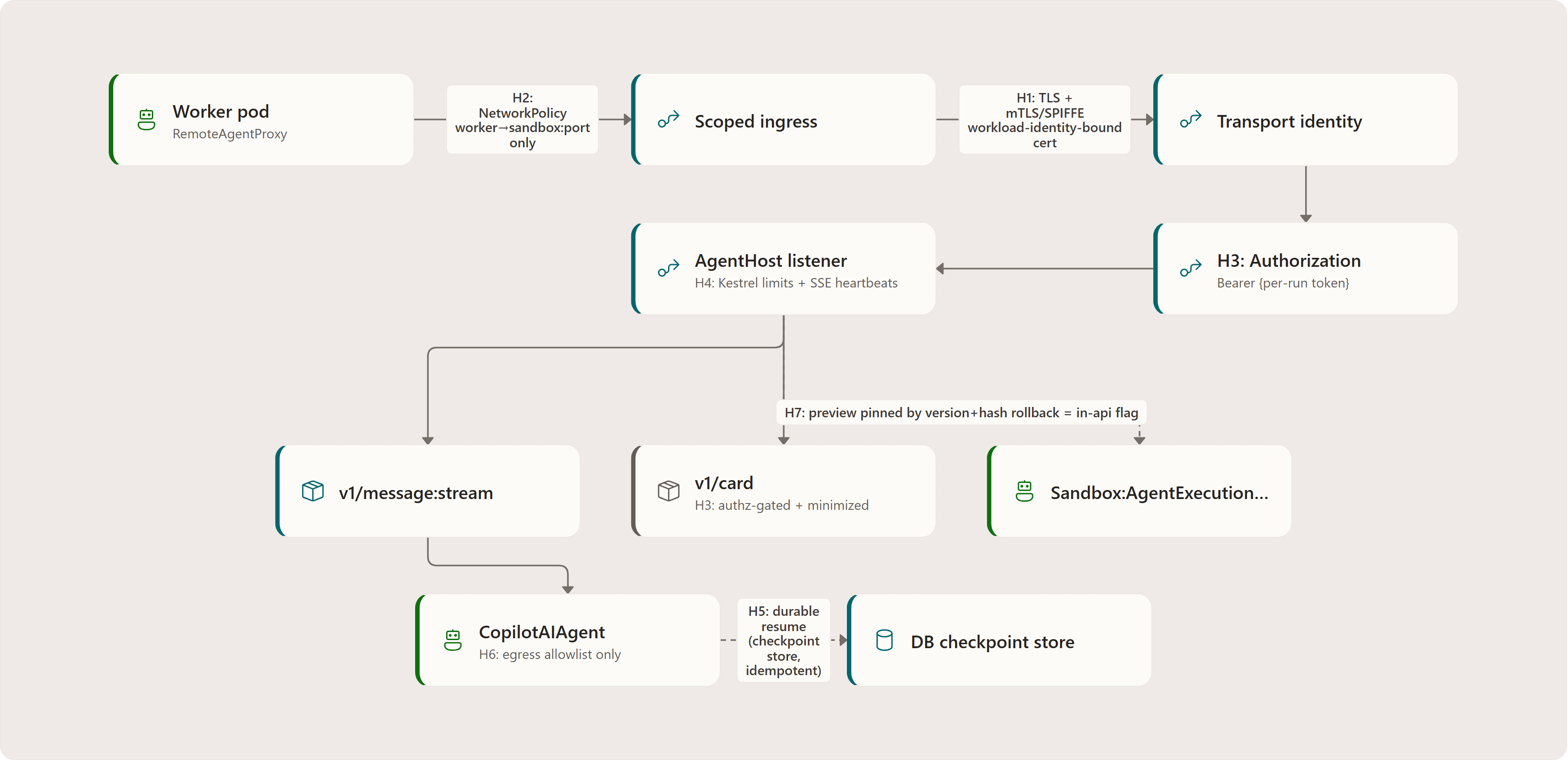

5. Security model (H1–H7)

H1-H7 describe intended security and operational controls. Their implementation and configuration status differ; distinguish code defaults, Kubernetes base configuration, production-overlay configuration, and requirements not established by a repository-only review.

Gate	Requirement
H1 — Transport identity	Code defaults enable mTLS. Kubernetes base disables it on AgentHost and API/worker callers; the production overlay enables HTTPS and client certificates on both ends. Mounted certificates and pinned CAs are not a claim of SPIFFE identity; the client ignores pod-IP hostname mismatch.
H2 — Scoped ingress	The A2A NetworkPolicy permits same-namespace API and worker pods to TCP/8088. Policies are additive: preview-gateway ingress permits TCP/3000-9000, including 8088. NetworkPolicy is not a gateway hop.
H3 — A2A app-layer authz	Turn submission checks the configured run bearer; card discovery checks the separate CardBearerToken option. Either middleware gate is disabled when its corresponding value is empty.
H4 — Bounded listener	Kestrel has declared connection/body/header/keepalive limits. Control calls use a finite timeout; streaming uses an infinite HTTP timeout with worker total/read-idle deadlines. A general transport heartbeat is not established by the configuration field alone.
H5 — Idempotent resume	Checkpoint management and durable run events remain in the worker/orchestration tier. PostgreSQL checkpoints support cross-replica reads; event persistence deduplicates by run and sequence. This is not A2A replay or a blanket exactly-once guarantee for model/tool effects.
H6 — No egress broadening	Ingress does not grant egress. Current sandbox egress includes DNS, explicit platform-service rules, and public HTTPS excluding configured private/link-local ranges; it is not a per-run Git-host-only allowlist.
H7 — Pinned preview	Client/host preview versions and lock hashes are pinned separately. in-api is the code fallback; Kubernetes base selects pod-per-run. Startup configuration rollback is not hot reload or a second wire protocol.

Notes on the gates:

• Bearer tokens and mTLS are independent controls; label the configured deployment rather than asserting universal mTLS.
• Listener limits and worker total/read-idle streaming deadlines are distinct.
• Checkpoints and durable event sequencing are platform-owned, not pod persistence.

6. The -preview caveat, the rollback flag, and degraded mode

This section is the operational contract for running a preview dependency on the hot path.

The caveat (stated prominently)

in-api is the code fallback. Kubernetes base API and worker deployments explicitly select pod-per-run; production additionally enables mTLS. Configuration files do not establish live deployment or soak status.

Rollback is a flag, not a second wire

Sandbox:AgentExecutionMode	Behavior
in-api (code fallback)	Agent turns run in-process in the worker exactly as today. This is the in-process workflow execution mode and configuration rollback from remote workflow turns.
pod-per-run	Agent turns are remoted to a sandbox pod over the A2A transport.

Rollback changes Sandbox:AgentExecutionMode to in-api and deploys/restarts the applicable process configuration. Execution-mode selection is registered during startup; hot switching is not established and no second turn wire protocol is introduced.

kube-exec-stdio is the degraded-mode fallback only

A kube-exec-stdio channel exists for its own per-command purposes and remains available as a degraded-mode fallback only. It is not a wire transport for agent turns and is not the rollback path. The rollback path is in-api. Do not configure exec-stdio as a live alternate agent-turn transport.

7. Quick configuration reference

Setting	Values	Meaning
Sandbox:AgentExecutionMode	in-api code fallback; pod-per-run in Kubernetes base	Startup selection, changed through deployment configuration.
Sandbox:ReleasePodOnSuspend	true (default) / false	Checkpoint-and-release the pod when the graph suspends on a RequestPort or coordinator idle.
Sandbox:AgentHost:RequireMtls	true in code / production overlay; false in base	Configure host and API/worker client transport consistently.
Sandbox:AgentHost:Port	8088 (default)	Pod A2A listener port.
Sandbox:AgentHost:A2APath	/a2a/agent (default)	Base A2A path; routes are {path}/v1/message:stream and {path}/v1/card. Must match the pod's AgentHost:A2APath.
Runtime turn token	generated per run	256-bit random bearer required on POST …/v1/message:stream; delivered to the claimed warm pod by POST /configure and stored worker-side in IAgentHostTurnTokenRegistry. Empty is local/test only.
AgentHost:CardBearerToken	token / empty (code default)	Non-empty requires a matching bearer on v1/card; empty disables the card gate.
/configure.copilotCredential	snapshot reference, access token, expiry	Live run-bound Copilot capability, delivered once. Another run or expired capability fails closed; no ambient token-store fallback.
/configure.byokProviderConfiguration	provider configuration / null	Separate BYOK boundary; BYOK launch does not transmit a Copilot capability.
/configure.repositoryAccessToken / mcpBrokerToken	optional, purpose-scoped	Separate repository/MCP authorities, not the card bearer or model credential.

Pod-per-run lifecycle

The executor waits for binding, records the claimed pod and turn token, resolves its IP, and probes /healthz until the listener is reachable. A warm pod reports standby. It then posts one-time /configure and awaits setup completion; a ready configured pod reports ready.

See the A2A bridge deep dive for how these settings interact with checkpointing and resume, and the distributed-agents experience doc for what they change operationally.

Diagram details and constraints

Element	Contract
title	A2A: a remote turn, not a remote workflow
subtitle	Transport and capabilities stop at the pod boundary. Checkpoints stay with orchestration.
platform-title	PLATFORM / AKS
platform-subtitle	API and worker are permitted AgentHost callers
pod-title	PER-RUN AGENTHOST POD
pod-subtitle	Kata boundary / listener :8088 / no workflow DB
API caller	API caller
API caller	Sandbox lifecycle and control
Worker / remote proxy	Worker / remote proxy
Worker / remote proxy	Owns the orchestration graph
Worker / remote proxy	RemoteAgentProxy
Checkpoint manager	Checkpoint manager
Checkpoint manager	JSON workflow state / resume
Durable platform store	Durable platform store
Durable platform store	Checkpoints + run events
Configure once	Configure once
Configure once	Live Copilot capability OR BYOK
Configure once	/healthz, then /configure
Turn gate	Turn gate
Turn gate	Run-scoped bearer
Card gate	Card gate
Card gate	Separate option
A2ATurnBridgeAgent	A2ATurnBridgeAgent
A2ATurnBridgeAgent	Per-turn prompt / skills / API context
A2ATurnBridgeAgent	purpose-routing runner
Card gate	Empty CardBearerToken: card gate disabled.
transport-title	TRANSPORT CONTROLS
tls	Mounted certificates; pinned CA validation. Base: mTLS off. Production overlay: on.
policy	NetworkPolicy is not a gateway hop. API + worker: TCP/8088.
additive	Policies are additive: preview ingress range also includes 8088.
credential-note	Separate authorities
credential-detail	TLS identity, card token, turn token and model capability are not interchangeable. Pod returns text / RunEvent DataParts; writable turns can return a writeback receipt.
Configure once	health / configure
Turn gate	turn / ordered stream
Checkpoint manager	save / resume

Diagram details and constraints

Element	Contract
title	A2A remotes a leaf turn, not the graph
takeaway	Setup and task cross to AgentHost; assistant output and structured events return.
Workflow graph	Workflow graph
Workflow graph	Host owns gates/checkpoints
Workflow graph	Five factory-created leaf types
RemoteAgentProxy	RemoteAgentProxy
RemoteAgentProxy	Build setup DataContent
RemoteAgentProxy	Task TextContent in same message
AgentHost bridge	AgentHost bridge
AgentHost bridge	message:stream over HTTP+JSON
AgentHost bridge	Apply per-turn context
Caller event pipeline	Caller event pipeline
Caller event pipeline	Decoded structured events
Caller event pipeline	Durable state outside pod
Proxy stream decoder	Proxy stream decoder
Proxy stream decoder	Output + RunEventDataPart
Proxy stream decoder	Check definitive turn end
Leaf runtime	Leaf runtime
Leaf runtime	Execute provider/tool loop
Leaf runtime	Stream updates and events
arrow-1	invoke
arrow-2	send
arrow-3	run
arrow-4	stream
arrow-5	append
note-0	Claim/configure is a separate lifecycle, completed before this exchange.
note-1	EOF alone is not successful completion; structured failures remain failures.
notes	Claim/configure is a separate lifecycle, completed before this exchange.; EOF alone is not successful completion; structured failures remain failures.
