Scaling Data Layer — Reference

See Cross-replica cursor polling and authoritative sequence allocation for the shared visual model.

This reference is the exhaustive companion to the Distributed execution & scaling deep dive. It documents the data and topology layer of horizontal scaling: the SQLite ↔ Azure Database for PostgreSQL Flexible Server provider switch, the store inventory and how the raw stores unify into one context, the leasing schema, the run-event stream, the web/worker deployment topology, provisioning and connectivity, and the configuration flags that gate each phase.

The database target is Azure Database for PostgreSQL Flexible Server — the current, locked direction. The data layer is provider-aware (Database:Provider): postgres/postgresql routes durable state through the EF Core MemoryDbContext and EF-backed stores; the default sqlite keeps the single-writer SQLite stores. Sections below note where a capability is implemented versus a documented design target.

1. Store inventory

The original shape was two physical SQLite databases under the data directory: one holding the operational control plane reached through hand-written SQL, and one holding the memory/orchestration plane reached through the EF Core context. Under Postgres both are unified behind one EF MemoryDbContext and one database; the SQLite providers retain the original split.

1a. Operational stores (raw SQLite → EF, now provider-aware)

These six stores began as hand-written SQL against the operational database. They now have provider-aware equivalents: under Database:Provider=postgres they are served by EF-backed stores over MemoryDbContext (EfRunStore, EfRunRevisionStore, EfWorkflowRunStore, EfBacklogTaskStore, EfCastProposalStore); under the default sqlite the Sqlite* stores remain. The SQLite-specific idioms below describe the original raw form and how each maps onto Postgres/EF.

Store	Tables	Data held
Run store	runs (+ run_revisions)	Run records: status, worktree, tree hash, diff, review dwell timings, origin, parent/subtask linkage, archive state. Uses CAS-style UPDATE ... WHERE status=....
Run-revision store	run_revisions	Append-only reviewer/revision comments, enforced append-only by a database trigger.
Project store	projects	Projects: origin, working dir, default branch, model defaults, state, pickup config, workflow/review-policy/sandbox profile, blueprint provenance, allowed workflow ids (JSON).
Backlog-task store	backlog_tasks	Kanban backlog/ready/claimed tasks, order key, claim→run binding, partial unique indexes, transactional claim CAS.
Workflow-run store	workflow_runs	Coordinator/workflow run grouping plus the shared orchestration worktree path.
Cast-proposal store	cast_proposals	Cast proposals with expiry, written via SQLite INSERT OR REPLACE upsert.

The operational database also owns schema bootstrap via a hand-rolled idempotent migration list (ALTER TABLE ... ADD COLUMN plus a duplicate-column catch). This mechanism is SQLite-specific and is replaced by EF migrations.

1b. EF Core entities (already provider-switchable)

These already flow through the Database:Provider switch and carry generated EF migrations. They are not the blocker — Postgres for this set is a config flip plus a Postgres migration set.

Entity	Data held
Decision	Promoted decisions and supersede chain.
DecisionInboxEntry	Decision inbox, unique (ProjectId, Slug).
AgentMemory	Per-agent memory by type.
SessionContext	Session summaries, unique (ProjectId, SessionId).
RunEventRecord	Durable run-event log, unique (RunId, Sequence) — also accessed via raw SQL (see §4).
OutcomeSpec	Coordinator outcome spec.
WorkPlan	Coordinator work plan; status/stage CAS target — extended for leasing (§3).
Subtask	Child subtasks; status pending→dispatched→running, child run id — extended for leasing (§3).
SubtaskDependency	Subtask DAG edges.
SteeringDirective	Queued/applied steering directives.
McpRefreshToken / McpRevokedJti / McpClientRegistration	MCP OAuth state with their respective unique keys.
OAuthState / McpPendingAuthorization / McpAuthorizationCode	Short-lived, replica-safe OAuth CSRF state and authorization codes.
WebSessionExchangeCode	Short-lived (60s), single-use one-time code issued at the OAuth callback to carry the session token to the browser without placing it in the redirect URL. Backed by Postgres so POST /api/auth/session/exchange can land on any replica.
WorkflowCheckpointRecord	Shared MAF workflow checkpoints (workflow_checkpoints), PK (store_name, session_id, checkpoint_id), jsonb payload. Postgres-only (model.Ignore<>()d on SQLite); replaces the per-pod file checkpoint store so both replicas: 2 share checkpoints with no exclusive lock (see the Agent Framework deep dive).

1c. Not a database (no migration)

Sandbox policy, workflows, and review policies are file-based under each project's .agentweaver/ directory; the projects table only names a preset. They need no Postgres work, but they do raise a separate multi-replica concern (workspace files belong on a shared/RWX volume), which the topology section addresses.

2. The six operational stores in one EF context

Under Postgres the operational stores are served behind the EF Core MemoryDbContext rather than the hand-written ADO.NET path, giving one provider switch, one connection story, one migration mechanism, one database. MemoryDbContext maps the migrated entities (RunRecord→runs, RunRevisionRecord→run_revisions, ProjectRecord→projects, BacklogTaskRecord→backlog_tasks, WorkflowRunRecord→workflow_runs, CastProposalRecord→cast_proposals) with explicit snake_case column names, and model.Ignore<>()s all six on non-Npgsql providers so the SQLite migration snapshot is unaffected. The rationale:

1. One provider switch. The EF context already routes sqlite/sqlserver/postgres. The raw operational path has no provider abstraction; keeping it as raw Npgsql would mean maintaining two dialects by hand indefinitely.
2. One migration mechanism. The bespoke ALTER TABLE bootstrap is replaced by EF migrations the team already operates for the memory database.
3. CAS already lives in EF. The coordinator assembly store already proves that a guarded ExecuteUpdateAsync(... .Where(Status == X)) delivers exactly-once CAS. Porting the runs and backlog_tasks claims to the same idiom is consistent, not novel.
4. Cross-store transactions stay trivial. The backlog claim spans backlog_tasks + runs in one transaction today. With both tables in one context and one database, it stays a single transaction; splitting them across two databases would require a distributed/two-phase hack.

The PostgreSQL path is implemented: operational stores, memory/orchestration entities, durable run events and workflow checkpoints use the shared database. The SQLite idiom table is migration/background guidance, not an outstanding staged-port plan. Changing providers alone does not transfer existing data; run the API once with Database:Provider=postgres and --migrate-data before cutover to idempotently copy supported SQLite state, including agent memory, decisions, decision inbox entries, session context, and their provenance, approval, status, supersession, linkage, tags, and timestamps.

SQLite idioms and their Postgres mapping

Postgres is strictly typed and MVCC-based, so several SQLite idioms do not translate directly:

SQLite idiom	Postgres / EF handling
Implicit autoincrement rowid	EF int key → integer GENERATED BY DEFAULT AS IDENTITY. App-generated string/GUID PKs stay text.
INSERT OR REPLACE (upsert)	INSERT ... ON CONFLICT (id) DO UPDATE. Semantics differ — OR REPLACE deletes+reinserts (fires cascades, resets defaults) whereas ON CONFLICT DO UPDATE updates in place. Audit FK/trigger side-effects before swapping.
INSERT OR IGNORE	INSERT ... ON CONFLICT (RunId, Sequence) DO NOTHING.
Dynamic typing (TEXT holds dates/bools/JSON)	Choose real column types (below).
Datetime stored as TEXT	timestamptz. The EF entities already use DateTimeOffset, which maps natively; backfill must parse the prior text format.
Boolean stored as INTEGER 0/1	boolean; backfill 0/1 → false/true.
JSON stored as TEXT	jsonb for queryable columns; text is fine for opaque blobs.
Partial unique indexes	Supported natively (CREATE UNIQUE INDEX ... WHERE ...; EF HasIndex().IsUnique().HasFilter(...)). These port cleanly.
Append-only via RAISE(ABORT) trigger	Postgres BEFORE UPDATE/DELETE ... RAISE EXCEPTION trigger (or REVOKE UPDATE,DELETE). Not expressible in the EF model — add as raw SQL in the migration.
PRAGMA journal_mode=WAL, busy_timeout, foreign_keys=ON, shared-cache	All vanish. Postgres is WAL-native and MVCC; FKs are always enforced; use lock_timeout/statement_timeout if needed.
ALTER TABLE ADD COLUMN idempotent bootstrap	Replaced by EF migrations applied at deploy time (§5).

3. Leasing schema additions

These columns describe run leases. Coordinator plan ownership also exists, using WorkPlan.CoordinatorPodId and UpdatedAt: CAS acquisition protects a fresh owner, heartbeat renews ownership, and loss to a peer fences the dispatch loop. The separate per-subtask fencing/idempotency schema below remains design guidance.

3a. Lease / ownership columns

Column	Type	Purpose
owner_id	text NULL	The replica/worker currently holding the item (e.g. pod name/GUID). NULL = free.
lease_expires_at	timestamptz NULL	Lease deadline; an expired lease is reclaimable by any replica even if owner_id is set (crash recovery).
heartbeat_at	timestamptz NULL	Last liveness stamp from the owner; drives cross-replica stall detection.
fencing_token	bigint NOT NULL DEFAULT 0	Monotonic token bumped on every acquisition. The lease store checks owner and fencing token for renewal/release and exposes an ownership check; consumers must explicitly use these guards, preventing a zombie owner from clobbering a re-leased item.
attempt	int NOT NULL DEFAULT 0	Acquisition/execution attempt counter; bounds retries.

3b. Idempotency for child dispatch (design target — not yet implemented)

Child-run dispatch should be exactly-once per (coordinator, subtask, attempt) so a re-leased coordinator does not double-spawn children. The intended design is a dispatch-idempotency table keyed on (coordinator_run_id, subtask_id, attempt) recording the resulting child_run_id, inserted in the same transaction that flips the subtask to dispatched; a duplicate insert (ON CONFLICT DO NOTHING) means "already dispatched — reuse the existing child." This table and its guard do not exist in the schema yet.

3c. Guarded CAS — implemented for runs/assembly/backlog; subtask dispatch outstanding

Three places already do DB-level CAS correctly:

• Run lease CAS — PostgresRunLeaseStore issues UPDATE runs SET owner_id=@me, lease_expires_at=@deadline, fencing_token=fencing_token+1, attempt=attempt+1 WHERE run_id=@id AND (owner_id IS NULL OR lease_expires_at < now()); the single winner sees rows > 0.
• Assembly CAS — UPDATE WorkPlans SET Status=Assembling WHERE Id=@id AND Status=AwaitingAssembly.
• Backlog claim CAS — UPDATE backlog_tasks SET state='claimed' ... WHERE state='ready' AND run_id IS NULL.

Do not confuse shipped plan-level coordinator ownership with a per-subtask dispatch-idempotency transaction. The following SQL is a proposed stronger contract, not the current schema, a migration, or an instruction to execute against production.

UPDATE Subtasks
   SET Status='dispatched', ChildRunId=@child, owner_id=@me,
       fencing_token=fencing_token+1, lease_expires_at=@deadline, UpdatedAt=now()
 WHERE Id=@id AND Status='pending'
   AND (owner_id IS NULL OR lease_expires_at < now());

The checked-in deployment already runs multiple replicas. Current plan ownership and heartbeat protections apply; evaluate the proposed per-subtask transaction separately rather than treating coordinator ownership as absent.

4. Run-event stream

Current implementation

The run-event stream is durable write-through plus shared-store cursor polling. The Postgres implementation is EfRunEventStream (registered as IRunEventStream when Database:Provider=postgres; the SQLite path remains separate). Each append writes to RunEvents before acknowledgement, and each subscriber reads rows after its cursor from the shared table. Source: apps/Agentweaver.Api/Program.cs:534, apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs:63, apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs:71, apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs:77, apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs:84.

Behavior	Contract	Source
Shared store append	WriteThroughAsync inserts a RunEventRecord with run id, sequence, event type, JSON payload, and timestamp.	EfRunEventStream.cs:114, EfRunEventStream.cs:150, EfRunEventStream.cs:159
Sequence safety	PostgreSQL appends take a per-run advisory transaction lock and allocate MAX(Sequence)+1 in a ReadCommitted transaction. Supported transient/conflict failures get at most four attempts. An explicit sequence is idempotent only for a matching event; conflicting content is rejected.	EfRunEventStream.cs:32, EfRunEventStream.cs:121, EfRunEventStream.cs:128, EfRunEventStream.cs:141, EfRunEventStream.cs:163
Cross-replica subscribe	SubscribeAsync loads rows where RunId matches and Sequence > lastSeen, orders by sequence, and polls every 250 ms when no row is available.	EfRunEventStream.cs:33, EfRunEventStream.cs:77, EfRunEventStream.cs:96, EfRunEventStream.cs:180
Local mirror	RunStreamEntry.RecordNext / Record still keep local history, but each append mirrors into IRunEventStream through PersistBestEffort.	RunStreamStore.cs:87, RunStreamStore.cs:98, RunStreamStore.cs:106, RunStreamStore.cs:115, RunStreamStore.cs:164
SSE fallback	A replica without a local entry streams from IRunEventStream.SubscribeAsync using the Last-Event-ID cursor.	RunEndpoints.cs:416, RunEndpoints.cs:423, RunEndpoints.cs:429, RunEndpoints.cs:431

This means cross-replica live watching is implemented without sticky sessions: any web replica can observe events written by another worker by polling the shared event table from its cursor. The test SubscribeAsync_TailsEventsWrittenByAnotherStreamInstance covers this by using two stream instances over the same database. Source: tests/Agentweaver.Tests/EfRunEventStreamTests.cs:27, tests/Agentweaver.Tests/EfRunEventStreamTests.cs:30, tests/Agentweaver.Tests/EfRunEventStreamTests.cs:37, tests/Agentweaver.Tests/EfRunEventStreamTests.cs:42.

Operational notes

• The polling floor is intentionally database-backed and payload-safe; it does not depend on process-local channels, LISTEN/NOTIFY, or an external bus. Source: apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs:15, apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs:77, apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs:96.
• Subscribers emit the full loaded replay batch before closing on a terminal event, preserving persisted diagnostics after that entry. Retryable coordinator.assembly_blocked does not itself close the stream.
• Terminal backfill still re-appends the full local history through IRunEventStream; duplicates are skipped by the stream implementation, so this reconciles missed best-effort mirrors. Source: apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:287, apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:296, apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:298, apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:301.

5. Deployment topology — web vs worker

Both tiers run from the same image, differentiated by the role flag App:Role (env App__Role, values web vs worker; resolved by AppRole and branched on in Program.cs). No second image is built or pushed.

Web tier

• Serves HTTP/auth/UI/MCP ingress and the SSE relay; keeps the gateway ingress rules and OAuth/secret config as today.
• The checked-in agentweaver-api and agentweaver-worker Deployments use the same image and start at two replicas with RollingUpdate. The worker sets App:Role=worker. API retains HTTP/auth/SSE and sandbox/preview control; shared heartbeat services still perform pickup/reconciliation. This is not an API-enqueue-only separation.
• Stateless once SQLite is gone → safe to scale 2..N. Autoscales on request load (HPA on CPU and/or a request-rate metric).

Worker tier

• Claims runs via leasing (§3), runs the orchestration loop in-process, and dispatches per-run sandbox pods.
• API retains sandbox and preview responsibilities and their permissions. Removing sandbox RBAC or workspace access would require an explicit product change, not merely a deployment-role setting.
• Autoscales on run/queue depth, not CPU. The preferred mechanism is a KEDA PostgreSQL scaler querying unleased/queued run depth (roughly SELECT count(*) FROM runs WHERE state='queued' AND lease IS NULL), with scale-to-min (never zero — workers must keep leasing and draining). If KEDA is unavailable, fall back to an HPA on a "queued runs" custom metric exported via the existing OTEL/Prometheus path.

Disruption and graceful drain

The worker PDB uses minAvailable: 1. A 30-second preStop delay and 120-second termination grace are configured. The five-minute run lease TTL exceeds that grace period; orderly shutdown and lease-expiry recovery are distinct mechanisms.

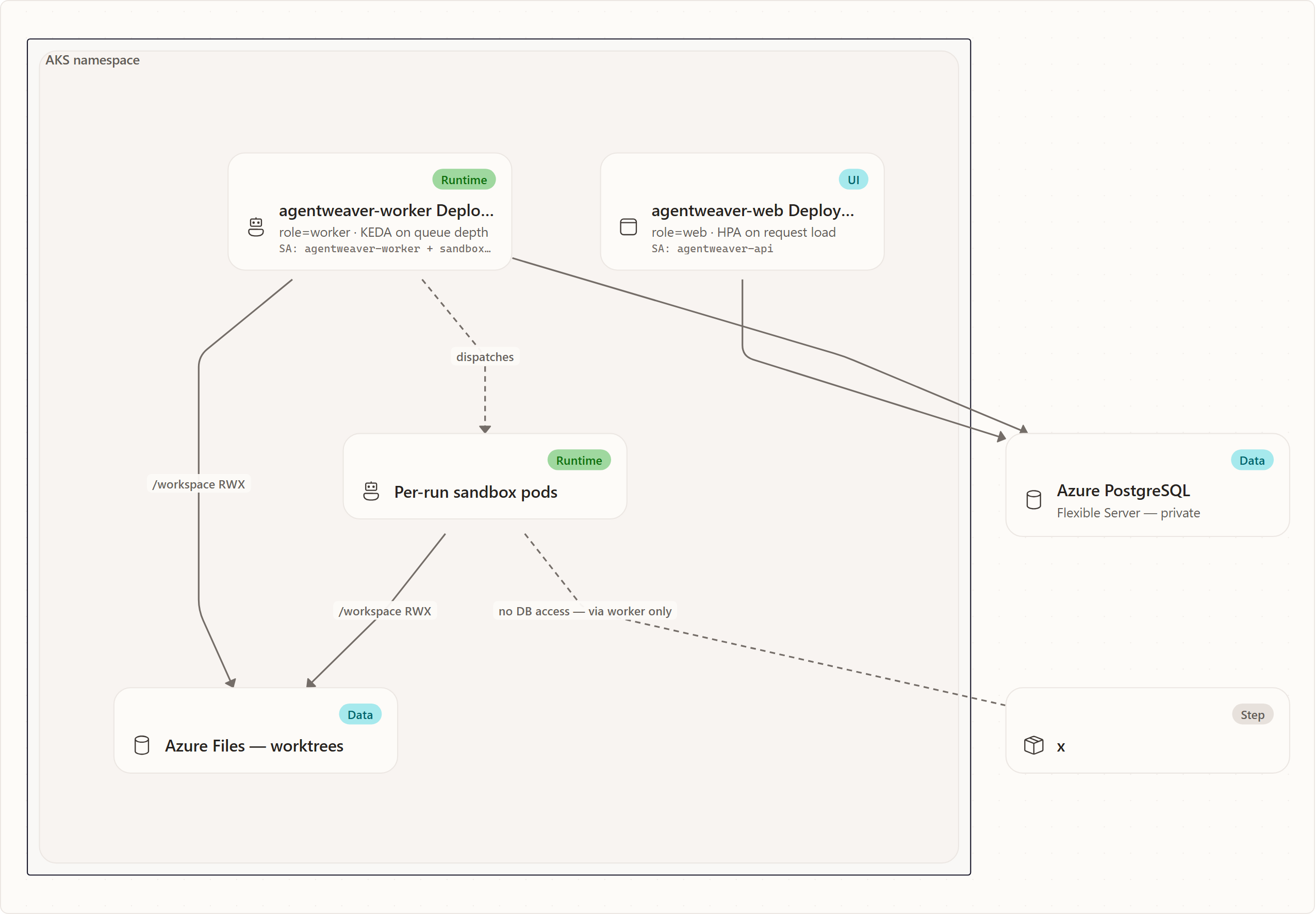

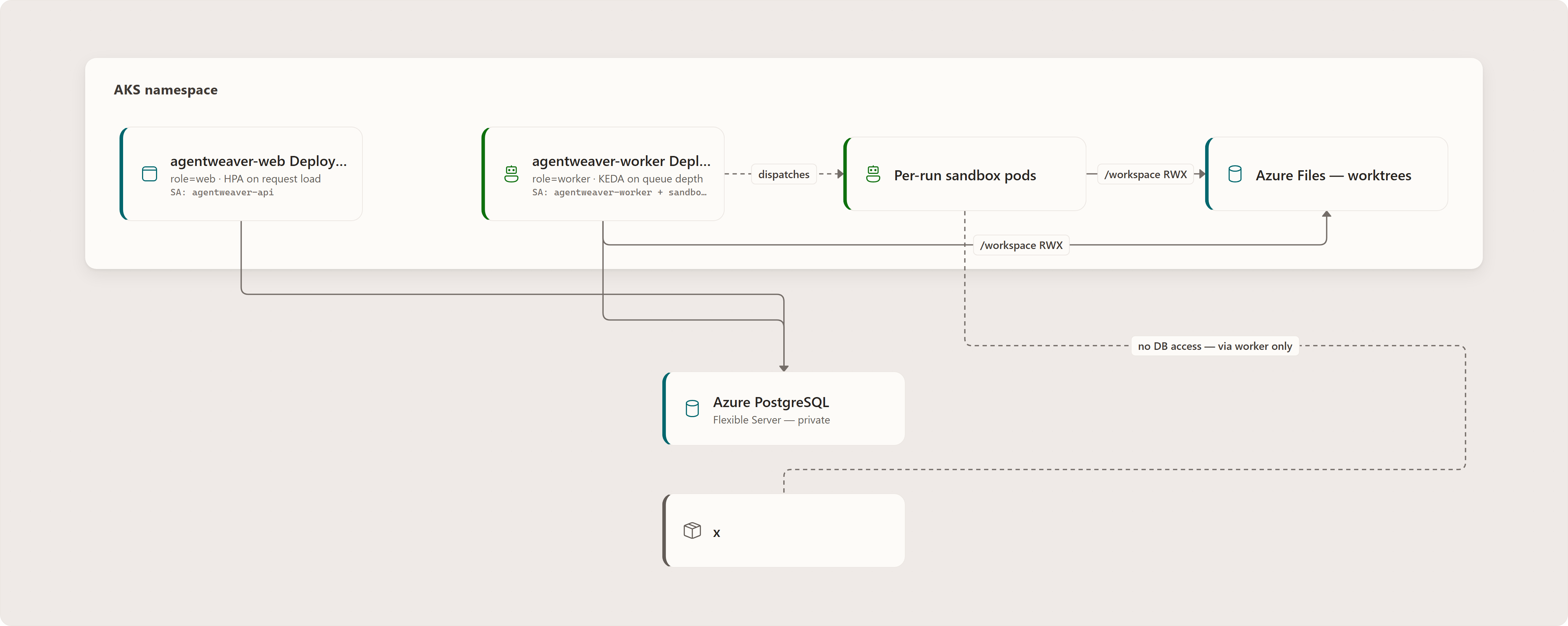

Volumes

API and worker no longer mount the SQLite data PVC. The agentweaver-data RWO claim remains as a rollback resource, not an active PostgreSQL dependency. Both retain the RWX Azure Files workspace at /workspace; worker HOME remains /workspace/.home. Implementation children execute in pod-local scratch and publish verified Git writeback to authoritative shared worktrees.

Sandbox pods do not connect directly to PostgreSQL. API and worker mediate durable state. Both can call AgentHost control/A2A endpoints; AgentHost tools call run-scoped API callbacks. API also retains preview and sandbox lifecycle responsibilities.

6. Provisioning & connectivity (Azure PostgreSQL Flexible Server)

The DB-side connection details are summarized here; the full platform runbook lives alongside the AKS deployment guide and infrastructure deep dive.

• Connectivity — private access via VNet integration (recommended). Inject the Flexible Server into a dedicated delegated subnet in the AKS VNet and reach it over a private IP with the privatelink.postgres.database.azure.com Private DNS zone linked to the VNet. This matches the cluster's "no public app surface" posture. A Private Endpoint is an acceptable alternative when VNet injection is blocked by subnet topology; public access plus firewall allowlists is not recommended for production.
• Passwordless Entra database authentication is migration guidance, not the current deployment contract. Provisioning generates an administrator password; API/worker consume the agentweaver-postgres Secret connection string. Passwordless authentication requires explicit provider/token-refresh and database-role work.
• High availability. Zone-redundant HA (primary + standby in different zones) on a General Purpose (or higher) tier, paired with zone-redundant backups and a 7–35 day point-in-time-restore retention window.
• Pooling. Front Postgres with PgBouncer or use Npgsql pooling for N replicas; the shipped run-event stream uses cursor polling against shared RunEvents, so it does not require session-mode LISTEN/NOTIFY connections.
• Migrations at deploy time. Apply EF migrations from an init container/migration job rather than EnsureCreated, so schema is versioned and replica startup is race-free. Generate a separate Postgres migrations set (the existing snapshots encode SQLite affinity and must not be run against Postgres) and select it by provider at runtime. With multiple replicas the init container runs per-pod; rely on EF's migration-history table for idempotency.

7. Configuration flags that gate the phases

Each phase is reversible via a flag defaulting to today's behavior:

Flag	Values (default)	Gates
Sandbox:AgentExecutionMode	in-api (default) / pod-per-run	P1 — pod-per-run activates agent execution in sandbox pods over the bridge; in-api is the instant rollback to in-process execution.
Sandbox:ReleasePodOnSuspend	true (default) / false	P1 tuning — release the pod when the graph suspends on a HITL gate or the coordinator idles; false keeps the pod warm for low-latency resume/debug.
Database:Provider	sqlite (default) / postgres	P2 — selects the EF provider. Selects persistence provider, without copying state. SQLite rollback requires an explicit restore/data plan and single-writer deployment; it does not preserve PostgreSQL leasing.
ConnectionStrings:MemoryDb / Database:ConnectionString	connection string	P2 — the Postgres connection (carries no secret under passwordless Entra auth).
App:Role	web (default) / worker	P3 — selects the deployment role from the shared image (env App__Role; unset = web).

8. Rollout sequencing

This is historical migration guidance, not an unshipped-feature checklist or a promise of flag-only reversal. Current manifests include PostgreSQL, two API/worker replicas, RollingUpdate, and worker HPA. Cutover and rollback require explicit state handling. Each step lands as reviewed YAML and scripts/azure edits applied through the existing render-and-apply pipeline — never an ad-hoc live patch. Cross-reference the scaling deep dive's phased rollout.

1. Provision Postgres (no app cutover) — VNet subnet delegation, Flexible Server with zone-redundant HA, Private DNS zone link, Entra admin + UAMI DB role. App still on SQLite. Rollback: none needed.
2. Identity wiring — add the worker SA federated credential (and a sandbox-runner SA if pods authenticate to the model with a projected token) and the DB role grant. Rollback: drop the federated credentials.
3. Provider switch behind the flag — ship the EF Postgres provider behind Database:Provider, run migrations against Postgres on a single replica first, backfill if required. Rollback: flip the provider flag to sqlite.
4. Drop /data PVC, enable RollingUpdate — once Postgres reads/writes are verified, remove the data PVC and mounts, set strategy: RollingUpdate, replicas: 2. Rollback: re-add the PVC + Recreate + provider=sqlite (back up first — this step is data-loss-aware).
5. Web/worker split — add the web and worker deployments (role flag), worker PDB, split SAs/RBAC. Rollback: scale workers to 0; Role selection and Sandbox:AgentExecutionMode are separate controls; scaling workers to zero is not a verified execution-topology rollback.
6. Autoscaling — add the web HPA and the worker KEDA ScaledObject (or HPA fallback). Rollback: delete them; fixed replicas remain.

The data backfill is greenfield by default: operational state (in-flight runs, event logs, backlog) is largely ephemeral, so a clean cutover is the recommended path. If history must be preserved, treat backfill as an explicit task with the type coercions from §2 (TEXT datetimes → timestamptz, INTEGER booleans → boolean, TEXT JSON → jsonb/text), re-created partial indexes, and the re-created append-only trigger on run_revisions.

Related reading

• Distributed execution & scaling deep dive — the concept-first scaling story.
• Scaling operations — the operator's view.
• Data & persistence deep dive — the durable domain model.
• Infrastructure & deployment deep dive
• Sandbox pod execution and the A2A bridge — where and how agent execution runs in pods.

The active worker HPA ranges from two to three replicas, targeting CPU 70% and memory 80%. Queue-depth KEDA and an API HPA remain guidance, not active resources in the checked-in manifests.

The PostgreSQL migrations assembly and init-container bundle path already exist. API/worker invoke efbundle --postgres-migrations; sequencing and backfill remain explicit deployment operations, not effects of a provider flag.

Diagram details and constraints

Element	Contract
title	Postgres is the event relay
subtitle	Any API replica can serve a cursor over durable RunEvents—no sticky session required.
group-title0	Write path · replica A
group-title1	Read path · replica B
Run producer	Run producer
Run producer	Append a structured event
Run producer	runId + type + payload
EF event stream	EF event stream
EF event stream	Serialize writes per run
EF event stream	pg_advisory_xact_lock
RunEvents	RunEvents
RunEvents	Shared PostgreSQL table
RunEvents	(RunId, Sequence)
Web / MCP watcher	Web / MCP watcher
Web / MCP watcher	Consume ordered events
Web / MCP watcher	last delivered cursor
SSE endpoint	SSE endpoint
SSE endpoint	Emit id + event + data
SSE endpoint	ordered response frames
EF subscriber	EF subscriber
EF subscriber	Read Sequence > cursor
EF subscriber	idle poll: 250 ms
e1	append
e2	commit
e3	ordered batch
e4	yield
e5	SSE frames
assurance-title	POSTGRES LANE ONLY
assurance-line1	SQLite register-channel / replay / tail is a separate implementation—not this architecture.
assurance-line2	Late-delta suppression is process-local; do not read it as a database-wide terminal fence.

Run producer	Input
Run producer	RunStreamEntry
Run producer	Identity
Run producer	runId + event type
Run producer	Body
Run producer	Structured payload
Run producer	Ack
Run producer	After durable commit
EF event stream	Lock
EF event stream	Per-run advisory lock
EF event stream	Next
EF event stream	MAX(Sequence) + 1
EF event stream	Write
EF event stream	Save transaction
EF event stream	Commit
EF event stream	Before acknowledgement
RunEvents	Table
RunEvents	Key
RunEvents	RunId + Sequence
RunEvents	Order
RunEvents	Ascending sequence
RunEvents	Reuse
RunEvents	Same type / payload
Web / MCP watcher	Client
Web / MCP watcher	Web or MCP
Web / MCP watcher	Resume
Web / MCP watcher	Last delivered cursor
Web / MCP watcher	Replica
Web / MCP watcher	No sticky requirement
Web / MCP watcher	History
Web / MCP watcher	Durable ordered events
SSE endpoint	Frame
SSE endpoint	id + event + data
SSE endpoint	Cursor
SSE endpoint	Last-Event-ID
SSE endpoint	Delivery
SSE endpoint	Yield ordered events
SSE endpoint	Close
SSE endpoint	After batch is drained
EF subscriber	Query
EF subscriber	Sequence > cursor
EF subscriber	Idle
EF subscriber	Poll after 250 ms
EF subscriber	State
EF subscriber	Shared durable table
EF subscriber	Blocked
EF subscriber	Retryable: keep open
producer	Coordinator or run execution; Acknowledgement follows commit
append	Allocate MAX(Sequence) + 1; Save and commit transaction
store	Cross-replica ordered history; Explicit duplicates must match payload
client	Reconnect from the cursor; No local channel dependency
sse	Cursor advances after delivery; Drain batch before terminal close
reader	Query the shared durable table; Retryable assembly_blocked stays open
notes	POSTGRES LANE ONLY; SQLite register-channel / replay / tail is a separate implementation—not this architecture.; Late-delta suppression is process-local; do not read it as a database-wide terminal fence.
groups	Write path · replica A; Read path · replica B

Diagram details and constraints

Element	Contract
title	Scale durable state, isolate execution
subtitle	Checked-in AKS topology, not a live-cluster observation or a future migration proposal.
platform-title	PLATFORM REPLICAS
platform-subtitle	Same application image / RollingUpdate
sandbox-title	PER-RUN KATA POD
sandbox-subtitle	AgentHost control + model-execution sidecar
API	API
API	HTTP / auth / SSE Sandbox + preview control
API	agentweaver-api
Worker	Worker
Worker	Runs / orchestration Validate + apply writeback
Worker	agentweaver-worker
AgentHost	AgentHost
AgentHost	One-time configure; A2A turns Returns prepared-writeback receipt
AgentHost	listener :8088
Pod-local checkout	Pod-local checkout
Pod-local checkout	Verified source commit + tree Model tools edit detached checkout
Pod-local checkout	/local-workspace
PostgreSQL	PostgreSQL
PostgreSQL	State / memory / events Checkpoints + leases
Azure Files	Azure Files
Azure Files	Shared repo + authoritative child worktrees
hpa-detail	HPA: CPU 70%, memory 80% Worker PDB: minAvailable 1
lease-detail	Run lease: 5 min; renew halfway. Plan ownership: CAS + heartbeat.
storage-label	SHARED PERSISTENCE
database-boundary	No sandbox DB connection.
writeback-title	VERIFIED PUBLICATION
writeback-detail	Temporary ref goes to the shared repo, not GitHub. Worker verifies receipt, then applies --ff-only. An unchanged tree produces a no-change receipt.
footer	SQLite RWO PVC is retained but unmounted. HPA is active; queue-depth KEDA remains guidance. Shared RWX storage is persistence, not a per-run isolation boundary.
database-access	state / leases
workspace-access	workspace
a2a-control	A2A
Pod-local checkout	execute
source-fetch	fetch
temp-ref	temp ref
