Onboarding and authentication experience

Agentweaver uses Microsoft Entra ID for browser sign-in. GitHub Apps provide separate capabilities after sign-in.

Scope: this page covers sign-in, setup readiness, GitHub capabilities, sign-out, and MCP authentication.

See also: Overview, Projects, MCP client experience, Authentication guide, MCP OAuth, and Auth & security deep dive.

Mental model

The web UI and MCP server identify each caller.

• The web UI uses Microsoft Entra ID.
• The MCP server accepts Agentweaver broker tokens for its exact MCP resource.
• The GitHub Copilot App provides model-provider access.
• The GitHub Repo App provides repository access.

Each protected action maps to one caller. Agentweaver applies platform roles and project assignments to that caller.

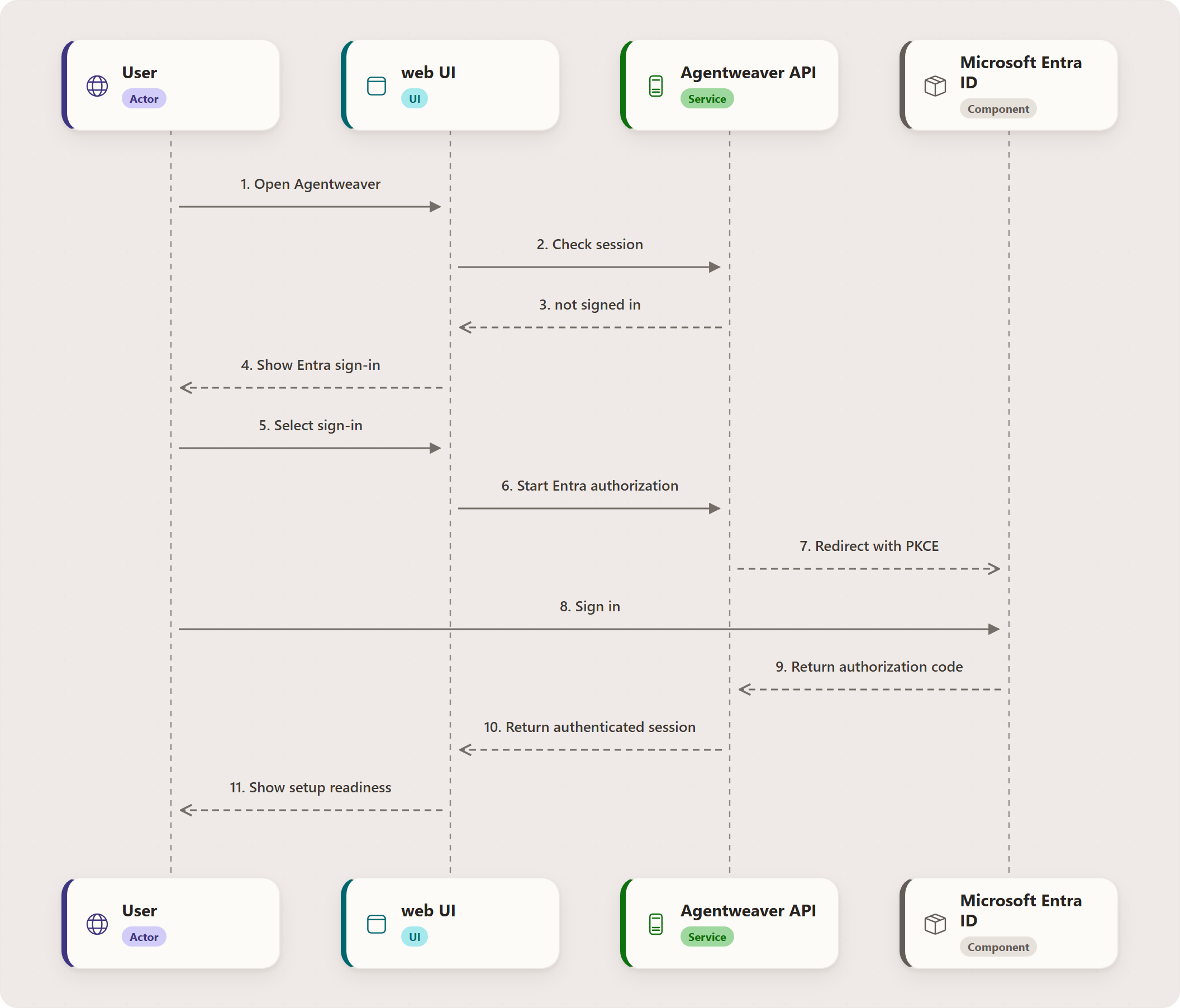

First-run web UI experience

Agentweaver checks the browser session before it shows the app shell. The loading state names this operation.

If no session exists, the page shows Sign in with Microsoft Entra ID. This action opens the configured Entra authorization endpoint.

The browser returns through /auth/entra/callback. Agentweaver keeps authorization details on the server.

For normal web sign-in, the callback returns a one-time exchange code to the frontend. The frontend redeems it through /api/auth/session/exchange, which issues the browser session. Entra's authorization code and the server-held PKCE verifier are a separate exchange with Microsoft; do not confuse either with an MCP broker token.

Setup readiness

A ready model provider is the first useful milestone. Agentweaver blocks AI work until this required row is ready.

A Platform Admin can authorize GitHub Copilot or activate a custom-key provider. Other users see Unavailable to you with recovery guidance.

• The completed row identifies the provider and its project or platform scope.
• Repository access is optional.
• Local agent work can continue without a GitHub repository.
• Pull-request publishing requires repository access.

During required setup, the Platform Admin can add and manage all supported model providers. The administrator must choose one active provider.

When the provider is ready, select Continue to Agentweaver. Agentweaver opens the app shell and starts a three-step product tour.

The tour introduces Projects, Sessions, and Start task. The administrator can skip the tour or press Escape. Agentweaver stores the completed tour for the signed-in user.

To start the tour again, open the settings menu and select Take product tour.

The setup pattern also shows loading, error, permission, and success states with text labels.

GitHub capabilities

The two GitHub Apps have separate purposes:

• GitHub Copilot supplies AI access.
• The Repo App supplies repository access.

Authorize GitHub Copilot from Platform settings or Project settings. The effective status identifies the provider and scope.

Connect the GitHub Repo App from Account settings, or authorize repository access from a repository action elsewhere in the product. Agentweaver returns to the current task after the browser handoff.

GitHub authorization does not replace Entra identity. It does not grant an Agentweaver role or project membership.

Signed-in shell

After required setup, Agentweaver shows the normal shell. The project gallery offers local and GitHub-backed project creation.

The blank-project path does not require repository access. The GitHub-backed path requests repository access before it loads repositories.

Sign-out

The signed-in account menu includes Sign out. This action ends the Agentweaver session and returns the browser to /.

Sign-out affects future authenticated calls. It does not retroactively cancel server-side runs that are already in progress; those runs continue according to their own run lifecycle and review state.

MCP client connection experience

An MCP client connects to Agentweaver either locally or over HTTP:

Client mode	What the user points at	What authenticates the call
Local STDIO	A command that starts the Agentweaver MCP app with --stdio	The process requires AGENTWEAVER_TOKEN to contain an Agentweaver broker token for the exact MCP resource and mcp:invoke; the API validates it again and enforces project authorization.
Hosted HTTP	The Agentweaver MCP URL ending in /mcp	Each request sends Authorization: Bearer <token> and the MCP server validates it before invoking tools.

For a hosted MCP client, the user experience is normally discovery-driven. The user adds the Agentweaver MCP server URL to the client. The client tries to call /mcp. If it has no bearer token, the server responds with 401 and a WWW-Authenticate challenge that points to OAuth Protected Resource metadata. The client fetches that metadata, learns the MCP resource and authorization server issuer, fetches Authorization Server metadata, then runs a PKCE authorization-code flow.

The OAuth-capable client may also dynamically register its redirect URI. Local native clients use literal loopback redirect URIs such as http://127.0.0.1:<port>/callback or http://[::1]:<port>/callback. Agentweaver rejects hostnames, fragments, and embedded user info. Hosted Claude connectors use the fixed public client ID agentweaver-claude instead of dynamic registration. That client accepts only https://claude.ai/api/mcp/auth_callback, has no secret, and requires S256 PKCE.

For loopback redirect URIs, registered URI matching ignores the port when the scheme, host, and path match. This follows RFC 8252: native clients often bind a fresh local port for each sign-in attempt. Token redemption still binds to the exact redirect URI used in the authorization request, so the authorization code cannot be moved to a different redirect target.

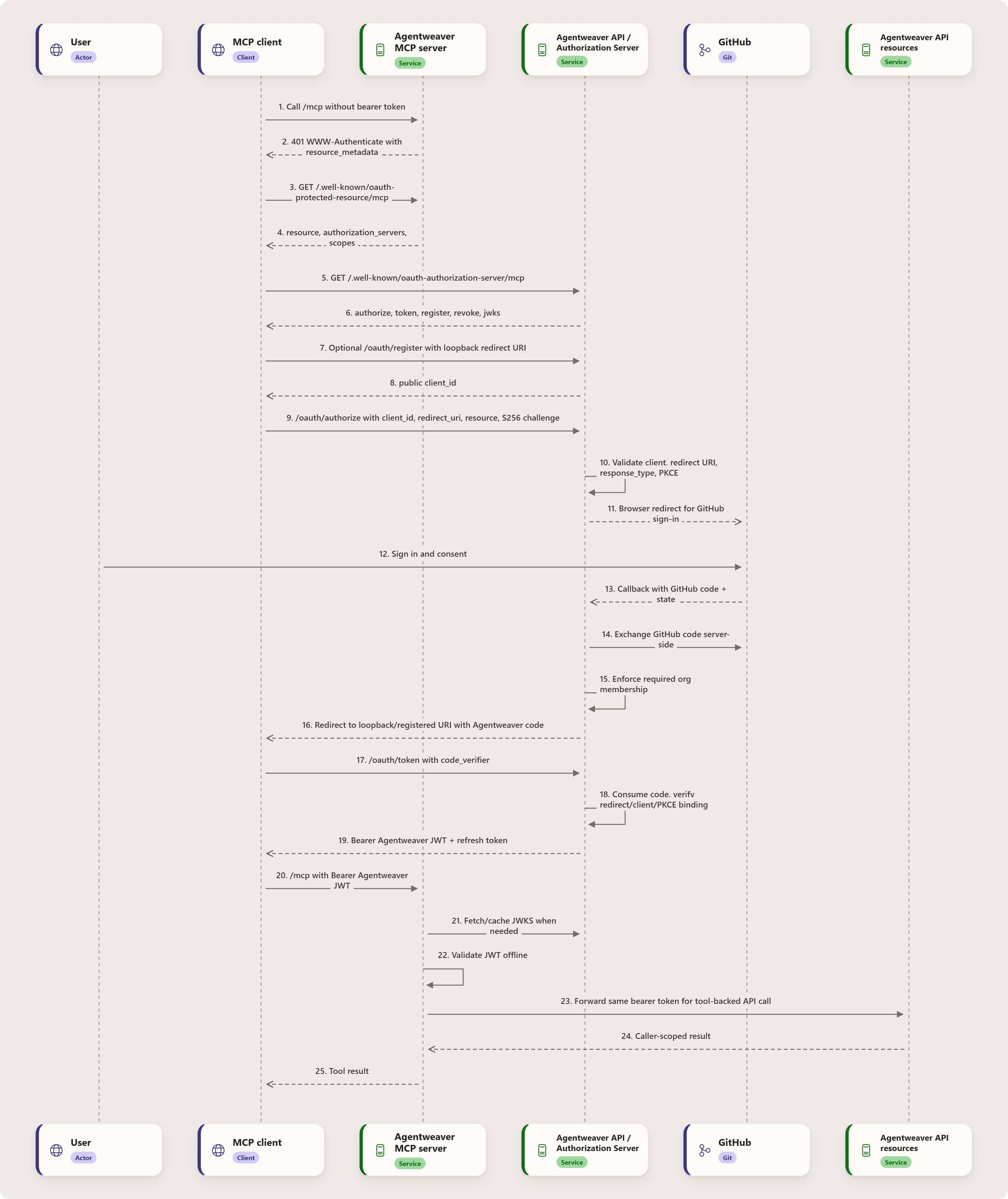

MCP OAuth and bearer-token flow

The MCP OAuth flow has four visible phases:

1. Discovery. The client learns that /mcp is protected, discovers the protected-resource metadata, then discovers Agentweaver's Authorization Server metadata and JWKS URI.
2. Sign-in and consent. The client opens /oauth/authorize in a browser. Without an Entra-backed browser session, the page offers sign-in through /auth/entra/authorize; the Entra callback resumes the saved request through /oauth/resume. Agentweaver then asks the human to approve the client's requested access. An existing consent can be reused unless the client requests consent again.
3. Token issuance. OpenIddict returns an authorization code to the client's validated redirect URI. The client redeems it at /oauth/token with its PKCE verifier, the same redirect URI, and the exact MCP resource. An approved offline_access request enables refresh tokens. Denial returns an OAuth error, not access.
4. Tool use. The client calls /mcp with Authorization: Bearer <Agentweaver JWT>. The MCP server validates the JWT offline using JWKS, then forwards the same bearer token to the API during tool calls.

The broker JWT is signed with keyed RS256 and bound to the single exact <public-origin>/mcp audience. Its subject comes from the Entra browser identity, not a GitHub login. MCP uses OpenIddict discovery/JWKS validation, then checks the issuer, audience, signing key ID, algorithm, subject, and mcp:invoke scope. The API independently validates the forwarded credential and enforces platform and project authorization.

Refresh tokens are opaque reference tokens managed by OpenIddict. Refresh-token family tracking and replay handling prevent a consumed or revoked grant from remaining a reusable credential. Clients should use their OAuth library's refresh flow, not copy tokens manually.

MCP broker-only acceptance

There is one public MCP credential class: an Agentweaver broker token for the exact resource and scope. There is no automation-key, raw-GitHub, or direct-Entra fallback.

• No token: 401 with protected-resource metadata and scope in the challenge, without an error.
• Invalid token: 401 with invalid_token.
• Valid broker token without mcp:invoke: 403 with insufficient_scope.
• Health and protected-resource discovery remain public.

HTTP tool calls forward only the validated broker token. STDIO has no inbound HTTP context, so it forwards AGENTWEAVER_TOKEN, which must itself be a broker token. It never falls back to an API key.

Authentication is not authorization. Project endpoints apply the required Viewer, Contributor, or Owner role in addition to platform access. GitHub capability consent does not create those assignments, and a GitHub username is not an administrator grant. See apps/Agentweaver.Mcp/McpBrokerAuthenticationHandler.cs:67, apps/Agentweaver.Mcp/AgentweaverApiClient.cs:359, and apps/Agentweaver.Api/Security/ProjectAuthorization.cs:59.

GitHub capability tools in MCP

The MCP server exposes two explicit GitHub App capabilities for assistant-driven sessions. The Repo App is caller-scoped; the Copilot App is project-scoped and can only be connected by a Project Owner:

Tool	User-facing purpose	What the user sees
github_repo_app_connect	Start a Repo App browser handoff for the current caller.	An opaque transaction ID, browser URL, and expiry. Open the URL in a browser to continue GitHub authorization.
github_repo_app_authorization_status	Poll the caller's Repo App authorization.	A redacted lifecycle state and expiry; no token, installation, repository, or permission data.
github_repo_app_disconnect	Remove the caller's Repo App connection.	A de-privileging confirmation.
project_copilot_app_connect	Start a project-pinned Copilot App browser handoff.	An opaque transaction ID, browser URL, and expiry for an authorized Project Owner.
project_copilot_app_authorization_status	Poll the project's Copilot App authorization.	A redacted lifecycle state and expiry, scoped to the initiating caller and project.
project_copilot_app_disconnect	Remove a project's Copilot App connection.	A de-privileging confirmation for an authorized Project Owner.
project_github_capability_status	Inspect unattended GitHub readiness for a project.	Server-derived, redacted capability readiness only.

Before GitHub-backed work, an agent calls github_repo_app_connect, asks the user to open the returned browser URL, then polls github_repo_app_authorization_status. The API transfers the callback cookie directly to the browser through a one-time opaque handoff; OAuth state, callback cookies, tokens, installation details, repository data, and permissions never enter MCP output.

For unattended project work, a Project Owner repeats that browser flow with project_copilot_app_connect, polls its authorization status, and checks project_github_capability_status. Disconnect tools intentionally remove authority rather than exposing or transferring it.

Troubleshooting and edge cases

The web UI shows the sign-in page again

The startup gate shows the sign-in page when no valid Entra session exists. Select Sign in with Microsoft Entra ID.

The sign-in page shows an error

The page shows Entra callback and session errors near the sign-in action. Start a new sign-in attempt.

The GitHub project picker requires repository access

In Create project from GitHub, select Authorize repository access. If authorization fails to start, try the action again.

MCP client gets Bearer token required

The MCP client called hosted /mcp without a bearer token. OAuth-aware clients should follow the WWW-Authenticate challenge to protected-resource metadata, discover the Authorization Server, and run the OAuth flow. Stdio clients must be configured with an Agentweaver broker token.

MCP client gets invalid_token

The bearer token is not a valid Agentweaver broker token. Check the exact issuer and <public-origin>/mcp audience, keyed RS256 signature, lifetime, subject, and mcp:invoke scope. Raw Entra, GitHub, and API-key credentials are not accepted.

Local MCP redirect fails on loopback

Use a literal loopback HTTP redirect URI such as http://127.0.0.1:<port>/callback or http://[::1]:<port>/callback. The client must redeem the authorization code with the exact redirect URI from the authorization request.

Platform or project access is denied

Check the signed-in Entra account and its platform role or project assignment. Ask an authorized administrator or project owner to review access. Reconnecting GitHub cannot repair a missing Agentweaver role. A separate Repo App repository-access failure must be resolved through the GitHub capability connection and authorized repository selection.

Token expires during an MCP session

Agentweaver JWT access tokens last eight hours by default. OAuth-capable clients should use the refresh token grant to rotate the refresh token and receive a new access token. If refresh fails because the refresh token expired, was reused, was revoked, or no longer matches the client, reconnect the MCP client and repeat the OAuth consent flow.

GitHub capability handoffs expire

If the browser handoff expires before the user completes GitHub authorization, start a fresh Repo App or project Copilot App connection. The old opaque transaction cannot be reused.

Experience guardrails

• The web UI uses Microsoft Entra ID for human sign-in.
• GitHub Apps provide model-provider and repository capabilities only.
• The web UI never asks users to paste a GitHub token.
• GitHub client secrets and GitHub access-token exchanges happen server-side.
• Browser redirects carry one-time codes, not long-lived GitHub tokens.
• OAuth bootstrap and discovery routes are public because clients need them before they have a token.
• Web API calls use the authenticated browser session or supported Entra credentials; external MCP calls use broker tokens.
• MCP validates Agentweaver JWTs offline via JWKS, then forwards the caller's bearer token to the API.
• Platform roles and project assignments remain authoritative after broker authentication.
• Raw Entra tokens, GitHub tokens, and API keys are rejected at the public MCP boundary.

Humans sign in with Entra. They authorize each GitHub capability only when the current task requires it.

Diagram details and constraints

Element	Contract
title	Browser sign-in and readiness
takeaway	Entra establishes identity; AI readiness and optional GitHub capabilities remain separate.
group-title-0	BROWSER SIGN-IN
group-title-1	SESSION AND SETUP
Browser	Browser
Browser	Start Entra sign-in
Browser	/auth/entra/authorize
Browser	The API binds this request to expiring browser state.
Auth API	Auth API
Auth API	Save state and PKCE
Auth API	verifier + nonce
Auth API	The verifier stays server-side. Redirect carries a challenge.
Microsoft Entra	Microsoft Entra
Microsoft Entra	Authenticate identity
Microsoft Entra	code + state callback
Microsoft Entra	Not GitHub login; not repository authorization.
Ready app shell	Ready app shell
Ready app shell	Continue when ready
Ready app shell	platform access + AI
Ready app shell	GitHub Repo App access is optional for GitHub work.
Browser session	Browser session
Browser session	One-time code exchange
Browser session	session credential
Browser session	Frontend exchanges a code; no raw token in callback URL.
Callback checks	Callback checks
Callback checks	Consume state once
Callback checks	redeem code + verifier
Callback checks	Validate Entra response and bound browser callback.
e0	authorize
e1	redirect
e2	callback
e3	exchange
e4	setup check
note	Session identity does not grant repository access, provider readiness, or project membership.
n0	The API binds this request to expiring browser state.
n1	The verifier stays server-side. Redirect carries a challenge.
n2	Not GitHub login; not repository authorization.
n3	GitHub Repo App access is optional for GitHub work.
n4	Frontend exchanges a code; no raw token in callback URL.
n5	Validate Entra response and bound browser callback.
groups	BROWSER SIGN-IN; SESSION AND SETUP

Diagram details and constraints

Element	Contract
title	MCP uses broker credentials
takeaway	An Entra-backed consent flow issues the exact-resource credential accepted by MCP.
group-title-0	DISCOVERY AND HUMAN CONSENT
group-title-1	TOKEN AND RESOURCE ENFORCEMENT
MCP client	MCP client
MCP client	Discover resource/issuer
MCP client	401 challenge + metadata
MCP client	Use the advertised resource and authorization server.
Browser consent	Browser consent
Browser consent	Entra-backed session
Browser consent	/oauth/authorize + PKCE
Browser consent	Show client and requested access; Allow or Deny.
OpenIddict	OpenIddict
OpenIddict	Bind grant and code
OpenIddict	client / redirect / resource
OpenIddict	Existing consent may skip a prompt; denial is not success.
Authorized API	Authorized API
Authorized API	Enforce resource access
Authorized API	project role / membership
Authorized API	MCP forwards the validated bearer; API checks again.
MCP boundary	MCP boundary
MCP boundary	Validate broker token
MCP boundary	issuer + RS256 + lifetime
MCP boundary	Exact single audience, subject and mcp:invoke.
Token exchange	Token exchange
Token exchange	Code + verifier
Token exchange	/oauth/token
Token exchange	Returns Agentweaver token; not raw Entra or GitHub.
e0	open
e1	allow
e2	code grant
e3	tool bearer
e4	forward
note	Invalid/missing token: 401. Missing scope: 403. No API-key or raw Entra/GitHub fallback.
n0	Use the advertised resource and authorization server.
n1	Show client and requested access; Allow or Deny.
n2	Existing consent may skip a prompt; denial is not success.
n3	MCP forwards the validated bearer; API checks again.
n4	Exact single audience, subject and mcp:invoke.
n5	Returns Agentweaver token; not raw Entra or GitHub.
groups	DISCOVERY AND HUMAN CONSENT; TOKEN AND RESOURCE ENFORCEMENT
