Review, Workspace & Merge Experience

Agentweaver makes agent work reviewable before it becomes repository history. The web UI gives reviewers a file-by-file review surface, a read-only workspace browser, and explicit Commit and Merge, Change, and Decline actions; MCP exposes the same core artifacts and local repository operations through named tools. This page explains what users see, what each decision means, and why Agentweaver treats the reviewed tree hash as the boundary between proposed work and merged work.

Related docs: Overview, Runs & board, Coordinator & orchestration, Reviewing and Merging, Review & Merge deep dive, and Git Integration deep dive.

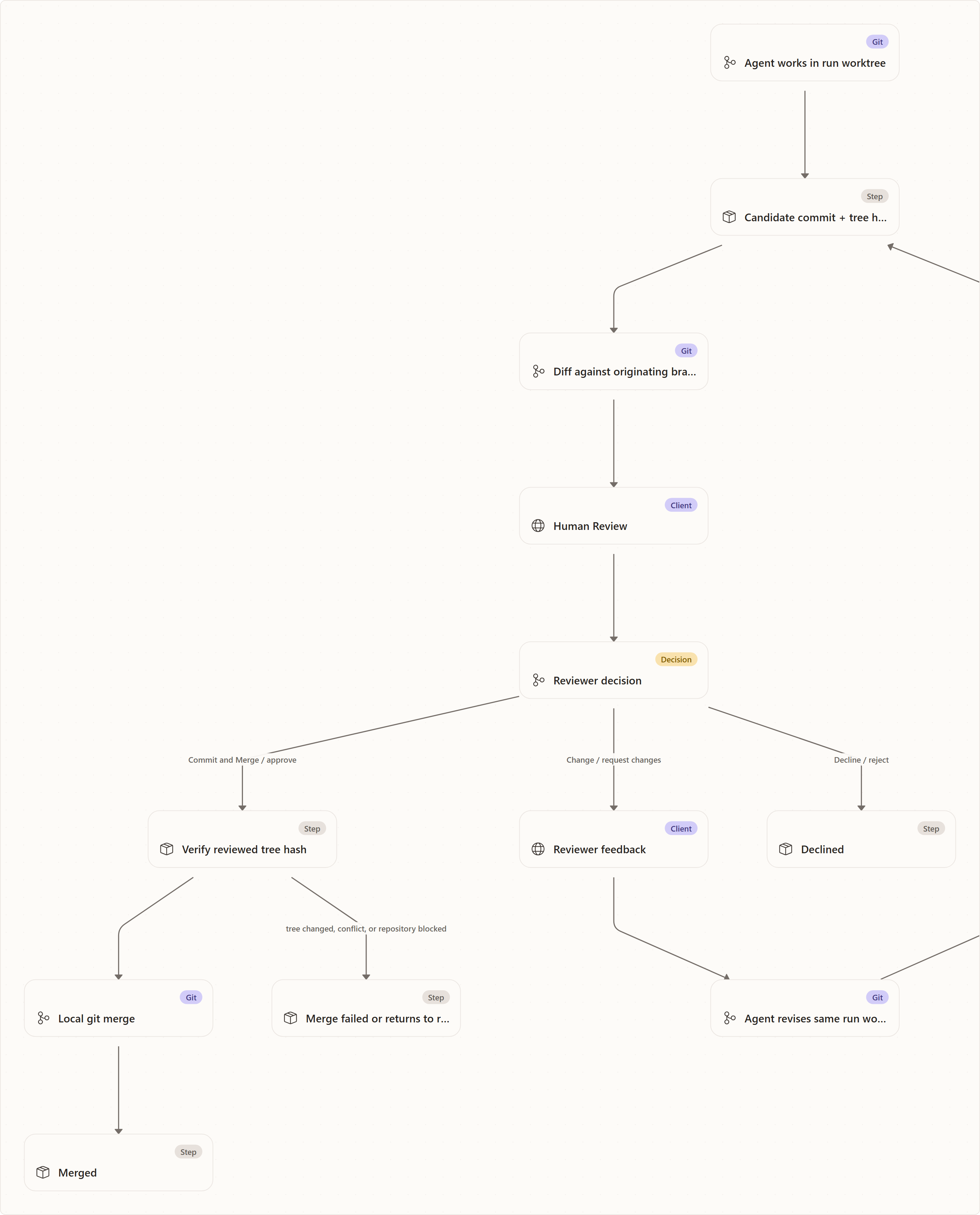

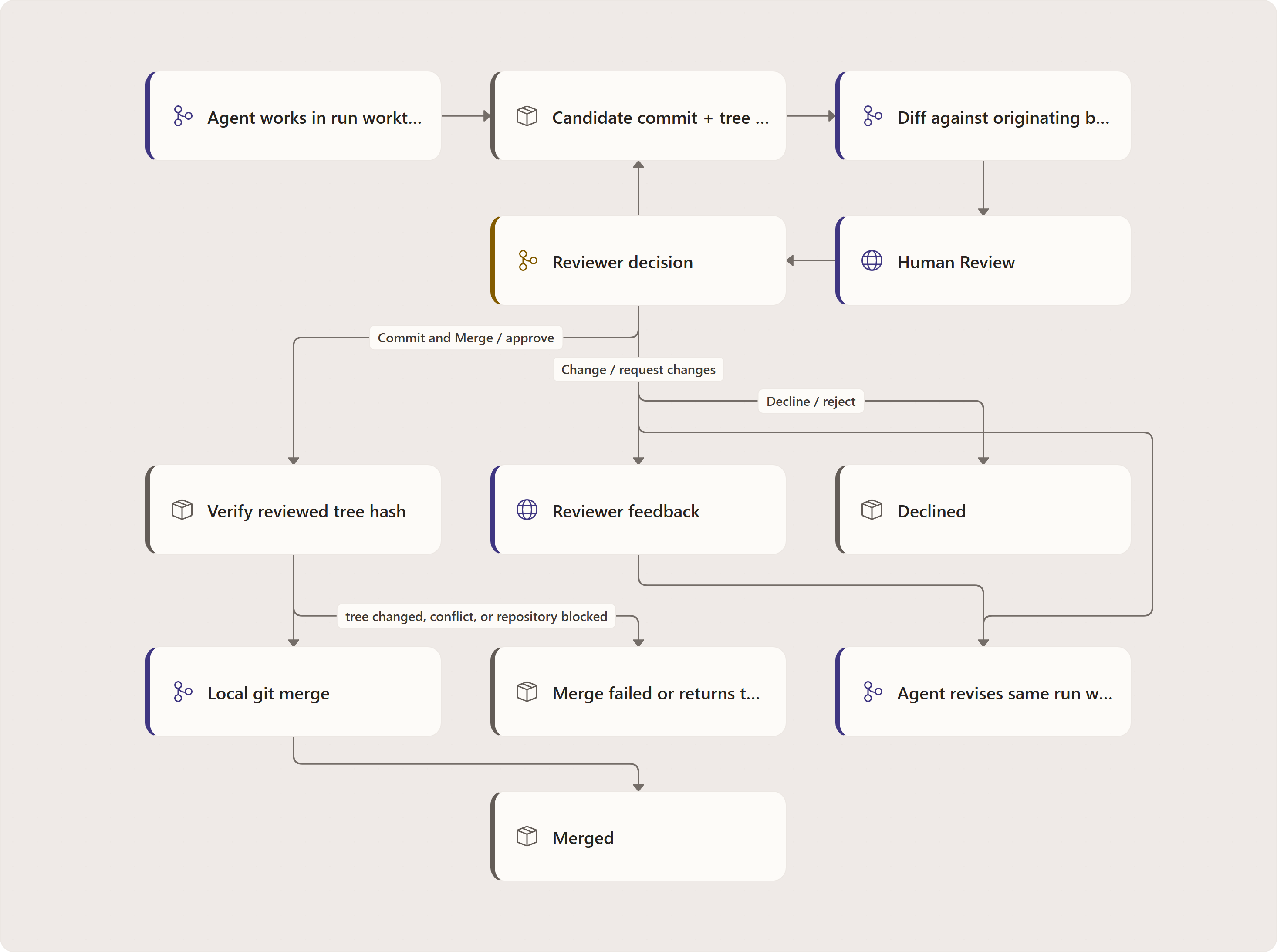

The mental model

A run is not a hidden edit to the project checkout. Agentweaver creates a run branch and worktree, lets the agent work there, commits the candidate result, computes a diff against the originating branch, and pauses at review. The reviewer sees the proposed tree, the changed files, and the run timeline before deciding whether the work should merge, revise, or stop.

The review surface is intentionally local-first. Agentweaver can complete review and merge without a remote, so blank projects and local-only repositories have the same experience as cloned projects. Pushing run branches and opening remote pull requests are out of scope; remote PRs can be useful outside Agentweaver, but they are not the authoritative review surface.

The most important product contract is: approval binds to candidate content, not just a mutable branch name. Merge checks that the candidate branch still matches the reviewed tree hash. This does not promise that the final destination tree equals the candidate tree: a three-way merge can preserve newer originating-branch content, and centrally consolidated Squad state has special merge handling.

Review-loop step	Web surface	MCP tool or limit
Check whether review is ready	Orchestration / selected-task timeline	run_status, run_watch
List candidate changes	Changes	run_show_artifacts
Inspect one changed file	File viewer Diff	run_get_file
Approve the candidate	Commit and Merge	run_review with approved: true
Ask for a revision	Change → feedback → Send	No feedback argument in run_review; use the web review action
Decline	Decline	run_review with approved: false

MCP is an authenticated client, not an independent reviewer identity or a bypass of the review gate. Its review tool is binary; it must not be presented as supporting the web feedback-bearing Change action.

Human Review in the web UI

When a normal run reaches Human Review, its status is awaiting_review; collective orchestration review also has a persisted work-plan in_review gate. Open the orchestration and its artifact or selected-task Agent session panel to inspect changes alongside the timeline. Standalone Workflow and Execution pages are retired.

The reviewer sees:

• a Changes tab with the changed-file list and line counts;
• a Files tab with the full run worktree browser;
• the proposed commit message when one is available;
• Commit and Merge, Change, and Decline controls while the run is awaiting review;
• processing spinners and inline errors when a review, request-changes, or merge action is in flight;
• result badges after an action is accepted, such as merged, declined, or changes_requested.

The review gate makes the candidate artifacts and review actions available in the orchestration context; a remote PR is not required.

Approve: Commit and Merge

Commit and Merge is the primary approval action in the web UI. It means: "I accept this candidate tree and authorize Agentweaver to merge it to the originating branch." Approval does not ask the agent to make more edits. It moves the run from review toward guarded local merge.

After Commit and Merge, the UI shows a pending state and updates as merge events arrive. Success integrates the approved candidate with the originating branch and reaches a merged state. A changed candidate hash or genuine merge conflict fails rather than letting an agent invent a conflict resolution. Destination-branch changes can still be part of the final merged tree.

Approval is a content decision. The merge executor still verifies the candidate tree hash, serializes repository updates, and checks that the run branch and originating branch are in a safe state. A reviewer approves the diff; Agentweaver proves the repository can accept it.

Request changes: Change

Change is the revision path. The reviewer clicks Change, types feedback into Describe what the agent should change, and clicks Send. Cancel closes the feedback box without changing the run.

A request-changes decision does not merge the current tree. Agentweaver records the feedback, marks the review step as revise, clears stale run-scoped approvals, abandons the paused review workflow, and starts a new revision cycle on the same run worktree. The agent receives the original task plus the reviewer feedback as untrusted review data and applies the requested changes in the existing worktree.

When the revision finishes, the run returns to Human Review with a new candidate tree and diff. The review bar appears again even if an earlier request-changes result is still visible in local UI state. The reviewer then makes a fresh decision on the revised output.

Reject: Decline

Decline is the terminal rejection path in the web UI. It means the reviewer does not want this run's current work to continue. The run becomes declined, the originating branch stays unchanged, and the reviewer should submit a new run if they want a different attempt.

Use Decline when the work is not worth revising in place, when the task is obsolete, or when the reviewer wants to discard the candidate. Use Change when the direction is right but the output needs specific fixes.

Reviewer lockout at the UX level

Producing a candidate and accepting a review decision are separate operations. The API authorizes the caller and consumes a pending review decision; a producer completing its task is not itself approval. Do not read this as proof of universal independent-human identity enforcement: an authorized MCP client can submit run_review. Collective assembly's rejected-author rotation is a different mechanism, described in resilient assembly review.

Agentweaver records the reviewer identity on review and merge-related transitions when it is known. The pending review request is consumed at most once, so a double click, replayed request, or competing client does not create two decisions. If one decision moves the run out of awaiting_review, later attempts see conflict-style behavior instead of racing the merge.

This is not a remote pull-request ownership model. Remote PR authorship and branch protection are outside this review surface.

MCP review tools

MCP clients use named tools instead of buttons, but the same run state is being inspected.

run_review

run_review submits a binary review decision for a run that is awaiting review:

• approved: true approves the run and sends it toward merge;
• approved: false rejects/declines the run.

The MCP tool is intentionally simple: it maps to approve or reject. The web Change flow is the feedback-bearing request-changes path; the current MCP run_review tool does not carry a reviewer comment or start the dedicated request-changes revision endpoint. For MCP-driven review, inspect artifacts first, then call run_review only when the decision is approve or reject.

run_status and run_watch

run_status shows the current state of a run, including whether it is awaiting review, merged, declined, failed, or merge-failed. run_watch streams progress and reports review-related transitions such as Run awaiting review. Together they let an MCP client know when the review gate is ready and when a decision has completed.

Artifact and diff experience

The Artifact Browser is the reviewer's file-focused lens on a run, reused in orchestration artifacts and selected-task inspection. Its two views are Changes and Files.

Changes tab

The Changes tab is the default review tab. It shows Branch Changes with total added and removed line counts, then a flat changed-file list. Each changed file row shows:

• the file name;
• added and removed line counts, such as +12 and -3;
• a status badge: A for added, M for modified, D for deleted;
• a status-colored icon: green for added, marigold/orange for modified, red for deleted.

Clicking a row opens the file viewer modal. For changed files, the modal defaults to Diff. Markdown files also offer Preview, so reviewers can inspect rendered documentation while still reviewing the exact diff.

The changed-file list is optimized for review. It answers: "What would this run add, modify, or delete on the originating branch?" The diff is computed against the originating branch, not merely against the last commit, so the reviewer sees the full candidate contribution.

Files tab

The Files tab shows the full run workspace tree. It is useful when the reviewer needs context around changed files: neighboring files, generated files, docs, or project structure. Folders expand and collapse in a tree. Files are sorted with folders first, and file icons reflect common file types such as Markdown, code, JSON, stylesheets, images, PDFs, lockfiles, and generic documents.

Clicking a file in Files opens the same file viewer modal, but unchanged files are treated as source/preview content rather than diffs. Markdown opens in rendered Preview by default; other files open as syntax-highlighted Source with line numbers.

File viewer modal

The modal is the focused reading surface. It opens at a large viewport size, has a Close button, and preserves the distinction between changed and unchanged files.

Changed files show:

• Diff for the patch view;
• Preview for Markdown content when available;
• Binary file — diff not available for binary changed files.

Unchanged or workspace files show:

• Source for syntax-highlighted file content;
• Preview for Markdown files;
• Binary file for binary content;
• File too large to display when the content endpoint reports that the file is too large for inline display.

This gives reviewers a practical path through common cases. Code changes are reviewed as diffs, documentation can be reviewed both as Markdown source and rendered output, and binary or oversized content is clearly identified instead of rendered incorrectly.

Large diffs and binary assets

Large diffs and binary assets are edge cases by design. Agentweaver does not pretend every file is readable inline.

For binary changed files, the diff viewer displays Binary file — diff not available. The file remains visible in the changed-file list with its added/modified/deleted status, so the reviewer knows the asset changed even though there is no textual patch.

For large source files in content view, the file viewer displays File too large to display. The reviewer can still use the changed-file metadata, the diff when available, the run timeline, and local repository tools to inspect the content outside the browser. The UI favors a truthful empty/too-large state over freezing the review surface.

No-change runs

A run can reach a review-related surface with no changed files. The Changes tab handles this explicitly. At a review gate, an empty list becomes: This run produced no changes to review. The UI adds that agents may have written output outside the repository or that there was nothing to change. In coordinator contexts, it can also list subtasks that produced no changes.

This is important because Agentweaver avoids empty candidate commits. A zero-diff run should not look like shipped work. The reviewer sees that there are no repository changes and can decide whether to decline, request changes through the web flow, or submit a new task.

Historical artifact state

After terminal states such as merged, declined, merge failed, or failed, the Artifact Browser treats the view as historical. It displays the artifact state at run completion and fixes the active filter to all changed files. This helps post-review inspection: the user is not editing the run, but they can still understand what was proposed or merged.

MCP artifact tools

MCP mirrors the artifact experience with two review-oriented tools.

run_show_artifacts

run_show_artifacts lists the files changed by a run. It is the MCP equivalent of opening the Changes tab. The response is the changed-file inventory: paths, statuses, and line-count metadata used by the UI to present added, modified, and deleted files.

Use it first when reviewing from an MCP client. It answers which files need attention before you fetch any individual content or diff.

run_get_file

run_get_file fetches one changed file by run id and path. It is the MCP equivalent of selecting a file in the Artifact Browser. For changed files, the response can include the diff and file metadata, including whether the file is binary. For content-oriented inspection, the related file content endpoints are what the web modal uses to show Source and Preview.

Paths are relative to the run workspace. The tool accepts normal workspace paths and encodes them safely for the API. Reviewers should pass the path exactly as returned by run_show_artifacts.

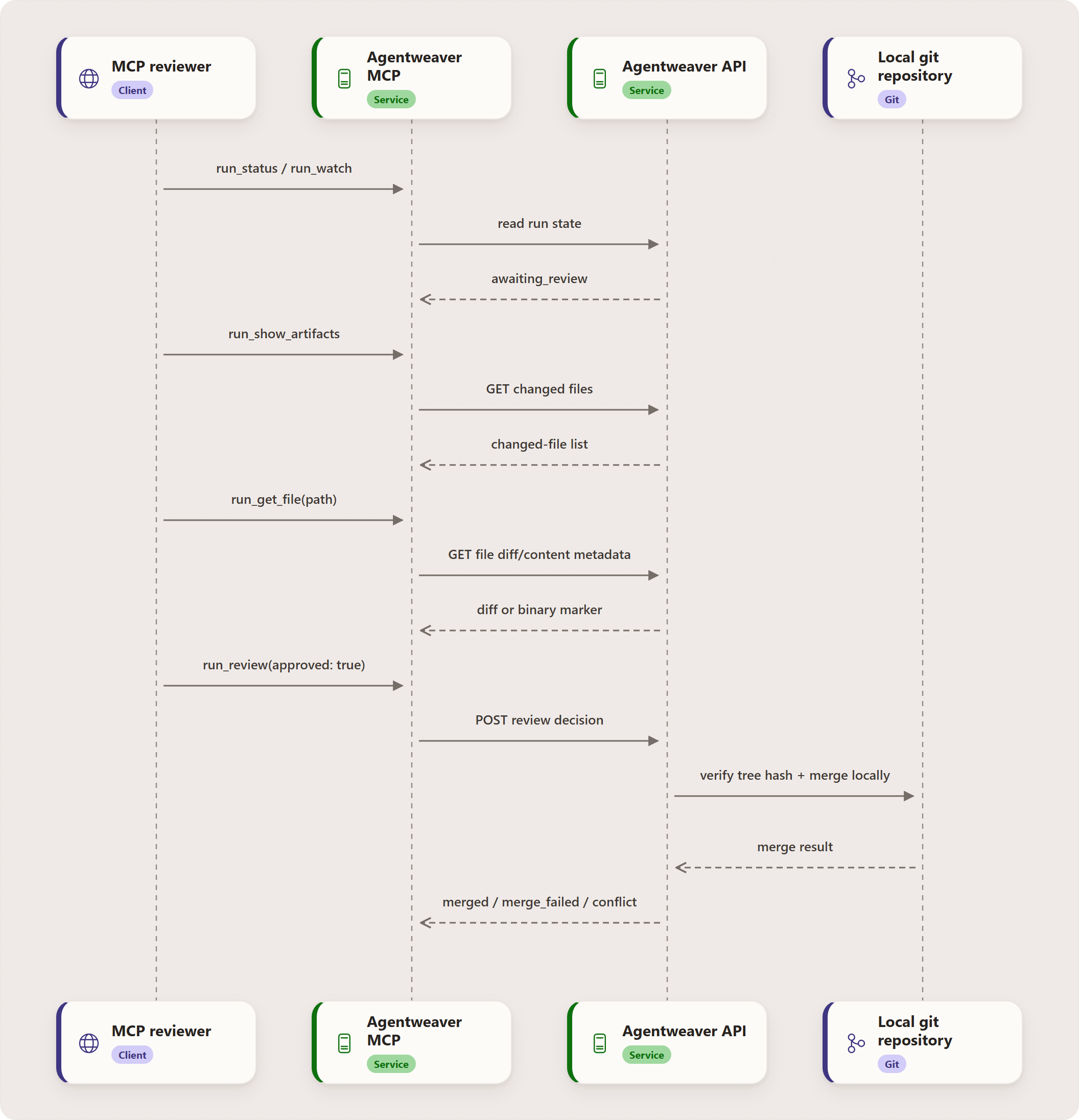

A typical MCP review loop is:

1. run_status or run_watch until the run is awaiting review.
2. run_show_artifacts to list changed files.
3. run_get_file for each file that needs detailed inspection.
4. run_review with approved: true to approve or approved: false to reject.

Use the reviewer loop and adjacent MCP mapping above for this sequence. Artifact inspection does not grant approval, and a binary rejection is not a request-changes message.

Workspace experience in the web UI

The Workspace page is a project-scoped, read-only file browser. It is not the review decision surface and it does not expose commit or merge controls. It exists so users can browse the project repository and active run worktrees without leaving Agentweaver.

The page header says Workspace and the subtitle explains the scope: Browse the project repository and active run worktrees, read-only. The breadcrumb leads from Projects to the project and then to Workspace. The toolbar shows the current branch with a branch icon and a Branch or worktree dropdown.

Open a project → Workspace (/projects/:projectId/workspace) to choose a ref, browse its tree, and read a file. The branch selector changes the read target; it neither checks out a branch for editing nor approves a merge.

The dropdown contains the base project ref and any browsable run worktrees or coordinator assembly refs. Non-base refs can show a run-status badge, such as running, dispatched, completed, merged, failed, merge_failed, blocked, or parked. Selecting a different ref reloads the file tree and clears the open file.

Browsing files

The Workspace page has two panes:

• the left pane is the file tree;
• the right pane is the read-only file viewer.

The tree uses the same underlying file-tree experience as the run Files tab. Folders expand and collapse. Selecting a file opens it in the right pane. If nothing is selected, the right pane says Select a file to view its contents. If the selected branch has no files, it says No files in this branch yet.

The file viewer uses the same Source and Preview behavior as the run file viewer. Markdown files can be rendered as preview; other text files are syntax-highlighted with line numbers; binary and oversized files display clear non-rendered states.

Import to backlog

When the selected workspace file is Markdown, the page shows Import to backlog. This is a workspace-specific action for turning a spec-like Markdown file into backlog items. It does not change the review or merge model. The file browser remains read-only with respect to repository content.

Workspace file picker

The WorkspaceFilePicker component is a smaller file-selection experience used where a dialog or form needs the user to pick a workspace file. It loads workspace files, shows Loading workspace files... while fetching, displays No files found in workspace. when empty, and shows Selected: path after the user picks a file. It shares the same read-only intent: choose a file, do not edit it.

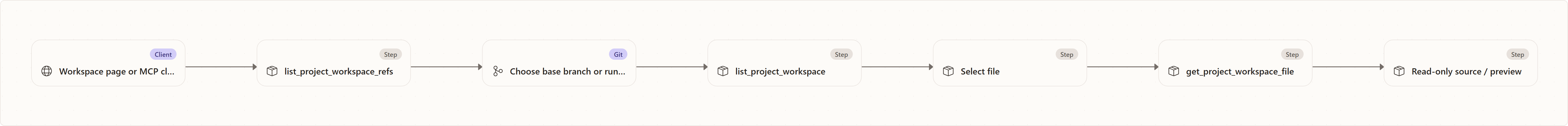

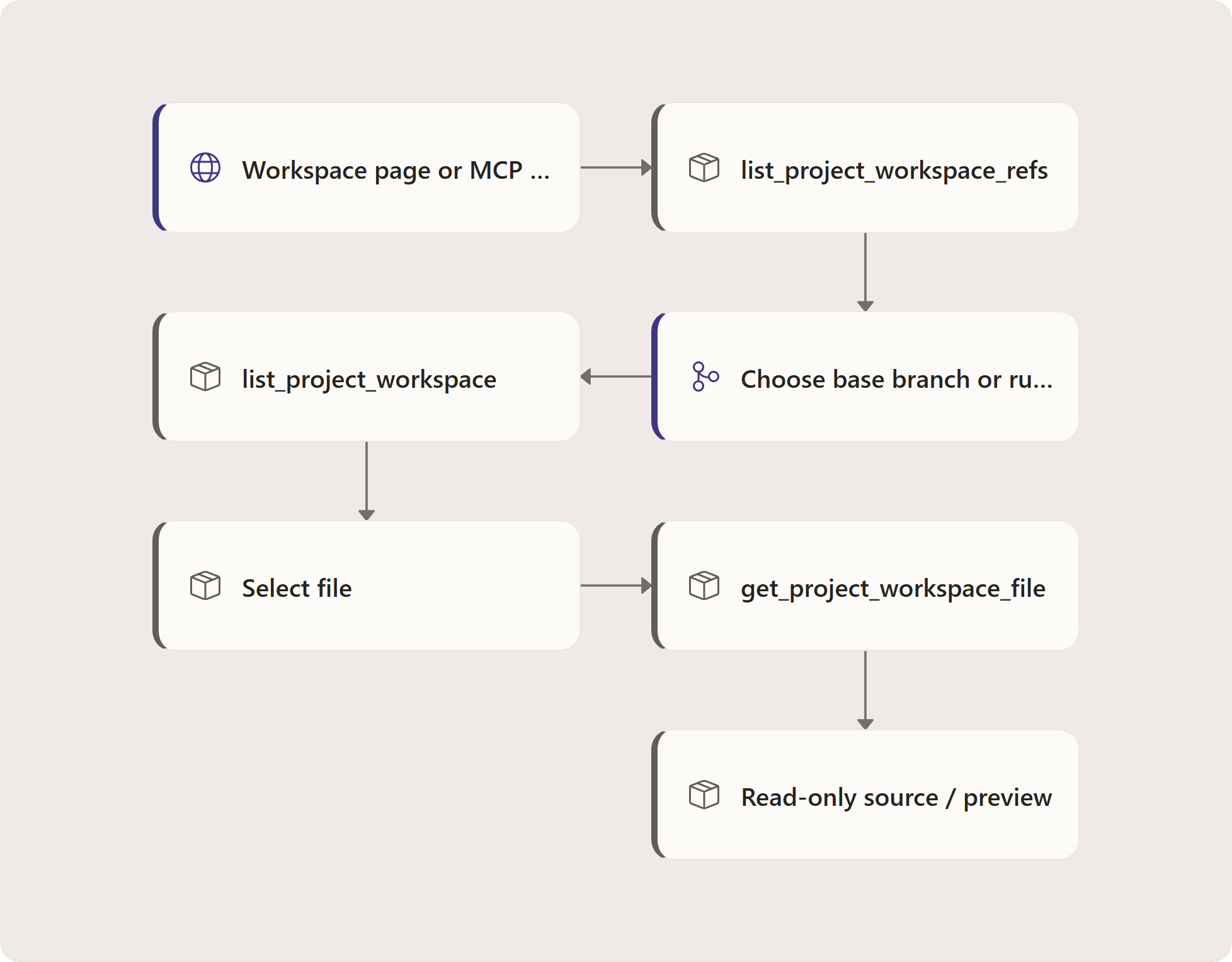

MCP workspace tools

MCP exposes the workspace browser as three tools. These tools are read-only and project-scoped.

list_project_workspace_refs

list_project_workspace_refs lists the browsable refs for a project workspace. The response includes the base branch and active run worktrees. This is the MCP equivalent of opening the Branch or worktree dropdown on the Workspace page.

Use it when you need to know what can be browsed: the current project branch, a run branch, or a worktree associated with an active run.

list_project_workspace

list_project_workspace lists the flat file tree for a project workspace at a given ref. If the ref is omitted, it defaults to the base branch. This is the MCP equivalent of loading the left file tree on the Workspace page.

The tool returns paths and file/folder metadata. MCP clients can use the flat list to construct a tree, search for likely files, or present a picker.

get_project_workspace_file

get_project_workspace_file returns the content of one file in a project workspace at a given ref. If the ref is omitted, it defaults to the base branch. This is the MCP equivalent of selecting a file in the Workspace page and reading it in the right pane.

The path is relative to the workspace and should use forward slashes, such as src/main.cs. The response includes content metadata, including binary or too-large signals, so an MCP client can avoid rendering content that is not suitable for inline display.

Merge experience

Merge starts only after approval. In the web UI, approval is Commit and Merge. In MCP, approval is run_review with approved: true. Both feed the same local merge model.

Agentweaver merges locally. It does not require a remote, does not push the run branch, and does not open a pull request. This is deliberate: the reviewed artifact is the local candidate tree hash and diff, and the merge target is the local originating branch. Local-first merge lets Agentweaver support blank repositories, local projects, and cloned projects with one review model.

The trade-off is plain: remote PRs are not the authoritative review surface in Agentweaver. If a team also wants a remote PR, that workflow belongs outside the current API boundary.

What merge checks

Before it advances the originating branch, Agentweaver checks the repository state. The merge path verifies that the run branch exists, the originating branch exists, and the run branch tree still equals the approved tree hash. It serializes repository updates so two approvals for the same repository do not race each other.

If the target can fast-forward, Agentweaver advances it directly; otherwise it computes a three-way merge. When the originating branch is checked out, eligible dirty tracked modifications can first be auto-committed. The merge then checks for active git operations, conflicted indexes, and unsafe collisions, and reconciles the working tree only when it can preserve content safely. When the originating branch is not checked out, a ref-only path updates that branch without changing the current checkout. Three-way merges preserve the originating side's centrally consolidated Squad bookkeeping where special handling applies (WorktreeManager.cs:1968, :2045).

Merge success

On success, the run reaches merged state. The originating branch contains the approved changes. Successful normal merges clean up the run worktree and branch, because the candidate content is now represented by the originating branch history.

The reviewer does not need a remote to complete this. A local blank project can be reviewed and merged end to end.

Merge conflicts and merge failed

If the originating branch has diverged and the candidate cannot be merged safely, the run becomes merge_failed with conflict information where available. The merge coordinator preserves the worktree on its conflict path, but terminal workflow cleanup can subsequently remove it; do not depend on an ephemeral worktree surviving every failure. Inspect recorded artifacts and diagnostics first. The reviewer approved a candidate, not an agent-authored conflict resolution.

A merge can also fail if the approved tree hash no longer matches the run branch. That protects against manual mutation of the worktree or branch after review. Approval is tied to the tree hash, so a changed candidate must go through review again.

Repository busy or interrupted merge

Repository updates are serialized. If another merge is already operating on the same repository, a merge can return a retriable conflict instead of racing. If the process is interrupted, recovery prefers a retryable review state when possible.

Re-review after requested changes

Requesting changes creates a new review loop, not a side comment on the old diff. The current candidate is rejected for merge, feedback is stored, and the same run worktree is reused for revision. The agent works from the existing files, applies feedback, and produces a new candidate commit and tree hash.

When the revised run returns to Human Review, the reviewer should treat it as a fresh decision:

1. Read the updated timeline to see what the agent changed.
2. Open Changes and review the new branch diff.
3. Use Files or Workspace when context is needed.
4. Click Commit and Merge if the revised tree is acceptable.
5. Click Change again if more targeted feedback is needed.
6. Click Decline if the run should stop.

Normal run revisions use the server's Runs:MaxRevisions cap (default 10); reaching it produces a conflict response. Collective coordinator assembly is different: human request-changes rounds are uncapped and reset the bounded autonomous steering budget. Each round still needs a new review of the revised candidate.

How to choose the right surface

Use the run review surface when deciding whether a candidate should merge. It has the changed-file list, diff modal, timeline, and review actions in one place.

Use the Workspace page for read-only context across the project repository or active run worktrees. Use MCP when the reviewer is an assistant, script, or terminal client that needs refs, workspace files, artifacts, diffs, and approve/reject decisions.

User goal	Web surface	MCP tool
See whether a run is waiting for review	Orchestration / Agent session timeline	run_status, run_watch
List changed files for a run	Changes tab	run_show_artifacts
Inspect one changed file	File viewer modal Diff	run_get_file
Browse the full run worktree	Files tab	list_project_workspace for a run ref, or run workspace-backed APIs
Browse project refs and worktrees	Workspace page dropdown	list_project_workspace_refs
Read a workspace file	Workspace file viewer	get_project_workspace_file
Approve and merge	Commit and Merge	run_review with approved: true
Request revision feedback	Change → Send	Web review action; current MCP run_review is binary
Reject the run	Decline	run_review with approved: false

Edge cases reviewers should expect

Large text files

The file viewer can decline to render very large file content inline and show File too large to display. Review the diff when available, use the changed-file metadata to understand scope, and inspect locally if necessary.

Binary assets

Binary files appear in the changed-file list with status and counts, but textual diffs are not available. The modal shows Binary file — diff not available for changed binaries and Binary file for source/content viewing.

Runs with no changes

The Changes tab says This run produced no changes to review. This usually means there was nothing to change or the agent wrote outside the repository. Agentweaver avoids empty commits, so no-change work is represented honestly.

Requested changes followed by another review

After Change → Send, the run goes back into progress and later returns to review. The reviewer should inspect the new diff, not rely on the old one. The new tree hash is the candidate that approval binds to.

Merge conflicts

A merge conflict turns approval into merge_failed. Inspect the recorded conflict and any retained artifacts before choosing recovery; worktree retention depends on the execution and cleanup path.

Tree hash mismatch

If the candidate branch changes after review, merge refuses it. The approved content identity no longer matches the branch. The safe path is another review over the new tree.

Summary

The REVIEW, WORKSPACE, and MERGE experiences are one local-first flow. Runs create candidate worktrees; reviewers inspect artifacts; workspace browsing provides read-only context; approval authorizes guarded integration of the candidate; request changes starts revision; rejection stops it. MCP provides inspection and binary approve/reject decisions, while the web UI provides feedback-bearing re-review. The former Changes, file-viewer, and Workspace screenshot embeds were placeholders and are omitted until genuine captures are available.

Diagram details and constraints

Element	Contract
title	Inspect, decide, then integrate
takeaway	Approval identifies a candidate; guarded local merge can also include target-side changes.
group-title-0	CANDIDATE AND REVIEW
group-title-1	SERVER-AUTHORITATIVE OUTCOMES
Run candidate	Run candidate
Run candidate	Worktree + recorded hash
Run candidate	files / changes / timeline
Run candidate	Inspect the actual candidate before submitting a decision.
Review decision	Review decision
Review decision	Authorized run reviewer
Review decision	approve / change / decline
Review decision	MCP run_review is binary; web supports feedback.
Guarded merge	Guarded merge
Guarded merge	Lock, CAS, hash check
Guarded merge	approved candidate identity
Guarded merge	Changed candidate fails checks; conflicts are visible.
Revised candidate	Revised candidate
Revised candidate	Feedback drives revision
Revised candidate	normal cap / collective rules
Revised candidate	A new candidate needs review; no automatic approval.
Declined / blocked	Declined / blocked
Declined / blocked	No successful integration
Declined / blocked	explicit outcome or reason
Declined / blocked	Decline, busy repository and merge conflict are distinct.
Merged history	Merged history
Merged history	Local destination updated
Merged history	three-way / ref-only merge
Merged history	Final tree may include newer target and special Squad state.
e0	inspect
e1	approve
e2	decline
e3	changes
e4	blocked
e5	guards pass
e6	re-review
note	Request changes produces the revised-candidate lane. Conflicts/busy/hash mismatch never imply merged.
n0	Inspect the actual candidate before submitting a decision.
n1	MCP run_review is binary; web supports feedback.
n2	Changed candidate fails checks; conflicts are visible.
n3	A new candidate needs review; no automatic approval.
n4	Decline, busy repository and merge conflict are distinct.
n5	Final tree may include newer target and special Squad state.
groups	CANDIDATE AND REVIEW; SERVER-AUTHORITATIVE OUTCOMES

Diagram details and constraints

Element	Contract
title	Browse a ref without changing it
takeaway	Select an allowed ref, inspect its tree, and read content through read-only operations.
group-title-0	CHOOSE THE REFERENCE
group-title-1	READ THE CONTENT
Workspace reader	Workspace reader
Workspace reader	Web page or MCP client
Workspace reader	authorized project access
Workspace reader	Browsing does not check out, edit, approve or merge.
Available refs	Available refs
Available refs	Base, run, assembly
Available refs	list_project_workspace_refs
Available refs	Only available allowed refs; default is the base branch.
Selected ref	Selected ref
Selected ref	Explicit browsing context
Selected ref	GET only
Selected ref	Changing ref clears the previous file selection.
Read-only content	Read-only content
Read-only content	Source / Markdown preview
Read-only content	binary / large / missing
Read-only content	Render supported content; surface truthful limitations.
Selected path	Selected path
Selected path	Relative file name
Selected path	get_project_workspace_file
Selected path	Pass both path and ref; invalid paths are rejected.
File tree	File tree
File tree	Paths at the selected ref
File tree	list_project_workspace
File tree	Choose a listed file; no working-tree mutation.
e0	list refs
e1	choose
e2	list tree
e3	select
e4	read
note	Unknown refs/files can return 404; invalid paths return 400. Ref browsing is not content approval.
n0	Browsing does not check out, edit, approve or merge.
n1	Only available allowed refs; default is the base branch.
n2	Changing ref clears the previous file selection.
n3	Render supported content; surface truthful limitations.
n4	Pass both path and ref; invalid paths are rejected.
n5	Choose a listed file; no working-tree mutation.
groups	CHOOSE THE REFERENCE; READ THE CONTENT
