Projects experience

Projects are the front door to Agentweaver. A project can start with local agent work and add repository access later.

Scope: this page covers creating, switching, summarizing, configuring, and deleting projects across the web UI and current MCP tools.

See also: Overview, Runs & board, Team & casting, Working with Projects, and Projects & Workspaces.

Mental model

An Agentweaver project is a durable container for agent work. A GitHub repository is optional.

• What am I working on? The project has a user-facing name and stable project id.
• Where is the repository? The project points at a working directory on the Agentweaver server, or at a server-managed workspace.
• Where did it come from? The origin is blank or GitHub.
• Which defaults apply? The project carries model provider settings plus blueprint-applied team, workflow, review, and sandbox choices.
• Can Agentweaver use it now? The available state reflects whether the workspace can be reached.

The project record and the workspace are separate. Renaming changes the record, not the repository path. Deleting removes the Agentweaver project record and run history from the app experience; repository files are treated as workspace state, not casually destroyed from the gallery.

Project Gallery

The Project Gallery is the landing page. The page title is Projects with the subtitle Your Agentweaver projects. It is where users scan work, create projects, and switch projects.

Open /projects to inspect the current gallery. Project cards reflect stored origin and workspace availability; they do not prove a live GitHub connection.

When projects exist, the toolbar shows:

• Create blank project
• Create from GitHub

Each project card shows:

• Project name
• A GitHub mark in the card header when the project's origin is GitHub (apps/web/src/pages/ProjectGalleryPage.tsx:855, :859). Hovering the mark shows Connected to GitHub: {owner}/{repo} when a source repository is recorded, or Connected to GitHub otherwise (ProjectGalleryPage.tsx:863). Blank projects show no mark.
• Source repository, when present
• Working directory path
• Availability badge
• Open action

The mark is a lightweight, at-a-glance signal that a card is backed by a real repository — it is driven purely by the project's stored origin (apps/web/src/api/types.ts:174) and source_repository (types.ts:175), not by live connectivity.

The availability badge is direct:

• Available means Agentweaver can access the working directory.
• Unavailable means the project record exists, but the local directory or mounted workspace is missing or inaccessible.

Unavailable projects remain visible so users can inspect the record and delete it if the workspace is no longer available.

Switching projects

Click Open on a card to enter that project. The user switches by choosing the visible card; Agentweaver routes by stable project id behind the scenes, so later renames do not change project identity.

Empty and auth states

If no projects exist, the gallery says:

No projects yet. Create one to get started.

The same Create blank project and Create from GitHub actions appear in the empty state, so first-run setup uses the normal creation flow.

If the Entra session expires, the gallery says:

Sign in with Microsoft Entra ID to see your projects.

The action is Sign in with Microsoft Entra ID. Project availability remains a separate workspace state.

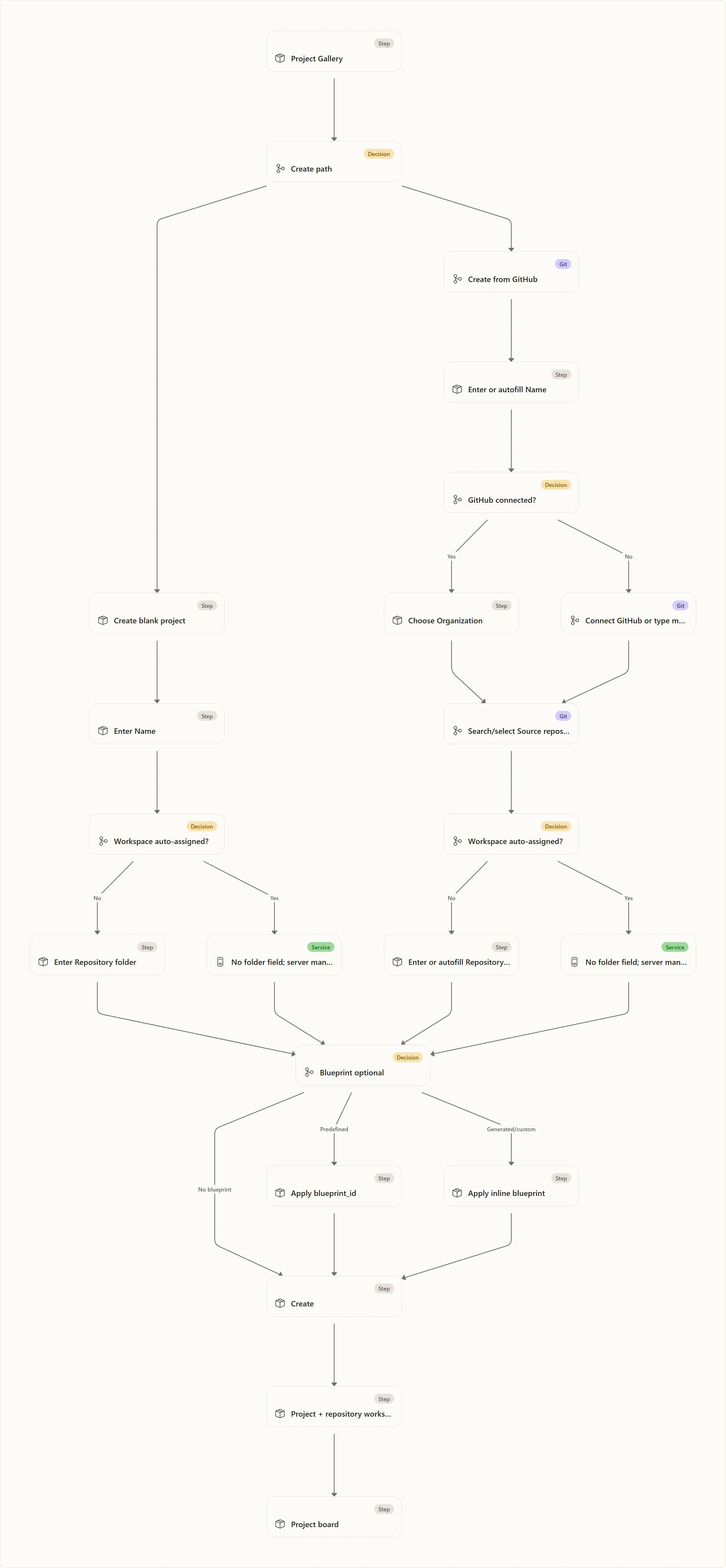

Creating a project in the web UI

Creation starts from the gallery. Users choose a blank repository or a GitHub-backed repository, then optionally apply a blueprint. Both dialogs now use the same shell: project and repository fields on the left, one shared Blueprint panel on the right, and a single footer No blueprint action for the empty-project path (apps/web/src/pages/ProjectGalleryPage.tsx:486, :532, :665, :815).

Create blank project

Create blank project starts a new Git repository under Agentweaver's control. The dialog title is Create blank project.

Required fields:

• Name with placeholder My project
• Repository folder, unless the workspace is auto-assigned

The Repository folder hint adapts to server mode. If the server has a data directory, the field asks for a folder name inside that directory and displays the directory prefix. If not, it asks for an absolute path to a Git repository on the machine running the Agentweaver server. If workspaces are auto-assigned, the field is hidden because the server controls the final workspace path.

The Create button enables only when required values are present. During submission it reads Creating and shows a spinner.

Creation is for a new controlled workspace. The target directory must be empty or not yet exist.

Create from GitHub

Create from GitHub clones a repository and records its GitHub origin. The dialog title is Create project from GitHub.

Required fields:

• Name
• Source repository
• Repository folder, unless the workspace is auto-assigned

Select a source available through your Repo App authorization. The paste field is explicitly labeled Paste a repository that the Repo App can access and offers Use repository; it is hidden when a connection is required (apps/web/src/pages/ProjectGalleryPage.tsx:707).

Before creating the project, the browser loads authorized repository selections, matches the selected repository, and issues a short-lived repository_selection_code. That code, not an arbitrary URL or repository identifier, is sent in the create request (ProjectGalleryPage.tsx:259-266). Pasting a name cannot bypass access.

If repository access is not ready, the dialog says:

Set up repository access to see your GitHub repositories.

The action is Authorize repository access. This access is required only for GitHub-backed creation and publishing.

Autofilled but overridable fields

Agentweaver speeds up setup without locking the user in.

For a blank project:

• Typing Name slugifies the name into the repository folder.
• If the user edits Repository folder, Agentweaver stops replacing it from the name.
• In auto-assigned workspace mode, the folder field is hidden; the server owns the final path.

For a GitHub project:

• Selecting a repository fills Source repository.
• If Name is empty, the repository slug becomes a title-cased project name.
• The repository slug fills Repository folder unless the user already edited that field.
• In auto-assigned workspace mode, the folder field is hidden and the final path is server-managed.

This makes the common path fast while preserving explicit control before Create.

Blueprints as the starting point

A blueprint is the fastest way to turn a repository into a working Agentweaver environment. It bundles:

• Team roster — the roles available in the project
• Workflows — one or more run flows Agentweaver can use; the first is the default (packages/Agentweaver.Squad/Model/Blueprint.cs:22, :31)
• Review policy — the gates that review or approve work
• Sandbox profile — the command and network posture for agent execution

Both creation dialogs share the same blueprint components and tab strip (apps/web/src/components/BlueprintPicker.tsx:559). Both dialogs now offer the same blueprint step: Templates (select an existing catalog blueprint) and Generate (describe a goal and generate a custom blueprint). The blank-project dialog shows exactly those two tabs and opens on Templates (apps/web/src/pages/ProjectGalleryPage.tsx:534; the panel selects the first tab in the list, BlueprintPicker.tsx:616). The GitHub dialog adds a repo-aware Suggested tab in front of them and opens on it (ProjectGalleryPage.tsx:817). The right column is height-bounded and scrolls internally, so long generated previews or template grids do not overlap the dialog footer (ProjectGalleryPage.tsx:106).

Suggested

Suggested appears in Create project from GitHub after a repository is selected. Agentweaver analyzes GitHub repository metadata, topics, languages, root files, and issues-enabled, then recommends a catalog blueprint. The tab stays focused on the single recommendation: rationale, roster chips, confidence, expandable signals, Use this blueprint, and links to Browse templates and Generate a custom blueprint (apps/web/src/components/BlueprintPicker.tsx:470, :521). Choosing either link switches to the corresponding tab, so the Suggested surface never dead-ends.

Templates

Templates lists predefined catalog blueprints. Each row shows the blueprint name, description, a workflow pill, and an agent count; hovering or focusing a row reveals the full roster and a summary line (apps/web/src/components/BlueprintPicker.tsx:313, :296). The summary line reads N agents · Workflow: X · Review: Y for a single-workflow blueprint, and switches to Workflows: a, b (with the row pill reading N workflows) when the blueprint bundles more than one — a blueprint can define one or many workflows, the first being the default (BlueprintPicker.tsx:268, :315). Templates is identical in the blank and GitHub dialogs via the same StarterTemplatesSection (BlueprintPicker.tsx:397). A View all templates → link from the Suggested tab switches here rather than acting as a dead link (BlueprintPicker.tsx:622).

Generate

Generate asks what Agentweaver should accomplish and calls POST /api/blueprints/generate (apps/web/src/api/client.ts:181). In the GitHub flow, the selected repository is passed as target_repository for grounding (apps/web/src/pages/ProjectGalleryPage.tsx:817, :820; client.ts:181). Generated blueprints configure the roster, workflow set, review policy, and sandbox posture the same way templates do; when generation succeeds, Agentweaver auto-selects the generated blueprint and shows a preview with a Generated badge (apps/web/src/components/BlueprintPicker.tsx:281, :447).

The same model exists in MCP: predefined blueprints are applied by blueprint_id; generated or custom blueprints are applied inline. A create request must provide blueprint_id or inline blueprint, not both.

MCP project creation and management

Use MCP when an agent or script needs to manage projects without the web UI.

For GitHub-backed MCP project creation, select a repository through the Repo App selection endpoints and call project_create with origin: "github" plus the resulting repository_selection_code. The code is short-lived, caller-bound, and single-use; repository URLs and identifiers are not accepted by project creation.

Project tools

Tool	User outcome
project_list	List all Agentweaver projects.
project_get	Get one project by id, including name, origin, working directory, provider settings, state, and availability.
project_create	Create a project with name, working directory, optional GitHub origin/selection code, and optional blueprint.
project_rename	Rename the project display name.
project_delete	Delete the project record.
project_configure	Configure default model provider settings.
project_list_runs	List all runs for a project.

Blueprint and catalog tools

Tool	User outcome
list_blueprints	List predefined blueprints, each with team roster, workflow, review policy, and sandbox profile.
validate_blueprint	Validate an inline blueprint object against schema and role constraints.
blueprint_generate	Generate a blueprint from a natural-language description of team and goals.
catalog_list_roles	List available agent roles from the catalog.
catalog_list_scenarios	List available casting scenario templates.

MCP create patterns

For a predefined blueprint:

1. Call list_blueprints.
2. Pick a blueprint id.
3. For a GitHub origin, obtain repository_selection_code; then call project_create with name, working_directory, origin, that code, and blueprint_id.

For a generated blueprint:

1. Call blueprint_generate with a natural-language description.
2. Inspect the returned blueprint and generated workflow YAML.
3. For a GitHub origin, obtain repository_selection_code; then call project_create with name, working_directory, origin, that code, inline blueprint, and generated_workflow_yaml.

For a custom inline blueprint:

1. Use catalog_list_roles and catalog_list_scenarios to understand available roles and patterns.
2. Build the inline blueprint.
3. Call validate_blueprint.
4. Call project_create with the inline blueprint.

The mutual exclusivity rule is intentional. If both blueprint_id and blueprint are supplied, Agentweaver rejects the request rather than guessing which starting point should win.

Opening a project and its Board

Clicking Open navigates to /projects/:projectId, the Dashboard. Board is a separate destination at /projects/:projectId/board (apps/web/src/App.tsx:103-108).

Use Board for intake and work requiring attention: Backlog, Ready, Active, and Done are the main lanes; Human Review and Problems are separate attention groups. Run inspection happens in the orchestration page and selected task's Agent session panel, not retired standalone Workflow or Execution pages. See Runs, board & watch.

Workspace availability is separate from these navigation choices. If the workspace cannot be reached, inspect the project record and Settings rather than assuming the record is gone.

Project Dashboard

The project Dashboard summarizes delivery metrics. The title is Dashboard and the subtitle is:

Delivery metrics and the agent leaderboard.

It refreshes every 30 seconds and includes Refresh. When data is loaded, the header shows the last updated time and a refresh countdown.

Summary cards show:

• Runs this week
• Active agents
• Active runs
• Runs total
• Tasks done (7d)

Use the range control to interpret throughput and usage in context rather than treating all metrics as fixed 30-day totals (apps/web/src/pages/DashboardPage.tsx:881). The throughput chart has Created and Done series. If there is no data, it says:

No throughput data yet.

The Agent leaderboard includes agent/role, run counts, success rate, duration, and AI credit usage (apps/web/src/pages/DashboardPage.tsx:1018). The UI defines success rate as:

Success rate = successful terminal runs / terminal runs (queued, waiting-review, and in-progress excluded).

If no agent activity exists, it says:

No agent activity yet.

The Agent name links into a filtered project flow view, so the dashboard works as both a summary and a path to investigation.

Project Settings

Project Settings changes the project record and project policies. The title is Project settings with subtitle:

Project configuration and pickup behavior.

Open /projects/:projectId/settings. Project settings include:

• General — project name, deployment AI source information, default run model, and generation models
• Access — project membership and platform-role context
• Repository — connect or create the project's GitHub repository
• Background — unattended readiness and activation controls
• Sandbox policy — command execution and reachability
• Danger Zone — irreversible project action

Other project controls include unattended readiness and preview policy. Model access is a prerequisite, not something enabled by typing a model ID. Preview approval and lifetime defaults are 1440 minutes (24 hours); inspect the actual project values rather than assuming a universal 30-minute expiry.

The selected section is deep-linked through the URL query.

General

Rename project

Rename project changes the display name only. It does not move the workspace, change the project id, or rewrite the repository. The field is Name, the action is Save, and success shows Project renamed.

MCP equivalent: project_rename.

Default model

Default run model includes a GitHub Copilot model field for Copilot-backed runs. Leave it blank to use the service default; the placeholder describes Auto (coordinator picks). This field does not select or authorize the deployment's AI provider. The AI source section points to Platform settings, while project generation overrides are separate fields (apps/web/src/pages/ProjectSettingsPage.tsx:920-1041). Success shows Model settings saved.

MCP equivalent: project_configure.

The MCP tool can set default_provider, both provider-specific default model fields, and the optional blueprint_generation_model, workflow_generation_model, and outcome_spec_generation_model overrides. Empty or null generation-model values inherit the global generation default. Invalid model IDs are rejected with the name of the invalid field.

Sandbox policy

Sandbox policy controls how agent commands execute and what they may reach. The section shows:

• Shell execution
• Sandbox enabled
• Outbound network
• Allowed repository roots
• Blocked command patterns

The action is Save and success shows Sandbox policy saved. Blueprint selection can set the initial sandbox posture; Settings is where users inspect and adjust it later.

Access, repository, and background work

Access shows project membership and Entra platform-role context. Platform roles are changed in Entra, not by granting GitHub capability consent.

Repository offers Set up repository access for a local project. Repository access is optional for local agent work and required for publishing to GitHub. Background shows unattended prerequisites and activation controls.

The current Settings rail does not include a Review policy tab (apps/web/src/pages/ProjectSettingsPage.tsx:159-196). Blueprints and workflow/review definitions still describe review behavior; inspect the actual run's gates in the orchestration view rather than looking for a retired settings panel.

Danger Zone

Danger Zone contains Delete project. The text says:

This action cannot be undone. The project and all its run history will be permanently removed.

The user must check I understand this is permanent before Delete project enables. While the action runs, the button reads Deleting.

MCP equivalent: project_delete.

Use delete for an unwanted or unavailable project record.

Edge cases

Project is unavailable

A project shows Unavailable when the workspace cannot be reached. On the board, Agentweaver tells the user the working directory may have moved or become inaccessible.

Recovery path: create a new project for the replacement workspace, or delete the unavailable project record if it is no longer needed. MCP path: call project_get to inspect the record and project_delete if it should be removed.

Repository moved after creation

Create a new project for the replacement workspace. The removed relink feature no longer changes a project record to point at a new server path.

Autofill chose the wrong folder

Before creation, edit Repository folder; Agentweaver stops overwriting it. After creation, create a new project if a different workspace is required.

GitHub repositories do not load

The dialog shows Retry for load failures. If repository access is missing, it shows Authorize repository access.

Blueprint load or generation fails

Creation can continue with No blueprint if predefined blueprints do not load. Generation errors appear inside the blueprint column. In MCP, use validate_blueprint before project_create for hand-built or modified inline blueprints.

Delete confirmation blocks the button

This is expected. Delete project stays disabled until I understand this is permanent is checked.

Choosing the right action

User intent	Web action	MCP tool
Start empty	Create blank project	project_create
Start from GitHub	Create from GitHub	github_repository_selections_list, github_repository_selection_issue, then project_create with the selection code
Apply a ready operating model	Select predefined Blueprint	list_blueprints, then project_create with blueprint_id
Generate an operating model	Generate blueprint	blueprint_generate, then project_create with inline blueprint
See projects	Project Gallery	project_list
Inspect one project	Open / project pages	project_get
Rename	Settings → Rename project	project_rename
Change model defaults	Settings → Default model	project_configure
See runs	Board Runs	project_list_runs
Remove project record	Danger Zone → Delete project	project_delete

Experience principles

Projects work when Agentweaver keeps three promises:

1. Make the repository boundary visible. Cards, settings, and MCP all surface the working directory or repository identity.
2. Expose unavailable records clearly. Unavailable projects stay visible so users can decide whether to recreate or delete them.
3. Start with an operating model. Blueprints make team roster, workflow, review policy, sandbox, and model defaults part of project setup instead of scattered follow-up tasks.

The result is a concrete project experience: named repositories with visible status, quick creation paths, visible workspace status, and repeatable defaults for every run.

See also

• Agent definition (User Guide) — best-effort, non-overwriting creation of a GitHub Copilot agent file.
