Review & Merge — Conceptual Deep Dive

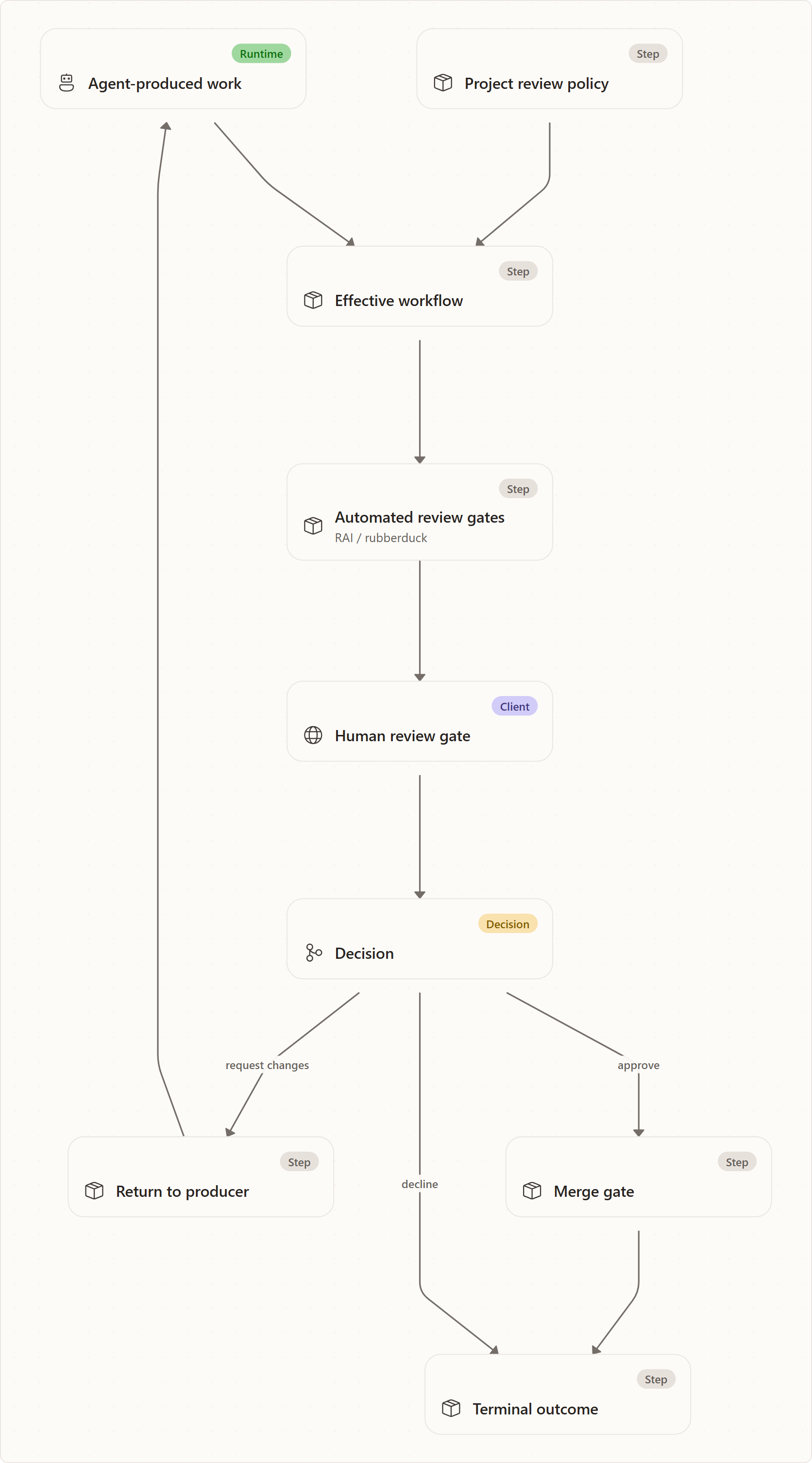

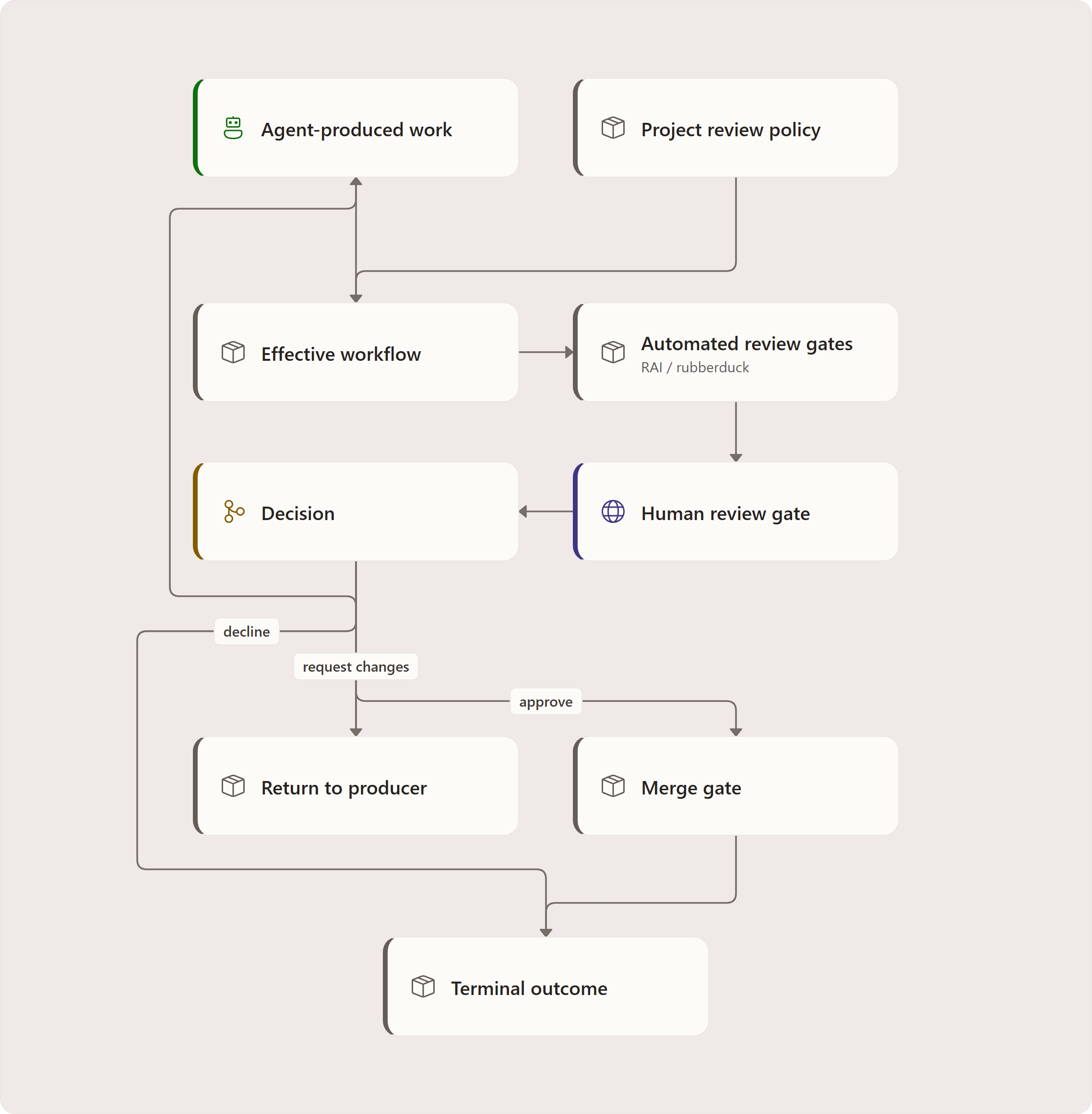

Purpose & Mental Model

Agentweaver's review and merge subsystem answers one product-defining question: how can agent-produced work move quickly while preserving human oversight at every irreversible step?

The design separates three concerns that are easy to accidentally blur:

1. Workflow declarations identify the review gates and their execution edges.
2. Review execution pauses a live run and waits for a decision.
3. Merge execution applies an already-reviewed tree to the target branch under repository and database guards.

That separation is the reason the system can support standalone runs, coordinator child runs, automated reviewers, human approval, request-changes loops, and collective assembly without every path inventing its own safety model.

A useful rebuilding rule is: review approves intent to proceed; merge proves the repository can actually accept the result. Approval and merge are related, but they are not the same operation.

Core Design Invariants

These invariants define the subsystem:

• No hidden merge path. Generated changes reach the target branch only through an explicit merge executor or coordinator assembly merge.
• Gates are durable pause points. A human review request is represented in run state and stream events, not only in an in-memory callback.
• Review decisions have arbitration guards. Pending review requests are consumed atomically and status transitions use compare-and-swap. Matching terminal replays can return the existing result; competing active decisions can return conflict. Live and deferred delivery have different ordering, described below.
• Request changes loops back to work. A reviewer can send feedback to the producer instead of choosing between blind approval and terminal rejection.
• Automated review is policy, not authority by itself. RAI and rubberduck gates can pass, request revision, or fail/route the graph, but the human-review gate is the explicit human-oversight point for irreversible actions in the default runtime path.
• Merge is repository-serialized. Even after approval, repository-level merge locks and run-status CAS guards prevent two merges from racing the same base checkout. PostgreSQL deployments use session advisory locks so this guard spans API replicas; SQLite/local development uses a process-wide semaphore.
• Coordinator children do not merge. Child runs produce assemble-ready branches. The parent coordinator assembles, reviews, merges, and records the integrated outcome.
• Fail closed on unbound workflow nodes. An unsupported executable node must fail binding rather than silently disappear.

Workflow-declared review gates

Review gates belong to the selected workflow definition. RunWorkflowFactory.ResolveEffectiveWorkflowAsync resolves the workflow and returns it unchanged; it does not load named project review-policy files or inject a policy overlay. Blueprint validation accepts only review_policy: default (apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:1495–1517; apps/Agentweaver.Api/Blueprints/BlueprintService.cs:111–115).

Relevant gate kinds include:

• RAI — Responsible AI review. It can pass, request revision, or fail safe on content-safety.
• Rubberduck — automated peer/sanity review. It can pass or request changes.
• Build & Test — automated verification of an applicable assembled code artifact.
• Human review — explicit human approval. It can approve, request changes, or decline.

The runtime binds declared nodes and edges to concrete executors. Compatibility adapters and historical comments mentioning policy-prefixed gates do not establish a configurable registry or composer. See Binding declarative nodes to runtime execution.

The lifecycle below describes a review-bearing standalone workflow, not a guarantee that every custom workflow declares the same gates. Coordinator children use a separate trimmed graph; their parent resolves applicable aggregate gates from its selected workflow.

Human and Automated Reviewers

Agentweaver treats automated and human reviewers as different kinds of gates with the same graph vocabulary.

Automated gates are executable reviewers:

• RAI runs through a Responsible AI reviewer agent and emits a verdict.
• Rubberduck runs through an AI critique reviewer and maps PASS to forward progress and REVISE to request changes.

Human gates are request ports:

• The workflow emits a review request containing the run id, tree hash, diff, step count, and RAI context.
• The watch loop persists the run as awaiting review and stores a pending request.
• The client submits approve, request-changes, or decline.
• The pending request is consumed once and the live workflow resumes on the selected edge.

The key distinction is accountability. Automated reviewers can help decide whether work is ready for a person, but human review is the point where a named user approves or rejects the irreversible action. The run records the reviewer on merge-related status transitions when that reviewer is known.

Single-Run Review Lifecycle

A standalone workflow with RAI, human review, and merge has the conceptual shape:

1. The agent produces a tree hash and diff in an isolated worktree.
2. RAI reviews the output.
3. A human-review request is emitted.
4. The run waits in awaiting_review.
5. The reviewer chooses approve, request changes, or decline.
6. Approval enters merge; request-changes returns to the agent; decline terminates.

The important part is the pause. awaiting_review is not a UI-only label. It is the durable point where the workflow can stop streaming, the browser can disconnect, and a later caller can still see that the run needs a decision.

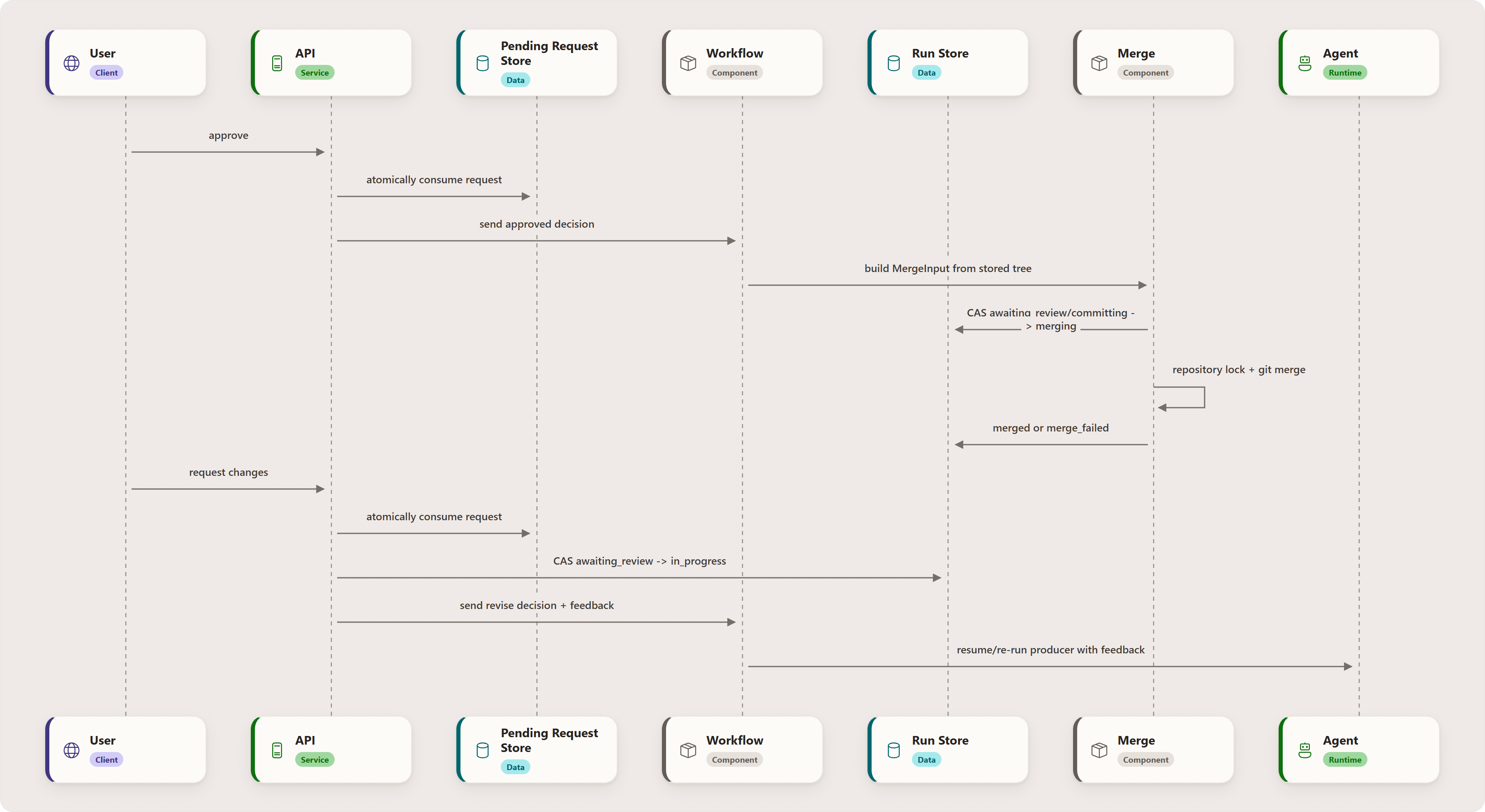

Approve vs Request Changes

Approve and request-changes both start from the same review gate, but they intentionally diverge.

Approval does not edit files. It authorizes the existing reviewed tree to proceed toward merge. Request-changes does edit the future path: it carries reviewer feedback back into the producer's next turn and increments the revision loop.

For POST /api/runs/{id}/review, the ordering is explicit (apps/Agentweaver.Api/Endpoints/RunEndpoints.cs:845–1053):

Path	Arbitration and effect
Local live approval	Consume the pending request, then send the decision to the workflow. Approval does not CAS the run to merging in the HTTP handler; the merge executor later acquires the repository lock before its merge CAS.
Local live request-changes / decline	CAS awaiting_review to in_progress / declined before removing the pending request, then resume the workflow.
No local workflow, durable pending request exists	Persist the deferred decision first; request-changes/decline then attempt their status CAS. The owner workflow consumes the deferred response. An approval response labelled merging is not proof that the merge CAS or Git merge has occurred.
Neither live workflow nor pending request	Use direct approval/decline fallback. Direct request-changes returns 409 and restores awaiting_review; it cannot reconstruct a revision workflow.
Replay / competing caller	Missing pending requests or losing status transitions can return 409; a matching already-merged approval or already-declined non-approval returns the existing terminal result.

There are two request-changes surfaces:

• The review decision path can send request_changes through the live workflow so the graph loops back.
• The dedicated request-changes endpoint validates and sanitizes a comment, records a revision audit row, abandons stale checkpoints, clears run-scoped shell approvals, and starts a fresh revision workflow on the same worktree.

Both preserve the same invariant: after a reviewer rejects the current output, the existing tree is not merged; work returns to a producer path with explicit feedback.

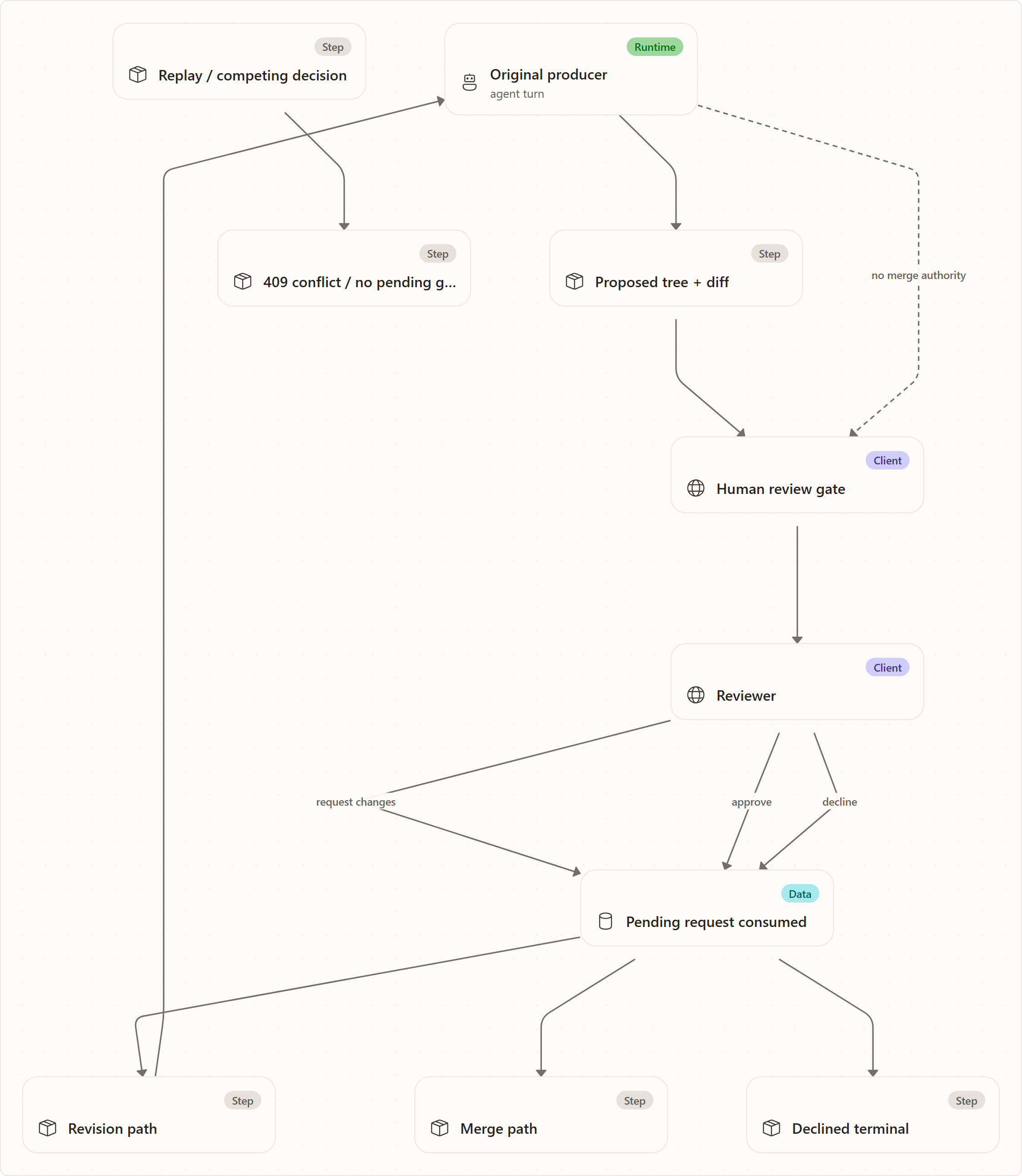

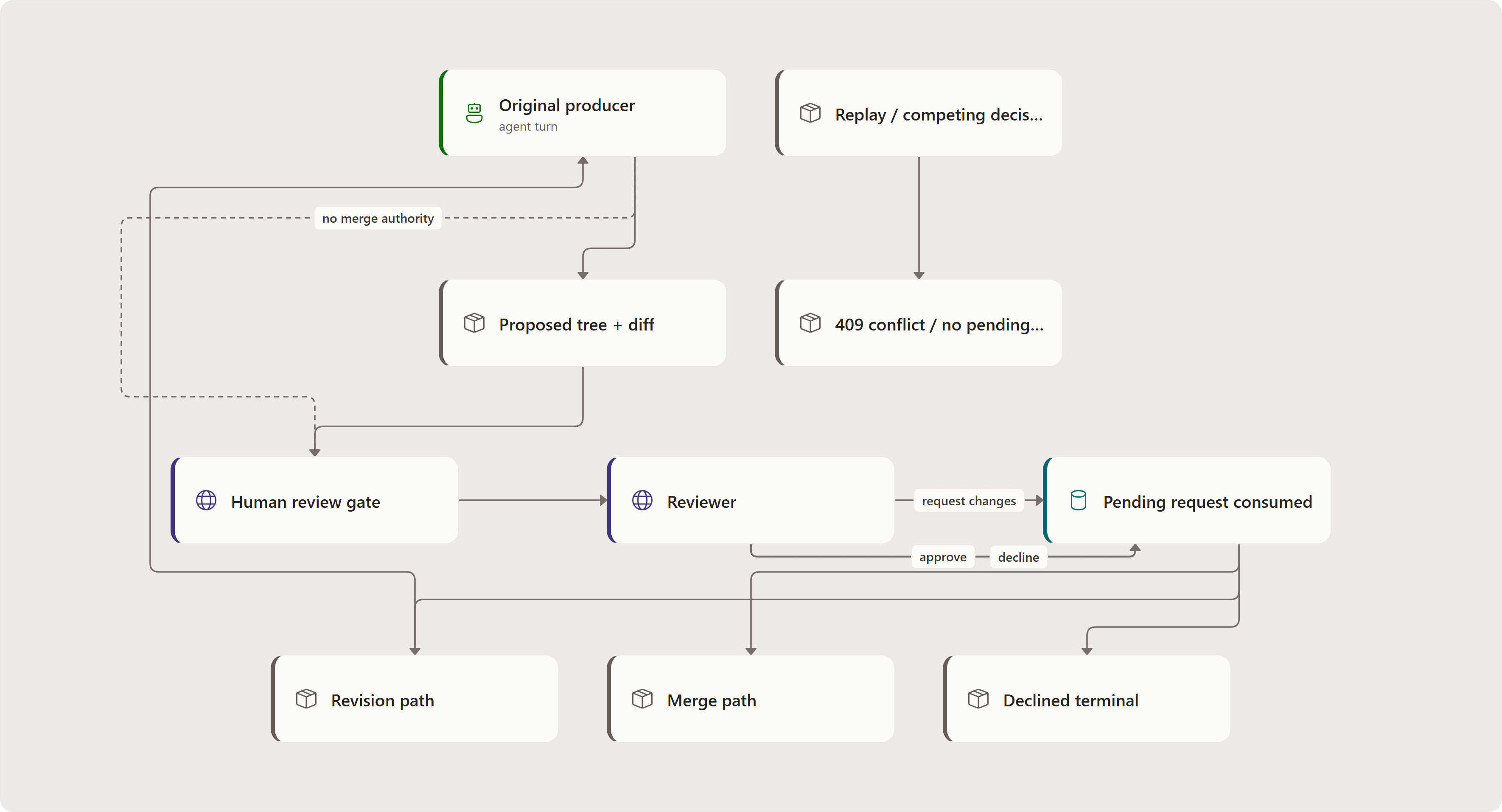

Reviewer Rejection and Lockout

The implemented lockout model has two layers.

First, workflow production and review are distinct responsibilities. In a review-bearing workflow, the agent executor proposes a tree; the review decision resumes the graph toward revision, decline, or guarded merge. This is not a claim that every custom workflow enforces two-person approval.

Second, pending consumption and status transitions arbitrate active decisions. A consumed live gate cannot accept another response. Losing CAS operations return conflict, while matching already-terminal replays can return the recorded result. These guards are not a separate agent-author rotation rule.

The approval and request-changes sequence shows the shared pending-request and CAS arbitration; a second lockout diagram would duplicate it.

The standalone endpoint requires run access at ProjectRole.Contributor; an additional pending-request owner check applies to projectless legacy runs (RunEndpoints.cs:875, :936–938, :1008–1011). The coordinator assembly gate has its own owner-scoped delivery contract. Neither is a general two-person rule preventing a human requester from approving their own run. Coordinator agent-author rotation is a different mechanism: a resumable rejected target may keep its author; a fresh-dispatch decision attempts scoped rotation, with a bounded same-author fallback when no alternate is eligible. See resilient reviewer rejection.

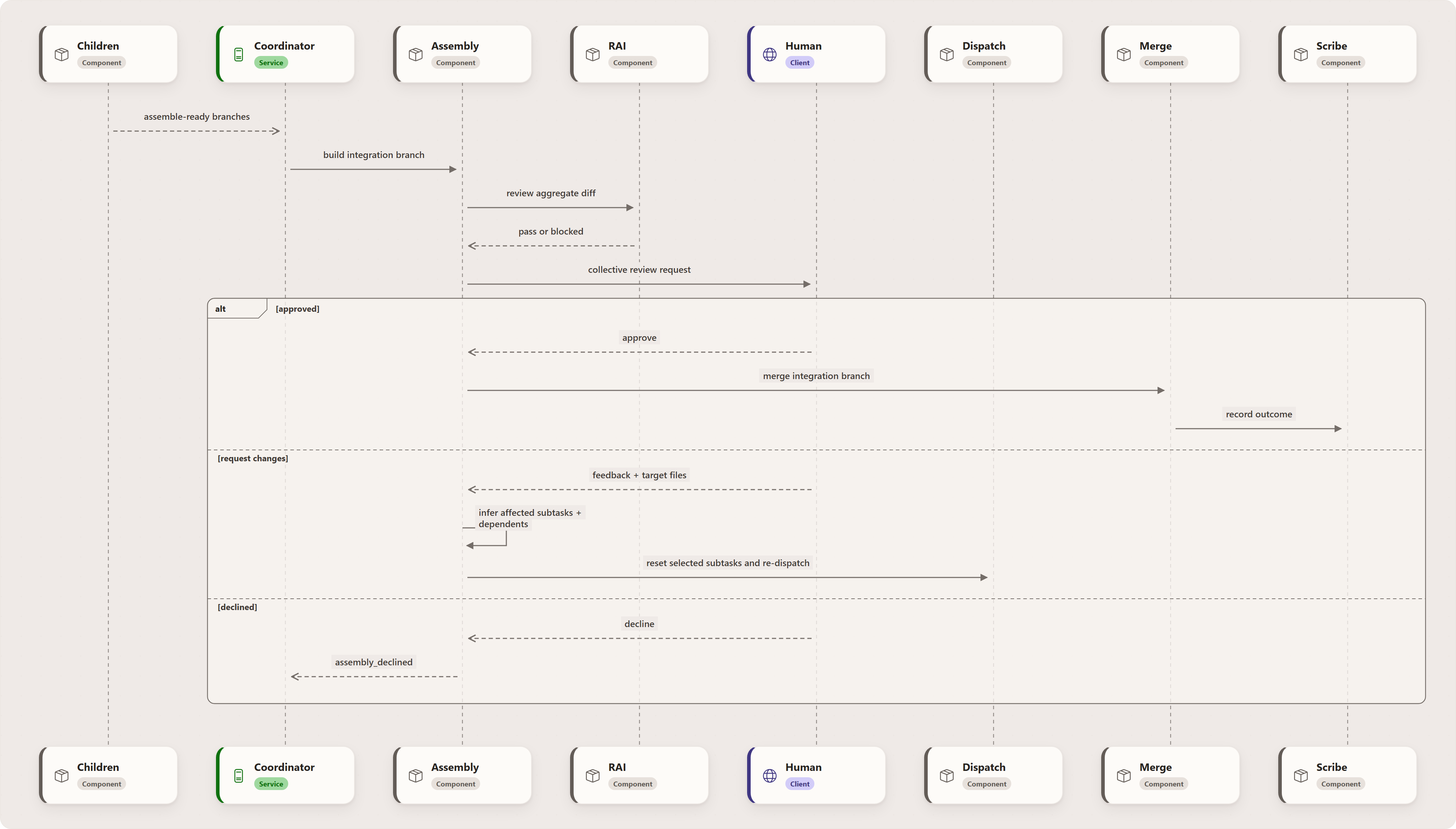

Coordinator Collective Review

Coordinator orchestration changes the unit of review. Child runs do not individually ask for human approval and do not merge. They stop at assemble-ready, carrying branch, tree hash, diff, and safety context back to the parent.

The parent coordinator then performs one collective assembly pipeline:

1. Ensure all subtasks are assembly-eligible.
2. Build an integration branch from child branches in dependency order.
3. Resolve workflow-declared aggregate gates and Build & Test applicability; run those gates in their resolved order.
4. At the authored human gate, persist one review request over the combined output. Collective RAI RED also parks at durable human review; RAI REVISE enters explicit steering, with durable human escalation when the decider chooses Proceed.
5. On approval, continue any remaining authored gates, then merge the integration branch into the originating branch and run Scribe.
6. On request-changes, scope structured target files and dependent rebuilds, then let the coordinator explicitly choose in-place revision, fresh dispatch, escalation, or advisory continuation. Do not infer a reset from feedback prose.
7. On decline, terminalize the coordinator run as declined.

This design avoids a misleading review experience. Reviewing child diffs independently can miss cross-child interactions. The meaningful artifact is the integrated whole, so the human sees and approves the combined output.

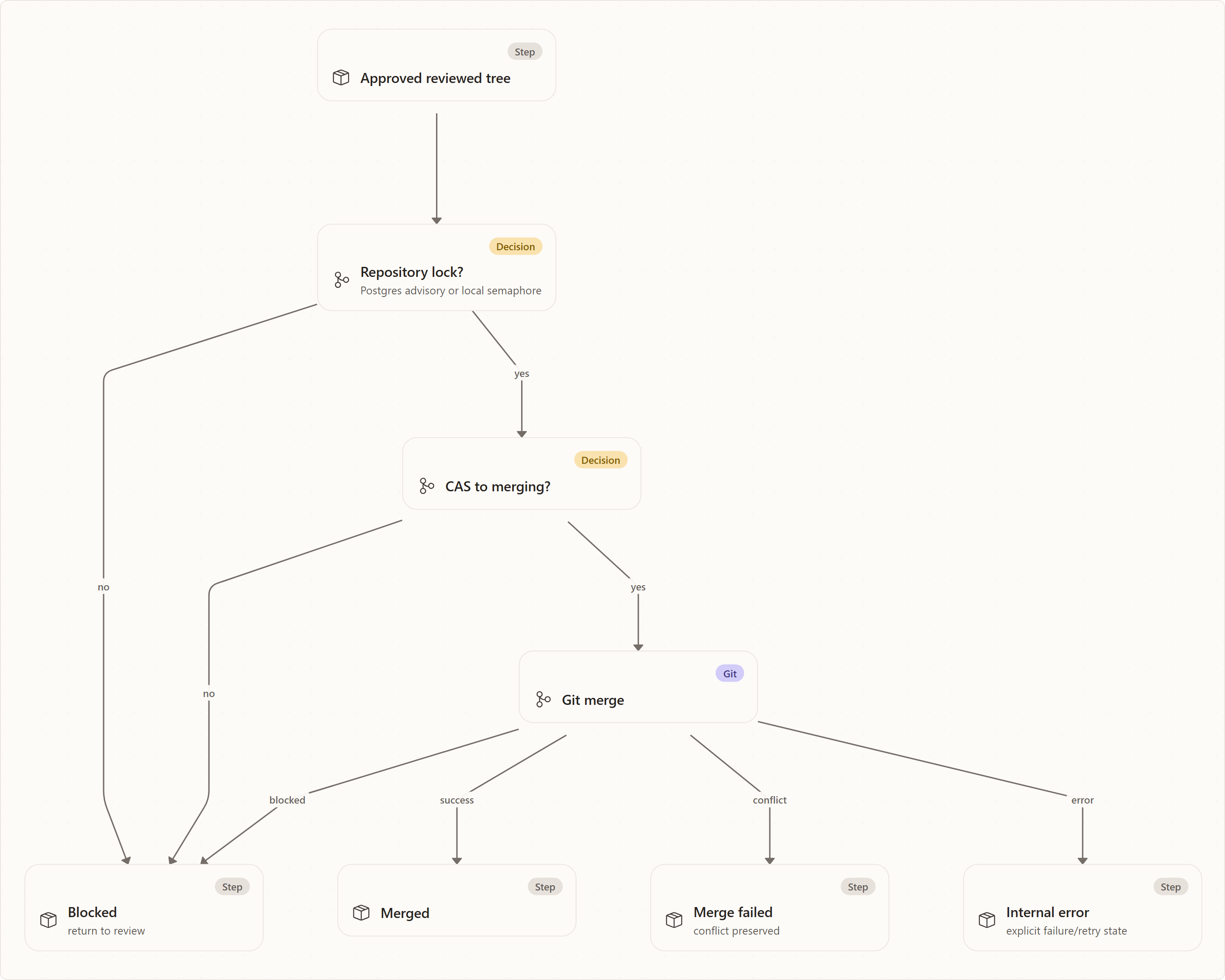

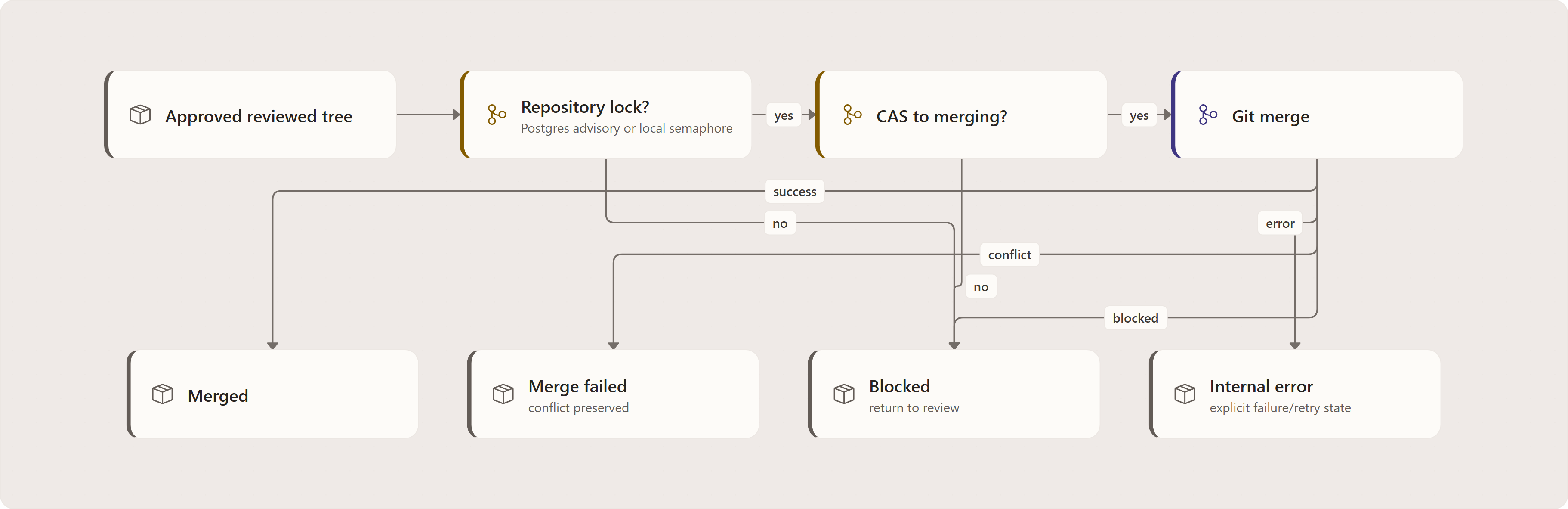

How Merge Actually Happens

Merge is deliberately more mechanical than review.

For a standalone run, the merge coordinator:

1. Canonicalizes and validates the repository path.
2. Acquires a repository merge lock.
3. Attempts the transition from awaiting_review or committing to merging; if the CAS loses, it permits an already-merging run while holding the repository lock, otherwise releases the lock and fails (MergeCoordinator.cs:50–62).
4. Merges the worktree branch into the originating branch, verifying the expected tree hash.
5. On success, records merged, stores the merge commit hash, and removes the worktree.
6. On conflict, records merge_failed, stores conflicting files, and preserves the worktree for inspection.
7. On a retryable blocked outcome or internal fail-safe, reverts back to awaiting_review when possible.

For coordinator assembly, the integration branch is the source, merged into the originating branch. A successful assembly merge terminalizes the coordinator run as completed with an assembly-complete reason rather than as a normal standalone merged run. That difference matters: the parent run represents an orchestration outcome, not a single worker's branch.

Failure Modes and How to Reason About Them

Workflow cannot resolve or bind

Invalid workflow resolution throws WorkflowBindException; executable nodes must bind to supported runtime behavior. There is no project policy-file discovery or overlay fallback to diagnose.

Reasoning model: a declared gate must execute, not merely appear in configuration.

Review decision races

Two clients may submit decisions at nearly the same time. The pending request store and run-status CAS decide one winner. The loser sees conflict/no-pending behavior.

Reasoning model: review is an ownership transfer from waiting workflow to exactly one decision.

Workflow disappears after restart

If a run is awaiting review but no live workflow can be resumed, the direct fallback can approve or decline using merge infrastructure. Request-changes is not supported on that direct path because there is no live workflow to resume; the run is restored to awaiting review so the caller can choose approve or decline.

Reasoning model: fallback can finish an irreversible path, but it should not pretend it can reconstruct a revision loop without a workflow.

Merge is blocked

A blocked merge can return to awaiting review instead of failing terminally. This lets a human retry once the repository constraint clears.

Reasoning model: "approved" means the user accepted the diff, not that the repository was guaranteed writable at that instant.

Merge conflicts

Conflicts become merge_failed, with conflict details and the worktree preserved where applicable.

Reasoning model: conflicts are not safe to auto-resolve under the review approval. The reviewed tree and the target branch no longer compose cleanly.

Coordinator assembly has ineligible children

The assembly pipeline blocks before building or merging a partial result.

Reasoning model: collective review is all-or-nothing. A missing or failed child means the integrated output is not the reviewed outcome.

Coordinator review survives a long wait or restart

The human assembly gate waits indefinitely until a decision or cancellation. Shutdown leaves in_review recoverable. ResumeInReviewAsync uses the persisted integration branch and tree hash: it applies a persisted decision or re-arms the gate without rebuilding. Only missing/incomplete review metadata falls back to rebuilding (CoordinatorAssemblyService.cs:1321–1385).

Reasoning model: an explicit, durable human wait is not a failed autonomous worker.

Trade-offs

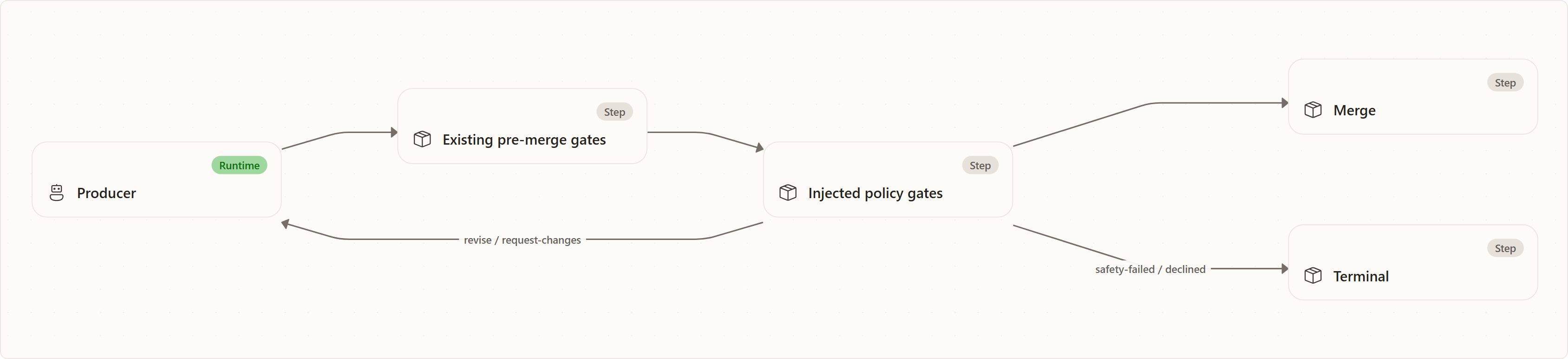

• Declared review vs policy injection. Gate changes belong to workflow definitions; there is no separate configurable safety overlay.
• Run access vs separate reviewer assignment. Project contributor access and legacy/assembly owner checks are not two-person approval. That would require a separate persisted assignment model and enforcement.
• Single collective review vs per-child review. Collective review gives a truthful integrated diff. It delays human feedback until fan-in; structured target files and explicit steering limit the scope of rework.
• Direct fallback vs no fallback. Fallback lets approval/decline complete after some restart scenarios. It intentionally does less than the live workflow to avoid inventing state.
• Blocked merge returns to review. This keeps runs recoverable, but clients must understand that approval can lead back to an awaiting-review state rather than a terminal result.

Rebuilding Blueprint

If you were rebuilding this subsystem from scratch, implement these pieces in order:

1. Define durable run statuses: in progress, awaiting review, merging, merged, merge failed, declined, completed, failed, and coordinator assembly states.
2. Implement a workflow request gate that can pause execution and emit a durable review request.
3. Store pending review requests with owner identity and at-most-once consumption.
4. Implement review decisions: approve, request changes, decline.
5. Make request-changes feed sanitized reviewer feedback back into the producer and clear stale approvals/checkpoints.
6. Declare review gates and their decision edges in validated workflow definitions.
7. Bind declared gates to executable behavior; fail closed on unsupported bindings.
8. Implement merge with both a repository lock and run-status CAS; use a distributed lock when multiple API replicas can serve the same project workspace.
9. Preserve conflict details and recoverable blocked states distinctly.
10. Trim coordinator child runs so they produce assemble-ready output only.
11. Resolve applicable authored aggregate gates, persist human review, then merge the integration source into the originating branch and run Scribe.
12. Route structured request-changes through an explicit steering decision; preserve in-place context where resumable and scope fresh work to implicated subtasks plus dependents.
13. Persist review/merge events so reload, reconnect, and postmortem inspection see the same story.

The central design principle is simple: agents can propose and revise, automated reviewers can critique, but irreversible repository change passes through explicit review and guarded merge.

Where this lives

• apps/Agentweaver.Api/Endpoints/RunEndpoints.cs
• apps/Agentweaver.Api/Endpoints/CoordinatorEndpoints.cs
• apps/Agentweaver.Api/Runs/
• apps/Agentweaver.Api/Workflows/
• apps/Agentweaver.Api/Coordinator/
• packages/Agentweaver.AgentRuntime/Workflow/
• packages/Agentweaver.Domain/

Diagram details and constraints

Element	Contract
title	Collective assembly and review
takeaway	RED parks durably for a human. REVISE enters explicit steering, not RaiBlocked.
group-title-0	CLAIM AND AGGREGATE
group-title-1	AUTHORED CHECKS AND HUMAN WAIT
group-title-2	STEERING, RECOVERY AND COMPLETION
Claim + eligibility	Claim + eligibility
Claim + eligibility	No partial failed plan
Claim + eligibility	awaiting -> assembling
Integration snapshot	Integration snapshot
Integration snapshot	Ordered child branches
Integration snapshot	branch / tree / diff
Applicable gates	Applicable gates
Applicable gates	Workflow-defined ordering
Applicable gates	non-code: omit build
Gate outcomes	Gate outcomes
Gate outcomes	Pass: next; REVISE: steer
Gate outcomes	RAI RED: human park
Normal human gate	Normal human gate
Normal human gate	Persist request, then wait
Normal human gate	approve: next gates
Safety / budget park	Safety / budget park
Safety / budget park	Durable human escalation
Safety / budget park	in_review / awaiting
Explicit steering	Explicit steering
Explicit steering	In-place, fresh or advisory
Explicit steering	Proceed: human park
Recovered review	Recovered review
Recovered review	Use saved branch and tree
Recovered review	no routine rebuild
Approved completion	Approved completion
Approved completion	Lock, merge, then Scribe
Approved completion	Scribe error: nonfatal
e0	eligible
e1	snapshot
e2	check
e3	pass
e4	human
e5	approve
e6	RED
e7	REVISE
e8	changes
e9	Proceed
e10	revision
e11	recover
e12	approved
e13	all done
groups	CLAIM AND AGGREGATE; AUTHORED CHECKS AND HUMAN WAIT; STEERING, RECOVERY AND COMPLETION

Diagram details and constraints

Element	Contract
title	Review authorizes; merge still guards
takeaway	A review-bearing standalone workflow declares its gates; approval alone does not edit Git.
group-title-0	WORKFLOW AND CANDIDATE
group-title-1	REVIEW ALTERNATIVES
group-title-2	CONTINUATION AND GIT RESULT
Selected definition	Selected definition
Selected definition	Bind the authored graph
Selected definition	no injected project policy
Producer output	Producer output
Producer output	Capture tree and diff
Producer output	reviewable candidate
Declared review gate	Declared review gate
Declared review gate	Only when workflow includes it
Declared review gate	not universal to all graphs
Request changes	Request changes
Request changes	Return feedback to execution
Request changes	revision path
Approve	Approve
Approve	Allow workflow continuation
Approve	not direct file mutation
Decline	Decline
Decline	Persist declined terminal
Decline	no merge authorization
Continuation	Continuation
Continuation	Deliver workflow response
Continuation	remaining authored nodes
Merge coordinator	Merge coordinator
Merge coordinator	Lock and reviewed-tree guard
Merge coordinator	CAS before Git operation
Actual merge result	Actual merge result
Actual merge result	Merged, blocked or conflict
Actual merge result	internal errors distinct
e0	execute
e1	review
e2	changes
e3	approve
e4	decline
e5	feedback
e6	continue
e7	on merge
e8	result
groups	WORKFLOW AND CANDIDATE; REVIEW ALTERNATIVES; CONTINUATION AND GIT RESULT

Diagram details and constraints

Element	Contract
title	Guarded standalone merge
takeaway	Repository locking precedes CAS; reviewed-tree mismatch and conflicts are not success.
group-title-0	INPUT AND LOCK ADMISSION
group-title-1	STATUS GUARD AND GIT
group-title-2	OUTCOMES AND RELEASE
Reviewed input	Reviewed input
Reviewed input	Canonicalize repository path
Reviewed input	reviewed source + tree
Repository lock	Repository lock
Repository lock	Bounded acquisition wait
Repository lock	5-second wait
Repository busy	Repository busy
Repository busy	No acquired lock
Repository busy	LockFailed
TryStartMerging CAS	TryStartMerging CAS
TryStartMerging CAS	Reload if CAS loses
TryStartMerging CAS	already Merging may proceed
Guarded Git operation	Guarded Git operation
Guarded Git operation	Reviewed tree into origin
Guarded Git operation	while holding lock
Merged	Merged
Merged	Persist commit and status
Merged	best-effort cleanup
Blocked / conflict	Blocked / conflict
Blocked / conflict	Blocked: restore review
Blocked / conflict	conflict: MergeFailed
Internal error	Internal error
Internal error	Filtered exception handling
Internal error	revert / internal error
Release acquired lock	Release acquired lock
Release acquired lock	Every acquired-lock exit
Release acquired lock	finally
e0	validate
e1	busy
e2	locked
e3	allowed
e4	merged
e5	blocked
e6	error
e10	denied
groups	INPUT AND LOCK ADMISSION; STATUS GUARD AND GIT; OUTCOMES AND RELEASE

Diagram details and constraints

Element	Contract
title	Review API decision paths
takeaway	Authorize first. Deliver through the right path. Lock before any merge CAS.
group-title-0	ADMISSION AND REPLAY
group-title-1	DELIVERY ALTERNATIVES
group-title-2	CONTINUATION AND MERGE
Caller + access	Caller + access
Caller + access	Project contributor check
Caller + access	legacy: pending owner
Reviewable state?	Reviewable state?
Reviewable state?	Inspect status + pending
Reviewable state?	awaiting_review
Replay or conflict	Replay or conflict
Replay or conflict	Matching terminal: reuse
Replay or conflict	otherwise: 409
Live pending	Live pending
Live pending	Changes / decline use CAS
Live pending	approve: no merge CAS
Deferred pending	Deferred pending
Deferred pending	Persist the decision first
Deferred pending	then status transition
No live / no pending	No live / no pending
No live / no pending	Validate direct approval
No live / no pending	changes: 409
Consume + deliver	Consume + deliver
Consume + deliver	Send workflow response
Consume + deliver	live continuation
Repository lock	Repository lock
Repository lock	Only on reaching merge
Repository lock	lock before CAS
Merge CAS + Git	Merge CAS + Git
Merge CAS + Git	Guard reviewed tree input
Merge CAS + Git	release lock on exit
e0	check
e1	replay
e2	live
e3	deferred
e4	direct
e5	deliver
e6	on merge
e7	approve
e8	locked
groups	ADMISSION AND REPLAY; DELIVERY ALTERNATIVES; CONTINUATION AND MERGE
