Agent definition — Deep Dive
Agentweaver ships a GitHub Copilot agent that knows how to drive the whole platform through its MCP tools. That agent lives in a single markdown file — .github/agents/agentweaver.agent.md — with YAML frontmatter, a mental model, operating principles, a Tool map, and playbooks. The hard part is keeping its Tool map honest: the MCP server exposes dozens of tools and that set changes as the product grows. A hand-maintained list silently rots.
This page explains how Agentweaver solves that end to end: the file's Tool map is generated from the real MCP tool source, the generated copy is embedded into the API, and the same file is materialized into every new project so a fresh project comes with a working Copilot agent out of the box — without ever drifting from the actual tool set.
The agent definition is code-grounded, not hand-listed. The hand-written prose (mental model, principles, playbooks) is preserved verbatim; only the region between the
<!-- BEGIN GENERATED:tool-map -->/<!-- END GENERATED:tool-map -->markers is regenerated from the MCP server source. See the MCP tool index, which is generated by the same script.
Why a generated, always-in-sync agent file
- One source of truth. The MCP tools are defined once, in
apps/Agentweaver.Mcp/Tools/*.csvia[McpServerTool]+[Description]attributes. The agent's Tool map and the public MCP tool index are both derived from those attributes by one generator, so they can never disagree about which tools exist. - Drift is a build break, not a surprise. CI re-runs the generator in
--checkmode; a stale committed file fails the build. The agent file cannot quietly fall behind the tools it documents. - Every project gets a working agent. The same definition is embedded in the API and written into each new project's
.github/agents/directory at creation time, so opening a brand-new project in GitHub Copilot immediately offers an Agentweaver-aware agent. - User edits are safe. Materialization is non-clobbering — if a project already has the file (the user customized it, or a cloned repo shipped its own), it is never overwritten.

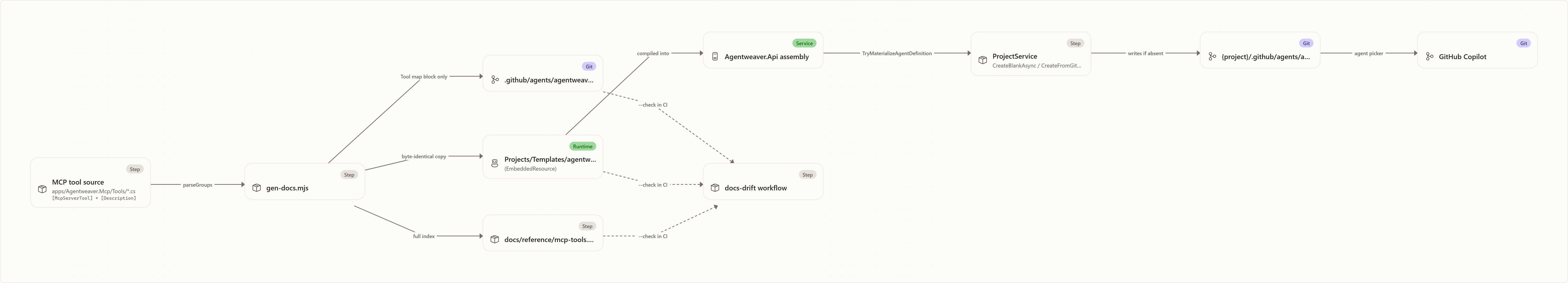

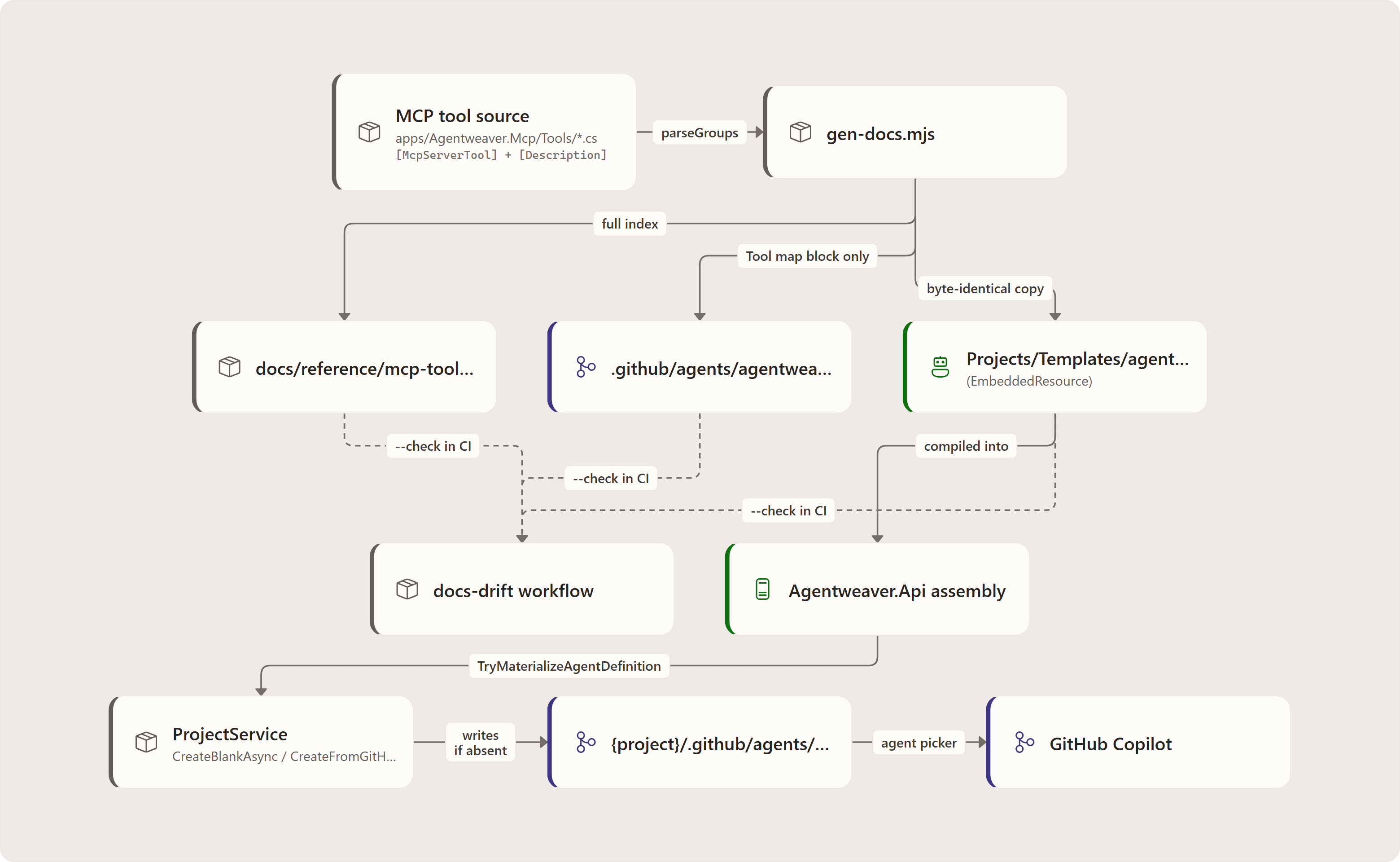

End-to-end flow
- Source. Each MCP tool is a method annotated with
[McpServerTool(Name = ...)]and[Description(...)]inapps/Agentweaver.Mcp/Tools/*.cs. OneTools.csfile per category (Backlog, Project, Run, …). - Generate.
scripts/gen-docs.mjsparses those files once (parseGroups(),gen-docs.mjs:115) into the same category groups used by the tool index, then emits five targets (computeTargets(),gen-docs.mjs:266-273):- the full MCP tool index
docs/reference/mcp-tools.md; - the Tool map block of
.github/agents/agentweaver.agent.md— only the bytes between the<!-- BEGIN GENERATED:tool-map -->/<!-- END GENERATED:tool-map -->markers are replaced (applyToolMapBlock(),gen-docs.mjs:192); all surrounding prose is read back from the file itself and preserved verbatim; - a byte-identical copy at
apps/Agentweaver.Api/Projects/Templates/agentweaver.agent.md; - a public documentation download at
docs/public/agents/agentweaver.agent.md; - a deployed web-host download at
apps/Agentweaver.Web/wwwroot/agents/agentweaver.agent.md.
- the full MCP tool index
- Embed. That copy is compiled into the API as an
EmbeddedResource(apps/Agentweaver.Api/Agentweaver.Api.csproj:55) and read at runtime byAgentDefinitionTemplate(AgentDefinitionTemplate.cs:33) viaGetManifestResourceStream. Keeping it a generated copy means the repo file and the runtime template can never diverge. - Materialize. On project creation,
ProjectServicecallsTryMaterializeAgentDefinition(ProjectService.cs:485) from bothCreateBlankAsync(ProjectService.cs:90) andCreateFromGitHubAsync(ProjectService.cs:183). It writes the embedded template to{project.WorkingDirectory}/.github/agents/agentweaver.agent.md— creating the.github/agents/directories as needed — but only if that file does not already exist (AgentDefinitionTemplate.cs:50). - Use. GitHub Copilot discovers the materialized file under
.github/agents/and offers the Agentweaver Driver agent, which drives the project through theagentweaver-*MCP tools. - Guard. CI re-runs
node scripts/gen-docs.mjs --check, which validates all five generated targets and exits non-zero on any drift (.github/workflows/docs-drift.yml:37).
The materialized file
The agent definition is a Copilot agent file: YAML frontmatter (description: that tells Copilot when to invoke it) followed by prose sections — Mental model, Operating principles, the generated Tool map (agentweaver-*), Common playbooks, a catalog snapshot, and model-selection guidance. The Tool map groups every agentweaver-* tool by category (the same 13 categories as the MCP tool index). When tools are added or renamed, regenerating updates only that block.
Why best-effort and non-clobbering
Materialization mirrors the existing review-policy / workflow template pattern (TryMaterialize next to DefaultReviewPolicyTemplate): it is wrapped so that a write failure never fails project creation, and it skips the write when the file already exists so it never clobbers a user's edits or a repo that ships its own agent definition. The method catches only IOException / UnauthorizedAccessException / SecurityException, records the outcome to the log, and returns (AgentDefinitionTemplate.cs:50, ProjectService.cs:485).
Drift guards
Two layers keep the tool index and four agent-definition copies aligned:
- CI
--check.docs-drift.ymlruns the generator in check mode on every PR; a stale tool index, repository definition, embedded template, or either download copy fails the job (.github/workflows/docs-drift.yml:37). - Unit tests.
AgentDefinitionTemplateTestsasserts the embedded API template equals the committed.githubfile (so the two copies never diverge) and thatTryMaterializeis idempotent and non-clobbering;ProjectServiceCreateTests(PC-11) asserts a freshly created project contains the materialized file.
Source
| Concern | Where |
|---|---|
| MCP tool source (the single source of truth) | apps/Agentweaver.Mcp/Tools/*.cs ([McpServerTool] + [Description]) |
Generator: parse + emit 5 targets + --check | scripts/gen-docs.mjs (computeTargets, targets at :266-273) |
| Generated agent definition (repo copy) | .github/agents/agentweaver.agent.md |
| Embedded copy compiled into the API | apps/Agentweaver.Api/Projects/Templates/agentweaver.agent.md |
| Download copies | docs/public/agents/agentweaver.agent.md; apps/Agentweaver.Web/wwwroot/agents/agentweaver.agent.md |
EmbeddedResource registration | apps/Agentweaver.Api/Agentweaver.Api.csproj:55 |
Load embedded template + TryMaterialize | apps/Agentweaver.Api/Projects/AgentDefinitionTemplate.cs (LoadEmbedded :33, TryMaterialize :50) |
| Materialize on create (blank + GitHub) | apps/Agentweaver.Api/Projects/ProjectService.cs (:90, :183, TryMaterializeAgentDefinition :485) |
| CI drift gate | .github/workflows/docs-drift.yml:37 |
| Drift / idempotency tests | tests/Agentweaver.Tests/Projects/AgentDefinitionTemplateTests.cs, ProjectServiceCreateTests.cs (PC-11) |
See also
- Agent definition — Reference — the generation contract, regenerate command,
--checkgate, and materialization behavior. - Agent definition — User Guide — what you get when you create a project and how to use it with Copilot.
- MCP tool index — the generated list of all
agentweaver-*tools the agent drives. - MCP server — Deep Dive — how the tools are served and authorized.
- Projects & workspaces — Deep Dive — the project-creation flow this materialization rides on.
- The generated-vs-curated split and the shared generator are described in
.github/DOCS_SYNC.md.
Diagram details and constraints
| Element | Contract |
|---|---|
| title | Agent definition · five generated targets |
| takeaway | One tool map is regenerated; handwritten prose stays intact and all five outputs are checked. |
| group-0-title | GENERATOR INPUTS |
| group-1-title | OUTPUTS + MATERIALIZATION |
| MCP tool sources | MCP tool sources |
| MCP tool sources | Parse and group tool declarations |
| MCP tool sources | Handwritten agent template supplies prose |
| MCP tool sources | gen-docs.mjs:243–273 |
| scripts/gen-docs.mjs | scripts/gen-docs.mjs |
| scripts/gen-docs.mjs | Replace only the tool-map block |
| scripts/gen-docs.mjs | --check compares expected bytes for all five |
| scripts/gen-docs.mjs | gen-docs.mjs:266–300 |
| Tool reference | Tool reference |
| Tool reference | docs/reference/mcp-tools.md |
| Tool reference | Generated public tool index |
| Tool reference | gen-docs.mjs:266–273 |
| Repository agent | Repository agent |
| Repository agent | .github/agents/agentweaver.agent.md |
| Repository agent | Handwritten text + generated map |
| Embedded API template | Embedded API template |
| Embedded API template | Projects/Templates/agentweaver.agent.md |
| Embedded API template | Embedded resource for project initialization |
| Documentation download | Documentation download |
| Documentation download | docs/public/agents/agentweaver.agent.md |
| Documentation download | Published agent-definition download |
| Web-host download | Web-host download |
| Web-host download | wwwroot/agents/agentweaver.agent.md |
| Web-host download | Deployed static copy; anonymous consumer |
| New project agent file | New project agent file |
| New project agent file | AgentDefinitionTemplate |
| New project agent file | Best effort; detected existing files are preserved |
| New project agent file | AgentDefinitionTemplate:33–75 |
| MCP tool sources | compose |
| scripts/gen-docs.mjs | write |
| scope | Five outputs are siblings, not a copy chain. Only the embedded API copy materializes new project files. |
| groups | GENERATOR INPUTS; OUTPUTS + MATERIALIZATION |
