Workflow Engine — Conceptual Deep Dive

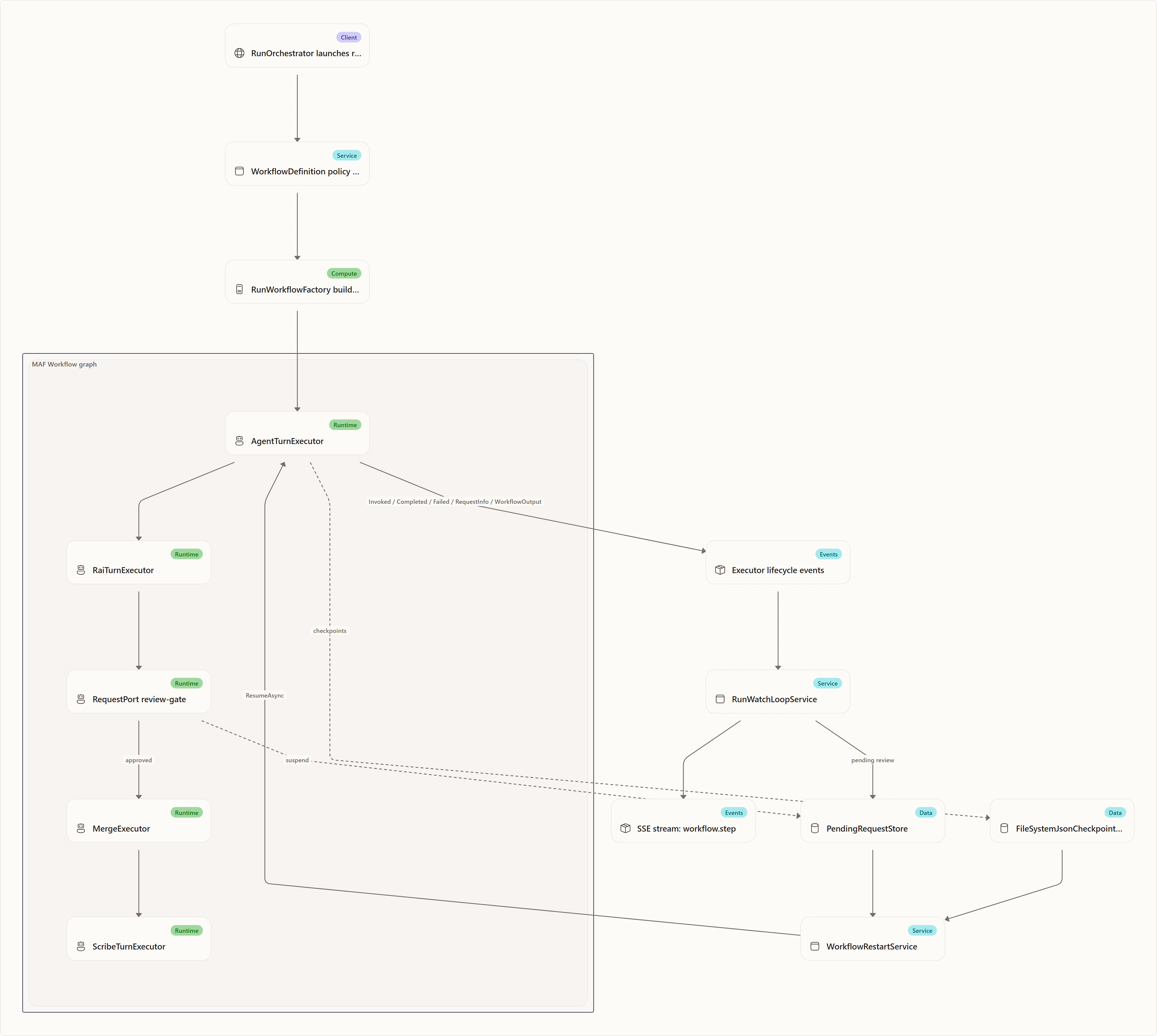

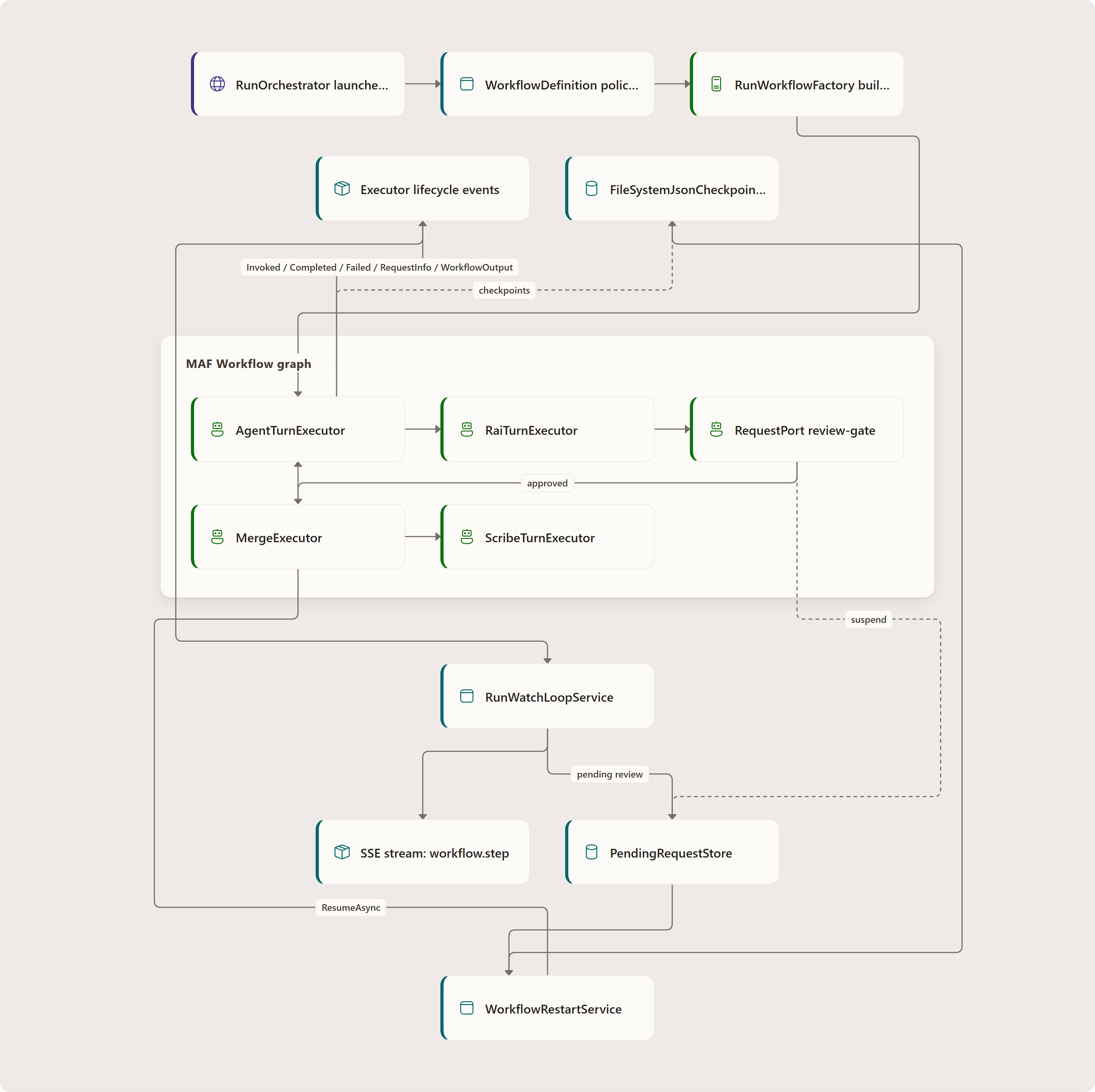

Purpose & Mental Model

Agentweaver workflows answer one question: which execution process should move an agent run from intent to a reviewed outcome?

The workflow engine is the policy layer between orchestration and runtime execution. The coordinator decides what the team should accomplish. The workflow engine decides which gates, loops, and terminal paths govern the run that carries out that work.

Conceptually, a workflow engine has five jobs:

1. Define reusable process graphs as declarative workflow templates.
2. Discover built-in, catalog, and project-authored workflow definitions.
3. Track invocation context and automation metadata so runs carry the right operational context without changing workflow validity.
4. Select the best process fit when several workflows are available.
5. Bind the selected definition to real runtime executors, failing closed if any node or edge cannot run safely.

A useful rebuilding rule is: workflows are declarative policy graphs; binding is the safety boundary that turns policy into execution.

The executor chain shown is the built-in default, not every workflow. Checkpoints use ICheckpointStoreFactory: PostgreSQL-backed shared storage for the PostgreSQL provider, file storage for local/default configuration (apps/Agentweaver.Api/Program.cs:1063–1065; apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:181–188). Pending human decisions are durable records, not browser-local state.

Workflows are one half of run orchestration. The coordinator and run lifecycle are covered in orchestration.md; the focus here is how workflow definitions are authored, generated, selected, and bound.

Core Design Invariants

These invariants are the backbone of the workflow engine:

• Definitions are data, not code. YAML describes nodes, edges, and metadata. It does not execute directly.
• Discovery is server-side. Clients list, render, and edit workflows, but loading, validation, selection, and binding happen in the API.
• Trigger evaluation and workflow execution are separate concerns. A workflow definition may declare a trigger, but trigger verification/filtering happens before the workflow is selected and bound.
• Overrides cannot bypass safety. A requested workflow id is honored only if it resolves, validates, and binds.
• Selection is bounded model authority. The selector may choose among already-safe candidates; it may not invent ids or bypass availability and validation checks.
• Binding fails closed. A node type, gate, or edge with no known executor mapping aborts the build instead of becoming a no-op.
• Gates belong to workflow definitions. Effective workflow resolution does not inject a configurable project review policy; the binder checks the declared graph.
• A built-in default is always available. The default workflow is embedded in code and serves projects that ship no workflow files of their own, so every project has a valid workflow to run.

Workflow Template as Policy Graph

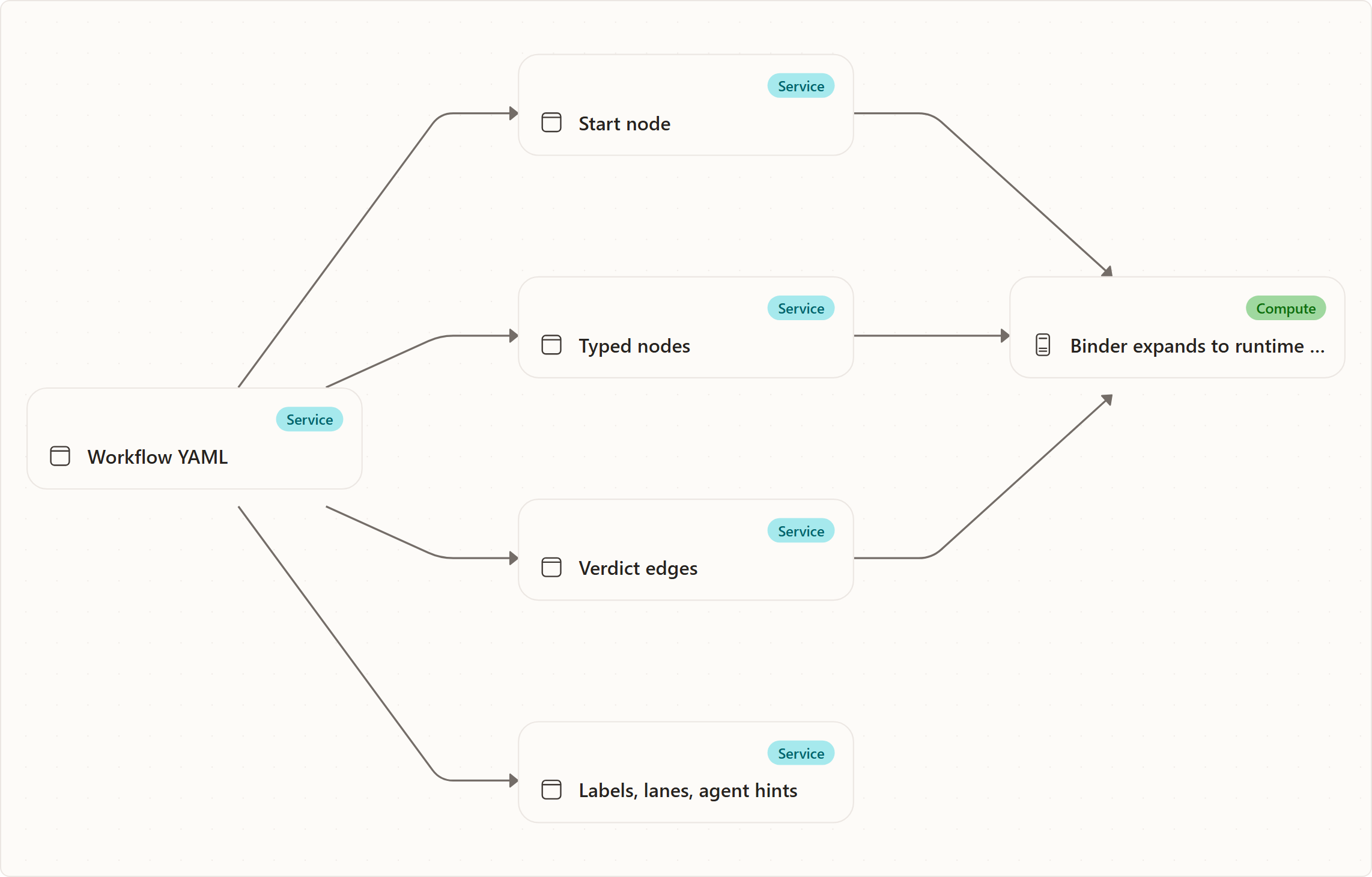

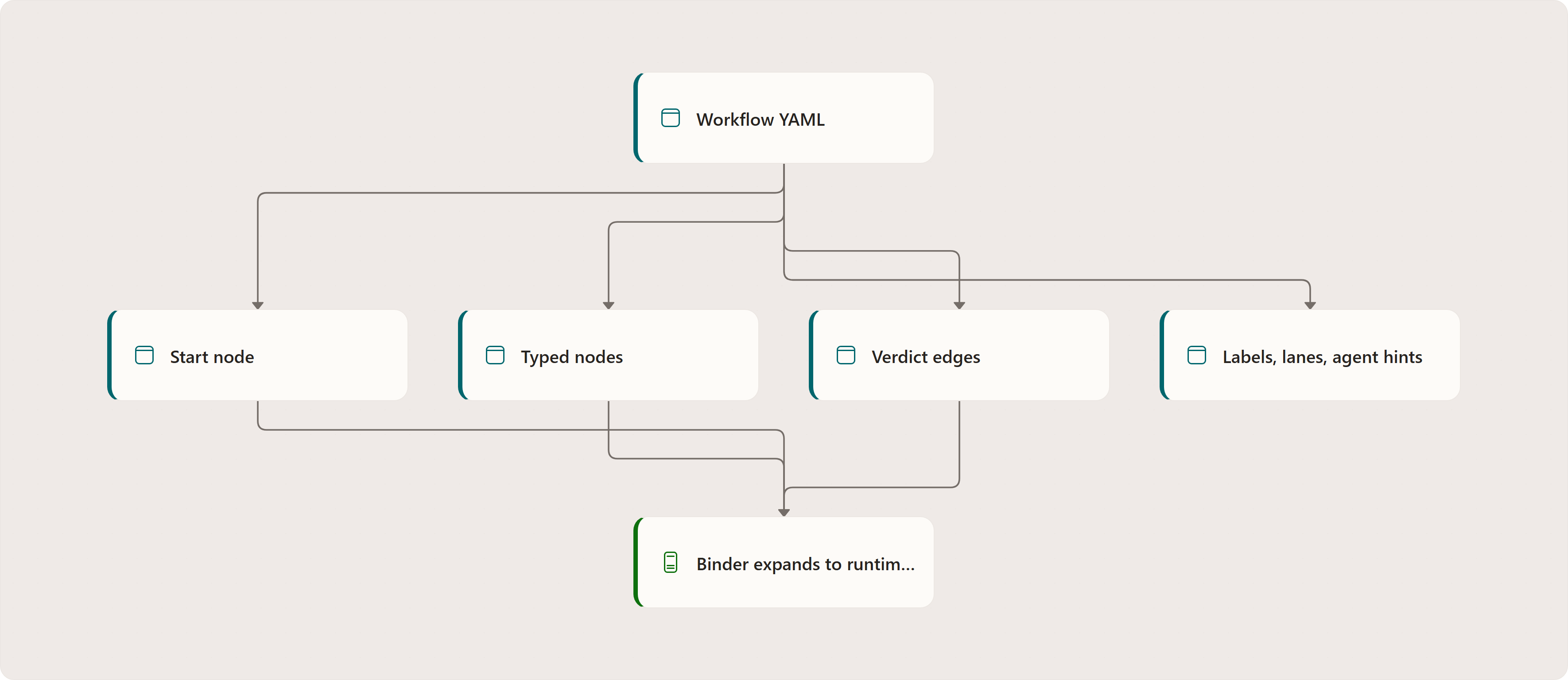

What a Workflow Template Is

A workflow template is a declarative graph with:

• a stable id,
• a human-readable name and optional description / version,
• a start node,
• typed nodes,
• directed edges,
• optional board stages,
• and node metadata used for rendering and execution context.

The key abstraction is that a workflow describes what process should happen, not the hidden plumbing required to execute it. A single logical edge such as rai -> review when review may expand into adapters, state storage, predicates, review ports, and graph outputs when bound to the runtime.

The loader validates the static shape first: required fields, valid node type, unique node ids, known edge endpoints, check branches with matching outgoing edges, and valid references from structured node fields.

The binder then validates runtime bindability. This second phase matters because the schema can represent graph concepts before the live executor graph has executor support for them.

Node Types

Agentweaver's workflow schema models these conceptual node types:

• prompt — an agent turn that produces work or analysis.
• publish — an agent-backed action classified as NodeKind.Agent, not the deterministic GitHub PR executor (apps/Agentweaver.Api/Workflows/NodeClassifier.cs:78).
• peer_review — an AI review turn that can emit approval, change request, decline, pass, or fail verdicts.
• build_test — the platform-owned Build & Test gate. It runs the canonical build/test/preview instruction, emits approved, request-changes, or declined, and should sit after any RAI safety gate and before human review for software workflows. In Sandbox:AgentExecutionMode=pod-per-run, assembly Build & Test first launches a dedicated AgentHost pod for the coordinator run and configures it with the detached integration worktree as its working directory, so the gate and any start_preview server run from the same assembled tree.
• check — a routing gate with declared branches. Known gate kinds include rai, human-review, and rubberduck.
• merge — an action that applies produced changes.
• open_pull_request — a platform-owned deterministic action, not an LLM turn. It invokes the PR client with configured title, body, base, head, and draft fields; templates support {run_id}, {worktree_branch}, {originating_branch}, and {outcome_summary}. It can follow an agent turn or a supported approval/merge transition. Successful publication emits the PR number/url; ordinary validation, credential, and client errors emit a failed step while passing the produced AgentTurnOutput onward unchanged. Cancellation is rethrown rather than swallowed (packages/Agentweaver.AgentRuntime/Workflow/OpenPullRequestTurnExecutor.cs:88–166). Do not equate one client invocation with a guaranteed single network request.
• scribe — a recording step that captures the outcome.
• terminal — an explicit sink such as done, declined, or safety failed.
• fan_out, fan_in, coordinator_composed — schema-level extension points for richer topologies.
• serial is not a workflow node type; ordinary directed edges express sequential execution.

Runtime binding supports prompt/publish agent turns, peer-review, build_test, open_pull_request, check gates with known gate kinds, merge, scribe, terminal sinks, and a set of sequential / review / direct-completion topologies. Extension node types remain explicit schema concepts; until executors bind them, the runtime fails closed.

An open_pull_request node binds from a producing prompt node directly, or from a peer_review/build_test gate's approved/pass verdict (mirroring the existing gate → merge transition), and forwards into scribe exactly like an agent turn does:

nodes:
  - id: implement
    type: prompt
    agent: worker
    prompt: "Implement the requested change."
  - id: build-test
    type: build_test
  - id: open-pr
    type: open_pull_request
    title: "Agentweaver: {outcome_summary}"
    body: "Automated changes from run `{run_id}` on `{worktree_branch}`."
    base: main
  - id: record
    type: scribe
edges:
  - from: implement
    to: build-test
  - from: build-test
    to: open-pr
    when: approved
  - from: open-pr
    to: record

Software assembly gate order

Authored assembly gates are ordered using a breadth-first traversal from start over unconditional edges and verdict edges whose when is approved, pass, or review. The resolver selects known check/Build & Test nodes, sorts them by that traversal index (unvisited gates sort last, in declaration order), projects canonical assembly stages (rai, build-test, rubberduck, human-review), and deduplicates by stage. For non-code-producing work, the platform Build & Test gate is omitted (apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs:1586–1676). This is aggregate gate projection, not execution of every workflow node by the assembly service.

For the built-in software workflows this means RAI runs before Build & Test, even if a YAML author groups node declarations differently. bug-fix follows triage -> fix -> verify -> rai-check -> build-test -> human-review; software-delivery follows plan -> implement -> test-gate -> rai-check -> rubberduck -> code-review -> build-test -> review-gate (packages/Agentweaver.Squad/Catalog/Resources/workflows/bug_fix.yaml, software_delivery.yaml). Copilot workflow and blueprint generation prompts carry the same rule so generated software workflows place build_test after any RAI gate and immediately before human review (apps/Agentweaver.Api/Workflows/WorkflowGatePromptGuidance.cs:7, apps/Agentweaver.Api/Workflows/CopilotWorkflowGenerator.cs:243, apps/Agentweaver.Api/Blueprints/CopilotBlueprintGenerator.cs:152).

Build & Test infrastructure failures are not authored request-changes verdicts. Pod capacity, launch/readiness, endpoint-resolution, and A2A transport failures are raised as typed infrastructure exceptions, then parked as retryable assembly_blocked reasons or failed terminally for non-retryable configuration errors (apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs:1039–1043, :3559–3632). The emitted event payload includes detail, exceptionMessage, innerExceptionMessage, innerExceptionType, and infrastructureReason, so operators can distinguish a quota park from an AgentHost launch or A2A transport root cause.

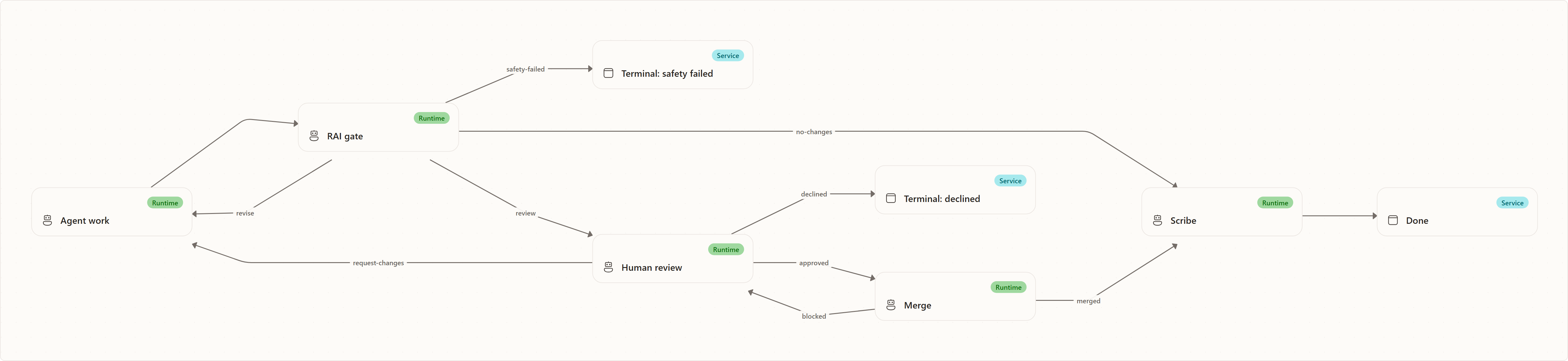

The Default Workflow

The default workflow encodes the standard standalone run pipeline. Its canonical source is the code-embedded DefaultWorkflowTemplate (id default), loaded once through the real loader as BuiltInWorkflows.Default. DefaultWorkflowTemplate.TryMaterialize can write an inspectable project copy at .agentweaver/workflows/default.yaml; customization requires a new workflow id because the registry skips a materialized default. The current success path is agent -> rai -> review -> merge -> push-pr -> scribe -> done, with separate safety-failed and declined sinks (apps/Agentweaver.Api/Workflows/DefaultWorkflowTemplate.cs:42–161).

This default produces work, applies Responsible AI safety review, pauses for human review when required, merges if approved, attempts PR publication, and records the outcome. Its RAI routing distinguishes no-change, revision, human-review and safety-failed paths; it must not be confused with collective assembly, where RAI RED opens durable human review. The loops are part of the workflow, not exceptional control flow.

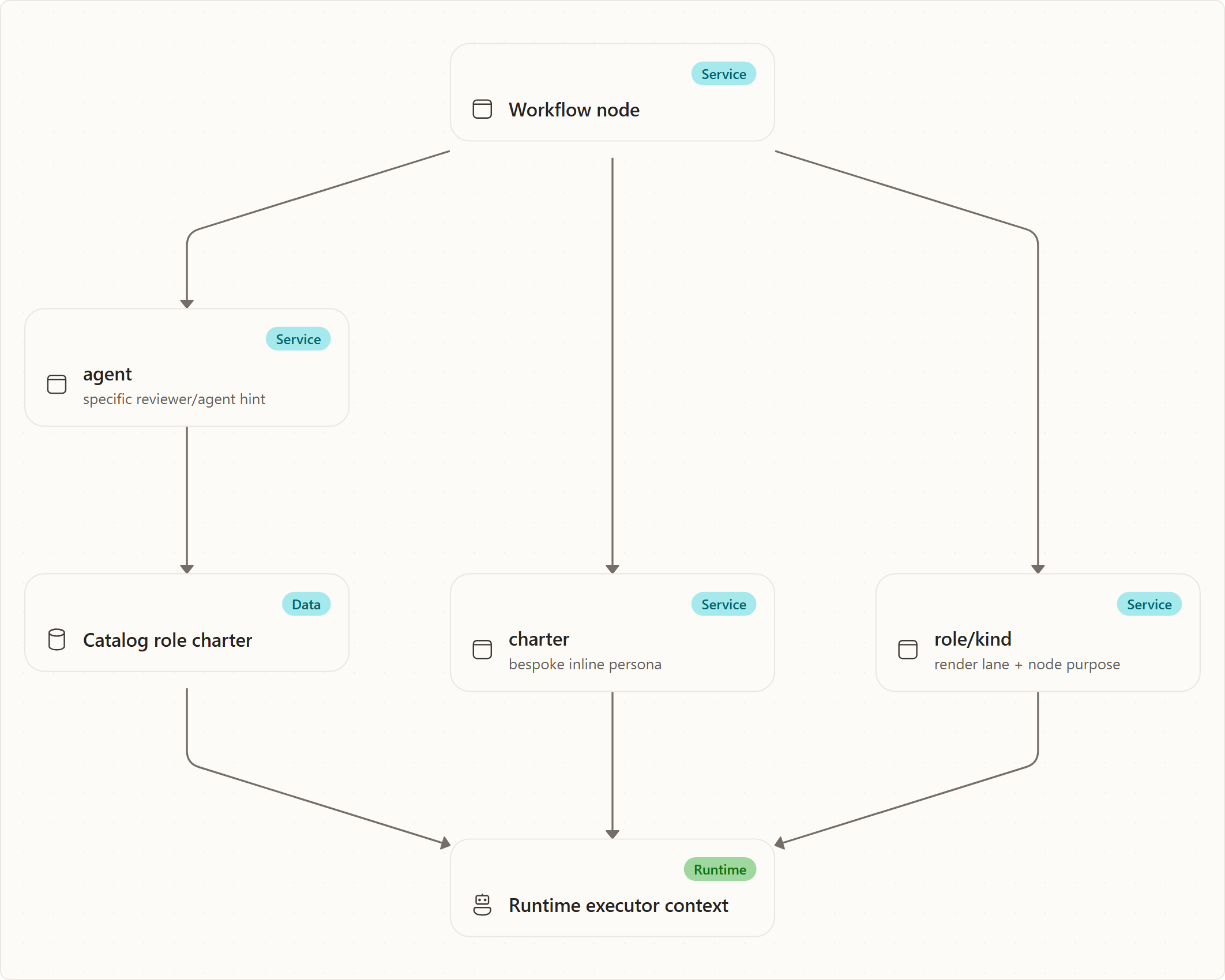

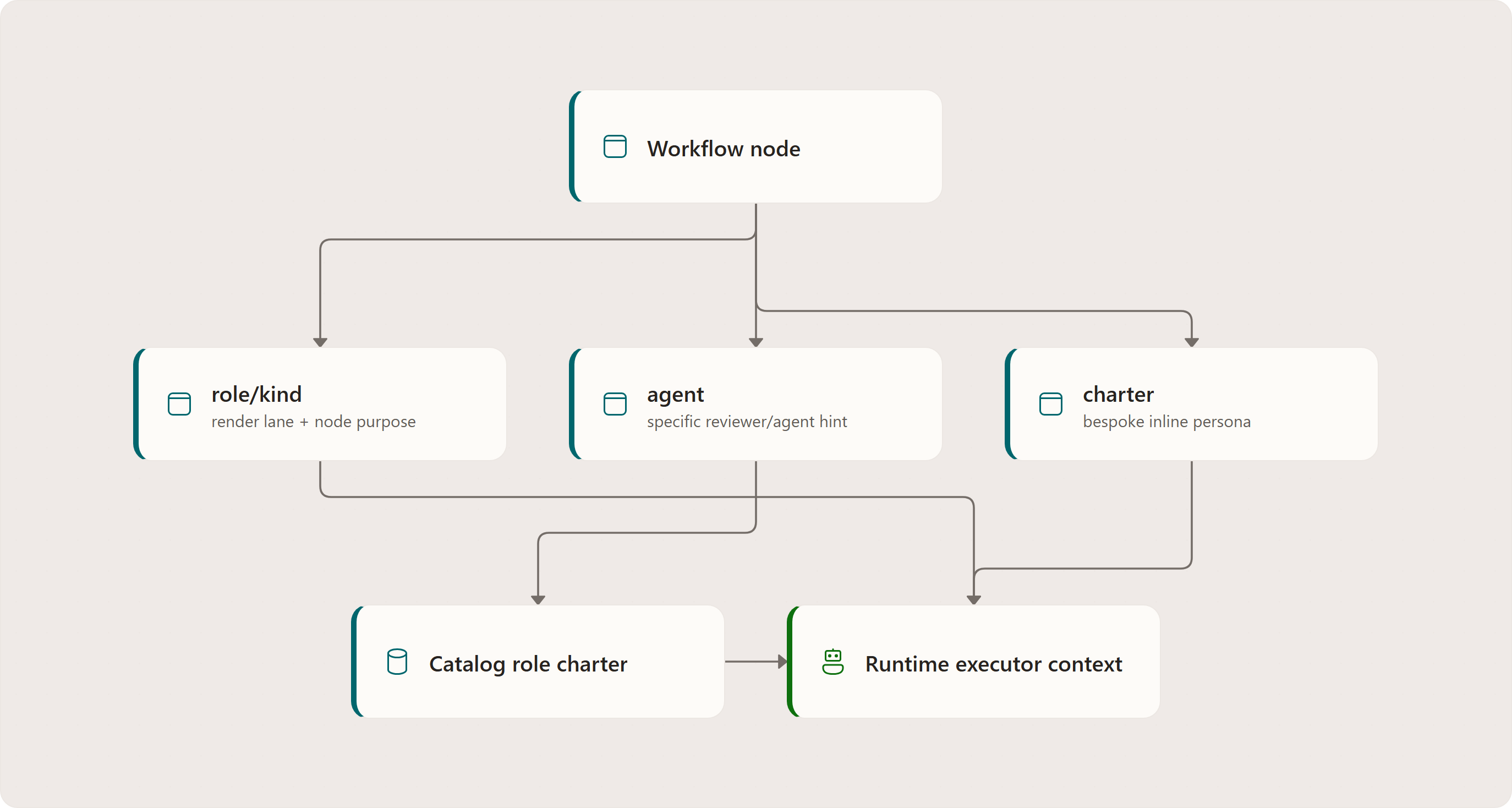

Role Slots, Catalog Roles, and Bespoke Charters

Workflow nodes carry two different kinds of "role" information:

1. Workflow role slots describe the node's place in the graph or UI lane: agent, review, merge, scribe, plumbing, and similar labels.
2. Catalog or bespoke execution roles identify who should perform a node when a real agent identity is needed.

Do not collapse these into one concept. A node with role: review is in a review lane; it is not automatically a catalog role named review. A peer-review node names a concrete reviewer with agent: qa-engineer when it needs that agent. A generated or project-authored node carries an inline charter when no catalog role fits.

The runtime uses explicit node fields and run context to build the agent prompt. Catalog roles are preferred because their charters are already known to the casting system. Bespoke charters are a controlled escape hatch for generated workflows whose process needs a role outside the catalog.

Execution context is node-specific, not one universal precedence chain. Generic prompt/publish nodes pass charter and prompt into AgentTurnExecutor while retaining the run's assigned identity; this binding does not pass node.Agent. Peer-review nodes pass both agent and charter to RubberduckTurnExecutor; Build & Test passes agent to its platform executor (apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:935–1006). role and kind remain graph/render metadata and do not select the executing agent.

Discovery, Validation, and Registry

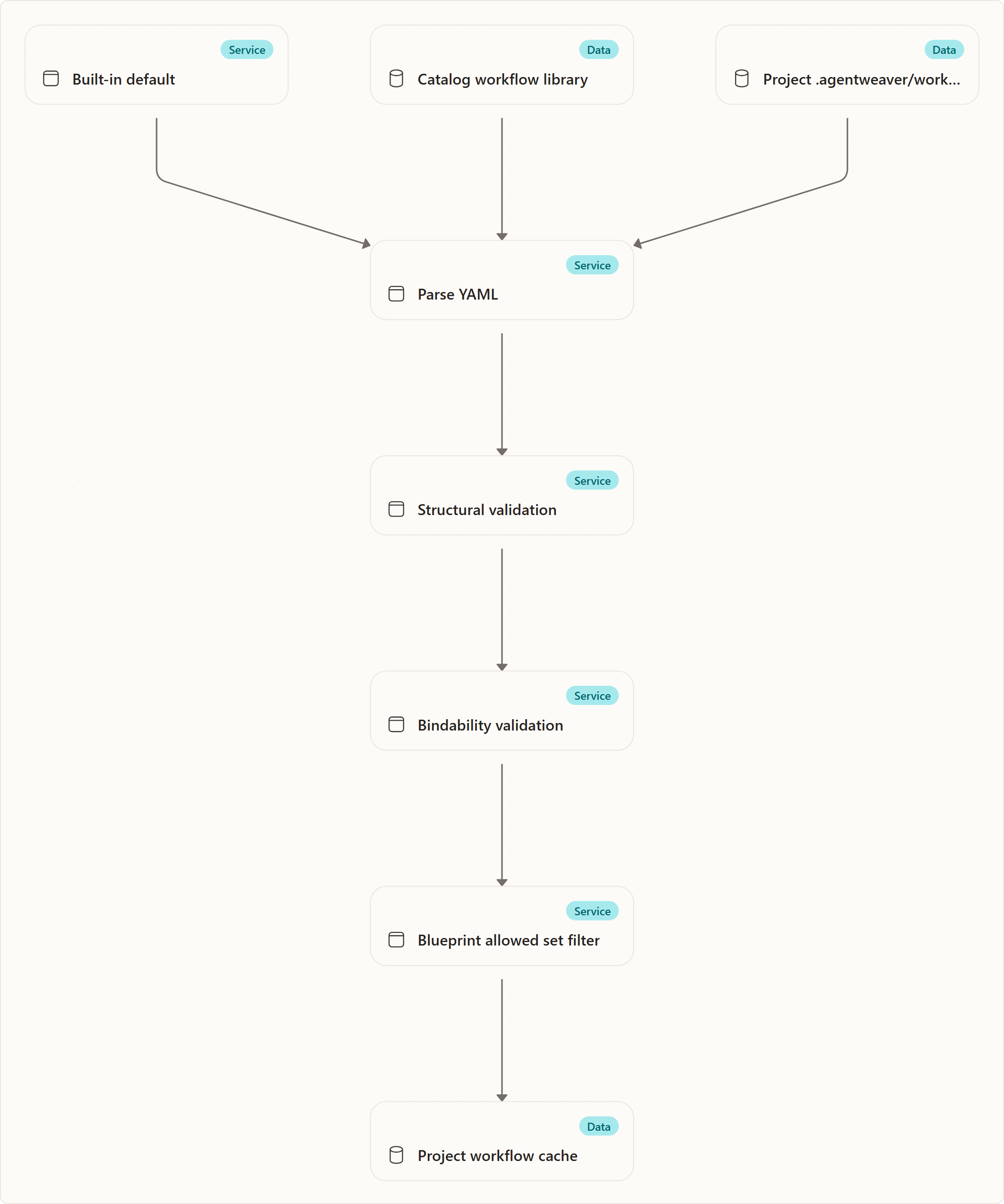

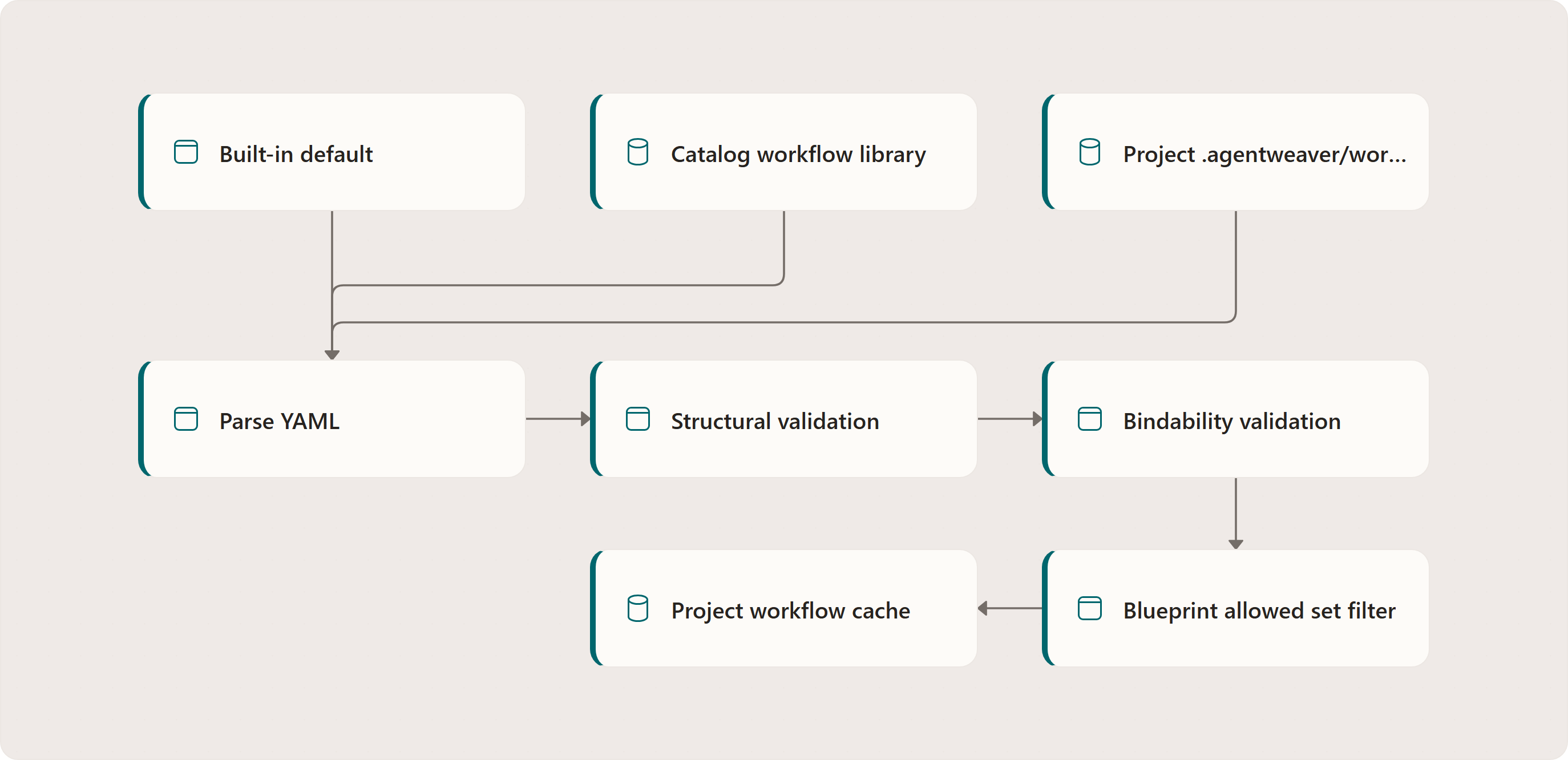

Source Precedence

For a project, WorkflowRegistry.Build assembles a ProjectWorkflowSet from:

1. the built-in default workflow (BuiltInWorkflows.Default, from DefaultWorkflowTemplate),
2. conformance-checked catalog library workflows from CatalogConformanceSnapshot,
3. project-authored .yaml / .yml files under .agentweaver/workflows/ (WorkflowRegistry.WorkflowsRelativePath).

The result is cached per project in WorkflowRegistry.GetOrLoad. Each cache entry is keyed by a signature of the project's top-level workflow YAML files plus the project's allowed workflow id set, so a replica refreshes its local cache when shared project files or blueprint restrictions change. WorkflowRegistry.Sync still provides the explicit user-facing refresh path and rebuilds from disk; validation errors are cached as registry results for replica coherence. Invalid workflows remain visible in ProjectWorkflowSet.Results with their errors, but ProjectWorkflowSet.Available excludes them.

The built-in default is always available. Catalog workflows are available without project-local files. A blueprint may restrict the allowed workflow ids for a project via Project.AllowedWorkflowIds; WorkflowRegistry.FilterByAllowedSet keeps only allowed ids plus the built-in default, which is always retained so a project never has zero workflows. An empty/absent allowed set means all workflows are returned (backward compatible).

Reserved ids are protected. A loaded project definition with id default is silently skipped as a materialized copy; other reserved catalog ids produce conflicts rather than overrides (WorkflowRegistry.cs:183–203). Duplicate ids are resolved deterministically in WorkflowRegistry.AddResult: among built-in/catalog collisions the higher semantic Version wins (ties keep the first-loaded source); among project files the first valid file wins and later duplicates are invalid load results. Source categories are therefore not an override-precedence hierarchy.

Validation Layers

Validation happens in layers:

1. YAML parse — WorkflowDefinitionLoader.Load turns malformed YAML into a file-scoped invalid result.
2. Schema mapping — node type, start node, edge endpoints, branches, and references are checked.
3. Bindability dry-run — WorkflowRegistry.ValidateBindable runs RunWorkflowGraphBinder.GetBindabilityErrors to check whether every node and transition can map to real executor wiring.
4. Runtime resolution and binding — the effective workflow is resolved again and its declared graph is bound before execution.

This layered design lets the UI show useful authoring errors while preserving runtime safety.

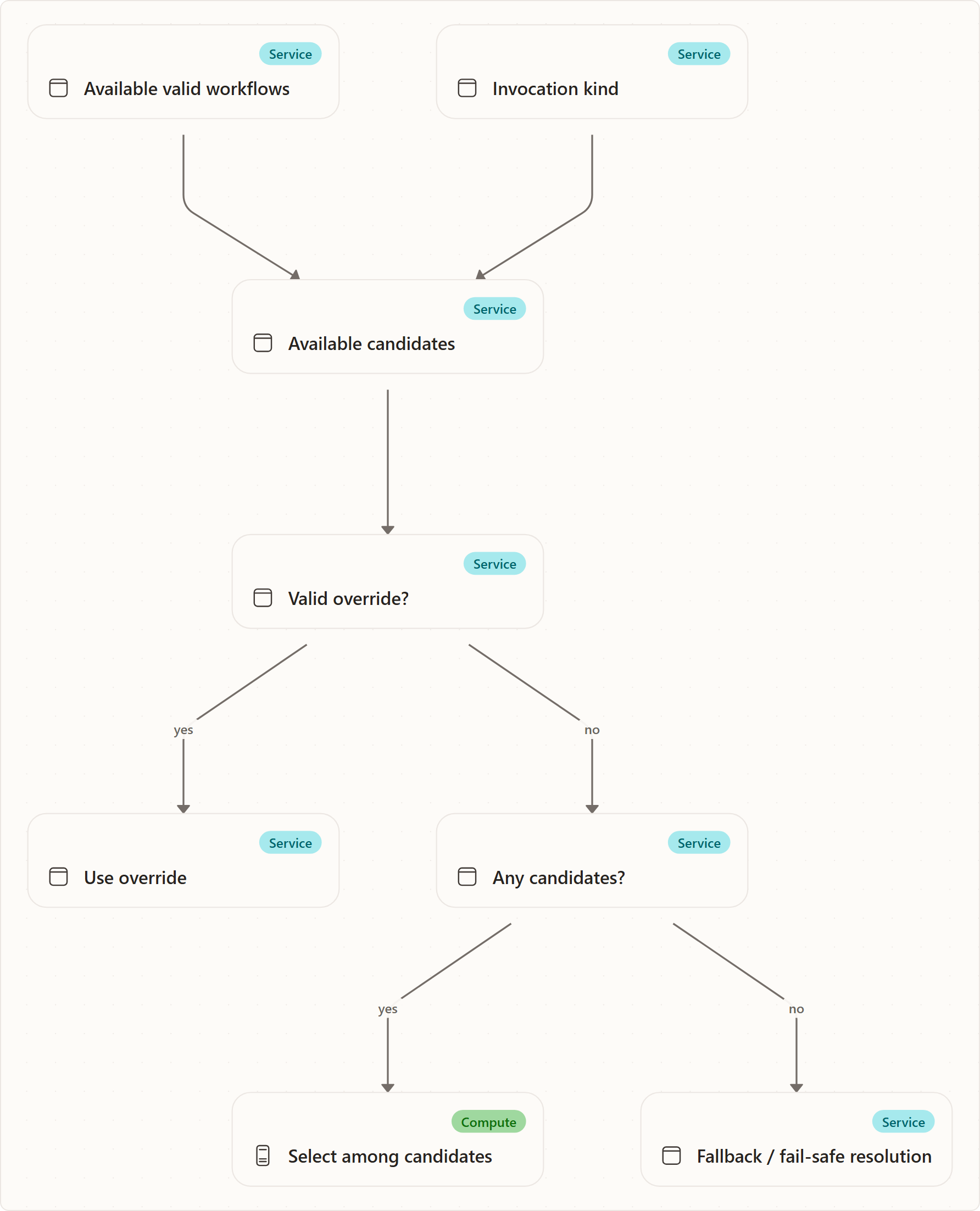

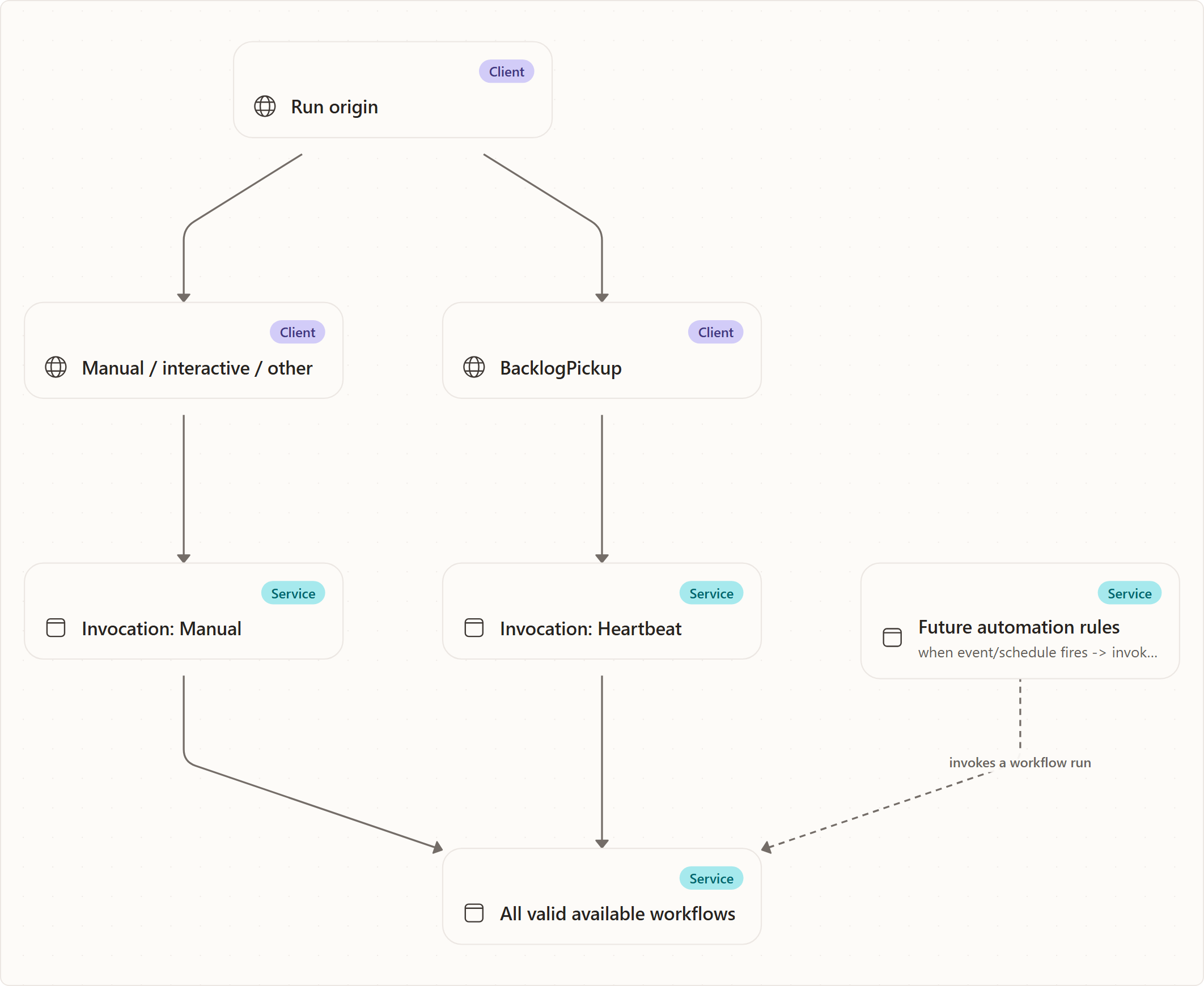

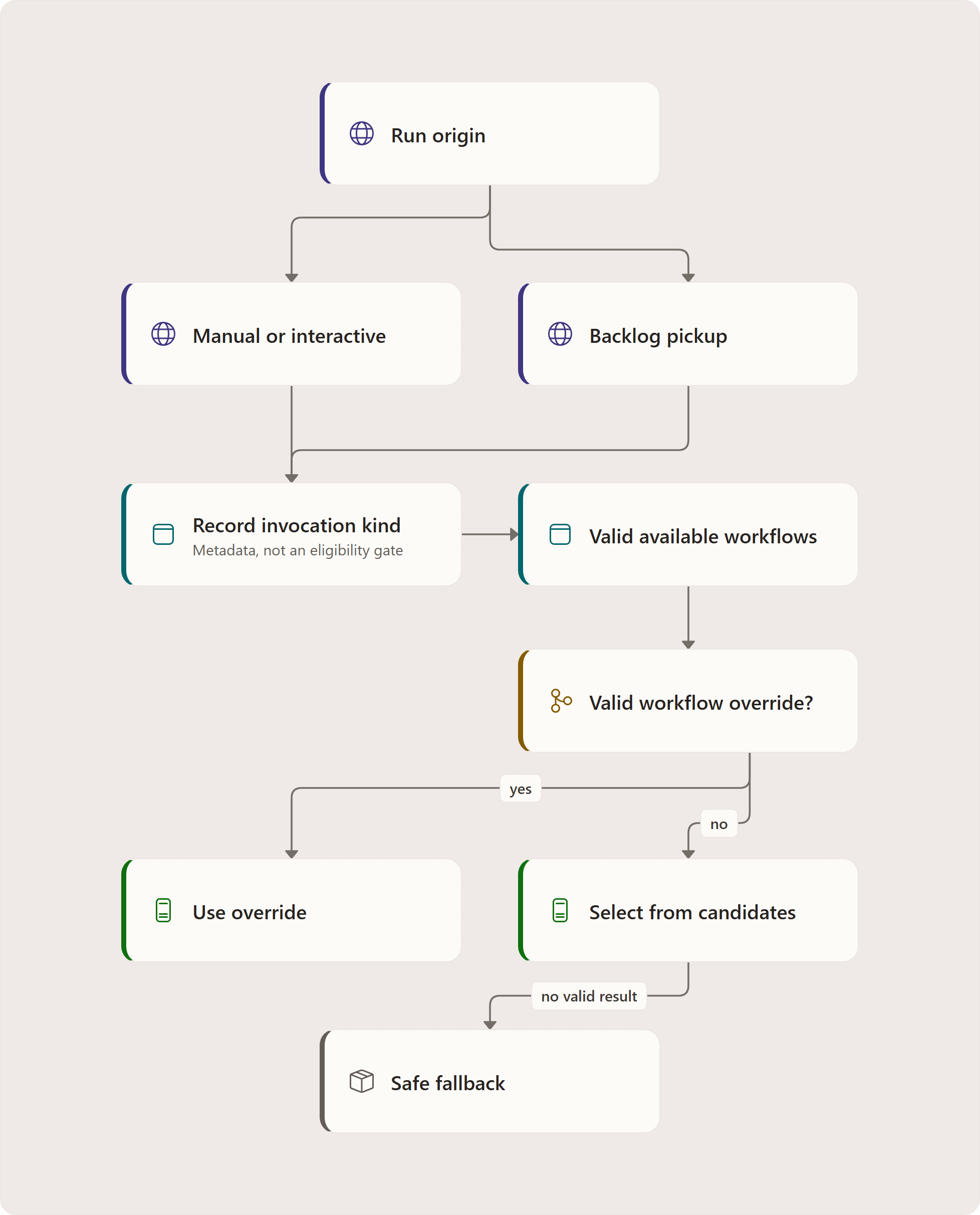

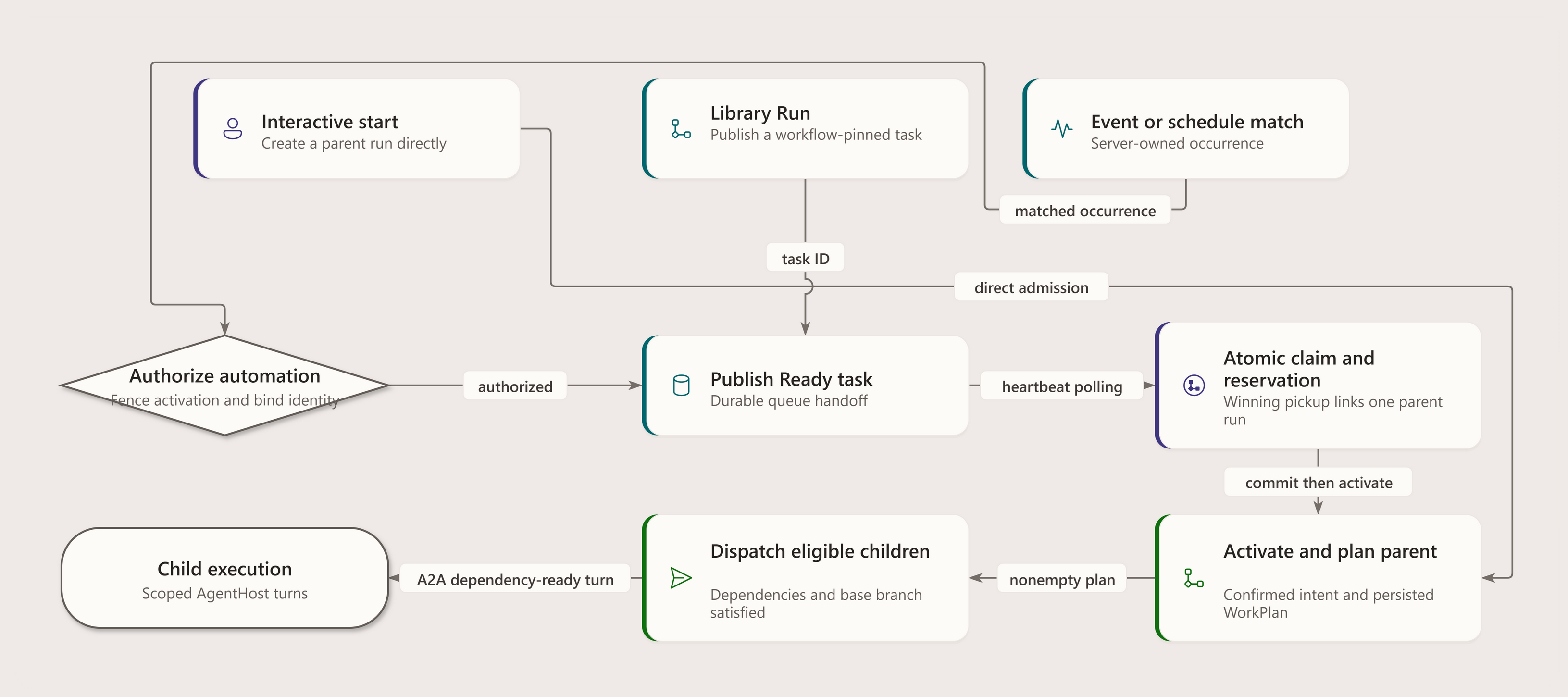

Invocation Context

RunOrigin describes how a run began. Backlog pickup records RunOrigin.BacklogPickup; manually started and child runs have their own origin/responsibility context. The selector does not convert this into a separate invocation-kind eligibility filter (apps/Agentweaver.Api/Coordinator/CoordinatorOrchestratorExecutor.cs:297–300). There is no current WorkflowInvocationKind / ResolveInvocationKindAsync API.

Event and schedule automation are implemented upstream producers, not future selector modes. A matching trigger must obtain or recover an authorized automation invocation before the Ready task is published with a workflow pin (apps/Agentweaver.Api/Workflows/WorkflowEventTriggerService.cs:59–116; WorkflowScheduleTriggerService.cs:145–199). Manual starts and heartbeat pickup use the same normally available workflow set.

All valid workflows in the project's available set are candidates. A backlog task can carry a WorkflowOverrideId. The override is honored only if the workflow exists, is valid, and can bind safely. Otherwise the system logs the mismatch and continues with normal selection or safe fallback behavior.

Rebuild guidance: keep origin, trigger authorization, and workflow selection separate. See selection for override precedence and post-decomposition compatibility; do not treat an invalid requested id as executable.

Event Trigger Evaluation Pipeline

Event-triggered workflows add a narrow routing layer in front of the normal backlog → coordinator pickup path. The trigger mechanism is intentionally small:

1. POST /api/github/webhooks/repo-app bounds the raw body and verification time;
2. the endpoint verifies the configured Repo App HMAC keys (including rotation) before JSON deserialization, lifecycle routing, or predicate evaluation;
3. installation/repository lifecycle processing resolves connected active projects and derives event names: github.<event> and, when GitHub sent an action, github.<event>.<action>;
4. WorkflowEventTriggerService scans valid workflows' event declarations, evaluates if: predicates, and claims or recovers an authorized automation invocation before publishing matching Ready tasks;
5. the coordinator heartbeat claims those Ready tasks through the same accountable path as schedule triggers and manual backlog work.

That ordering is the trust boundary: unsigned or badly signed deliveries never reach predicate evaluation, backlog creation, or prompt assembly.

Source: apps/Agentweaver.Api/Endpoints/GitHubWebhookEndpoints.cs:14–135 and apps/Agentweaver.Api/Workflows/WorkflowEventTriggerService.cs:59–116.

Curated predicate DSL

The event trigger DSL is deliberately not a general expression language. It supports:

• hasLabel
• isNotLabeledWith
• baseBranch
• reviewState
• ref
• category
• commentMatches
• or
• not

Sibling entries in trigger.if are ANDed by default. or and not provide the only compound logic. Predicate support is event-specific (reviewState only for pull_request_review, ref only for push, and so on), and invalid event/predicate combinations are rejected when the workflow is loaded rather than silently ignored at runtime.

commentMatches privacy and ReDoS boundary

commentMatches is the only predicate that inspects raw user-authored text, so it has an explicit security boundary:

• the only raw text admitted is the verified comment.body string from the GitHub payload;
• the pattern is fixed in saved workflow configuration — not generated dynamically from the incoming comment;
• the pattern is validated against a restricted safe subset before the workflow is accepted;
• runtime matching uses .NET's non-backtracking regex engine plus a hard 200 ms match timeout;
• match failures, compile errors, and timeouts fail closed to “no match”;
• only the boolean match result crosses into workflow firing — Agentweaver does not log, persist, or forward the raw comment body into backlog task text or downstream prompts.

This keeps comment-command workflows possible without widening the rest of the engine into a free-form text processing surface.

Use snake_case in YAML and camelCase in the structured trigger API/UI. For example:

trigger:
  type: event
  event_name: github.issue_comment.created
  if:
    - comment_matches: { pattern: "^/agentweaver:triage$" }
    - not:
        or:
          - has_label: { label: "ignore-bot" }
          - comment_matches: { pattern: "^/agentweaver:skip$" }

Workflow Library and Generation

Catalog Library

The catalog library provides reusable functional processes, with only conformance-checked definitions entering normal selection. A blueprint can restrict workflow ids and set a default.

The library is process-oriented. Workflow selection compares process steps and expected outputs rather than matching names. Inspect the current registry rather than assuming a fixed catalog count or that a retired id remains selectable.

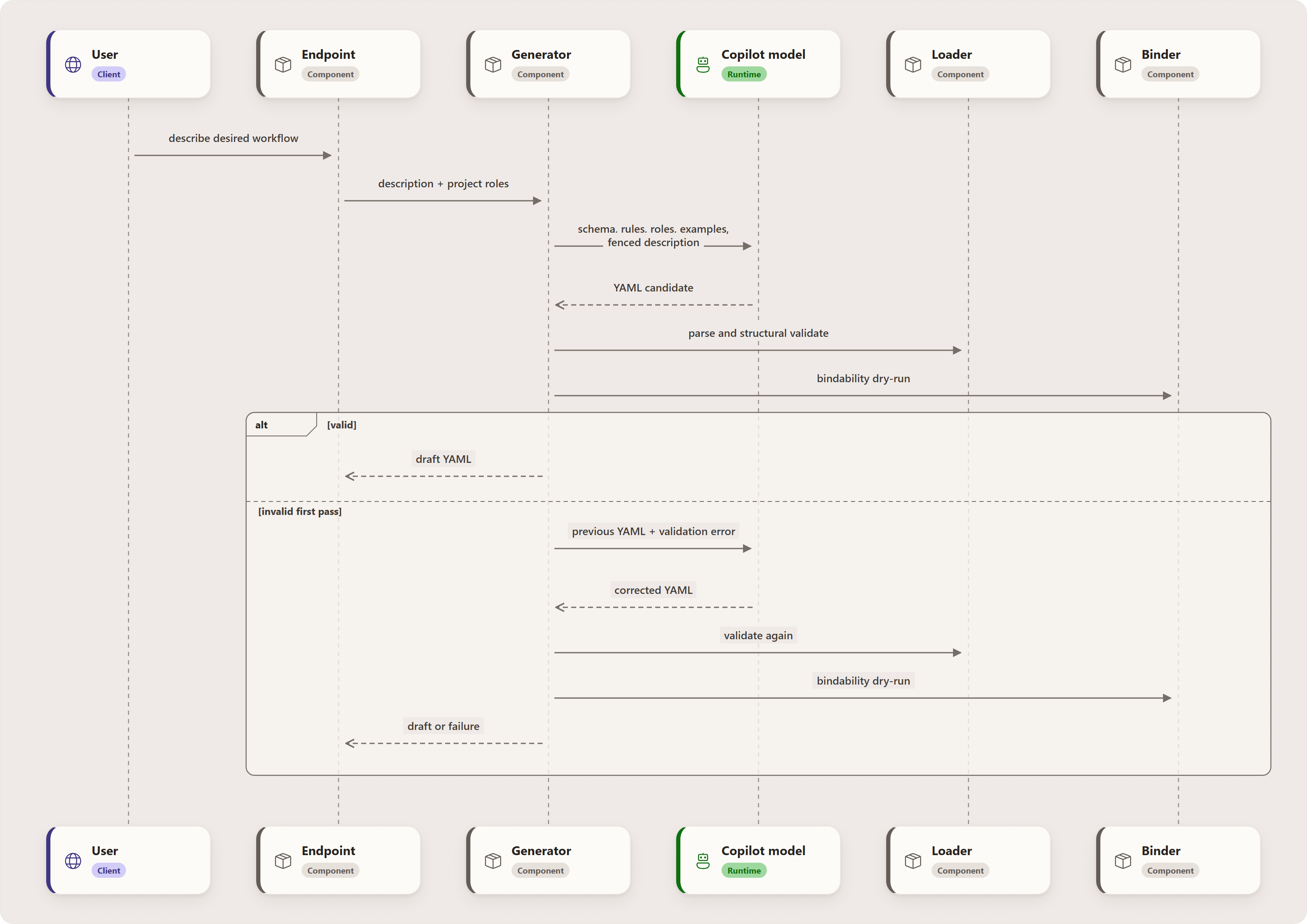

Workflow Generation

Workflow generation turns a natural-language process request into an unsaved YAML draft.

Generation has these rules:

• The prompt is built server-side.
• The user's description is fenced as untrusted data.
• The prompt includes the schema, supported runtime node vocabulary, validation rules, available project roles, and few-shot examples.
• Output is cleaned for accidental Markdown fences.
• If the model omits an id, a kebab-case id is derived from the description.
• The generator validates with the same loader and binder dry-run used by runtime authoring paths.
• Exactly one correction pass is allowed.
• The result is a draft; it is not written to .agentweaver/workflows/ until a save/apply path persists it.

Trigger-aware generation extends that same flow rather than introducing a separate side channel. Both create-mode and edit-mode prompts teach the model:

• the schedule trigger schema (daily / weekly / monthly, UTC time_of_day, weekly day_of_week, monthly day_of_month);
• the curated GitHub event shortlist (issues, issue_comment, pull_request, pull_request_review, push, release, discussion);
• the structured predicate vocabulary and boolean wrappers (or, not);
• a few-shot set of natural-language trigger examples such as label-driven issue triage, weekly schedules, and exact comment commands.

The output still goes through the same loader and binder gate as any other generated workflow. A bad event name, malformed predicate, or unsafe commentMatches pattern triggers the single correction pass; if the corrected draft is still invalid, generation fails closed instead of saving a broken trigger.

Blueprint generation can also invoke workflow generation when no library workflow is a good process fit. Applying that blueprint writes the generated workflow file, syncs the registry, and makes the workflow selectable.

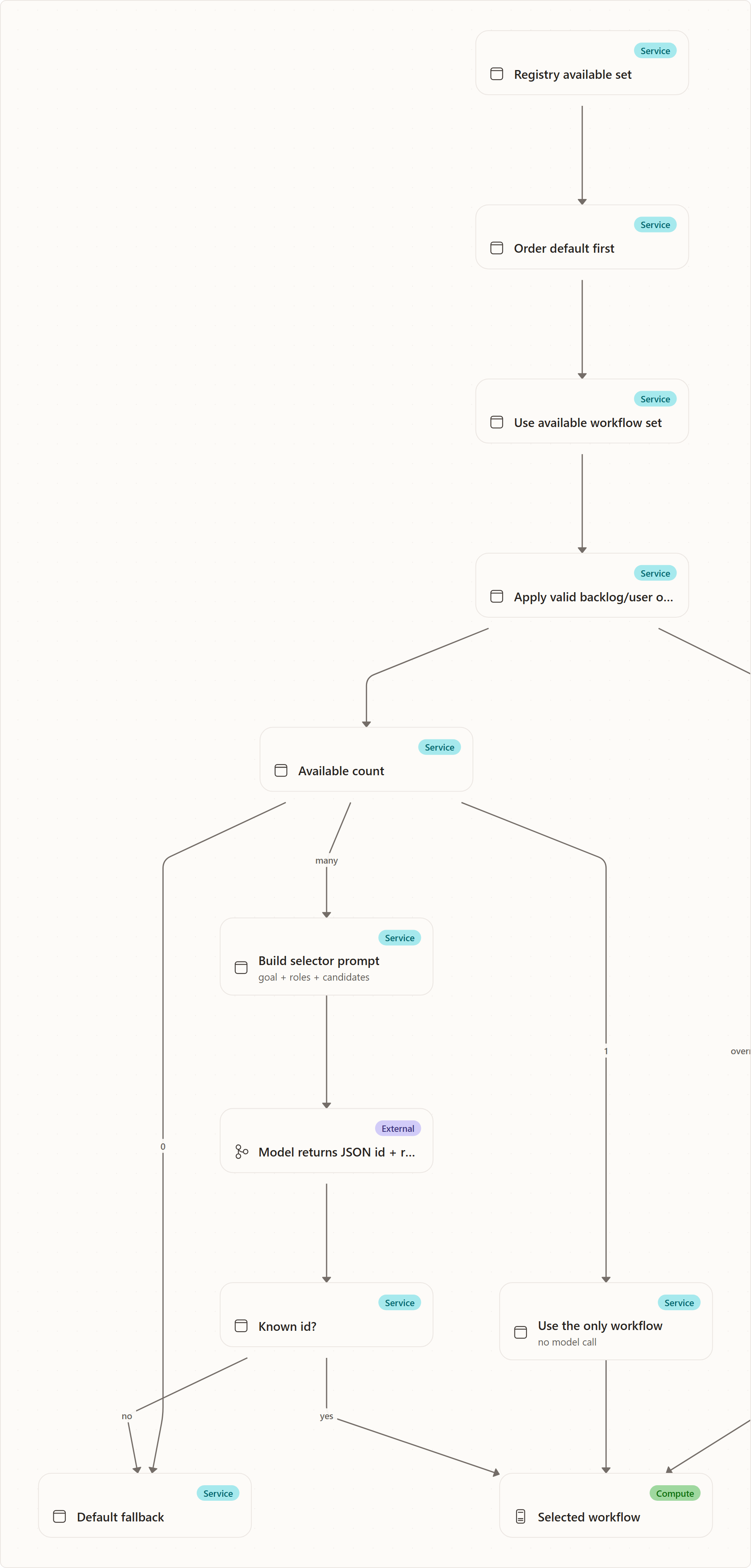

Selection Logic

Workflow selection chooses a process for a task. It runs inside CoordinatorOrchestratorExecutor.SelectWorkflowAsync and is intentionally conservative: deterministic rules narrow the space first (registry ordering, availability, overrides), and WorkflowSelector.SelectAsync only chooses among 2+ available definitions.

The selector prompt asks for process fit:

• Match on the steps the workflow runs and the output it produces.
• Do not choose by name similarity or domain-word overlap.
• Prefer project/custom workflows when they perform the requested process.
• If nothing fits, select the first listed workflow, which is the project default.

The requested model response is JSON with a selected workflow id and short rationale. Candidate matching also accepts normalized ids/display names and supported string/prose forms; unusable responses get one retry before deterministic fallback. The selector prefers available default/standard fallback definitions, while the coordinator's outer exception fallback uses its resolved project default. See workflow selection for these distinct rules and post-decomposition Build & Test compatibility.

Overrides

There are three override channels, checked before automatic singleton handling:

• Request/dialog override — CoordinatorDraftInput.WorkflowOverrideId, checked before the backlog-task pin. An unavailable dialog value continues normal selection without falling back to that pin.

• Backlog task override — BacklogTask.WorkflowOverrideId, persisted on the task before it is claimed. CoordinatorPickupService prepends use {id} to the goal at pickup, and SelectWorkflowAsync also resolves the override id directly against the registry and available set.

• Conversational override — revision feedback use {workflow-id} is parsed before the candidate-count shortcut and used when available. Available request, backlog, and conversational choices emit selection events even with one candidate.

An explicit override wins only inside the candidate safety boundary. It does not let a user or backlog item execute a workflow that the registry cannot resolve or that cannot bind safely.

Selection vs Runtime Resolution

The coordinator persists the selected workflow id on its WorkPlan for decomposition and collective assembly. Standalone run graph construction independently resolves a backlog-task override or the project default and binds that definition; it does not compose a review policy or read the coordinator's selected WorkPlan as its override source (apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:1495–1558). Child graphs take the separate trimmed path. These are different resolution responsibilities, not a promise that every run replays the selector's exact result.

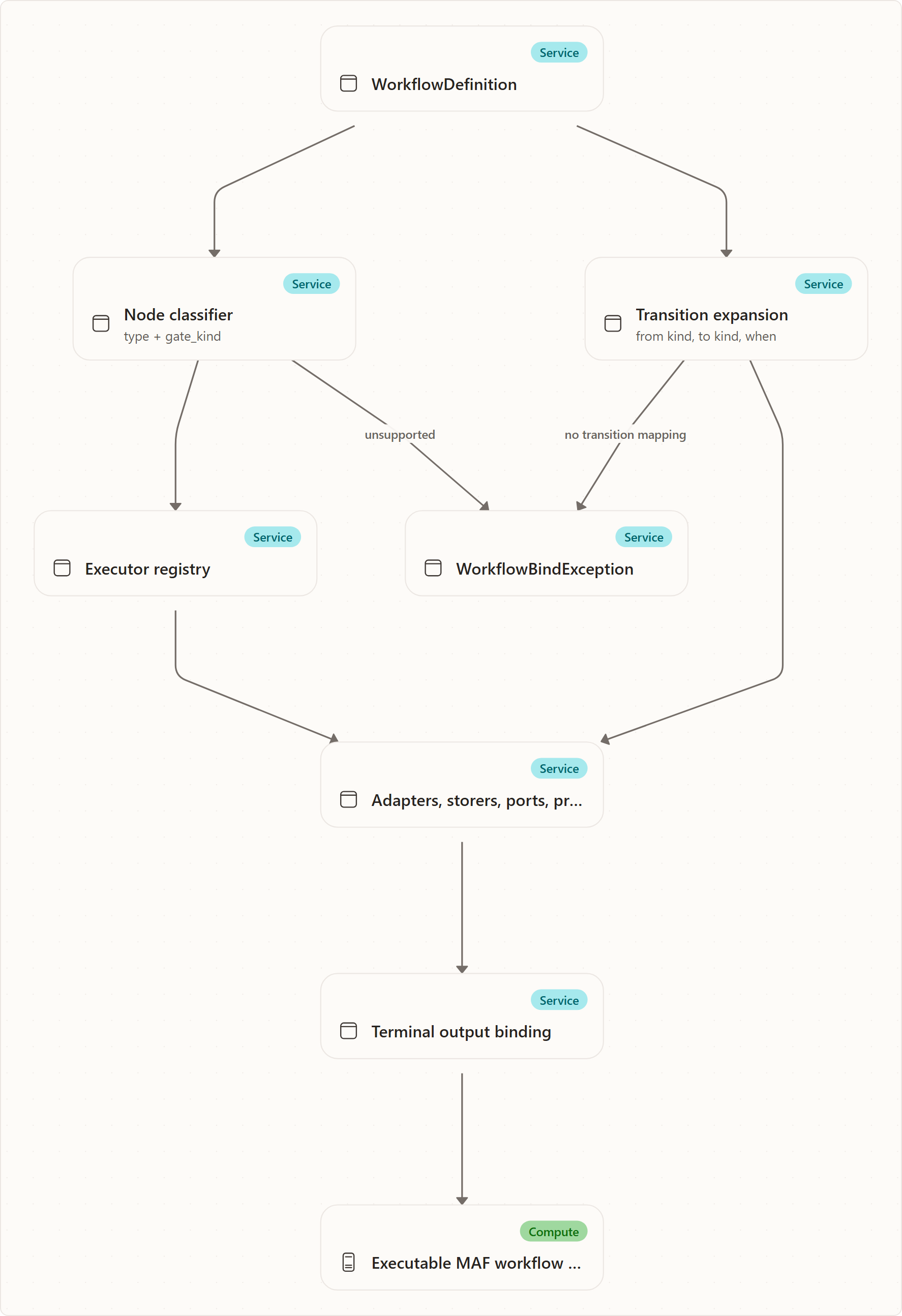

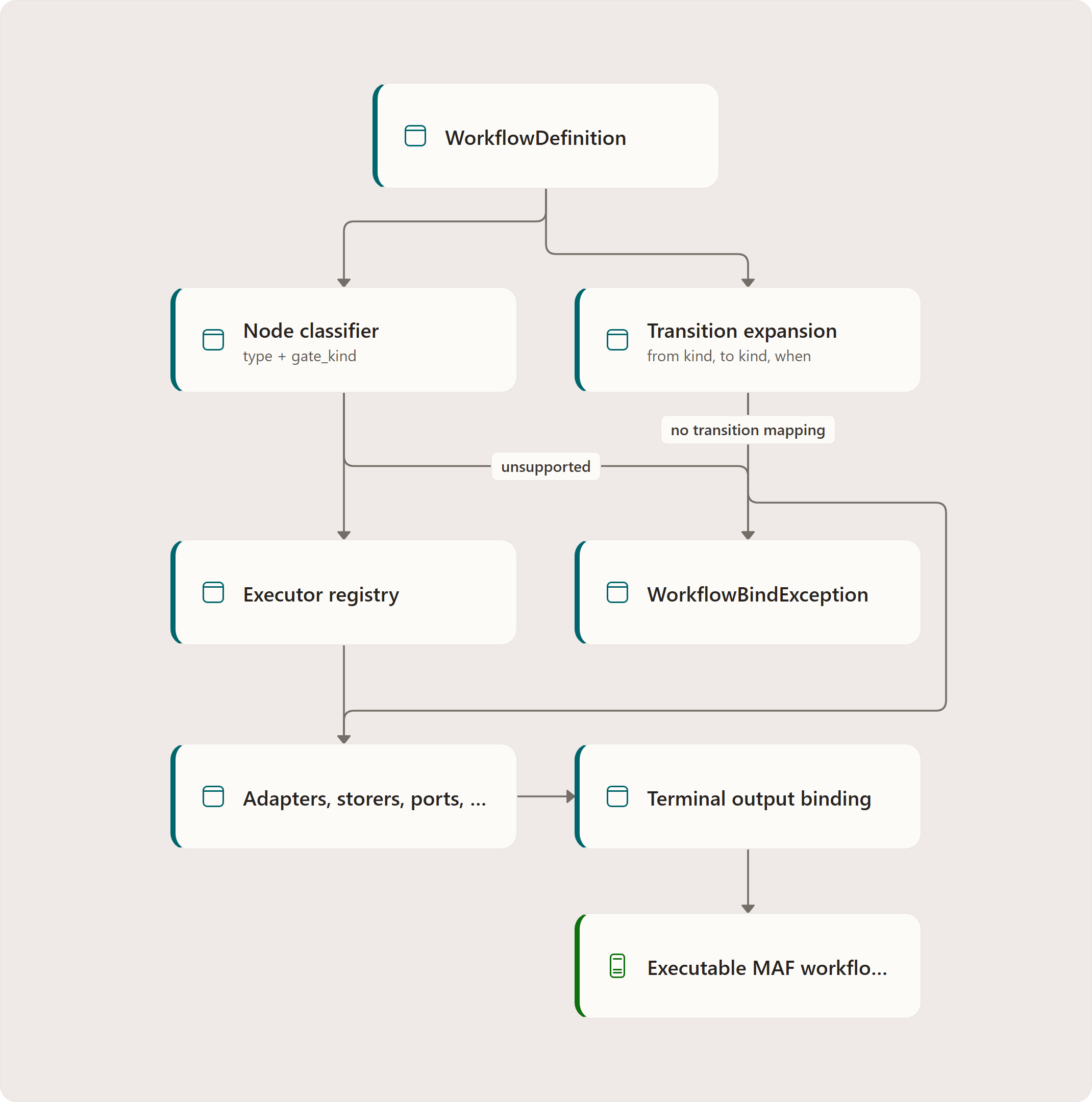

Binding Declarative Nodes to Runtime Execution

Binding is where a workflow stops being YAML and becomes an executable graph.

The binder:

1. classifies each node by type and, for gates, gate_kind;
2. resolves the node to a known executor kind;
3. expands every logical edge into concrete executor wiring and predicates;
4. wires terminal outputs from incoming edge semantics;
5. preserves hidden plumbing such as adapters and stored merge data;
6. fails closed when a node or transition has no mapping.

The binder resolves by node type, not by hardcoded ids. A workflow can rename agent, rai, review, merge, and scribe and still bind if the node types and gate kinds describe the same process. This is what lets library and generated workflows use meaningful node ids while preserving the same runtime semantics.

Canonical Transition Families

The default family includes:

• agent work into RAI,
• RAI revision back to agent,
• RAI safety failure to terminal,
• RAI no-change to scribe,
• RAI review path to human review,
• human approval to merge,
• human change request back to agent,
• human decline to terminal,
• merge completion to PR publication and then scribe in the current default (direct merge-to-scribe remains a supported family),
• merge blocked back to review,
• scribe to done.

Catalog-style workflows add supported generic families:

• sequential agent turns,
• agent output into peer review,
• peer-review pass or approval into merge / RAI / a subsequent agent turn,
• peer-review fail or request-changes back to an agent,
• direct agent or review completion through scribe,
• merge blocked back into peer review or an agent.

Anything outside supported transition families is not "best effort." It is a binding error.

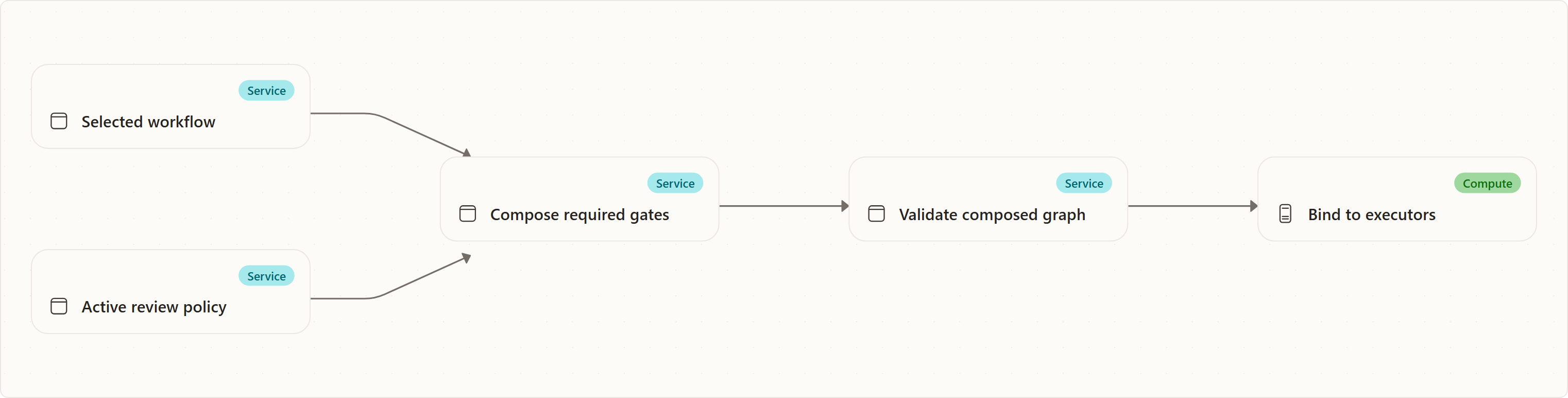

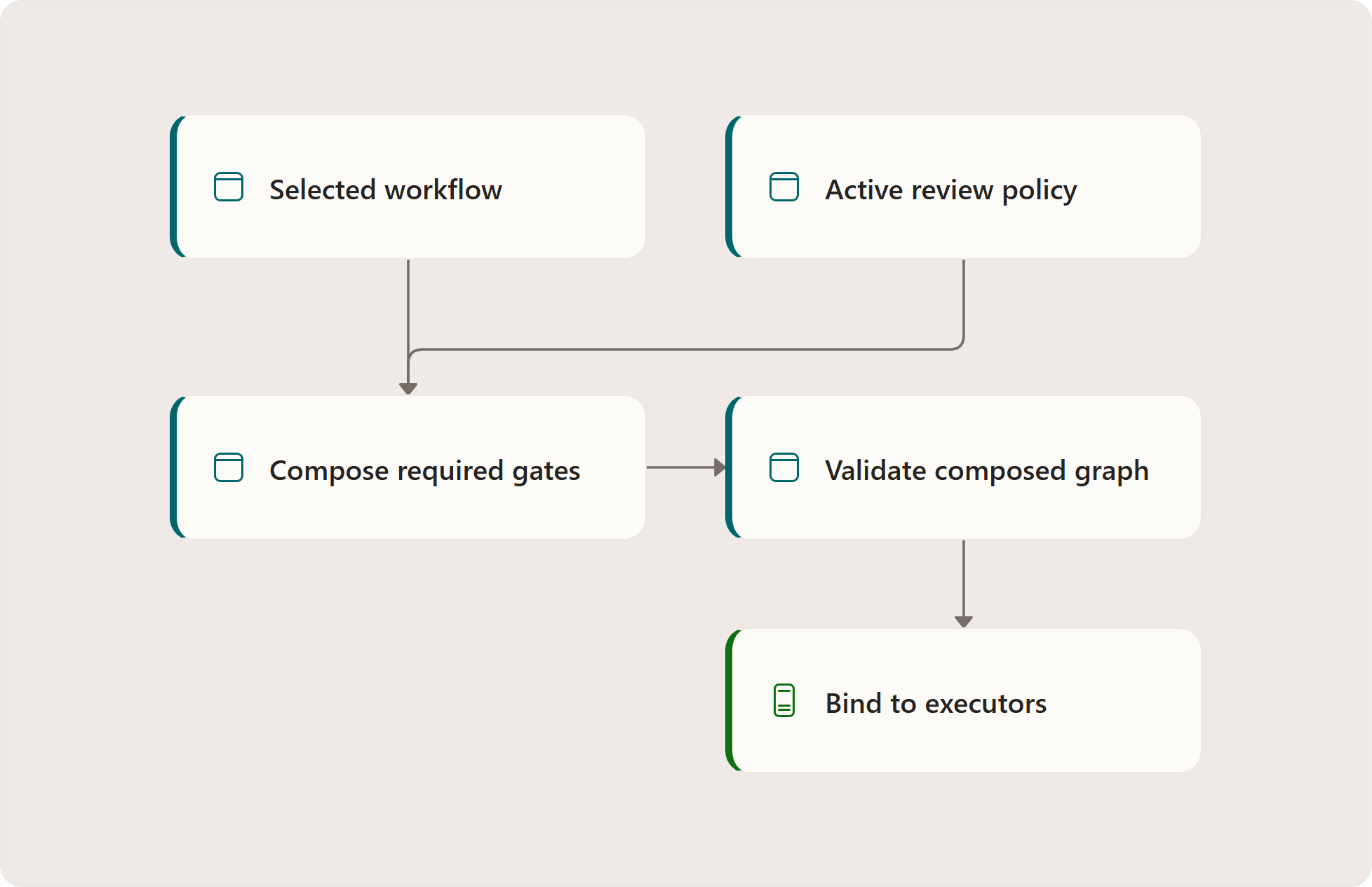

Workflow-declared gates, not a project policy overlay

Author required gates in the workflow nodes and edges. Effective resolution returns the validated workflow without a separate policy-composition pass (apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:1495–1517). Blueprint validation accepts only review_policy: default (apps/Agentweaver.Api/Blueprints/BlueprintService.cs:113–115). There is no configurable project review-policy registry here.

Policy-prefixed adapters retained in RunWorkflowFactory are executor plumbing for declared gate transitions; their names do not establish a live composer. An unsupported declared gate or edge fails binding instead of becoming optional.

Relationship to Runs and Coordinator Work

A workflow is selected at the point where a run needs an execution process. Different run origins use the same concepts but have different responsibility boundaries:

• Manual run — an explicit start.
• Backlog pickup coordinator run — a heartbeat-started run with durable RunOrigin.BacklogPickup.
• Scheduled or event-driven automation — implemented trigger producers publish authorized, workflow-pinned Ready backlog tasks; normal pickup starts the coordinator.
• Coordinator parent run — owns planning, assembly, review, merge, and scribe for coordinated work.
• Coordinator child run — uses a trimmed child pipeline in an isolated working tree: agent work terminating at assemble-ready or a typed failure terminal. It does not perform per-child RAI, human review, merge, or scribe independently. Dependency outputs are merged forward through the coordinator integration branch before dependent children launch.

The important boundary is that workflows govern run gates, while the coordinator owns intent, decomposition, dependency frontiers, and assembly. A child run can produce a safe piece of work; the parent workflow decides how the assembled result is reviewed and merged.

See orchestration.md for the broader run lifecycle and coordinator model.

Extension Points and Gotchas

• Do not execute by id alone. Workflow ids identify definitions; node types and edge semantics determine bindability.
• Unattended pickup is governed outside the workflow YAML. Use project settings and automation rules to decide when a workflow should start automatically.
• Keep generated examples bindable. A generator that teaches unsupported node types will produce attractive but unrunnable YAML.
• Role metadata can be misleading. Distinguish render lanes from concrete catalog agent ids and inline charters.
• Peer review must be verdict-routed. A peer_review node needs verdict-labeled outgoing edges; otherwise bindability validation rejects it instead of guessing how to route it.
• Terminal nodes are resolved by incoming semantics. Renaming done is fine; losing the scribe-sourced or verdict-sourced incoming edge is not.
• Registry sync matters. Saving a file should be followed by an explicit sync for immediate feedback; other replicas refresh when they observe the changed shared-file signature.
• Workflow gates are explicit. Do not infer a configurable review-policy overlay from legacy adapter names.
• Selection and binding have separate responsibilities. Coordinator topology is persisted on the WorkPlan; standalone graph resolution and trimmed child graphs follow their own paths.

Rebuilding Blueprint

If you were rebuilding the workflow engine from scratch, implement it in this order:

1. Define the workflow schema: start, typed nodes, edges, branches, and metadata.
2. Write a loader that returns valid and invalid load results without crashing the whole set.
3. Embed a built-in default workflow and parse it through the same loader as user files.
4. Build a registry that discovers built-in, catalog, and project workflows, caches per project with a shared-file signature, and syncs explicitly.
5. Add invocation-context tracking and keep it separate from candidate availability.
6. Add bindability validation that rejects unsupported node types and transitions before runtime.
7. Implement node classification by type and gate kind, never by fixed ids.
8. Implement edge expansion from (from kind, to kind, when) to concrete executor wiring.
9. Keep authored review gates explicit and validate every gate transition before binding.
10. Add default and override resolution that revalidates availability and bindability.
11. Add process-fit selection among available candidates with deterministic fallback.
12. Add generation as a draft-only server-side prompt + validation + one correction pass.
13. Surface graph descriptors and workflow-selected events for clients, but keep clients out of selection and binding.
14. Add recovery tests that prove renamed nodes, invalid edges, invalid overrides, and unsupported types fail safely.

The central design principle is simple: load workflows as data, select among valid available process graphs, bind every edge to real executors, and fail closed whenever policy cannot be proven executable.

Where this lives

• apps/Agentweaver.Api/Workflows/
• apps/Agentweaver.Api/Coordinator/WorkflowSelector.cs
• apps/Agentweaver.Api/Coordinator/CoordinatorOrchestratorExecutor.cs
• apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs
• packages/Agentweaver.Squad/Catalog/Resources/workflows/
• docs/workflow-binder.md
• docs/workflow-generation.md
• docs/workflow-library.md
• docs/workflow-selection.md

Diagram details and constraints

Element	Contract
title	Generic default workflow
subtitle	Built-in template • merge → PR publication → Scribe
returns-heading	SOURCE / RETURN
outcomes-heading	OUTCOMES
footer	PR action can skip / fail and still reach Scribe. No-changes also reaches Scribe.
Agent work	Agent
Agent work	Agent task
Agent work	agent
RAI gate	Rai
RAI gate	Verdict routing
RAI gate	rai
Human review	Review
Human review	human-review
Merge	Merge
Merge	Merge outcome routing
Merge	merge
Publish / reuse PR	Publish / reuse PR
Publish / reuse PR	Create / reuse; not git push
Publish / reuse PR	action
Scribe	Scribe
Scribe	Record the run outcome
Scribe	scribe
Safety failed	Safety failed
Safety failed	Workflow endpoint
Declined	Declined
Done	Done
edge-02-label	revise
edge-03-label	safety- failed
edge-04-label	no- changes
edge-05-label	review
edge-06-label	approved
edge-07-label	request-changes
edge-08-label	declined
edge-09-label	merged
edge-10-label	blocked

Diagram details and constraints

Element	Contract
title	How work enters the coordinator
takeaway	Origin produces work; it does not filter the set of selectable workflows.
group-title-0	ORIGIN CHANNELS
group-title-1	AUTOMATION ADMISSION AND DURABLE WORK
group-title-2	PICKUP, CONFIRMATION AND SELECTION
Manual request	Manual request
Manual request	Start coordinator directly
Manual request	submitting user
Verified Repo App event	Verified Repo App event
Verified Repo App event	HMAC before JSON parsing
Verified Repo App event	configured signing keys
Due schedule	Due schedule
Due schedule	Claim scheduled occurrence
Due schedule	recover outstanding work
Trigger + authorization	Trigger + authorization
Trigger + authorization	Match and claim invocation
Trigger + authorization	rejected: no work
Pinned Ready task	Pinned Ready task
Pinned Ready task	Durable workflow choice
Pinned Ready task	automation work item
Atomic pickup	Atomic pickup
Atomic pickup	Claim and reserve a run
Atomic pickup	start reserved coordinator
Coordinator run	Coordinator run
Coordinator run	Manual or backlog origin
Coordinator run	RunOrigin recorded
Approval policy	Approval policy
Approval policy	Autopilot controls unattended
Approval policy	not origin alone
Available workflows	Available workflows
Available workflows	No invocation-kind filter
Available workflows	valid supplied candidates
e0	start
e1	match
e2	claim
e3	publish
e4	pickup
e6	policy
e7	select
groups	ORIGIN CHANNELS; AUTOMATION ADMISSION AND DURABLE WORK; PICKUP, CONFIRMATION AND SELECTION

Diagram details and constraints

Element	Contract
title	Workflow selection
subtitle	Trigger-agnostic • explicit choices precede singleton
returns-heading	SOURCE / RETURN
outcomes-heading	OUTCOMES
footer	Post-decomposition Build & Test compatibility is a separate check (executor:407–494).
Load candidates	Load candidates
Load candidates	Project default ordered first
Load candidates	registry.Available
Explicit override?	Explicit override?
Explicit override?	Dialog value, else backlog pin
Explicit override?	must be available
Conversational choice?	Conversational choice?
Conversational choice?	Revision feedback: use {id}
Candidate count	Candidate count
Candidate count	Only automatic selection
Candidate count	0 / 1 / multiple
Ask selection model	Ask selection model
Ask selection model	Goal + roles + process fit
Ask selection model	maximum 2 attempts
Usable candidate?	Usable candidate?
Usable candidate?	Parse / normalize / prose match
Usable candidate?	reject unknown choices
Selected workflow	Selected workflow
Selected workflow	Emit selection + rationale
Selected workflow	workflow_selected
Explicit choice	Explicit choice
Explicit choice	Emit selection
Explicit choice	not auto-selected
Silent choice	Silent choice
Silent choice	One: candidate
Silent choice	Zero: project default
Model fallback	Model fallback
Model fallback	default / standard then non-code-review
Model fallback	else first candidate
Outer fallback	Outer fallback
Outer fallback	Project default
Outer fallback	when catch permits
edge-02-label	available
edge-03-label	absent / invalid
edge-06-label	0 or 1
edge-07-label	2+
edge-08-label	response
edge-09-label	exception
edge-10-label	accepted
edge-11-label	retry once
edge-12-label	2 unusable
edge-13-label	emit choice
edge-14-label	outer catch
fallback	default / standard

Diagram details and constraints

Element	Contract
title	From workflow definition to execution
takeaway	Binding, checkpointed execution and observation are distinct responsibilities.
group-title-0	DECLARATIVE INPUT AND BINDING
group-title-1	EXECUTION AND CHECKPOINTS
group-title-2	DURABLE OBSERVATION
Selected definition	Selected definition
Selected definition	Concrete authored workflow
Selected definition	no policy overlay
Node classification	Node classification
Node classification	Types and gate contracts
Node classification	not fragile node IDs
Factory + binder	Factory + binder
Factory + binder	Executors and typed edges
Factory + binder	fail closed if unsupported
Executable MAF graph	Executable MAF graph
Executable MAF graph	Run the bound workflow
Executable MAF graph	not always default chain
Checkpoint store	Checkpoint store
Checkpoint store	Provider-aware persistence
Checkpoint store	not universally files
Default example	Default example
Default example	Merge -> push-pr -> Scribe
Default example	authored default only
Watch loop	Watch loop
Watch loop	Consume execution updates
Watch loop	supervised observer
Pending + run state	Pending + run state
Pending + run state	Durable request/status state
Pending + run state	typed terminal projection
Workflow-step events	Workflow-step events
Workflow-step events	Progress for observers
Workflow-step events	not runtime control
e0	classify
e1	bind
e2	execute
e3	checkpoint
e4	example
e5	stream
e6	persist
e7	publish
groups	DECLARATIVE INPUT AND BINDING; EXECUTION AND CHECKPOINTS; DURABLE OBSERVATION

Diagram details and constraints

Element	Contract
title	Generate a draft, not a saved workflow
takeaway	One correction attempt reuses loader and binder validation; saving is a separate action.
group-title-0	DRAFT REQUEST AND GENERATION
group-title-1	NORMALIZATION AND VALIDATION
group-title-2	BOUNDED CORRECTION OR RESULT
User description	User description
User description	Request workflow generation
User description	not a save command
Server prompt + model	Server prompt + model
Server prompt + model	Constrained generation request
Server prompt + model	authored draft response
Clean draft + ID	Clean draft + ID
Clean draft + ID	Normalize returned content
Clean draft + ID	built-in edit: new ID
Loader validation	Loader validation
Loader validation	Parse workflow definition
Loader validation	same validation pipeline
Binder validation	Binder validation
Binder validation	Check runtime bindability
Binder validation	not syntax alone
Valid draft response	Valid draft response
Valid draft response	Return YAML to caller
Valid draft response	not persisted/applied
Error + one retry	Error + one retry
Error + one retry	Ask model to correct error
Error + one retry	exactly one correction
Validate correction	Validate correction
Validate correction	Same cleanup/loader/binder
Validate correction	second pass only
Generation exception	Generation exception
Generation exception	Correction still invalid
Generation exception	explicit failure
e0	request
e1	clean
e2	load
e3	bind
e4	valid
e5	invalid
e7	retry
groups	DRAFT REQUEST AND GENERATION; NORMALIZATION AND VALIDATION; BOUNDED CORRECTION OR RESULT

Diagram details and constraints

Element	Contract
title	Declarative data is not an executor
takeaway	A parsed workflow still needs structural and runtime-bindability validation.
group-title-0	DECLARATIVE SHAPE
group-title-1	STRUCTURE AND SEMANTIC CLASSIFICATION
group-title-2	BINDABILITY AND RESULT
Workflow YAML	Workflow YAML
Workflow YAML	Authored graph document
Workflow YAML	start + nodes + edges
Start + typed nodes	Start + typed nodes
Start + typed nodes	Stable node identity
Start + typed nodes	type / gate contracts
Edges + metadata	Edges + metadata
Edges + metadata	Transitions and render fields
Edges + metadata	role / kind: visual
Structural checks	Structural checks
Structural checks	References and graph shape
Structural checks	loader-valid definition
Runtime classifier	Runtime classifier
Runtime classifier	Known node execution kinds
Runtime classifier	publish -> agent kind
Executor bindings	Executor bindings
Executor bindings	Concrete execution contracts
Executor bindings	not metadata inference
Start/edge compatibility	Start/edge compatibility
Start/edge compatibility	Typed transitions must fit
Start/edge compatibility	dry-run bindability
Executable graph	Executable graph
Executable graph	Valid concrete MAF graph
Executable graph	ready to execute
Binding error	Binding error
Binding error	Unsupported node/start/edge
Binding error	WorkflowBindException
e0	parse
e2	validate
e4	classify
e5	bind
e6	check
e7	valid
e8	invalid
groups	DECLARATIVE SHAPE; STRUCTURE AND SEMANTIC CLASSIFICATION; BINDABILITY AND RESULT

Diagram details and constraints

Element	Contract
title	Visual role versus runtime context
takeaway	Node fields feed different executors; role/kind never becomes an executing catalog identity.
group-title-0	AUTHORED FIELD FAMILIES
group-title-1	PRESENTATION AND WORKER CONTEXT
group-title-2	SPECIALIZED EXECUTOR CONTEXT
Authored node	Authored node
Authored node	Fields are not interchangeable
Authored node	node declaration
role / kind	role / kind
role / kind	Rendering metadata
role / kind	not executing identity
prompt / charter	prompt / charter
prompt / charter	Generic worker context
prompt / charter	prompt or publish node
Diagram presentation	Diagram presentation
Diagram presentation	Visual role and grouping
Diagram presentation	no agent assignment
AgentTurnExecutor	AgentTurnExecutor
AgentTurnExecutor	Receives prompt + charter
AgentTurnExecutor	not node.Agent
Peer-review fields	Peer-review fields
Peer-review fields	agent + charter
Peer-review fields	reviewer-specific contract
Rubberduck executor	Rubberduck executor
Rubberduck executor	Receives agent + charter
Rubberduck executor	peer-review context
Build & Test field	Build & Test field
Build & Test field	agent
Build & Test field	platform executor context
Build & Test executor	Build & Test executor
Build & Test executor	Receives agent context
Build & Test executor	not role/kind mapping
e0	visual
e1	worker
e2	render
e3	bind
e4	peer
e6	build
groups	AUTHORED FIELD FAMILIES; PRESENTATION AND WORKER CONTEXT; SPECIALIZED EXECUTOR CONTEXT

Diagram details and constraints

Element	Contract
title	Discover and cache valid workflows
takeaway	Registry sources are categories, not a project-policy precedence chain.
group-title-0	DEFINITION SOURCES
group-title-1	VALIDATION AND FILTERING
group-title-2	DIAGNOSTICS, CACHE AND AVAILABILITY
Embedded default	Embedded default
Embedded default	Platform-provided definition
Embedded default	default retained
Conforming catalog	Conforming catalog
Conforming catalog	Known catalog workflows
Conforming catalog	reserved IDs protected
Project YAML	Project YAML
Project YAML	Project-defined documents
Project YAML	not review-policy files
Loader + bindability	Loader + bindability
Loader + bindability	Validate usable definitions
Loader + bindability	invalid entries diagnosed
Identity collisions	Identity collisions
Identity collisions	Reserved catalog conflicts
Identity collisions	materialized default skipped
Allowed-set filter	Allowed-set filter
Allowed-set filter	Filter available choices
Invalid diagnostics	Invalid diagnostics
Invalid diagnostics	Keep errors in results
Invalid diagnostics	not selectable candidates
Signature cache	Signature cache
Signature cache	Per-project refresh key
Signature cache	sync invalidates/refreshes
Available candidates	Available candidates
Available candidates	Valid and allowed workflows
Available candidates	selection input
e0	load
e3	check IDs
e4	invalid
e5	valid
e6	cache
e7	available
groups	DEFINITION SOURCES; VALIDATION AND FILTERING; DIAGNOSTICS, CACHE AND AVAILABILITY

Diagram details and constraints

Element	Contract
title	Bind contracts, not just node names
takeaway	Typed executor, start and transition contracts can reject otherwise parseable YAML.
group-title-0	DEFINITION AND CLASSIFICATION
group-title-1	EXECUTOR AND MESSAGE CONTRACTS
group-title-2	START, EDGE AND TERMINAL VALIDATION
Parsed definition	Parsed definition
Parsed definition	Loader-valid graph data
Parsed definition	not execution proof
Type/gate classifier	Type/gate classifier
Type/gate classifier	Known node kinds
Type/gate classifier	renamed IDs still work
Unsupported kind	Unsupported kind
Unsupported kind	No concrete runtime contract
Unsupported kind	fail closed
Executor bindings	Executor bindings
Executor bindings	Concrete executor instances
Executor bindings	factory integrations
Transition adapters	Transition adapters
Transition adapters	Typed predicates and messages
Transition adapters	not arbitrary arrows
Terminal outputs	Terminal outputs
Terminal outputs	Known result contracts
Terminal outputs	typed completion
Start + edge checks	Start + edge checks
Start + edge checks	Dry-run bindability
Start + edge checks	verdict start may fail
MAF graph	MAF graph
MAF graph	Validated executable graph
MAF graph	start executor resolved
WorkflowBindException	WorkflowBindException
WorkflowBindException	Unsupported contract reported
WorkflowBindException	no silent fallback graph
e0	classify
e1	unknown
e2	known
e3	wire
e4	outputs
e5	check
e7	valid
e8	invalid
e9	raise
groups	DEFINITION AND CLASSIFICATION; EXECUTOR AND MESSAGE CONTRACTS; START, EDGE AND TERMINAL VALIDATION

Visual model

Workflow invocation

Structured source · Editable draw.io
