Decoupled live-preview provisioning — Deep Dive
Decoupled live preview makes publication a platform-owned step rather than a Build & Test tool side effect. PreviewStep resolves a command, starts the app in the retained AgentHost pod, observes its real port, obtains approval, creates preview resources and validates the exact generated HTTPS URL before reporting ready. The API never directly probes the sandbox preview port. Command discovery uses heuristics first and a bounded model fallback if unresolved.
For proxy internals, see Sandbox browser preview. For event and endpoint contracts, see the reference. For the review workflow, see the user guide.

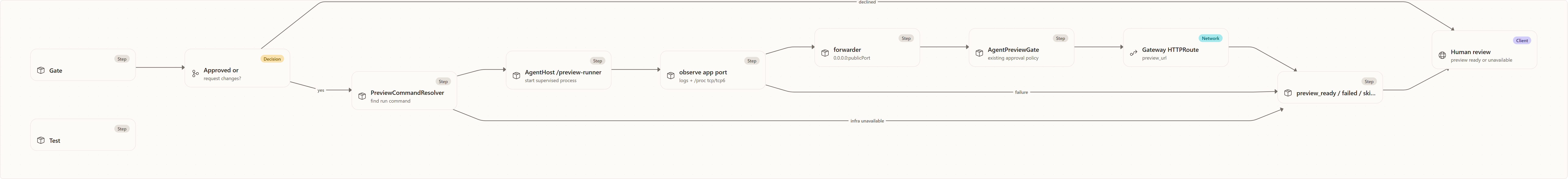

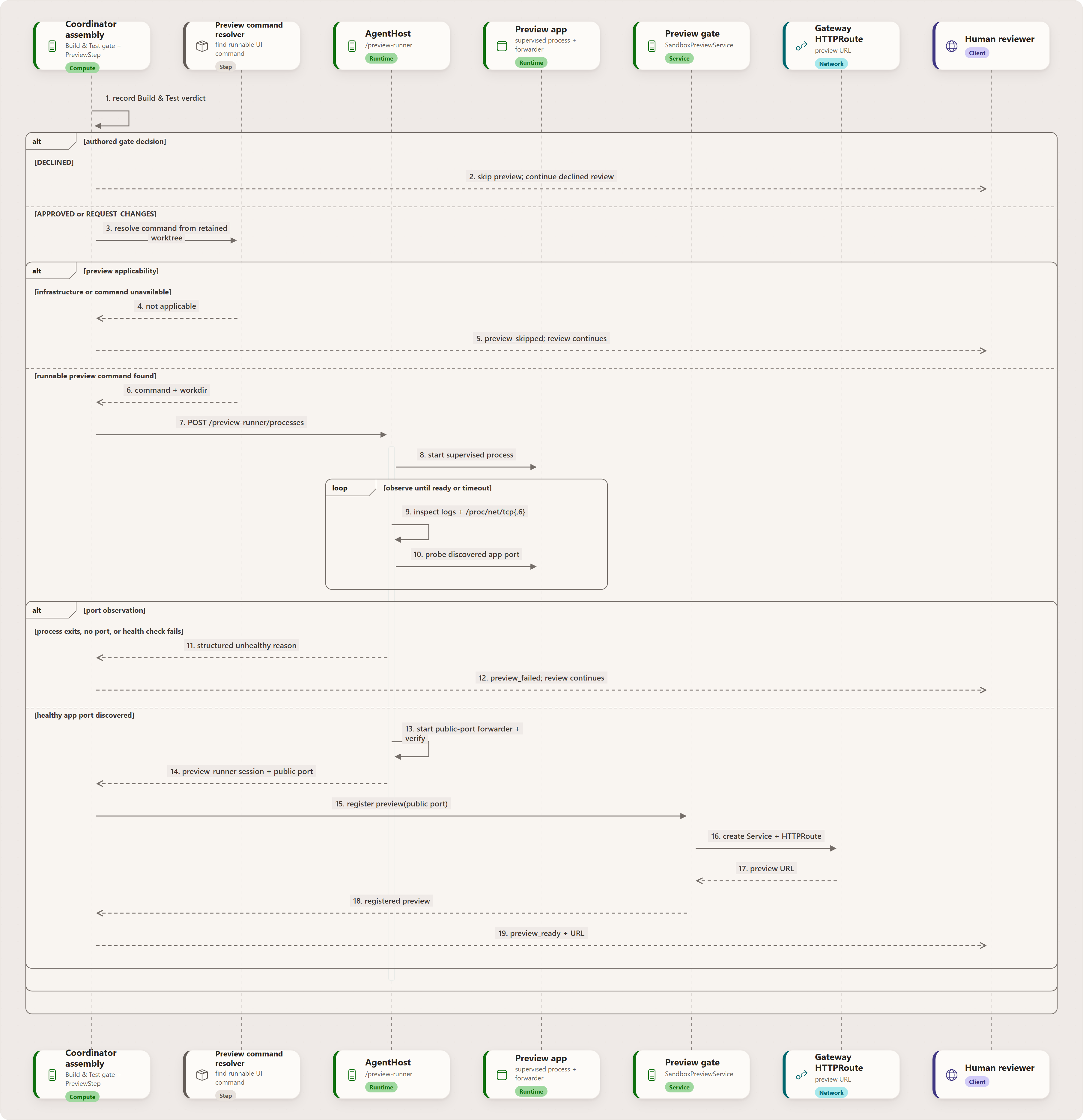

End-to-end flow
The invocation point is in the coordinator assembly Build & Test gate. CoordinatorAssemblyService records preview applicability, runs Build & Test, then calls PreviewStep.RunAsync before applying the authored gate decision (apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs:710, :753). ShouldRunDeterministicPreviewStep means the step runs for APPROVED and REQUEST_CHANGES verdicts, and skips only DECLINED verdicts or missing service wiring (CoordinatorAssemblyService.cs:180).
There is no feature flag. If the service is wired and the verdict is not declined, the preview step runs. Infrastructure that cannot produce a reachable Gateway preview self-skips by emitting sandbox.preview_skipped_not_applicable with reason preview_infra_unavailable (apps/Agentweaver.Api/Coordinator/Preview/PreviewStep.cs:83).
Deterministic command and port discovery
PreviewStep does not ask the Build & Test model to call preview tools. It drives AgentHost directly:
- Resolve a command from the detached worktree with
PreviewCommandResolver. The resolver first tries the worktree root, then probes a bounded ordered list of conventional web-app subdirectories —client,app/client,frontend,web,app,src/client(depth ≤ 2) — and uses the first directory that yields a runnable command. Server, API, and backend directories are not probed; only frontend/UI candidates are considered. This allows client/server and monorepo-style layouts to produce a live preview even when the app is nested in a subdirectory. It checkspackage.json,.csproj, Dockerfile, Makefile, Python, Go, and simple Node entry points, forcing all-interface binds where known (apps/Agentweaver.Api/Sandbox/Preview/PreviewCommandResolver.cs:25). - Call
POST /preview-runner/processeson the run-bound AgentHost pod origin, not the A2A path (apps/Agentweaver.Api/Sandbox/Preview/PreviewRunnerHttpClient.cs:35,:78). - Call
observe-bound-port; AgentHost parses stdout/stderr log hints, then diffs the namespace-local kernel socket tables/proc/net/tcpand/proc/net/tcp6to find a new listening port without depending on thessbinary. It verifies HTTP health on the app's actual port, startsTcpPortForwarder, then verifies HTTP health again through the forwarder's public port (apps/Agentweaver.AgentHost/PreviewRunner.cs:246,:610,:315). - Register the preview with the existing
AgentPreviewGateandSandboxPreviewService. The platform passes the forwarder public port — scanned from3000-9000— so the Gateway always targets a pod-IP-reachable listener instead of assuming a fixed port (PreviewStep.cs:146,:166,apps/Agentweaver.AgentHost/TcpPortForwarder.cs:75).SandboxPreviewServicethen creates the Service + HTTPRoute without an API-pod TCP preflight, because NetworkPolicy permits preview-port ingress only from the Gateway (SandboxPreviewService.cs:134,k8s/base/networkpolicy-sandbox.yaml).
PreviewStep is the single terminal outcome emitter for this stage: sandbox.preview_ready, sandbox.preview_failed, or sandbox.preview_skipped_not_applicable (PreviewStep.cs:229, :258, :272). Observe failures now stay legible end-to-end instead of collapsing into an opaque HTTP 500: no_listening_port_discovered means the timeout expired without a healthy listening port, process_exited:exit={code} means the app exited before readiness, and observe_error means the AgentHost observe endpoint hit an unexpected error but returned a structured unhealthy result. The forwarder adds two more distinct reasons: bound_unreachable when the public port fails the through-forwarder health check, and no_public_port_available when the allowed public range has no free port (PreviewRunner.cs:262, apps/Agentweaver.AgentHost/Program.cs:347, PreviewRunner.cs:321, :346).
The command resolver no longer pins PORT=3000 or appends --port. It may add host-bind hints for known frameworks, but the app otherwise uses its framework default or process.env.PORT; port selection belongs to the platform observation/forwarder path (apps/Agentweaver.Api/Sandbox/Preview/PreviewCommandResolver.cs:25).
Readiness is split by trust boundary: AgentHost checks app and forwarder health inside the pod; the API then validates the generated Gateway hostname. Failed or cancelled publication rolls back the Service/HTTPRoute and reconciles retention; resource creation alone never yields preview_ready. The preview ingress rule admits Gateway pods, not a hostname; port 8088 also has separate control allows.
Publication lease
Publication can spend the configured Gateway-convergence window before its terminal sandbox.preview_ready batch commits while the run row is still active. Without a lease, an agent that finished its work inside that window cancelled its own preview: the run's completion token tore down the publication, and the preview process stopped with reason preview_not_published.
Every publication path therefore claims a run-level lease before its slow work (IRunStore.TryBeginPreviewPublicationAsync). The lease is a column on the run row, so it is visible to all API replicas. While it is held, PreviewPublicationLeaseRunStore defers every transition that can make the run terminal, and preview_ready keeps its ordering before the terminal event. While DNS and Gateway programming converge, the publication loop renews the short lease and the coordinator treats a current lease as durable evidence that the otherwise-silent child is still doing live work. A refused renewal means the run is already terminal, and publication aborts with the same conflict it reported before.
Each lease extension is only three minutes, so a replica that crashes mid-publication stops renewing and cannot park a run for the full convergence budget. Explicit cancellation completes the run stream and clears the lease before terminalizing, so it interrupts publication rather than waiting for convergence. PreviewStep also releases the lease around the preview approval wait, so a run is never held open while an operator decides.
PreviewPublicationLeaseRunStore deliberately wraps RunActiveClaimGuardedRunStore from the outside. That store's per-run claim is also taken by the conditional preview_ready append, so waiting while holding it would deadlock against the publication being waited for. Callers that need the guarded store in the chain use RunStoreChain.Find<T> instead of a direct cast (apps/Agentweaver.Api/Infrastructure/PreviewPublicationLeaseRunStore.cs, IRunStoreDecorator.cs).
Gateway and lifetime alignment
On success, registration creates the same Gateway HTTPRoute / Service chain described in Sandbox browser preview, but it also records preview_runner_session_id on both the preview_ready payload and the HTTPRoute annotations (PreviewStep.cs:249, apps/Agentweaver.Api/Sandbox/Preview/SandboxPreviewService.cs:670). That id is distinct from session_id, which remains the Gateway capability token. Listing active sessions uses a label-selector pod-existence check under the same isolation rule, not an API-to-sandbox TCP liveness check (SandboxPreviewService.cs:399, :768).
Keepalive now touches both lifetimes. SandboxPreviewService.KeepAliveAsync patches the HTTPRoute idle expiry, then best-effort calls /preview-runner/processes/{sessionId}/health-check using the annotated PreviewRunner session so the supervised app process is not reaped while the Gateway route stays alive (SandboxPreviewService.cs:236, :271).
The sandbox itself has one explicit run-level lifecycle derived from those durable routes: Previewable when no unexpired route exists and PreviewActive while at least one does. Entering or reasserting PreviewActive best-effort extends the backing claim TTL using configured LifetimeMinutes * 60 + 600 and sets cluster-autoscaler.kubernetes.io/safe-to-evict=false. This is not a per-project hard-maximum calculation or an unconditional retention guarantee. Turn-end release, the orphan reaper, preview start, and active-use keepalive all invoke this same idempotent transition instead of independently remembering those side effects. When the final route stops or expires, reconciliation returns the run to Previewable, restores the configured normal claim TTL, and sets safe-to-evict=true. If several routes exist for one run, stopping one keeps the run PreviewActive until the last route is gone.
Per-run preview-runner credential
AgentHost /preview-runner/* endpoints are protected by a per-run credential:
- API mints a fresh credential on AgentHost launch and sends it only in the
/configurebody; it is not a pod environment variable, file, or config value (apps/Agentweaver.Api/Sandbox/KubernetesSandboxExecutor.cs:699). - AgentHost stores it in
AgentHostRuntimeState.PreviewRunnerCredential, in memory only (apps/Agentweaver.AgentHost/AgentHostRuntimeState.cs:40). - The server side separately persists the value in
ISecretStoreunder the deterministic run key. A failed write is logged but still delivers pod memory state, degrading cross-replica recovery. Without vault configuration the server store is in memory. /preview-runner/*accepts either the turn bearer token or the preview-runner credential and fails closed when either credential is configured (apps/Agentweaver.AgentHost/Program.cs:450).- The credential key is deterministic per run, but every launch mints a new random value (
apps/Agentweaver.Api/Sandbox/Preview/PreviewRunnerCredential.cs:32,:39). - Pod release and crash/stall orphan reaping delete the durable credential best-effort (
KubernetesSandboxExecutor.cs:486,apps/Agentweaver.Api/Sandbox/AgentHostReaperService.cs:189).
The AgentHost process launcher also scrubs secret-bearing environment variables before spawning the untrusted preview app, so the app cannot inherit the preview-runner credential (apps/Agentweaver.AgentHost/PreviewRunner.cs:408).
Failure behavior
Preview outcomes return to authored assembly-gate processing:
- Preview failure never changes an
APPROVEDverdict into request-changes. - Existing
REQUEST_CHANGEScan be promoted to approval only when preview failed and feedback is positively classified as preview-only; missing/failed classification preserves request-changes. - The UI shows Preview unavailable with the recorded reason. Do not assume every return takes the human-review branch.
DECLINEDBuild & Test skips the preview step because that gate is already terminal.
Denial and non-retryable failures stop the process. Approval expiry keeps a healthy process private, with retry context for a fresh approval; it never publishes a route. A successful approval still requires an active run, healthy process and validated HTTPS publication.
The older approval-time outcome guard remains as a safety net. If no terminal preview outcome exists, the coordinator emits sandbox.preview_failed with reason preview_outcome_missing, but still proceeds with the authored Build & Test decision (CoordinatorAssemblyService.cs:2455).
Source
| Concern | File |
|---|---|
| Deterministic preview step | apps/Agentweaver.Api/Coordinator/Preview/PreviewStep.cs |
| Build & Test invocation point | apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs |
| Command resolution | apps/Agentweaver.Api/Sandbox/Preview/PreviewCommandResolver.cs |
| AgentHost preview-runner HTTP client | apps/Agentweaver.Api/Sandbox/Preview/PreviewRunnerHttpClient.cs |
| AgentHost preview-runner endpoints and auth | apps/Agentweaver.AgentHost/Program.cs |
Supervised process runner and /proc/net/tcp{,6} port discovery | apps/Agentweaver.AgentHost/PreviewRunner.cs |
| Pod-local TCP forwarder | apps/Agentweaver.AgentHost/TcpPortForwarder.cs |
| Per-run credential helper | apps/Agentweaver.Api/Sandbox/Preview/PreviewRunnerCredential.cs |
| Gateway preview + dual keepalive | apps/Agentweaver.Api/Sandbox/Preview/SandboxPreviewService.cs |
| Credential cleanup on pod release/reap | apps/Agentweaver.Api/Sandbox/KubernetesSandboxExecutor.cs, apps/Agentweaver.Api/Sandbox/AgentHostReaperService.cs |
See also
- Decoupled live-preview provisioning — Reference
- Decoupled live-preview provisioning — User Guide
- Sandbox browser preview
- Coordinator internals
Diagram details and constraints
| Element | Contract |
|---|---|
| title | Preview ready means validated publication |
| takeaway | Platform-owned orchestration still has explicit skip, denial, expiry and failure outcomes. |
| Build/Test verdict | Build/Test verdict |
| Build/Test verdict | Approved or request-changes |
| Build/Test verdict | Declined: no preview stage |
| Command resolution | Command resolution |
| Command resolution | Heuristic then bounded model |
| Command resolution | Unavailable infra: skipped |
| AgentHost runner | AgentHost runner |
| AgentHost runner | Map effective workspace |
| AgentHost runner | Start authenticated process |
| App + forwarder health | App + forwarder health |
| App + forwarder health | Observe actual app port |
| App + forwarder health | Bind reachable public port |
| Preview approval | Preview approval |
| Preview approval | Grant / deny / expire |
| Preview approval | Policy auto-approval is explicit |
| Approved publication | Approved publication |
| Approved publication | Active run + process recheck |
| Approved publication | Create Service and HTTPRoute |
| No publication | No publication |
| No publication | Deny: stop; expire: private retry |
| No publication | Never emit ready on rejection |
| Generated HTTPS URL | Generated HTTPS URL |
| Generated HTTPS URL | Bounded DNS/readiness checks |
| Generated HTTPS URL | Failure: rollback publication |
| preview_ready | preview_ready |
| preview_ready | Exact URL validated |
| preview_ready | Return to authored gate handling |
| arrow-1 | prepare |
| arrow-2 | start |
| arrow-3 | observe |
| arrow-4 | request |
| arrow-5 | grant |
| arrow-6 | reject |
| arrow-7 | probe |
| arrow-8 | healthy |
| note-0 | Denial/expiry branch stays private; unresolved commands fail explicitly. |
| note-1 | Rows summarize stages; the page retains detailed failure and retry rules. |
| note-2 | Resource creation alone is not readiness; API does not probe pod preview ports. |
| notes | Denial/expiry branch stays private; unresolved commands fail explicitly.; Rows summarize stages; the page retains detailed failure and retry rules.; Resource creation alone is not readiness; API does not probe pod preview ports. |
