Sandbox Subsystem — Conceptual Deep Dive

What the sandbox is protecting against

Agentweaver lets an AI agent inspect files, edit a workspace, search source, and optionally run shell commands. Those capabilities are useful only if the agent can act like an engineer, but they also create an escape problem: a model can be mistaken, prompt-injected, or asked to run commands whose side effects are broader than the current project.

The sandbox is therefore built around one rule: agent actions must be useful inside the assigned workspace and boring everywhere else. A well-behaved agent should barely notice the sandbox. A malicious or confused agent should be unable to:

• read or write files outside the run workspace;
• escape through .., absolute paths, Windows drive tricks, UNC/device paths, symlinks, or junctions;
• run host-level shell commands when no real process isolation exists;
• reach arbitrary internal services from a production sandbox pod;
• leave long-lived compute, network listeners, or preview tunnels after the run ends;
• exfiltrate obvious secrets through large command output.

This is not one mechanism. It is a layered isolation model:

1. Governance decides whether a tool call is allowed. Unknown tools and suspicious paths fail closed before tool code runs.
2. Filesystem tools validate again at the point of use. The implementation assumes governance can be bypassed or fed malformed arguments.
3. Shell commands run through an executor abstraction. The runtime can choose a local isolation backend for development or a Kubernetes-backed sandbox for production.
4. Production sandboxes are isolated pods. They use hardened pod settings, a shared workspace mount, bounded lifetime claims, and network policy egress controls.
5. Output is bounded and redacted. The sandbox assumes command output itself can become an exfiltration channel.

The result is defense in depth rather than a single perfect wall.

Where this lives: packages/Agentweaver.AgentRuntime, packages/Agentweaver.AgentTools, packages/Agentweaver.SandboxFs, packages/Agentweaver.SandboxExec, apps/Agentweaver.Api/Sandbox, k8s

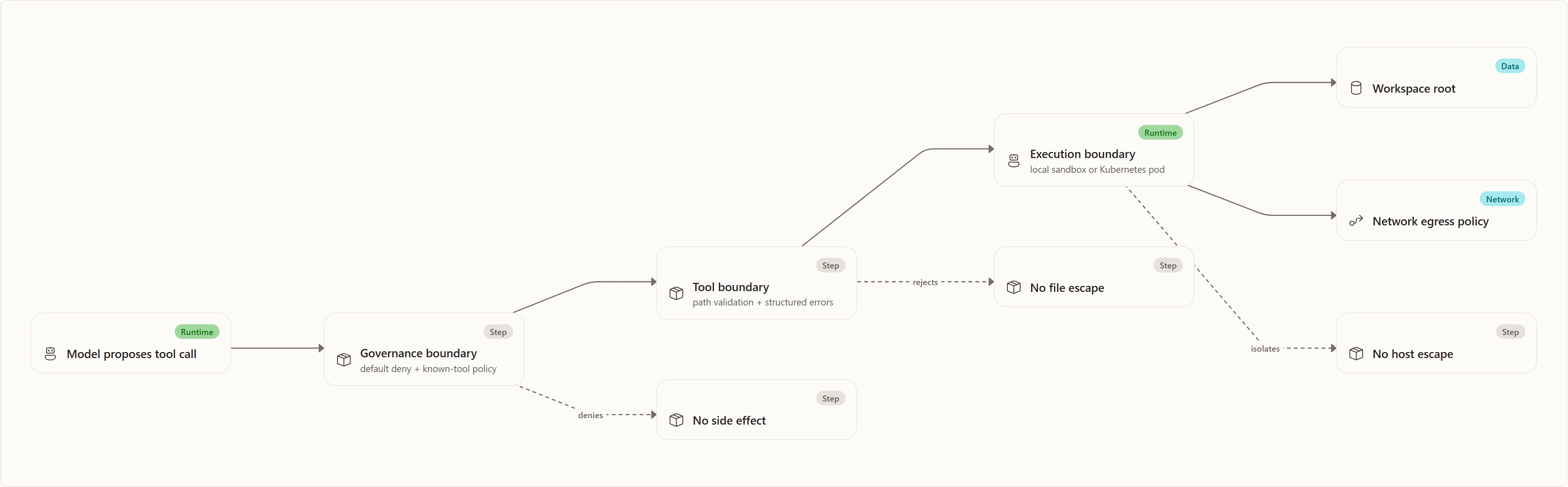

The core mental model

Think of every agent action as passing through three concentric boundaries:

Each boundary has a different job:

• Governance boundary: answers “is this kind of action allowed for this run?” It is intentionally deny-by-default. A tool name must be recognized, and path-bearing arguments must resolve inside the sandbox root.
• Tool boundary: answers “is this exact file operation safe right now?” It re-validates paths, rejects reparse-point escapes, and returns controlled failures to the agent loop.
• Execution boundary: answers “where does this process actually run?” It hides the host behind a container, namespace, VM, or — only in explicit non-production cases — direct passthrough.
• Network boundary: answers “what can this isolated process talk to?” In production, this is handled by Kubernetes/Cilium policy, not by trusting shell command text.

The important design choice is that boundaries are redundant. Governance is not trusted as the only check, path validation is not trusted as process isolation, and process isolation is not trusted as network isolation.

Why command execution needs stronger isolation than file tools

File tools are narrow: read this path, write this file, search this tree. Shell commands are broad: a single command can spawn processes, run interpreters, traverse the filesystem, open sockets, install packages, fork children, or encode data into output.

For that reason, run_command is treated as a privileged capability:

1. The shell tool is only registered when shell execution is enabled and the selected executor is acceptable for the current mode.
2. Destructive command patterns, or policies that require approval for all shell commands, trigger a human-in-the-loop approval gate before execution.
3. The command validator rejects malformed shell requests such as missing/invalid working directories, null bytes, or excessive command length.
4. run_command is for finite commands. Its default execution budget is 30 minutes and can be overridden with AGENTWEAVER_RUN_COMMAND_DEFAULT_TIMEOUT_SECONDS or a tool-call timeout_ms. If the budget expires, Agentweaver cancels the sandbox process and returns a visible timed_out: true failure that tells the model to use start_preview_process for long-lived preview/dev servers.
5. The command is packaged with the run workspace, timeout, filesystem policy, network flag, and optional run ID.
6. The selected executor runs it and returns only bounded, redacted stdout/stderr plus an exit code.

This design does not try to parse every shell command into safe and unsafe subcommands. That would be brittle. Instead, the system validates the shell envelope, requires approval for dangerous patterns, and relies on the executor boundary to contain whatever the shell actually does. The executor does use a narrow, non-security-critical package-manager hint to decide whether to prepare an optional writable system root; a miss only makes /usr, /etc, and /var read-only for that command.

Where this lives: packages/Agentweaver.AgentTools/Tools/RunCommandTool.cs, packages/Agentweaver.SandboxExec

Filesystem containment: make the workspace the only universe

The filesystem sandbox exists because path strings are adversarial input. An agent may ask for ../../secrets, an absolute host path, a Windows device path, a UNC share, or a benign-looking path whose parent is a symlink to somewhere else. The containment rule is simple: all file effects must resolve to the sandbox root or one of its children.

A rebuild should implement containment in two phases.

Phase 1: lexical rejection before touching the filesystem

Before opening anything, reject inputs that are obviously outside the contract:

• empty paths;
• absolute paths when the tool expects a relative workspace path;
• .. path segments;
• Windows device paths such as \\?\ or \\.\;
• UNC paths such as \\server\share;
• drive-relative paths such as C:foo;
• normalized paths whose prefix is not the normalized sandbox root.

This catches cheap escape attempts without giving the filesystem a chance to resolve links or special names.

Phase 2: real-path verification at the point of use

Lexical checks are necessary but insufficient. A path can look safe and still escape through a symlink or junction. Agentweaver therefore treats symlink/junction ancestors as untrusted and verifies the final opened handle where possible.

The invariant is:

The path must be inside the workspace both before opening and after the OS resolves the object that was opened.

That second check matters because it narrows time-of-check/time-of-use races. If an attacker swaps a path between validation and open, the final handle resolution can still detect that the opened object is outside the sandbox.

Why tools return structured failures

Sandbox violations are not treated as fatal runtime crashes. File tools return clear, structured failures to the agent. This keeps the run alive while making the boundary visible: the agent can choose a safe path and continue, but it cannot pressure the runtime into ignoring the violation.

Search is constrained enumeration

Search tools do not accept arbitrary host roots. They enumerate the sandbox root, avoid reparse points, skip high-noise/generated directories such as .git, node_modules, bin, obj, and .vs, and cap results. This is partly security and partly agent ergonomics: bounded search prevents accidental huge responses and reduces the chance of leaking irrelevant data.

Where this lives: packages/Agentweaver.SandboxFs

Governance: fail closed before side effects

The governance layer is the first policy checkpoint for model-selected tools. Its conceptual contract is:

• every run has a credential-free effective permission binding with a schema version, binding ID, policy digest, source, run ID, lifecycle attempt, and scope;
• child bindings are intersected with their parent bindings, and refreshed bindings are intersected with the launch binding, so delegation, recovery, or a stale warm pod cannot widen authority;
• default action is deny;
• unknown tool names are denied;
• known file tools must provide a recognized path argument;
• search tools are allowed only because they are implemented as sandbox-root enumeration;
• shell tools must provide a working directory inside the sandbox root;
• internal governance exceptions deny the call rather than allowing it.

The same binding is used by in-process execution and AgentHost. The API sends it in the one-time AgentHost /configure request, and the worker sends the current narrowed binding again with every A2A turn. A policy change can therefore revoke or narrow later work in a warm pod. Automatic approval is evaluated only after the binding allows the operation, so it can remove a prompt but cannot turn a denial into an allow.

The optional sandbox.allowed_operations list in .agentweaver/settings.yml narrows the legacy sandbox profile. Omit it (or leave it empty) to preserve existing default and restricted behavior. Supported operation values and enforcement gates are:

Operation	Tool family	Enforcement gate
observe	report_intent, report_outcome	runtime permission handler
workspace.read	file and directory reads	binding, then path containment
workspace.search	workspace search/glob	binding, then bounded root enumeration
workspace.write	create, edit, replace, patch	binding, then path containment and tool validation
shell.execute	run_command	binding, isolation check, command policy, executor
network.access	web_fetch	binding before approval or auto-approval
agentweaver.read	read-only Agentweaver API tools	binding before authenticated API call
agentweaver.write	mutating Agentweaver API tools	binding before authenticated API call
preview.manage	preview process/session tools	binding, then preview runner gates
human.interaction	ask_question	binding, then the run-scoped question gate

An unclassified operation is denied. A malformed policy or a missing, unsupported, or run-mismatched binding also denies execution explicitly. Denials use existing tool.error and run.degraded events; the degraded event includes the binding ID, version, and source without credentials. GET /api/runs/{id}/effective-permissions returns an authorization-filtered inspection projection for authorized operators or the matching run capability. The projection distinguishes the current configured policy, the effective narrowed policy, restrictions imposed by the durable launch ceiling or a parent, permissions revoked since launch, fixed operation-family enforcement coverage, and the latest permission denial. Denial evidence is normalized to a reason code, operation, safe tool name, binding provenance, sequence, and timestamp; tool arguments, commands, URLs, arbitrary event payloads, and credentials are not returned. Inspection is read-only: viewing an unstarted or legacy run does not create its durable launch ceiling. The first binding for each run lifecycle is also recorded as permission.binding.bound; current policy is always intersected with that durable launch ceiling. This keeps restored executions and newly delegated children from recovering authority that their parent did not have at launch.

The operator assistant's MCP tools use the same binding classifier. The permission check wraps the approval gate, so even an approved or normally ungated MCP mutation cannot bypass a read-only assignment. Operators can pass run_id to sandbox_policy_get to receive the same effective-permission projection as REST. In the web app, the Permissions action on an orchestration run opens the same projection, including configured/effective differences, revocation state, coverage, and safe denial provenance.

Agentweaver also performs a direct sandbox-backend evaluation in addition to the governance kernel evaluation. That redundancy is deliberate: even if one policy integration changes behavior, the dedicated containment backend still has to approve the call.

For shell specifically, governance adds a capability check: if the selected executor does not represent acceptable isolation for shell mode, shell execution is denied. The model should not be able to obtain a host shell merely because a tool name exists.

Where this lives: packages/Agentweaver.AgentRuntime/SandboxGovernance.cs, packages/Agentweaver.SandboxFs/SandboxPolicyBackend.cs

Executor abstraction: one command contract, many isolation backends

The executor abstraction separates “what the agent wants to run” from “where and how it runs.” The runtime passes a command object containing:

• command line;
• working directory;
• environment variables;
• filesystem policy;
• timeout;
• network-enabled flag;
• optional Agentweaver run ID.

Every executor returns the same shape: exit code, stdout, stderr, timeout flag, and output-truncated flag. This uniform contract lets the agent runtime stay stable while deployments choose different isolation implementations.

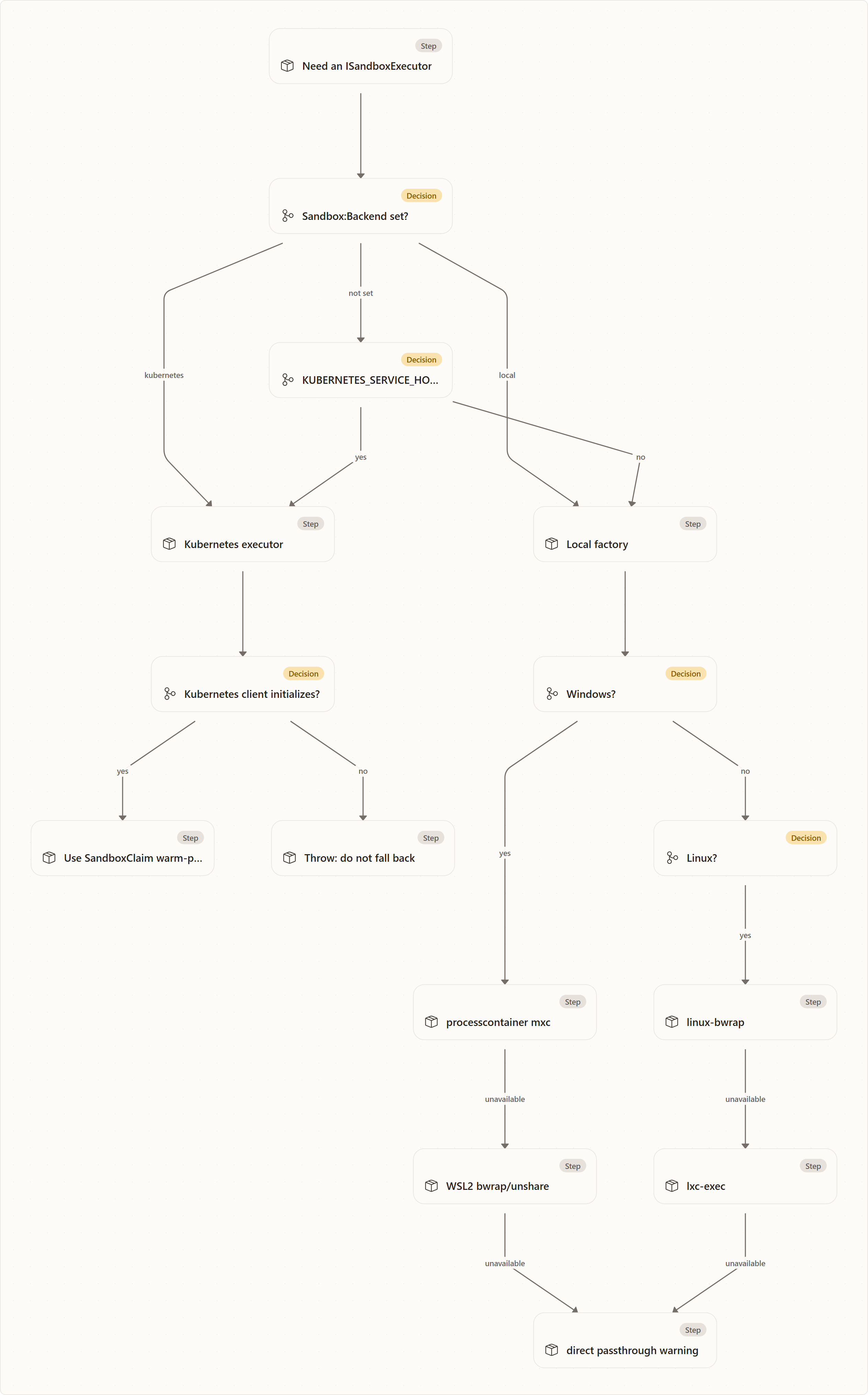

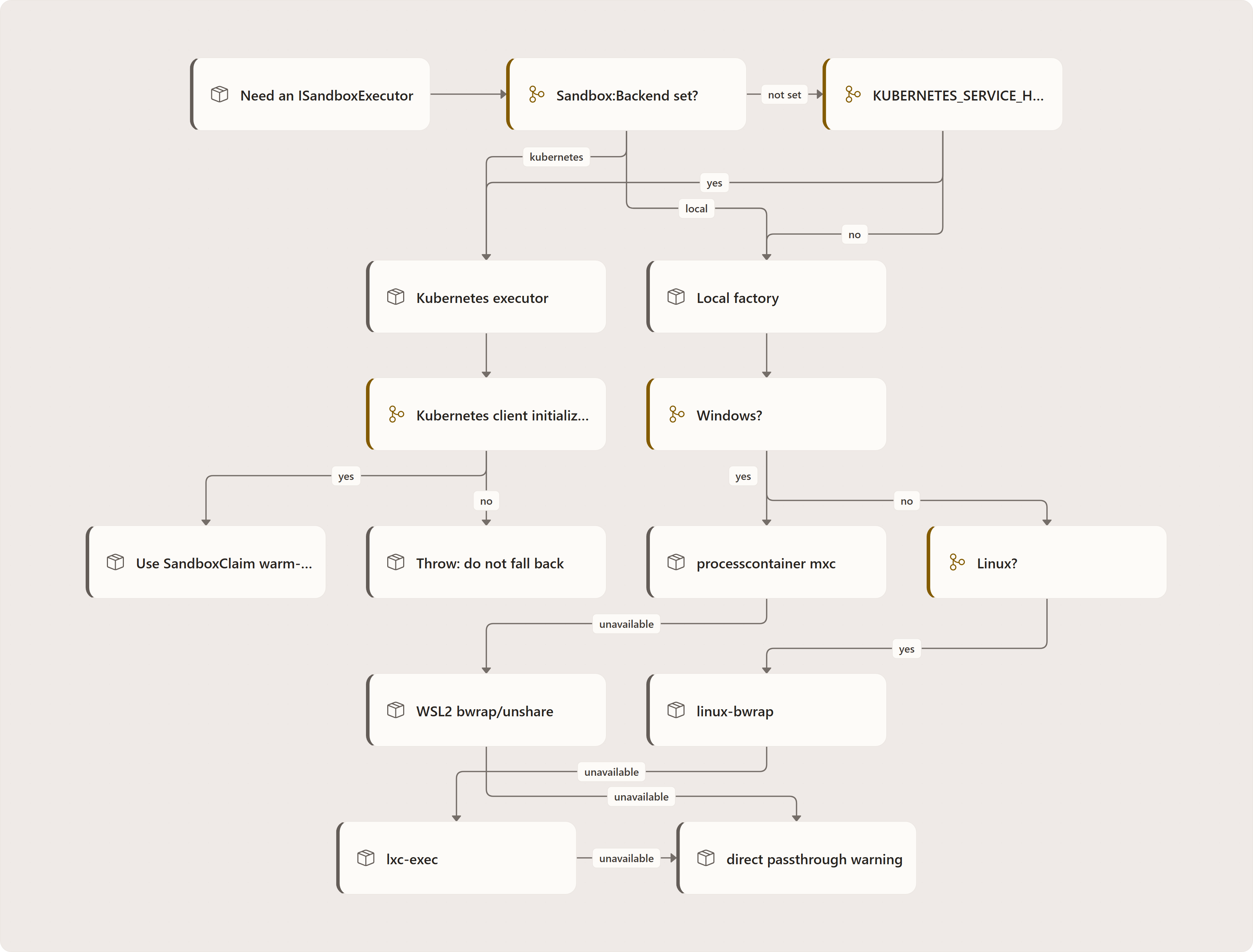

Backend selection logic

Executor selection is environment-aware:

Selected Kubernetes initialization fails closed. The API router first chooses Kubernetes versus local using the explicit backend and cluster detection; Sandbox:Backend=local still chooses the local factory inside a cluster.

Local backends and their trade-offs

Local execution exists for development, tests, and non-cluster deployments. It is intentionally best-effort and transparent about gaps:

Backend family	Conceptual role	Trade-off
Windows process container (mxc)	Use OS/container support to isolate a process from the host.	Network allowlisting is not equivalent to Kubernetes policy, so warnings are surfaced.
WSL2: wsl-bwrap / wsl-unshare	Bubblewrap reports real isolation; unshare does not.	Controlled shell is not registered for wsl-unshare; the two backends are not equivalent.
Native Linux bubblewrap	Bind the workspace as /workspace, mount only selected runtime paths read-only, create tmpfs homes/temp, and unshare PID/user/network namespaces unless network is enabled.	Useful local isolation, but still not the same operational boundary as a production Kata pod plus cluster policy.
Native Linux lxc-exec	Fallback Linux isolation when bubblewrap is unavailable.	Depends on host LXC availability and configuration.
Direct passthrough	Last-resort host shell.	Not isolation. Use only when the surrounding environment is already disposable or explicitly trusted.

Where this lives: packages/Agentweaver.SandboxExec, apps/Agentweaver.Api/Sandbox/SandboxExecutorRouter.cs

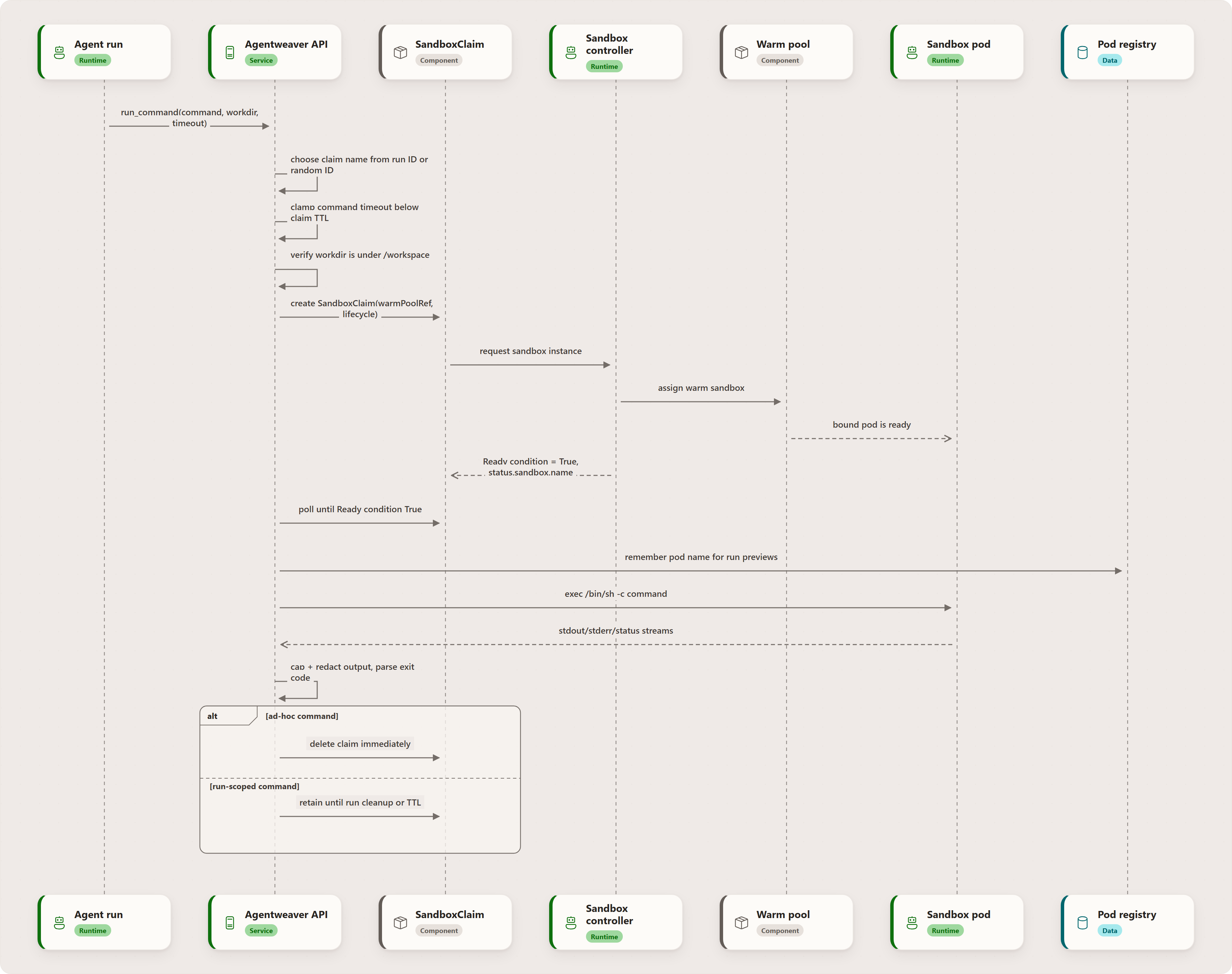

Kubernetes sandbox lifecycle: retained utility-command contract

The retained Kubernetes utility-command API uses claims and pod exec. It is not the deployed AgentHost turn loop: model-controlled commands there use pod-private PodExec and the executor sidecar, not a new claim for every shell invocation. The retained contract is:

• A SandboxTemplate defines the pod shape and hardening policy.
• A SandboxWarmPool keeps ready sandboxes available from that template.
• A SandboxClaim asks the sandbox controller for one sandbox instance for a bounded TTL.
• The executor waits until the claim is bound to a concrete pod, then uses Kubernetes pod exec to run the command.

The agent-sandbox controller (and where MXC fits)

The "Sandbox controller" above is the upstream kubernetes-sigs/agent-sandbox controller — not MXC. The two are different runtimes for different tiers, and the names are easy to conflate:

• MXC (Sabbour.Mxc.Sdk / wxc-exec.exe) is the local-host command isolation runtime behind the Windows processcontainer, WSL, and Linux lxc-exec executors. It runs on a developer or non-cluster host and has no Kubernetes presence.
• The agent-sandbox controller is the in-cluster runtime that turns a SandboxClaim into a bound, Kata-isolated pod. KubernetesSandboxExecutor talks only to this controller's CRDs; no MXC binary exists in the cluster.

Agentweaver installs the controller and its three CRDs (API group extensions.agents.x-k8s.io) in scripts/azure/steps/10-create-cluster.mjs (install default SANDBOX_CONTROLLER_VERSION=v0.5.3 — production clusters run agent-sandbox v0.5.3, #487). The installed controller serves both v1beta1 (the storage version) and the deprecated-but-served v1alpha1; KubernetesSandboxExecutor targets v1beta1 (SandboxClaimConventions.cs:23):

• SandboxTemplate (k8s/base/sandbox-template-agenthost.yaml, agentweaver-agent-host) defines the live AgentHost pod shape: kata-vm-isolation runtime class, non-root UID/GID 1000, dropped capabilities, /workspace PVC, A2A listener port 8088, workload identity, and the agentweaver-exec executor sidecar — a second container from the same image that owns every model-controlled process in its own PID namespace (see sandbox pod execution).
• SandboxWarmPool keeps AgentHost pods pre-built from that template so claims bind without a cold pod start. The live pool is agentweaver-agent-host (k8s/base/sandbox-warmpool-agenthost.yaml, replicas: 2). AgentHost warm pods boot without RunId, enter standby, and are configured after binding by POST /configure, so the .NET process and Copilot SDK are pre-warmed without per-run env. Configuration carries the effective permission binding, and every later A2A turn must carry a current valid binding or the pod rejects the turn before execution.
• SandboxClaim (created per run by KubernetesSandboxExecutor; shape in k8s/reference/sandbox-claim-template.yaml) carries spec.warmPoolRef.name (agentweaver-agent-host on the live path) and spec.lifecycle.{ttlSecondsAfterFinished, shutdownPolicy: Delete}. The AgentHost claim omits spec.env; static values belong to the template/config map. Per-run identity, workspace, credentials, turn authentication, purpose, and approval values arrive later via /configure. The controller adopts a warm pod, then signals readiness with a Ready condition (status.conditions[type=Ready].status == "True") and writes the bound pod name into status.sandbox.name. There is no status.phase field.
• Model-controlled run_command calls do not create a Kubernetes claim or pod exec session. After the AgentHost pod is configured, the tool uses the pod-private agentweaver-exec sidecar over authenticated IPC. The sidecar only starts the optional per-run writable system root for package-manager commands (apt, apt-get, dpkg, etc.); ordinary commands run directly in the read-only system-root bubblewrap view so they do not pay package-manager setup latency on the happy path.

The executor's provisioning loop is the concrete contract with the controller:

1. CreateClaimAsync / CreateAgentHostClaimAsync POSTs the v1beta1 SandboxClaim custom object into the namespace (KubernetesSandboxExecutor.cs:354, :294).
2. WaitForBoundAsync polls the claim every 2 s until its Ready condition is True, then returns status.sandbox.name (SandboxClaimConventions.cs:53).
3. For AgentHost, resolve pod IP, wait for the HTTP 200 standby listener, configure once and complete setup, then register the effective workspace and A2A endpoint.
4. On claim deletion (ad-hoc command) or TTL expiry, the controller garbage-collects the pod and its service — Agentweaver never deletes pods directly.

Why claims have TTLs

A shell command can hang, or a client can disconnect. The claim TTL gives the controller an independent cleanup clock. Agentweaver also clamps the command timeout below the claim TTL so the controller should not delete the sandbox while the executor is still expecting a result.

Why run IDs map to pod names

Run-scoped utility commands derive a stable claim name and record the pod. The local kubectl fallback may use that mapping. Production preview resolves claims and HTTPRoute annotations from cluster state, not a replica-local pod registry; see sandbox browser preview.

Why ad-hoc and run-scoped cleanup differ

Ad-hoc commands have no reason to keep a sandbox alive after the command returns, so the claim is deleted immediately. Run-scoped commands may keep the claim until cleanup or TTL so preview remains available. That improves developer experience but consumes warm-pool/quota capacity for longer, so operators must size quotas and warm pools accordingly.

Where this lives: apps/Agentweaver.Api/Sandbox/KubernetesSandboxExecutor.cs, apps/Agentweaver.Api/Sandbox/SandboxClaimConventions.cs, apps/Agentweaver.Api/Sandbox/PortForwardService.cs, apps/Agentweaver.Api/Endpoints/SandboxEndpoints.cs, apps/Agentweaver.Api/Runs/RunWatchLoopService.cs, k8s/base/sandbox-template-agenthost.yaml, k8s/base/sandbox-warmpool-agenthost.yaml, k8s/reference/sandbox-claim-template.yaml

AgentHost warm-pool configure contract

AgentHost uses two standby warm pods. Shipped claims omit spec.env; static configuration belongs to the template/config map. Setup waits for one-time /configure. See the claim/configure sequence.

Per-run values are delivered by POST /configure after the claim binds:

/configure field	Purpose
runId	The Agentweaver run this pod executes; missing values return 400.
userId	The submitting user; drives RuntimeUserScopeProvider.
turnBearerToken	Production supplies a 256-bit per-run bearer token; turn middleware enforces equality when the configured token is nonempty.
copilotCredential / byokProviderConfiguration	Alternative run-scoped model-provider payloads.
workingDirectory	Shared coordinate; local modes resolve a verified pod-local effective execution directory.
effectivePermissionBinding	Credential-free run/attempt binding and policy ceiling. Missing or invalid values return 400.

TryConfigure is one-shot; repeat configuration returns 409. Setup resolves a valid Shared workspace, a verified local checkout, or a pod-private fallback when Shared has no supplied path. The effective directory is not universally Run.WorktreePath. /healthz is already 200 in standby. Production supplies a turn token, enforced when nonempty. /configure delivers that token and instead relies on configured transport controls and network policy; the additive preview range includes 8088, so policy alone is not API/worker-exclusive.

The executor does not create per-run SecretProviderClass objects, cloned SandboxTemplates, or per-run warm pools for AgentHost. It sends the required run-scoped provider and repository capability data through /configure. The sandbox identity has no Key Vault access and cannot retrieve ambient user credentials.

AgentHost claims carry the active run-lease fencing token. A recovery or dispatch takeover that acquires a newer token must replace the older claim before sending a turn, so a stale pod cannot continue editing or publish a competing write-back under the same run ID.

Where this lives:

Source	Role
apps/Agentweaver.Api/Sandbox/IRunSubmittingUserResolver.cs	Resolves the submitting user and the run's WorktreePath, stripping coordinator sub-run suffixes so child stages inherit the parent's shared worktree.
apps/Agentweaver.Api/Sandbox/KubernetesSandboxExecutor.cs	Resolves workingDirectory without failing launch on lookup errors and includes it in the one-time /configure body.
apps/Agentweaver.AgentHost/Program.cs	Defines the /configure request body, including workingDirectory, and passes it to AgentHost startup.
apps/Agentweaver.AgentHost/AgentHostRuntimeState.cs	Stores the one-time run/user/token configuration.
apps/Agentweaver.AgentHost/AgentHostStartupService.cs	Runs SetupAsync after /configure, using the per-run working directory when present and preserving env-var launch behavior otherwise.
packages/Agentweaver.AgentRuntime/CopilotAIAgent.cs	Receives the configured working directory as the agent setup/file-tool root.

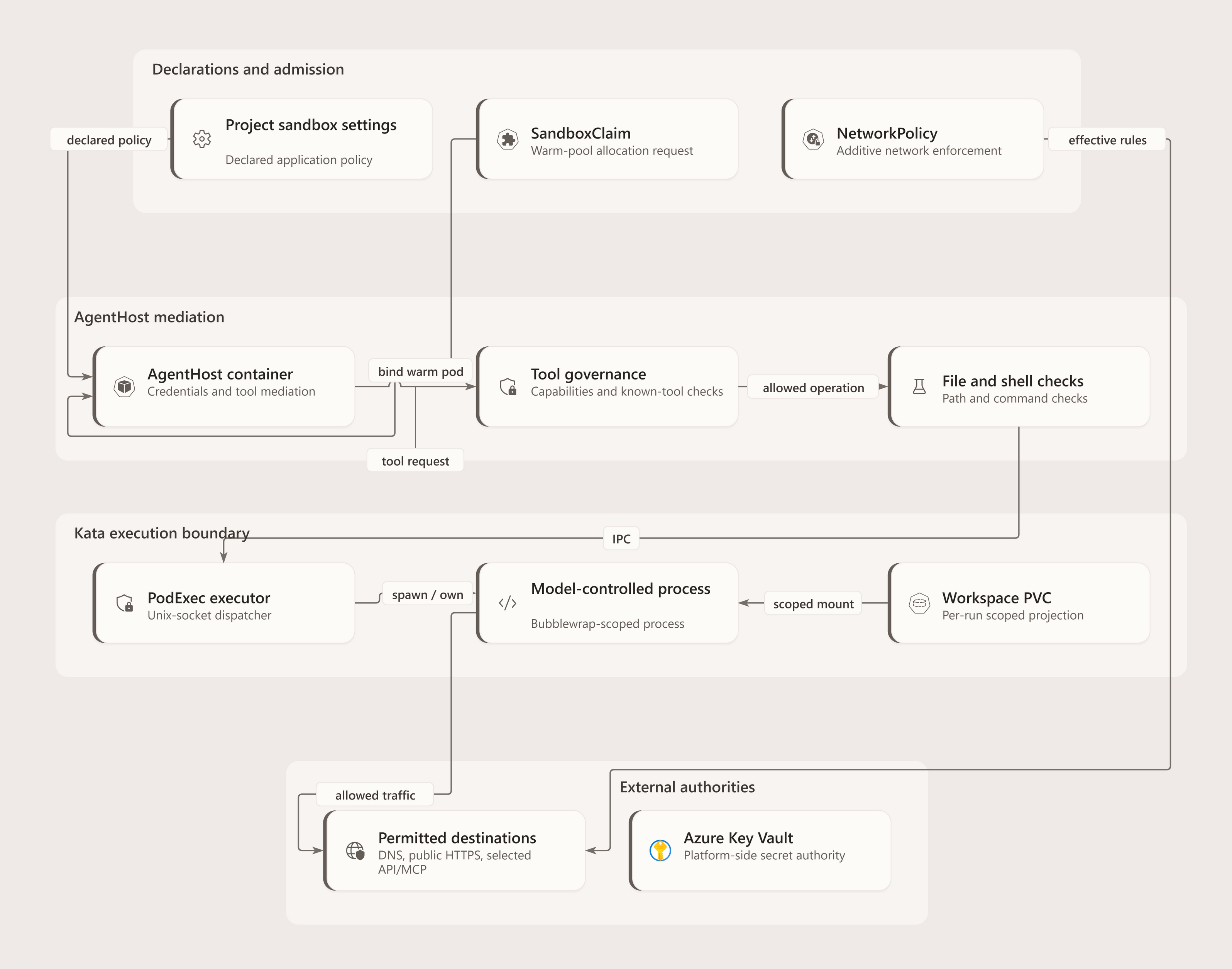

Production pod isolation and hardening

The AgentHost sandbox pod contains the runtime needed for live agent turns, but it is not privileged. Because it executes untrusted shell/tool code, it runs as a dedicated managed identity with no Key Vault role assignments. It receives only run-scoped capability data through /configure.

The production template applies several important constraints:

• Kata runtime: the pod uses kata-vm-isolation, adding a VM boundary around the container workload.
• Non-root identity: the container runs as UID/GID 1000.
• No privilege escalation and no Linux capabilities: the process should not be able to acquire broader kernel privileges.
• Separate platform and child views: platform containers have writable roots and workspace/scratch/HOME mounts. The model-controlled child has a narrower allowlist without the PVC root, siblings or IPC secrets.
• Never restart: failed or completed sandbox pods are not automatically restarted as hidden long-lived state.

The image carries the AgentHost .NET/Copilot runtime. The security posture comes from pod/runtime policy, workload identity scoping, and network policy, not from making the image empty.

Important boundary: the shared workspace PVC is an execution workspace, not a secrecy boundary between every workload that can mount it. The sandbox limits process and network blast radius; it does not make shared storage private from other principals with access to the same volume.

Where this lives: apps/Agentweaver.AgentHost/Dockerfile, k8s/base/sandbox-template-agenthost.yaml

Network isolation and egress allowlisting

Network access is an exfiltration and lateral-movement channel. A sandboxed command that can reach arbitrary addresses can probe cluster services, call metadata endpoints, or send data to the internet. Production network policy therefore follows an allowlist model.

Current policies select app: agentweaver-agent-host: default deny plus API/worker control ingress, same-namespace preview-Gateway ingress, DNS, API/MCP egress and public-IP HTTPS with explicit CIDR exclusions. They are not a GitHub-only or FQDN-only allowlist. AgentHost has a service-account token; the executor and its child view exclude that identity. See actual rules and manifest gaps.

The service-CIDR warning is important. If sandbox egress accidentally includes the cluster service CIDR, a sandbox pod may be able to reach internal Kubernetes services even if internet egress looks restricted. Agentweaver checks configured service CIDR exclusions and logs a warning when the cluster service CIDR is not excluded.

Local backends cannot all enforce the same network model. Where network allowlisting is unavailable or weaker, executors report warnings, and runners emit sandbox warning events. Treat those warnings as a deployment property, not as an agent-visible suggestion.

Where this lives: k8s/base/networkpolicy-sandbox.yaml, k8s/base/cilium-network-policy-sandbox.yaml, apps/Agentweaver.Api/Sandbox/SandboxExecutorRouter.cs, packages/Agentweaver.SandboxExec

Rebuild blueprint

If rebuilding this subsystem from scratch, implement it in this order:

1. Define the workspace invariant. Pick one sandbox root per run. Every file tool, search tool, and shell working directory must resolve inside it.
2. Create a path validator. Reject obvious path escapes lexically, reject symlink/junction ancestors, and verify opened handles against the sandbox root.
3. Wrap all file/search tools. Do not expose raw host file APIs to the model. Return structured errors for violations.
4. Add deny-by-default governance. Allow only known tools and known argument shapes. Fail closed on unknown tools and internal policy errors.
5. Define a command executor interface. Keep command input/output stable so the runtime is independent of the isolation backend.
6. Gate shell execution. Require shell enablement, working-directory containment, destructive-command approval, timeout bounds, output caps, and redaction.
7. Provide local executors. Prefer real local isolation where available; mark direct passthrough as non-production and warn loudly.
8. Provide a production Kubernetes executor. Use claims, templates, warm pools, TTLs, pod exec, and fail-closed backend selection.
9. Harden platform and child separately. Preserve Kata, non-root execution, dropped capabilities, distinct container PID namespaces and the per-child mount allowlist. Current platform roots are writable; executor children must not inherit AgentHost identity or IPC secrets.
10. Add network policy. Default-deny with explicit control/preview ingress and the actual egress exceptions; assess the union rather than asserting domain-only access.
11. Plan cleanup. Delete ad-hoc claims, retain run-scoped claims only while previews need them, and enforce TTL/quota as independent backstops.
12. Surface warnings. If a backend cannot enforce a promised boundary, emit an explicit warning rather than silently weakening isolation.

Security invariants and gotchas

• Default deny is an invariant. A new tool should do nothing until governance and tool-level validation know how to constrain it.
• Path containment is checked more than once. This is intentional defense in depth, not duplication to remove.
• Shell parsing is not the security boundary. The executor and OS/container boundary must contain arbitrary shell behavior.
• Kubernetes fallback must fail closed. In production, silently downgrading to local or direct execution is worse than failing the run.
• Direct passthrough is not a sandbox. It is useful only when the host environment is already disposable/trusted.
• Run-scoped sandboxes consume capacity while retained. Preview support trades resource usage for debuggability.
• Shared /workspace is shared storage. Do not treat the PVC as a per-tenant secrecy boundary unless the surrounding storage model enforces that.
• Output can leak data. Keep caps and redaction even when process isolation is strong.
• Directory listing has a narrow residual race. The code documents a filename-only TOCTOU residual risk for listing; file reads/writes use stronger open-and-verify handling.
• Output caps apply to command and tool results. The command/tool output cap in this subsystem is 4 MiB; keep that limit in place so a single large result cannot exhaust memory or flood the event stream. Image or attachment upload paths belong to other components and are out of scope for this repo-owned sandbox subsystem.

Visual model

Sandbox boundary

Structured source · Editable draw.io

See also

• Sandbox pod execution - pod-local scratch workspaces, Git write-back, nested-repository flattening, and the HOME/XDG cache contract.
• Sandbox browser preview - exposing a server running inside a run's sandbox pod to the user over a public HTTPS reverse proxy (per-preview HTTPRoute -> per-run ClusterIP Service -> pod).

Diagram details and constraints

Element	Contract
title	Several checks contain each action
takeaway	Native shell is denied; governed tools combine AGT policy, direct containment and execution isolation.
group-title0	TOOL SELECTION / POLICY
group-title1	POINT-OF-USE CONTAINMENT
Model tool request	Model tool request
Model tool request	Permission dispatch
Model tool request	Native shell: always denied
Model tool request	URL approvals handled apart
Model tool request	Custom reporting bypass
Governance	Governance
Governance	Deny-by-default policy
Governance	AGT policy must allow
Governance	Direct backend must allow
Governance	Both checks, not either
Registered tools	Registered tools
Registered tools	Explicit capability surface
Registered tools	Files revalidate at use
Registered tools	run_command gates shell
Registered tools	Unknown tools denied
Workspace boundary	Workspace boundary
Workspace boundary	Sandbox filesystem
Workspace boundary	Lexical + real-path checks
Workspace boundary	Reject symlink escapes
Workspace boundary	Bounded / redacted output
Execution boundary	Execution boundary
Execution boundary	Selected isolation backend
Execution boundary	Shell policy + approval
Execution boundary	Kata pod in AKS
Execution boundary	Direct mode is opt-in
Credential handling	Credential handling
Credential handling	Current implementation
Credential handling	Host + tool options hold token
Credential handling	Direct git status / allowed gh
Credential handling	No blanket shell injection
relation-0	1 governed calls
relation-1	2 both allow
relation-2	3 file operation
relation-3	4 run_command
relation-4	5 eligible git / gh
assurance	Current code delivers repository credentials into Host/tool options; the normative no-credential contract is NOT met.
assurance-0-label	Dispatch exceptions
assurance-0-fact	Native shell denied; URL path separate.
assurance-0-source	CopilotAIAgent.cs
assurance-1-label	Execution isolation
assurance-1-fact	Sidecar: separate PID namespace.
assurance-1-source	sandbox-template-agenthost.yaml
assurance-2-label	Credential reality
assurance-2-fact	No blanket shell credential inheritance.
assurance-2-source	RunCommandTool.cs
n0	Native shell: always denied; URL approvals handled apart
n1	AGT policy must allow; Direct backend must allow
n2	Files revalidate at use; run_command gates shell
n3	Lexical + real-path checks; Reject symlink escapes
n4	Shell policy + approval; Kata pod in AKS
n5	Host + tool options hold token; Direct git status / allowed gh
groups	TOOL SELECTION / POLICY; POINT-OF-USE CONTAINMENT

Diagram details and constraints

Element	Contract
title	Choose Kubernetes before local probing
takeaway	The API router owns cluster selection; the local factory can fall back to direct.
API executor router	API executor router
API executor router	Backend override / cluster detect
API executor router	Explicit local bypasses cluster
Kubernetes selected	Kubernetes selected
Kubernetes selected	Initialize claim executor
Kubernetes selected	Failure throws; no local fallback
Claim backend	Claim backend
Claim backend	Bound pod command contract
Claim backend	Not the in-pod PodExec client
Local factory	Local factory
Local factory	Only when router selects local
Local factory	Probe host-supported backends
Windows ladder	Windows ladder
Windows ladder	processcontainer -> WSL
Windows ladder	wsl-bwrap real; unshare not real
Linux ladder	Linux ladder
Linux ladder	bubblewrap -> LXC
Linux ladder	Host tools must be available
No usable isolation	No usable isolation
No usable isolation	Automatic local fallback
No usable isolation	Also explicit direct option
Direct passthrough	Direct passthrough
Direct passthrough	IsRealIsolation = false
Direct passthrough	Trusted/disposable host only
Command registration	Command registration
Command registration	ShellEnabled AND real or direct
Command registration	wsl-unshare: no controlled shell
arrow-1	select
arrow-2	ready
arrow-3	local
arrow-4	Windows
arrow-5	Linux
arrow-6	unavailable
arrow-8	warn
arrow-9	gate
note-0	The local platform ladders are alternatives, not a Windows-to-Linux chain.
note-1	Kubernetes failure never silently descends into the local ladder.
note-2	Runtime emits sandbox.selected; factory choice is not an isolation guarantee.
notes	The local platform ladders are alternatives, not a Windows-to-Linux chain.; Kubernetes failure never silently descends into the local ladder.; Runtime emits sandbox.selected; factory choice is not an isolation guarantee.

Diagram details and constraints

Element	Contract
title	Retained utility-command claim lifecycle
takeaway	This API path is not the AgentHost model-controlled command loop.
Utility command	Utility command
Utility command	Workspace and bounded timeout
Utility command	Optional Agentweaver run ID
Kubernetes executor	Kubernetes executor
Kubernetes executor	Create or reuse claim
Kubernetes executor	Stable name for run-scoped work
Sandbox controller	Sandbox controller
Sandbox controller	Bind warm-pool pod
Sandbox controller	Ready condition + sandbox name
Command result	Command result
Command result	stdout / stderr / exit status
Command result	Timeout and output flags
Kubernetes pod exec	Kubernetes pod exec
Kubernetes pod exec	Execute retained API command
Kubernetes pod exec	No generic sleep pool implied
Bound pod	Bound pod
Bound pod	Current template is AgentHost
Bound pod	Not a separate generic deployment
New ad-hoc claim	New ad-hoc claim
New ad-hoc claim	Delete in command finally
New ad-hoc claim	No run-scoped retention needed
Run-scoped claim	Run-scoped claim
Run-scoped claim	Keep for cleanup / TTL
Run-scoped claim	Not deleted after every command
Production preview lookup	Production preview lookup
Production preview lookup	Uses cluster claim/route state
Production preview lookup	Not replica-local registry
arrow-1	submit
arrow-2	claim
arrow-3	bind
arrow-4	exec
arrow-5	return
note-0	Cleanup cards distinguish newly created ad-hoc and run-scoped claims.
note-1	AgentHost controlled tools instead use authenticated pod-private PodExec.
note-2	SQL run ownership leases are separate from this Kubernetes claim lifecycle.
notes	Cleanup cards distinguish newly created ad-hoc and run-scoped claims.; AgentHost controlled tools instead use authenticated pod-private PodExec.; SQL run ownership leases are separate from this Kubernetes claim lifecycle.

Diagram details and constraints

Element	Contract
title	Bind, reach standby, configure once
takeaway	Liveness precedes configuration; production delivers run credentials out of pod specs.
Prepare launch	Prepare launch
Prepare launch	Resolve provider and run context
Prepare launch	Mint fresh turn token
Claim warm pod	Claim warm pod
Claim warm pod	Create/adopt; omit spec.env
Claim warm pod	Wait Ready + bound pod name
Resolve and register	Resolve and register
Resolve and register	Pod mapping / token registry
Resolve and register	Resolve actual pod IP
GET /healthz	GET /healthz
GET /healthz	HTTP 200 standby
GET /healthz	Listener liveness, not turn ready
POST /configure	POST /configure
POST /configure	Identity / workspace / approvals
POST /configure	Copilot capability OR BYOK
AgentHost setup	AgentHost setup
AgentHost setup	One-time configuration
AgentHost setup	Effective workspace + HOME
Configuration guards	Configuration guards
Configuration guards	Second configure: 409
Configuration guards	Other routes: 503 before ready
Register effective endpoint	Register effective endpoint
Register effective endpoint	Return effective working directory
Register effective endpoint	Shared/local/private fallback
First A2A turn	First A2A turn
First A2A turn	Production sends turn bearer
First A2A turn	Equality guard when nonempty
arrow-1	launch
arrow-2	bound
arrow-3	poll
arrow-4	reachable
arrow-5	setup
arrow-6	ready
arrow-7	invoke
note-0	Top, middle and bottom rows are successive launch stages.
note-1	Repository / preview / broker credentials have separate purposes.
note-2	Optional schema fields do not imply unconditional endpoint enforcement.
notes	Top, middle and bottom rows are successive launch stages.; Repository / preview / broker credentials have separate purposes.; Optional schema fields do not imply unconditional endpoint enforcement.
