Orchestration Engine — Conceptual Deep Dive

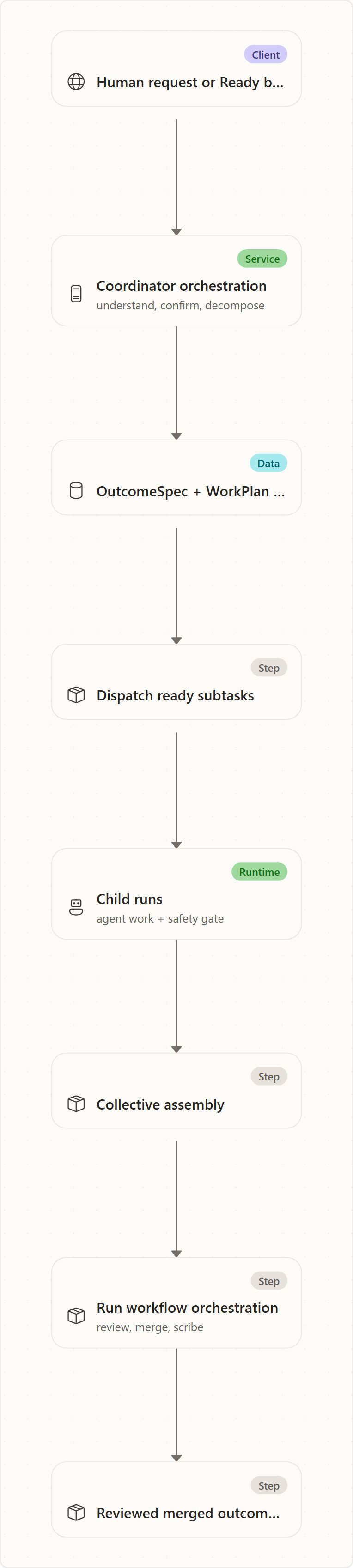

Purpose & Mental Model

Agentweaver orchestration answers one question: how does a high-level goal become safe, reviewable, mergeable work performed by a team of agents?

The engine is intentionally split into two layers:

1. Coordinator orchestration decides what should happen. It turns an ambiguous goal or backlog item into a confirmed outcome, decomposes that outcome into a dependency-aware plan, assigns work to team members, and assembles the results.
2. Run workflow orchestration decides how each run moves through gates. It applies a declarative workflow to live execution: agent work, safety review, human review, merge, and scribe recording.

The split matters. Planning and decomposition need durable state, idempotency, and team-level reasoning. Individual run execution needs streaming, review gates, restart loops, and terminal status handling. Keeping those concerns separate lets Agentweaver recover from partial progress without re-asking the model to re-invent the plan.

A useful rebuilding rule is: the coordinator owns intent and coordination; workflows own execution gates.

Casting and Blueprints feed orchestration with team shape, role charters, and workflow defaults. Blueprint validation accepts only review_policy: default; this is not a configurable project review-policy overlay. They are summarized here only; the detailed explanation lives in team-casting.md.

Live workflow execution and non-workflow single-prompt paths use the Copilot SDK. The live workflow worker path does not switch worker implementation based on the run's model source; custom providers are configured through the SDK.

Core Design Invariants

These invariants are the backbone of the system:

• Persist decisions before doing work. The requested outcome and work plan are stored before child runs are launched. Recovery starts from persisted intent, not from chat history.
• Confirm ambiguity at the boundary. The coordinator may draft, revise, and ask for confirmation before committing a plan. Once confirmed, later components can assume the outcome is intentional.
• Use declarative graphs for policy. Workflows describe nodes, gates, and edges. Runtime code binds those declarations to executable steps and fails closed when a step cannot be safely bound.
• Advance only the ready frontier. Subtasks form a DAG. A subtask can run only after its dependencies are complete, so parallelism is safe and deterministic.
• Separate child work from collective responsibility. Child runs produce pieces ready for assembly, not independently reviewed pieces. The parent coordinator assembles, reviews, merges, and records the combined outcome.
• Make gates explicit and durable. Safety, human review, merge, and terminal states are visible run states and stream events, not hidden control flow.
• Prefer idempotent recovery over clever replay. If a plan already exists, reuse it. If a run already reached a gate, resume from that gate. If a stream disconnects, replay durable events.

Coordinator Orchestration

Problem It Solves

A user often gives Agentweaver a goal, not a task list. The coordinator converts that goal into something a team can execute safely:

• What exact outcome are we trying to produce?
• What assumptions or constraints define success?
• Which parts can run independently?
• Which specialist should own each part?
• What must be reviewed before changes merge?

Without this layer, every agent run would independently interpret the same broad request. That leads to duplicated work, conflicting edits, and unclear ownership.

OutcomeSpec: The Intent Contract

The first durable artifact is the OutcomeSpec. Conceptually, it is the contract between the requester and the system.

It captures:

• the original goal,
• the desired outcome,
• scope and exclusions,
• assumptions,
• clarifying questions or revision feedback,
• and whether the outcome is still being drafted, awaiting confirmation, confirmed, or declined.

The important design choice is that confirmation happens before decomposition is treated as authoritative. The coordinator can draft an interpretation, receive revision feedback, and loop until the requester or unattended policy confirms it.

Because the confirmed OutcomeSpec is the source of truth for intent, it — not the later decomposition — is where the work's breadth originates. When the drafter frames the outcome it reads the project's team roster and honors the breadth the goal explicitly asks for: a full-lifecycle "from the initial idea through to a working app" goal yields an outcome whose scope enumerates the discovery, PM, design, and build deliverables the goal warrants (filtered to what the team can actually produce), while a narrow goal stays lean. Downstream workflow selection and decomposition then faithfully honor that confirmed breadth, so if the outcome is narrowed at drafting time, the whole PM/discovery half is silently dropped everywhere after it. See How drafting works for the roster-awareness and scope-breadth guidance that shapes the draft.

Rebuild guidance: treat the OutcomeSpec as the source of truth for intent. Do not let individual worker agents reinterpret the original request independently once the spec is confirmed.

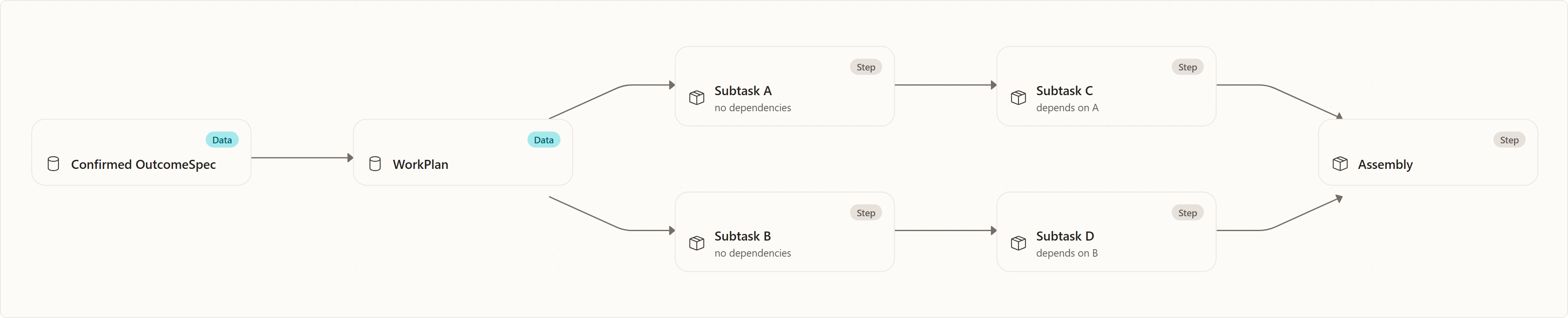

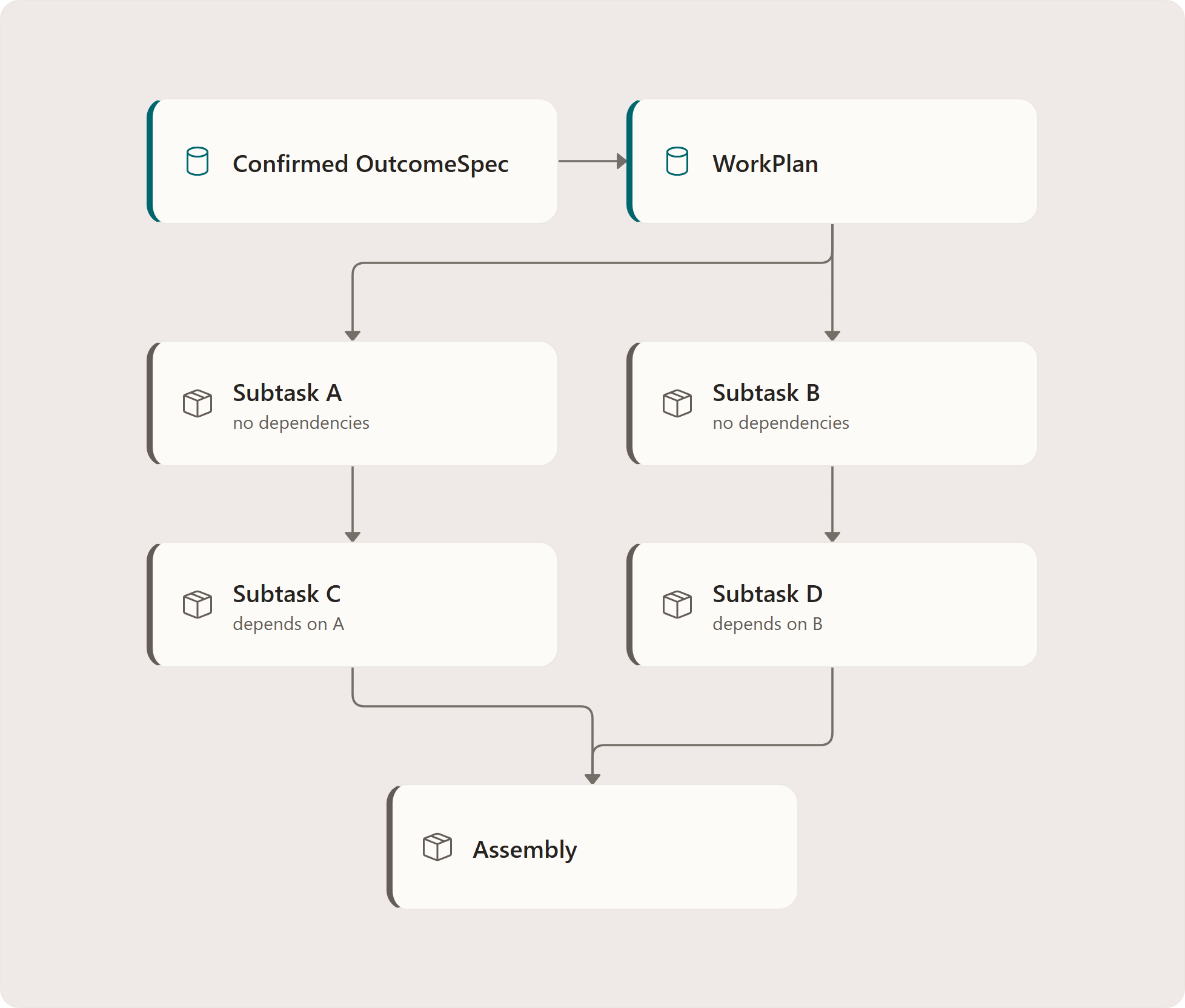

WorkPlan: The Execution Contract

After confirmation, the coordinator creates a WorkPlan. The WorkPlan is the execution contract for the parent coordinator run.

It stores:

• the confirmed OutcomeSpec it implements,
• the selected workflow,
• subtask records,
• dependency edges between subtasks,
• assembly state,
• and any integration branch or coordination metadata.

Each subtask includes its assigned agent, model choice, charter/context, isolation intent, status, child run id, and any recovery guidance.

The plan is a DAG because ordering is a correctness constraint. If subtask B depends on subtask A, B should not start merely because an agent is free. This allows safe parallelism: every tick can dispatch all currently-ready nodes while preserving required sequencing.

Rebuild guidance: store the plan before dispatch. If the coordinator crashes after planning but before child runs start, it should resume from the persisted WorkPlan rather than ask a model to decompose again.

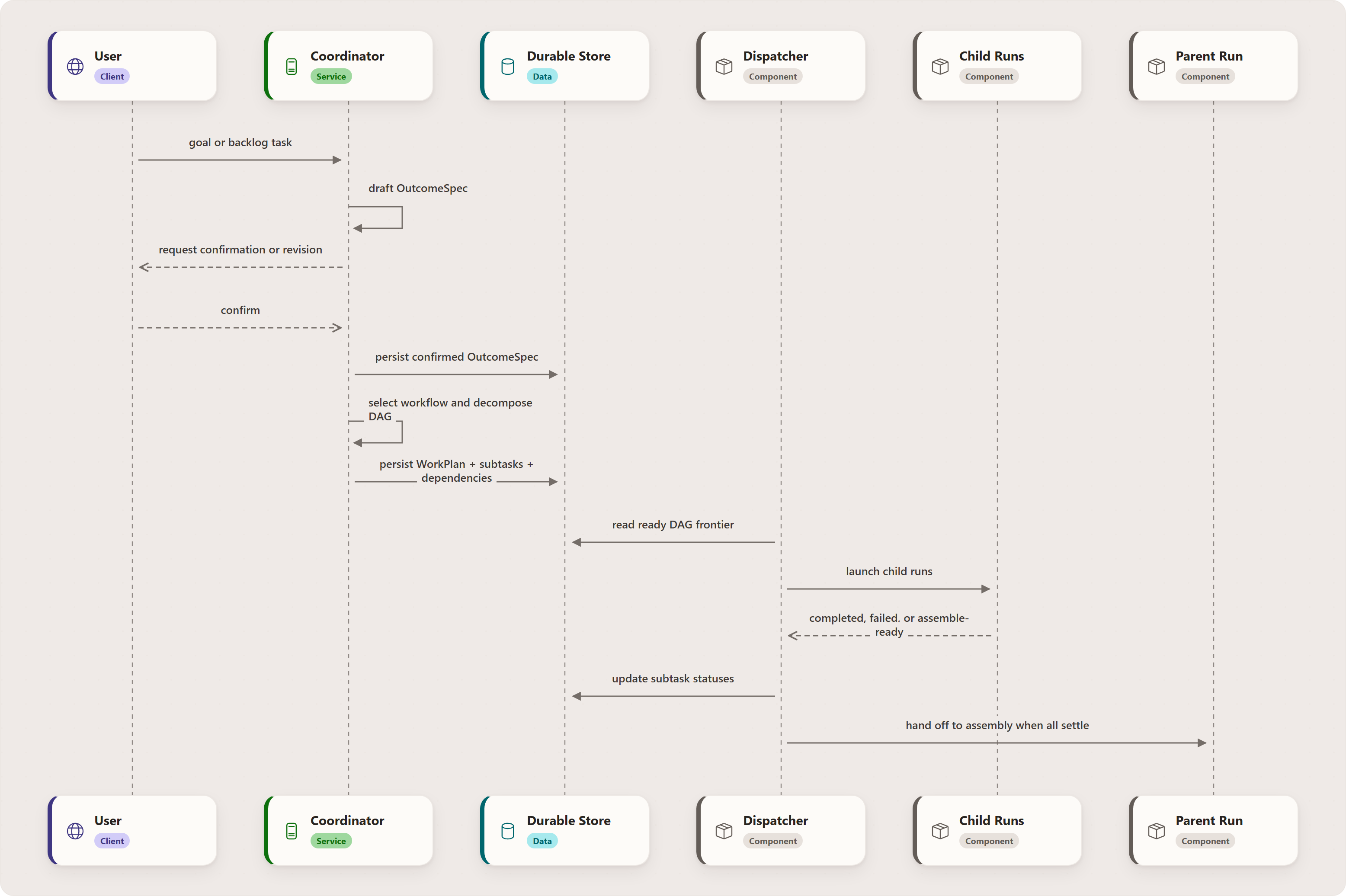

Coordinator Control Flow

The coordinator flow has two phases:

1. Model-assisted planning phase — draft and confirm the OutcomeSpec, select a workflow, decompose the work, and persist the WorkPlan.
2. Service-driven execution phase — dispatch ready subtasks, watch child runs, assemble results, and advance the parent run through review and merge gates.

The coordinator is designed to be idempotent. If it is asked to orchestrate a run that already has a WorkPlan, it does not create a second plan. That invariant prevents duplicate child runs and conflicting DAGs.

Decomposition Logic

A good decomposition algorithm should produce subtasks that are:

• owned by one agent,
• bounded enough to complete independently,
• ordered by explicit dependencies,
• labeled with intended isolation or file ownership,
• and recoverable with enough guidance to retry or inspect failures.

Agentweaver treats dependency edges and file/isolation hints as coordination data. The dependency graph is the hard ordering rule. Isolation hints are advisory: they help avoid conflicts and guide dispatch, but they are not a substitute for merge conflict handling or review.

Cycle breaking is essential. Model-generated plans can accidentally create circular dependencies. A production coordinator should detect cycles and either remove weak edges, ask for clarification, or fail before dispatch. Dispatching a cyclic plan would deadlock because no frontier can become ready.

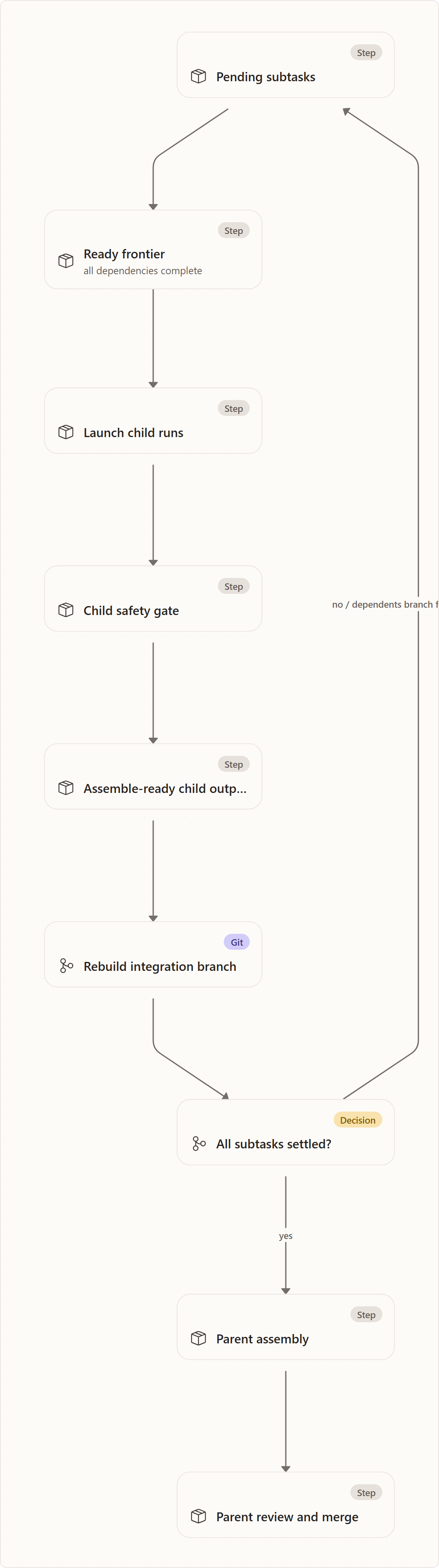

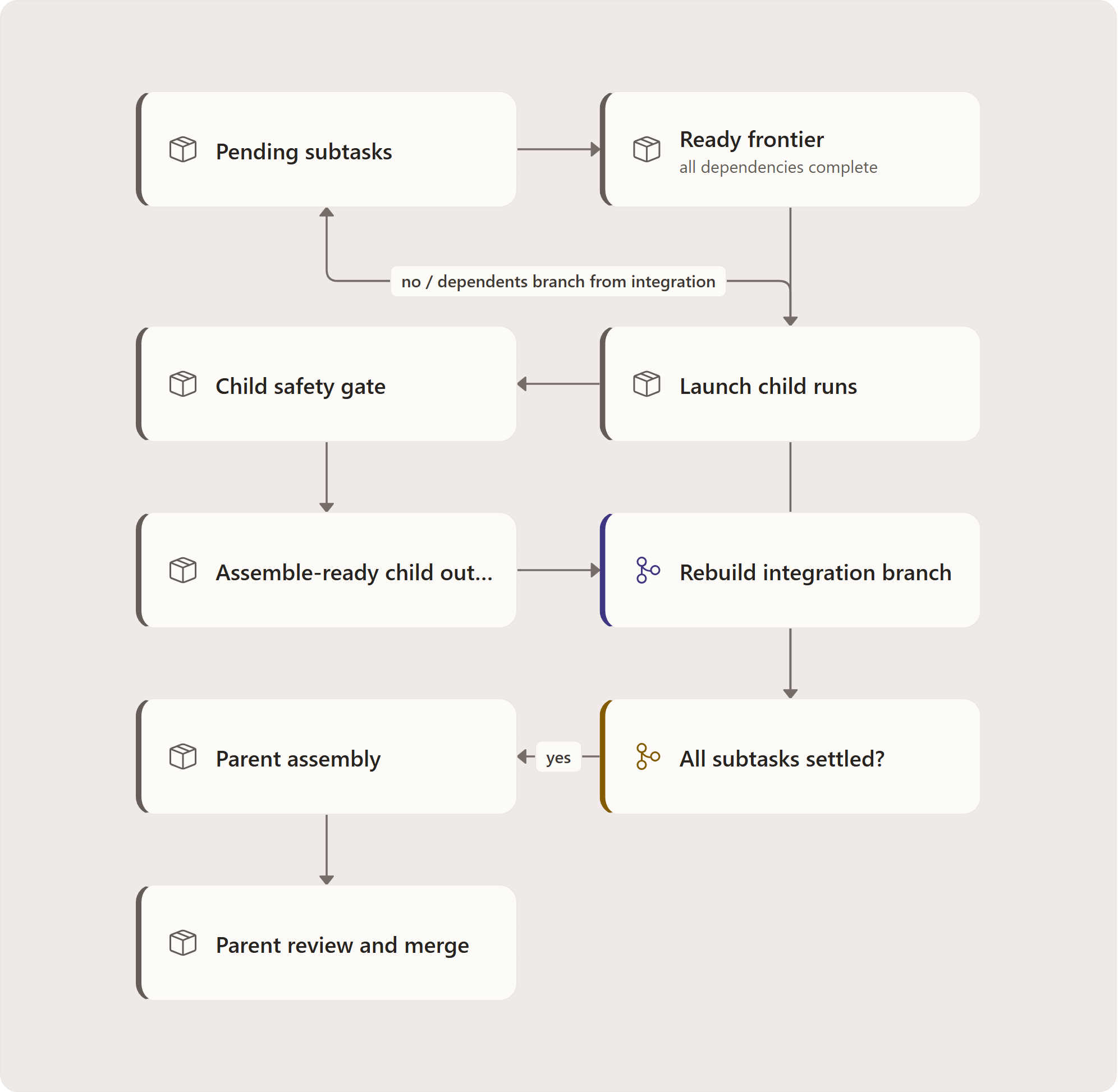

Dispatch and Assembly

The dispatcher repeatedly asks: which pending subtasks have all dependencies completed? Those subtasks form the ready frontier.

For each ready subtask, it launches a child run with an isolated working tree and output branch. Child runs are intentionally trimmed: they perform agent work, then stop at an assemble-ready boundary. They do not each perform RAI, human review, merge, or scribe. Those are parent-level responsibilities because the user reviews the combined outcome, not a pile of isolated fragments.

When a child reaches assemble-ready/completed, the dispatcher rebuilds the coordinator integration branch from the successful child branches in dependency order. Dependents are then branched from that integration branch, so they can read files produced by their prerequisites without concurrent siblings sharing one mutable git index.

Assembly is where the coordinator turns independent child outputs into one coherent result. This is also where conflicts, missing pieces, and cross-subtask inconsistencies should be detected before the parent enters review and merge gates.

The child graph branches on AgentTurnOutput.TerminalFailureReason: a clean turn reaches child-assemble-ready, while a typed failure reaches child-turn-failed (apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:788–814). “All subtasks settled” is not equivalent to “all outputs eligible for assembly”; a failed child is not an approved aggregate input.

Where this lives:

• apps/Agentweaver.Api/Coordinator/
• apps/Agentweaver.Api/Memory/

Workflows and Trigger Evaluation

Workflow as Policy Graph

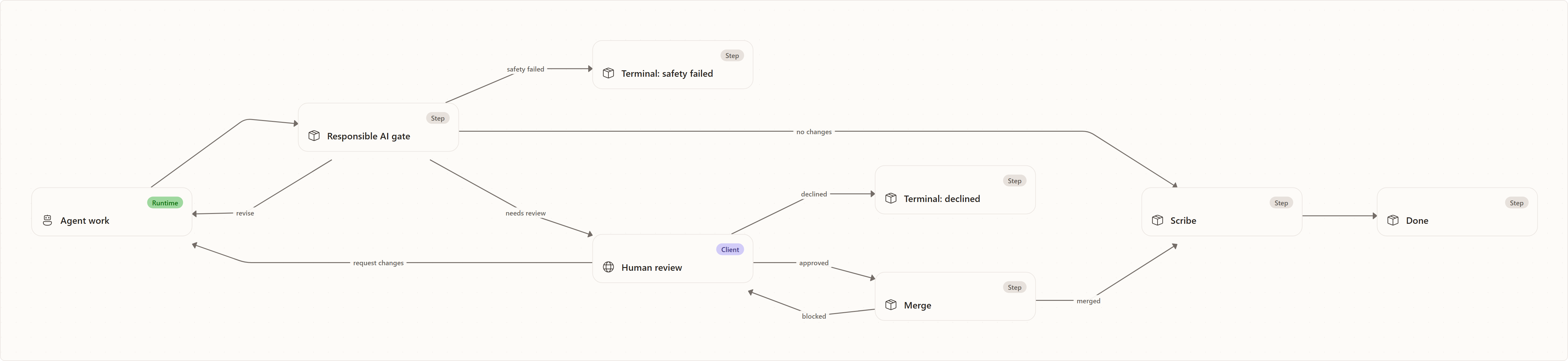

A workflow is not just a list of functions. It is a policy graph that describes how a run should progress through work, checks, review, merge, and terminal states.

A workflow definition answers:

• What starts the graph?
• Which node performs agent work?
• Which gates can send work back for revision?
• Which failures are terminal?
• Which path means success?
• Which event or schedule declarations can initiate backlog work for this workflow?

The shared illustration describes the standalone built-in workflow, not mandatory collective assembly policy. Its current success path is agent -> rai -> review -> merge -> push-pr -> scribe -> done (apps/Agentweaver.Api/Workflows/DefaultWorkflowTemplate.cs:42–161); child runs bypass this graph.

The important idea is that loops are first-class. Safety or review can return work to the producer. Merge can return to review if blocked. Terminal failures are explicit exits, not exceptions swallowed by the runtime.

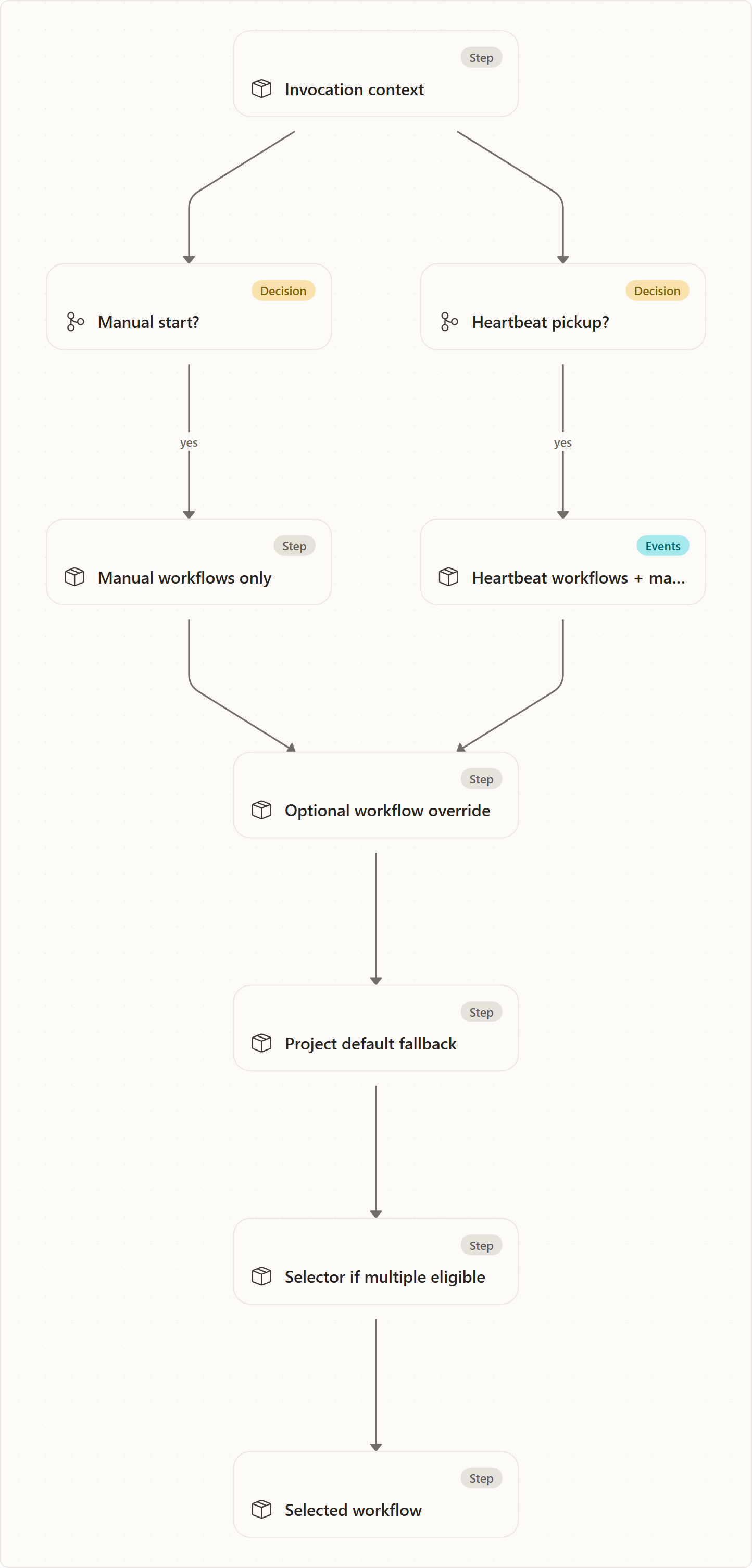

Invocation context and event triggers

Manual and heartbeat origins are recorded as invocation context. They do not remove valid workflows from the selector candidate set. Event and schedule triggers are evaluated before the normal backlog and coordinator pickup path. A requested override is used only when it resolves to a valid, bindable workflow.

Workflow Selection Logic

The selection order is deliberately conservative:

1. Load built-in, catalog/library, and project-authored workflows.
2. Record invocation kind from the run origin.
3. Honor a valid override if present.
4. Order the configured project default first without short-circuiting automatic selection.
5. If exactly one workflow remains, use it without model help.
6. If several remain, ask the selector to choose the best process fit.
7. If selector output is invalid or parsing fails, fall back safely rather than inventing a workflow id.

This pattern limits model authority. The model may choose among safe candidates, but it cannot bypass validation or runtime binding.

See workflow selection for override events, selector retry/fallback behavior, and the post-decomposition Build & Test compatibility check. That check can choose a platform software workflow when automatic project candidates cannot cover code-producing work; an explicit workflow lacking Build & Test is honored with a warning.

Binding Declarative Nodes to Runtime Execution

A workflow file describes intent. The runtime must bind that intent to concrete executors.

The binder should:

• classify nodes by type and gate kind,
• resolve each node to a known executor,
• expand logical edges into the live execution graph,
• verify every workflow-declared gate and transition has a binding,
• and fail closed if a required node cannot be executed safely.

Failing closed is a security and correctness property. A workflow that asks for a safety gate but cannot bind one should not silently skip safety. Likewise, a custom node type should not become a no-op merely because the binder does not understand it.

Some workflow shapes, such as fan-out/fan-in style nodes, are design-level extension points: the graph model can express them, and the binder is the place where their executors are resolved. They give the system room to grow more complex execution patterns without changing the surrounding contract.

Where this lives:

• apps/Agentweaver.Api/Workflows/
• docs/workflow-library.md
• docs/workflow-binder.md

Run Lifecycle

What a Run Represents

A run is the durable unit of execution. Conceptually it bundles:

• a project and workspace/worktree,
• the assigned agent and charter/context,
• the selected workflow,
• the run origin,
• live and durable event streams,
• and a persisted status.

A run can be started directly by a user, reserved by backlog pickup, created as a coordinator parent, or launched as a coordinator child. All forms should converge on the same lifecycle machinery so status, streaming, review, and recovery behave consistently.

Parent, Child, and Pickup Runs

Agentweaver uses run origin to preserve intent:

• Manual runs are user-started and usually go through the full workflow.
• Coordinator parent runs own the team-level plan, assembly, review, merge, and scribe phases.
• Coordinator child runs execute one subtask and stop at the assemble-ready boundary after agent work.
• Backlog pickup runs are coordinator runs created by the heartbeat loop for unattended ready tasks.

The key difference is not the storage shape; it is the responsibility boundary. Child runs should not merge independently because they are fragments of the parent outcome. Parent runs should not redo child work because they coordinate, assemble, and gate the whole result.

State Machine

This is a conceptual, non-exhaustive state machine. It emphasizes externally visible gates. When a human review node is reached, the run becomes AwaitingReview and the client can act. When merge is requested, the run becomes Merging. These are not merely internal events; they are durable states used by clients, recovery, and monitoring.

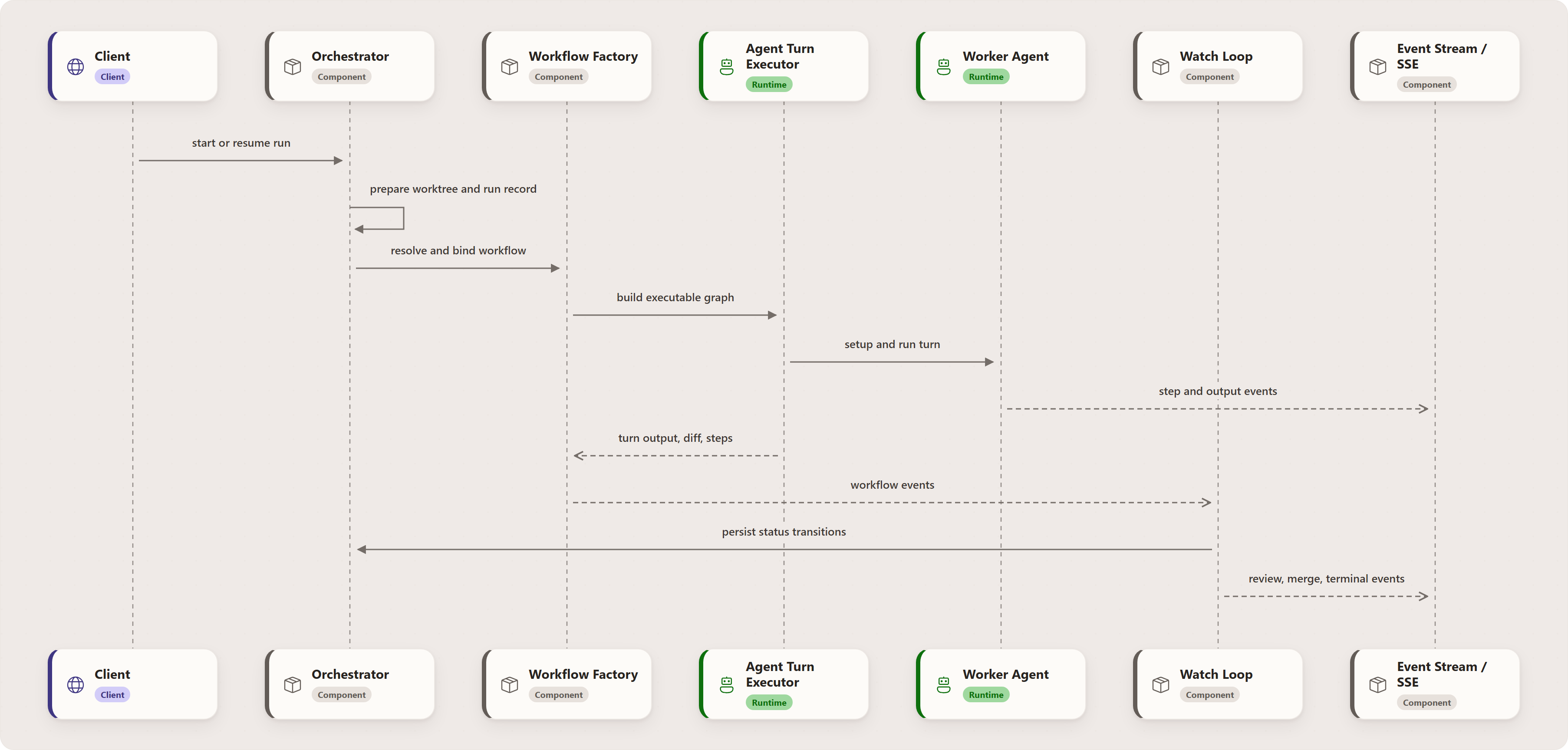

Runtime Sequence

The watch loop translates live runtime events into persisted run state. This keeps state transitions centralized. The agent produces work; the workflow emits events; the watch loop decides what those events mean for durable status and client-visible stream completion.

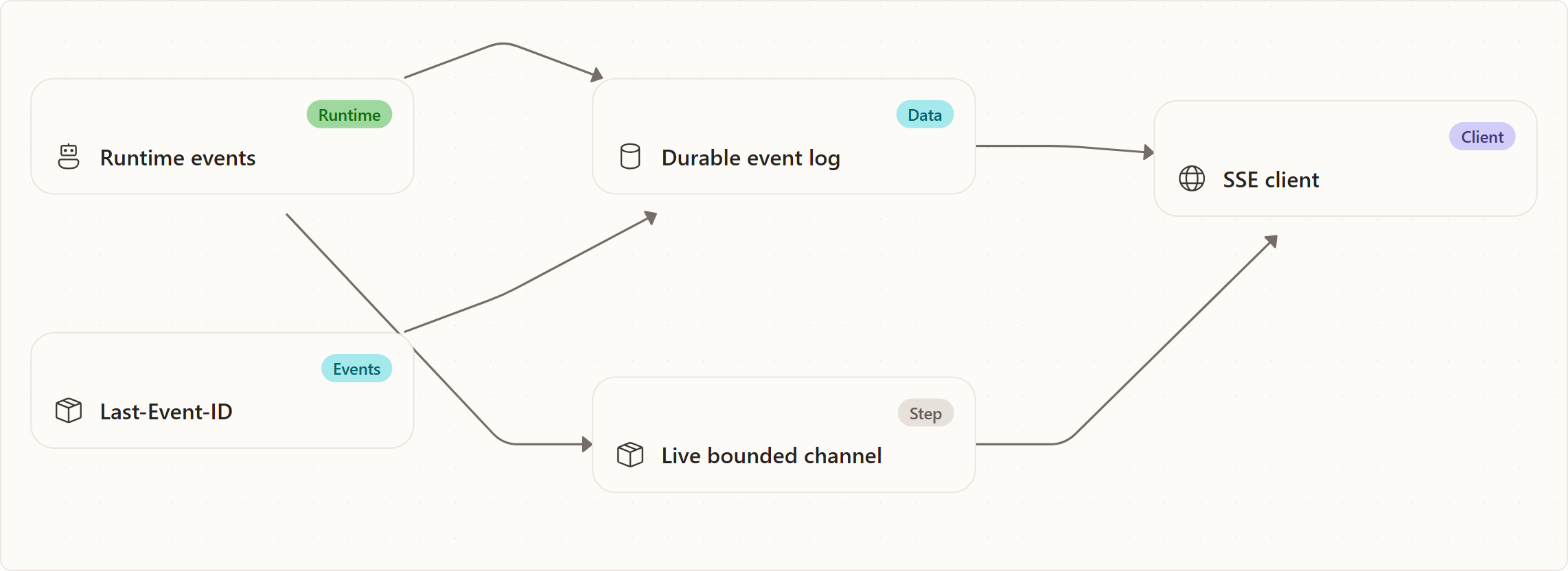

Event Streaming

Run events have two purposes:

1. Live feedback — clients can see what the agent is doing now.
2. Recovery and reconnect — clients can replay what happened if they disconnect or the process restarts.

The Postgres path appends durably, then reads ordered rows after the subscriber's cursor:

EfRunEventStream allocates the next sequence under a per-run advisory transaction lock and acknowledges only after commit. Subscribers query Sequence > cursor and poll again after 250 ms when no rows are available. A reconnect can therefore land on another API replica without relying on the first replica's channel. The SQLite/local alternative has a bounded process-local channel; that channel is not the Postgres cross-replica delivery mechanism. The SSE endpoint supplies framing and completion behavior.

Where this lives:

• apps/Agentweaver.Api/Runs/
• packages/Agentweaver.AgentRuntime/Workflow/
• apps/Agentweaver.Api/Infrastructure/
• docs/run-event-stream.md

Backlog and Heartbeat Pickup

Problem It Solves

The backlog lets Agentweaver accept work before an agent is actively assigned. The heartbeat loop turns ready backlog items into unattended coordinator runs.

This separates commitment from execution:

• A task can be captured and ordered in the backlog.
• Later, when it becomes ready and workspace conditions allow, the system claims it.
• Claiming creates or reserves exactly one coordinator run.
• That coordinator run executes the same planning and workflow path as a manually-started coordinator run. Resolved approval/autopilot settings determine whether confirmation can be unattended; pickup alone is not approval.

Backlog Task Lifecycle

The persisted task states are Backlog -> Ready -> Claimed. Running, completed, and failed are board projections of the linked run, not additional BacklogTaskState values. Use the shared backlog board explanation rather than a second lifecycle diagram.

The critical operation is the transition from Ready to Claimed. It must be atomic. If two heartbeat ticks or processes see the same ready task, only one should reserve the task and create the coordinator run. Otherwise, the system would execute duplicate plans for the same backlog item.

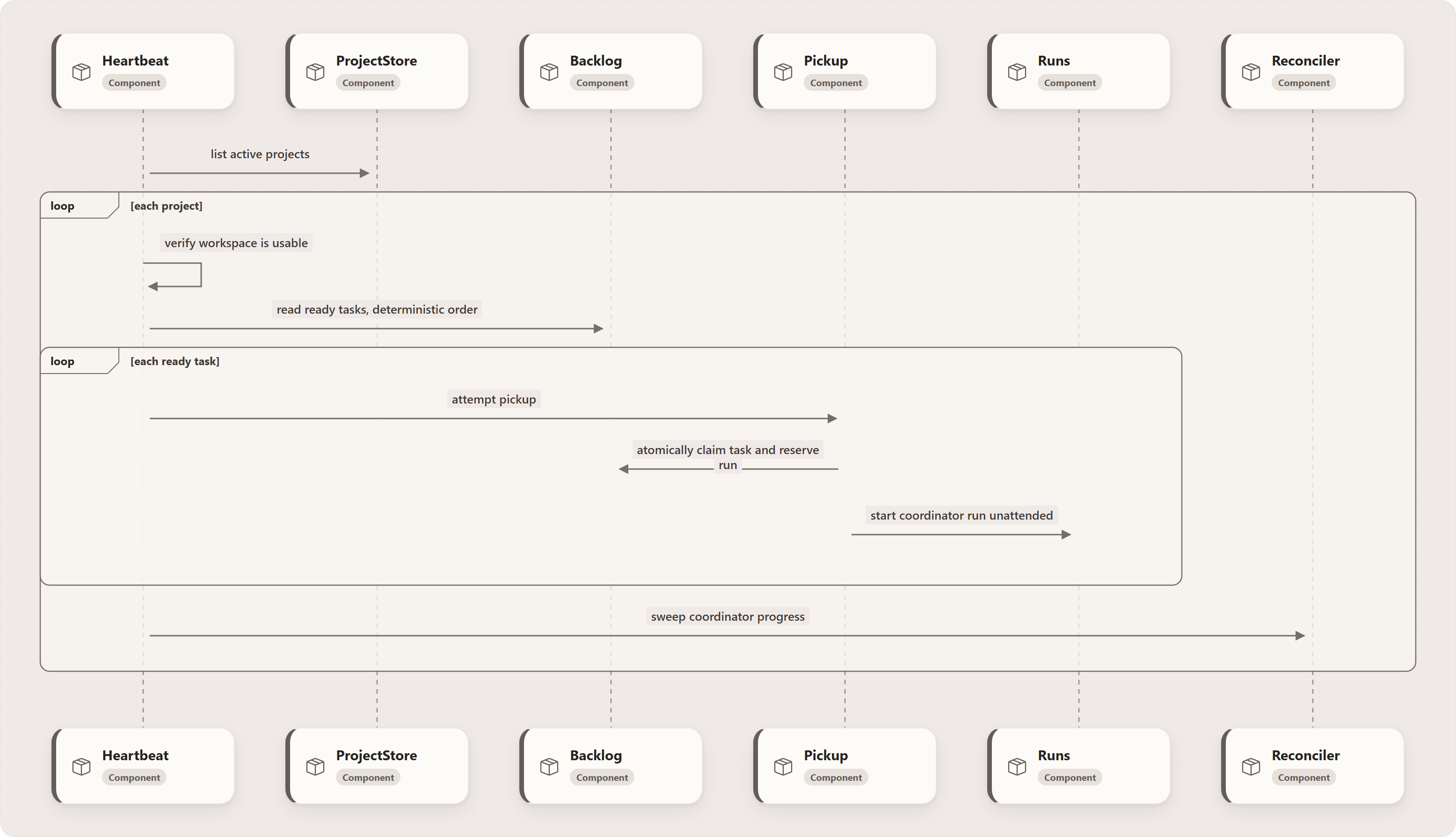

Heartbeat Loop

The heartbeat loop is intentionally simple and repeatable:

1. Scan active projects.
2. Skip projects whose workspace is unavailable.
3. Read a deterministic top-N set of Ready tasks per project.
4. For each task, attempt an atomic claim and run reservation.
5. Start the reserved coordinator run under its resolved approval/autopilot settings.
6. After the project loop, run one coordinator reconciliation sweep and drain orphaned OutcomeSpec decisions.
7. Every configured Nth tick, run the optional AgentHost orphan-pod reaper.

The reconciliation, deferred-decision drain, and reaper are separate guarded phases outside the per-project loop (apps/Agentweaver.Api/Coordinator/CoordinatorHeartbeatService.cs:151–210).

Workflow overrides are allowed at the backlog task level, subject to registry availability and binding—not invocation-kind or trigger-eligibility filtering. Event and schedule producers initiate backlog work upstream; selection considers the valid available workflow set.

Why Heartbeat Instead of Immediate Execution?

A heartbeat loop gives the system backpressure and recovery:

• Projects can limit how many ready tasks are picked up per tick.
• Workspace availability can be checked before work starts.
• If the process crashes, unclaimed Ready tasks remain visible for the next tick.
• Claimed tasks can be reconciled against their reserved runs.
• The same mechanism can eventually support multiple workers if claim semantics stay atomic.

Where this lives:

• apps/Agentweaver.Api/Coordinator/
• packages/Agentweaver.Domain/

Workflow Gates and Merge

Workflow-declared review gates

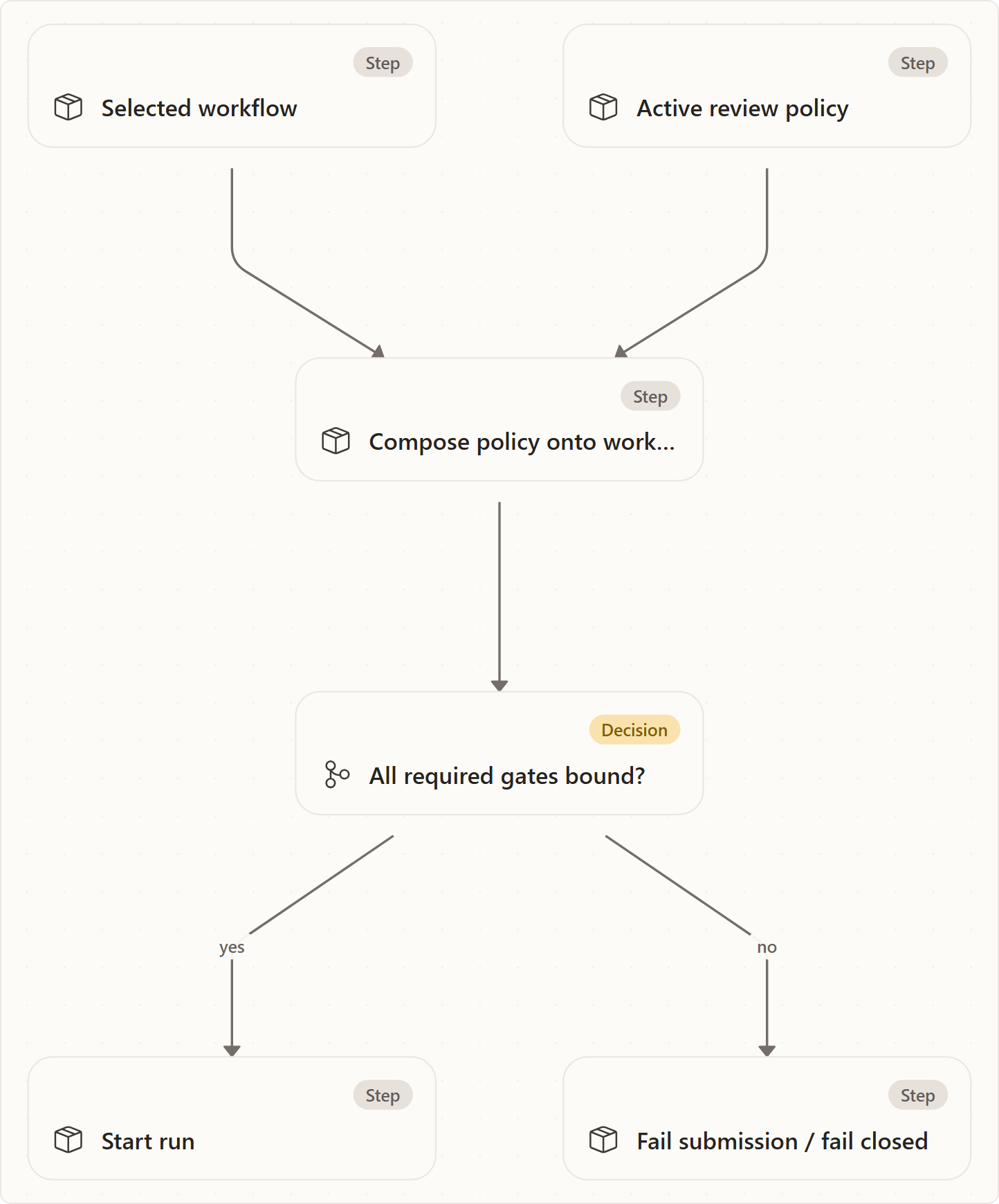

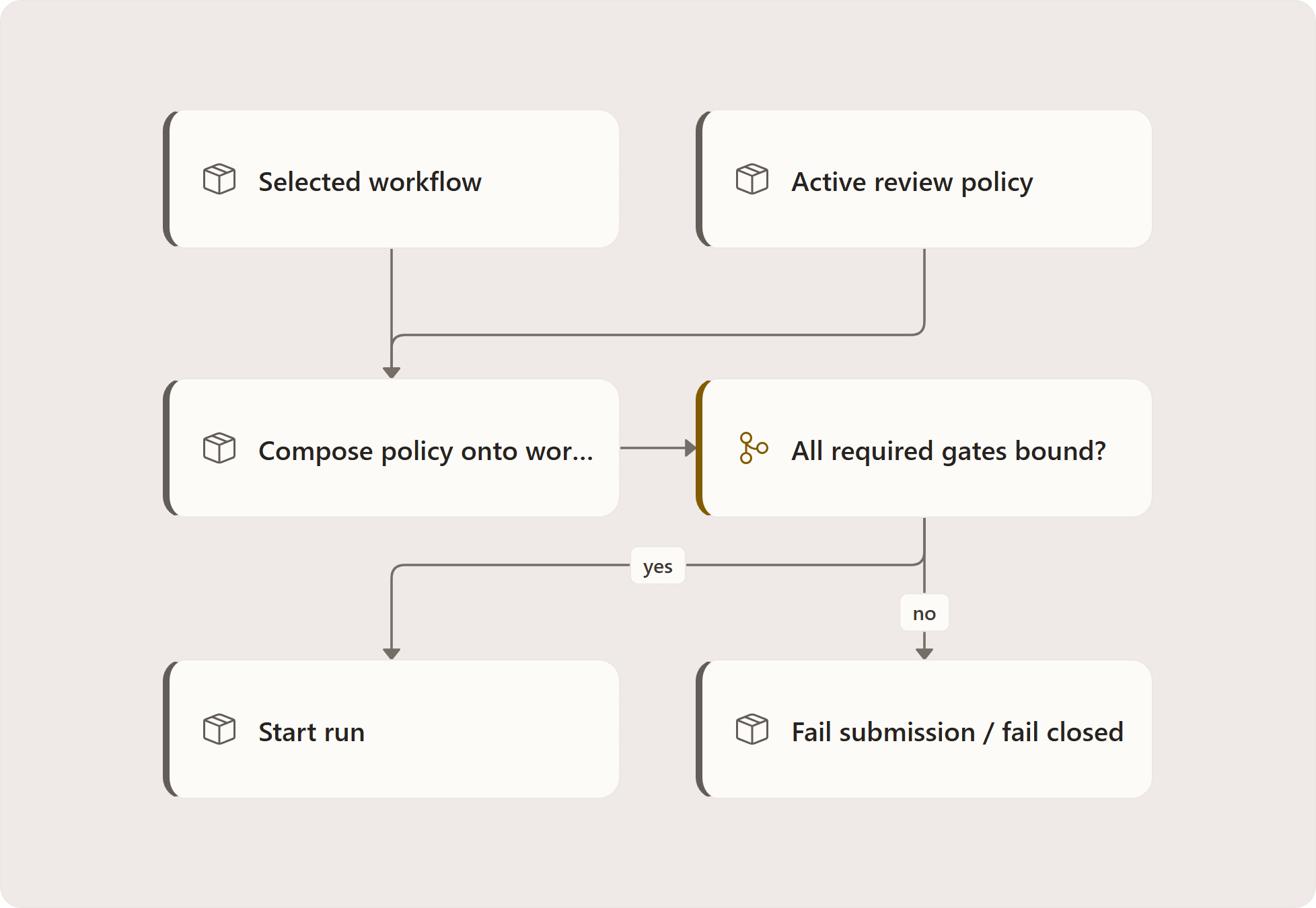

Review gates are declared in workflow nodes and edges. RunWorkflowFactory.ResolveEffectiveWorkflowAsync resolves a workflow and returns it without composing a separate project policy (apps/Agentweaver.Api/Runs/RunWorkflowFactory.cs:1495–1517). Blueprint validation accepts only review_policy: default (apps/Agentweaver.Api/Blueprints/BlueprintService.cs:113–115). Legacy policy-prefixed adapters are binding plumbing, not a registry or composer.

See binding declarative nodes to runtime execution for fail-closed gate/edge binding. Collective assembly executes the authored aggregate gates; a collective RAI RED verdict opens a durable human-review escalation (InReview / AwaitingReview, reason rai_red), not a terminal RaiBlocked dead end (apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs:3752–3795).

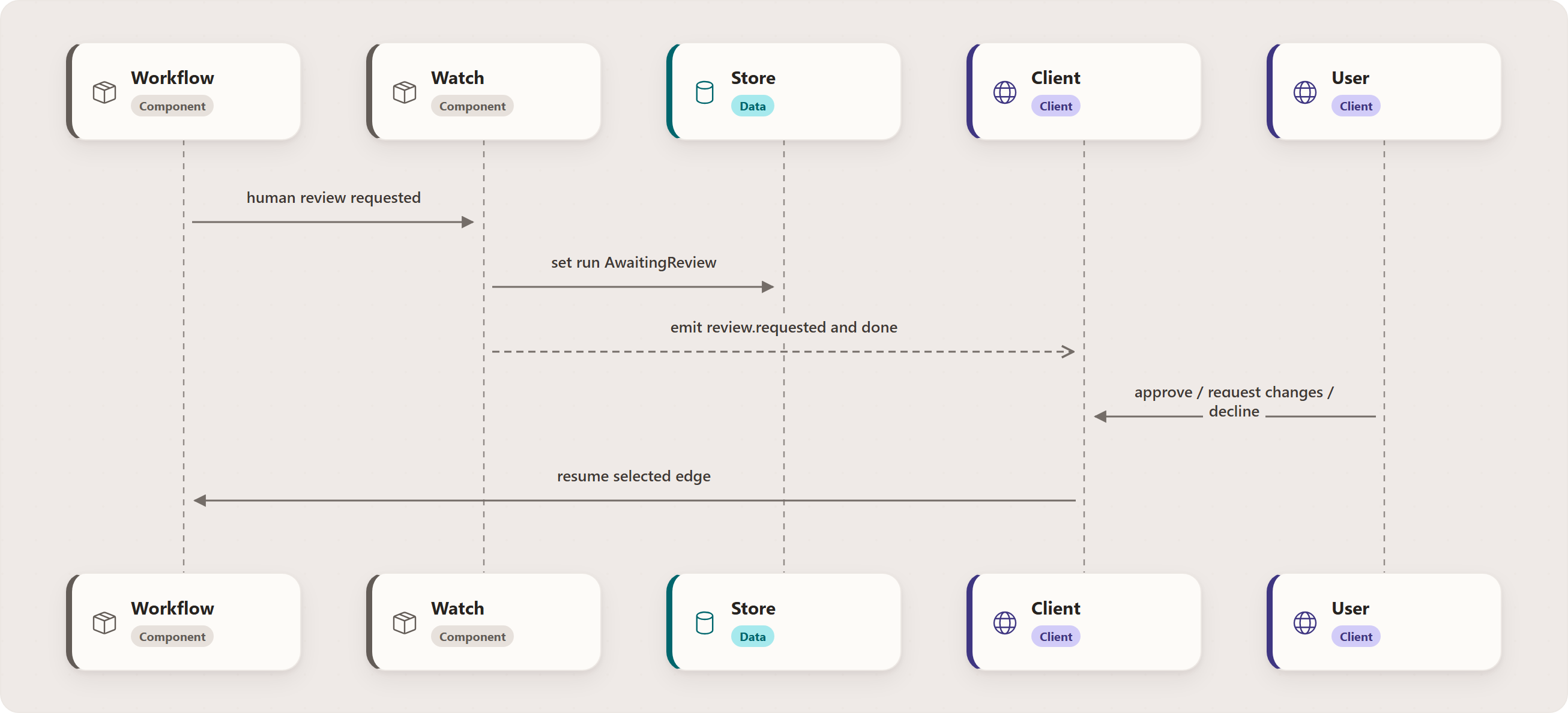

Human Review as a Pause Point

Human review is not just an event; it is a pause in the workflow. The runtime emits a review request, the watch loop persists the run as awaiting review, and the stream can close cleanly while the system waits for user action.

The user action then chooses a path:

• approve and continue to merge,
• request changes and loop back to agent work,
• or decline and terminate.

This design keeps review durable and externally controllable. A browser tab can close while a run waits for review; the run state still tells the next client exactly what is needed.

The client submits a decision to the API; it does not resume a workflow directly. The shared review sequence owns the authorization, pending-request arbitration, and replay behavior.

Merge Gate

Merge is a gate because generated work can be correct but not mergeable. The merge step surfaces conflicts, blocked policies, or repository constraints.

A healthy merge gate should distinguish:

• blocked but recoverable — return to review or revision with a clear reason,
• merged — terminal success and scribe recording,
• terminal merge failure — cannot proceed without manual intervention.

The parent coordinator run owns merge for coordinated work. Child runs should not merge because they do not know whether sibling subtasks are complete or consistent.

Scribe

Scribe is the post-outcome memory step. It records what happened, decisions, learnings, or trace information after the run reaches the appropriate terminal path. Conceptually, Scribe turns execution history into reusable project memory.

Where this lives:

• apps/Agentweaver.Api/Workflows/
• apps/Agentweaver.Api/Runs/

Recovery and Failure Handling

Agentweaver recovery is built from several smaller guarantees rather than one global transaction.

Idempotent Planning

If a coordinator run already has a WorkPlan, the coordinator should not decompose again. This prevents duplicate children and preserves the original confirmed intent.

Atomic Pickup

Backlog pickup should claim the task and reserve the run in one atomic operation. If reservation fails, the task should not appear successfully claimed without an executable run.

Durable Events

Events should be appended durably before live publication. This lets clients reconnect and lets operators inspect what happened after a crash.

Watch-Loop Status Projection

The runtime graph emits events. The watch loop projects those events into durable statuses. Keeping this projection centralized prevents every executor from inventing its own status semantics.

Frontier-Based Dispatch

The dispatcher can be rerun safely because it reads persisted subtask states and dependencies. Already-dispatched or completed subtasks are skipped; newly-ready pending subtasks can be launched.

Review and Merge Re-entry

Review and merge failures often are not terminal. A requested change loops back to agent work. A blocked merge can return to review. Only explicit terminal paths should mark the run failed, declined, merged, or merge-failed.

Reconciliation

A reconciler should periodically compare plans, subtasks, child runs, and parent status. Its job is to notice mismatches such as:

• a subtask marked running whose child run reached a terminal state,
• a plan whose all subtasks are assemble-ready but parent assembly has not started,
• a claimed backlog task whose reserved run was not launched,
• or a coordinator parent waiting on children that no longer exist.

The reconciler is what turns persisted state into eventual progress after crashes or partial failures.

Casting and Blueprints Integration

Casting provides the roster: agent names, role charters, default models, and required system agents such as Coordinator, Scribe, Ralph, and Rai. Orchestration consumes this roster when assigning subtasks and binding review responsibilities.

Blueprints provide defaults: initial roster, workflow set, default workflow, sandbox profile, and optional bespoke roles. The required review_policy field accepts only default; it does not configure additional injected gates. Applying a blueprint can materialize workflow definitions and persist defaults that later coordinator runs select from.

The key boundary is that Casting and Blueprints define who is available and what defaults apply. The orchestration engine decides what work is needed now and how that work moves through gates.

See team-casting.md for the detailed model.

Where this lives:

• apps/Agentweaver.Api/Casting/
• apps/Agentweaver.Api/Blueprints/

Extension Points and Gotchas

• Do not treat workflow ids as executable code. A workflow must be parsed, classified, bound to known executors, and validated before it can run.
• Trigger evaluation is an ingress boundary. Verified events and schedules may initiate backlog work; they do not filter selector candidates by run origin.
• Child pipelines are intentionally shorter. Per-child review, merge, and scribe would fragment responsibility. Keep those phases at the parent level for coordinated work.
• Advisory isolation is not a lock. File ownership hints help dispatch and planning, but dependency edges, review, and merge conflict handling still matter.
• Workflow gate binding must fail closed. An unsupported declared gate or transition prevents execution rather than silently weakening the authored graph.
• Registry sync matters. Explicit sync gives immediate validation feedback; signature changes also refresh cached workflow results on the next read.
• Live streams and durable streams serve different users. Live channels make the UI responsive; durable event logs make reconnect and crash recovery possible. Keep both.
• Comments can drift from behavior. Prefer the persisted contracts and current service flow over historical comments when validating orchestration behavior.

Rebuilding Checklist

If you were rebuilding Agentweaver orchestration from scratch, implement in this order:

1. Durable run records, statuses, and event log.
2. Workflow definitions with separate trigger evaluation and fail-closed binding.
3. Agent execution wrapped by a watch loop that projects events into statuses.
4. Workflow-declared review gates with durable decisions.
5. OutcomeSpec confirmation flow.
6. WorkPlan, subtask, and dependency persistence.
7. Frontier-based child dispatch and assemble-ready handoff.
8. Parent assembly, review, merge, and scribe phases.
9. Backlog Ready-to-Claimed atomic pickup.
10. Heartbeat scanning and reconciliation.
11. Casting and Blueprint defaults feeding coordinator selection.

The central design principle is simple: persist intent, execute only eligible work, make every gate explicit, and recover by replaying durable state rather than reinterpreting the original request.

Diagram details and constraints

Element	Contract
title	Generic default workflow
subtitle	Built-in template • merge → PR publication → Scribe
returns-heading	SOURCE / RETURN
outcomes-heading	OUTCOMES
footer	PR action can skip / fail and still reach Scribe. No-changes also reaches Scribe.
Agent work	Agent
Agent work	Agent task
Agent work	agent
RAI gate	Rai
RAI gate	Verdict routing
RAI gate	rai
Human review	Review
Human review	human-review
Merge	Merge
Merge	Merge outcome routing
Merge	merge
Publish / reuse PR	Publish / reuse PR
Publish / reuse PR	Create / reuse; not git push
Publish / reuse PR	action
Scribe	Scribe
Scribe	Record the run outcome
Scribe	scribe
Safety failed	Safety failed
Safety failed	Workflow endpoint
Declined	Declined
Done	Done
edge-02-label	revise
edge-03-label	safety- failed
edge-04-label	no- changes
edge-05-label	review
edge-06-label	approved
edge-07-label	request-changes
edge-08-label	declined
edge-09-label	merged
edge-10-label	blocked

Diagram details and constraints

Element	Contract
title	Postgres is the event relay
subtitle	Any API replica can serve a cursor over durable RunEvents—no sticky session required.
group-title0	Write path · replica A
group-title1	Read path · replica B
Run producer	Run producer
Run producer	Append a structured event
Run producer	runId + type + payload
EF event stream	EF event stream
EF event stream	Serialize writes per run
EF event stream	pg_advisory_xact_lock
RunEvents	RunEvents
RunEvents	Shared PostgreSQL table
RunEvents	(RunId, Sequence)
Web / MCP watcher	Web / MCP watcher
Web / MCP watcher	Consume ordered events
Web / MCP watcher	last delivered cursor
SSE endpoint	SSE endpoint
SSE endpoint	Emit id + event + data
SSE endpoint	ordered response frames
EF subscriber	EF subscriber
EF subscriber	Read Sequence > cursor
EF subscriber	idle poll: 250 ms
e1	append
e2	commit
e3	ordered batch
e4	yield
e5	SSE frames
assurance-title	POSTGRES LANE ONLY
assurance-line1	SQLite register-channel / replay / tail is a separate implementation—not this architecture.
assurance-line2	Late-delta suppression is process-local; do not read it as a database-wide terminal fence.
Run producer	Input
Run producer	RunStreamEntry
Run producer	Identity
Run producer	runId + event type
Run producer	Body
Run producer	Structured payload
Run producer	Ack
Run producer	After durable commit
EF event stream	Lock
EF event stream	Per-run advisory lock
EF event stream	Next
EF event stream	MAX(Sequence) + 1
EF event stream	Write
EF event stream	Save transaction
EF event stream	Commit
EF event stream	Before acknowledgement
RunEvents	Table
RunEvents	Key
RunEvents	RunId + Sequence
RunEvents	Order
RunEvents	Ascending sequence
RunEvents	Reuse
RunEvents	Same type / payload
Web / MCP watcher	Client
Web / MCP watcher	Web or MCP
Web / MCP watcher	Resume
Web / MCP watcher	Last delivered cursor
Web / MCP watcher	Replica
Web / MCP watcher	No sticky requirement
Web / MCP watcher	History
Web / MCP watcher	Durable ordered events
SSE endpoint	Frame
SSE endpoint	id + event + data
SSE endpoint	Cursor
SSE endpoint	Last-Event-ID
SSE endpoint	Delivery
SSE endpoint	Yield ordered events
SSE endpoint	Close
SSE endpoint	After batch is drained
EF subscriber	Query
EF subscriber	Sequence > cursor
EF subscriber	Idle
EF subscriber	Poll after 250 ms
EF subscriber	State
EF subscriber	Shared durable table
EF subscriber	Blocked
EF subscriber	Retryable: keep open
producer	Coordinator or run execution; Acknowledgement follows commit
append	Allocate MAX(Sequence) + 1; Save and commit transaction
store	Cross-replica ordered history; Explicit duplicates must match payload
client	Reconnect from the cursor; No local channel dependency
sse	Cursor advances after delivery; Drain batch before terminal close
reader	Query the shared durable table; Retryable assembly_blocked stays open
notes	POSTGRES LANE ONLY; SQLite register-channel / replay / tail is a separate implementation—not this architecture.; Late-delta suppression is process-local; do not read it as a database-wide terminal fence.
groups	Write path · replica A; Read path · replica B

Diagram details and constraints

Element	Contract
title	One heartbeat tick, two scopes
takeaway	Pickup runs per project; reconciliation, deferred-spec drain and optional reaping run afterward.
group-title-0	PROJECT LOOP
group-title-1	PER-PROJECT PICKUP
group-title-2	ONCE AFTER THE PROJECT LOOP
Heartbeat tick	Heartbeat tick
Heartbeat tick	Enumerate projects
Heartbeat tick	failure-isolated sweep
Active + available?	Active + available?
Active + available?	Skip unavailable projects
Active + available?	per-project admission
Capped Ready list	Capped Ready list
Capped Ready list	Deterministic candidates
Capped Ready list	per-project limit
Atomic claim	Atomic claim
Atomic claim	Reserve coordinator run
Atomic claim	competing claim may lose
Start reserved run	Start reserved run
Start reserved run	Carry backlog origin
Start reserved run	confirmation policy applies
End project loop	End project loop
End project loop	Record tick result
End project loop	not an inner-loop sweep
Reconcile once	Reconcile once
Reconcile once	Repair durable supervision
Reconcile once	after all projects
Drain spec decisions	Drain spec decisions
Drain spec decisions	Recover orphaned decisions
Drain spec decisions	durable OutcomeSpec
Optional pod reaper	Optional pod reaper
Optional pod reaper	Every N ticks when enabled
Optional pod reaper	throttled cleanup
e0	each
e1	eligible
e2	claim
e3	won
e4	loop done
e5	once
e6	then
e7	when due
groups	PROJECT LOOP; PER-PROJECT PICKUP; ONCE AFTER THE PROJECT LOOP

Diagram details and constraints

Element	Contract
title	A dependency DAG, not agent chat
takeaway	Illustrative tasks A-D show readiness; only assemble-ready/completed prerequisites count.
group-title-0	DURABLE INTENT AND READINESS
group-title-1	ILLUSTRATIVE PARALLEL ROOTS
group-title-2	ILLUSTRATIVE DEPENDENTS AND HANDOFF
Confirmed OutcomeSpec	Confirmed OutcomeSpec
Confirmed OutcomeSpec	Intent before decomposition
Confirmed OutcomeSpec	confirmed status
Persisted WorkPlan	Persisted WorkPlan
Persisted WorkPlan	Tasks + dependency edges
Persisted WorkPlan	selected workflow
Readiness rule	Readiness rule
Readiness rule	Every predecessor satisfied
Readiness rule	assemble_ready / done
Example root A	Example root A
Example root A	No prerequisites
Example root A	illustrative, not fixed
Example root B	Example root B
Example root B	parallel with A
Satisfied roots	Satisfied roots
Satisfied roots	Not merely terminal
Satisfied roots	failure does not unlock
Example dependent C	Example dependent C
Example dependent C	Depends on A
Example dependent C	illustrative edge
Example dependent D	Example dependent D
Example dependent D	Depends on A and B
Example dependent D	illustrative join
Collective handoff	Collective handoff
Collective handoff	Recheck aggregate eligibility
Collective handoff	quiescence != success
e0	persist
e1	evaluate
e2	ready
e4	A done
e6	B done
e7	both
e8	settled
groups	DURABLE INTENT AND READINESS; ILLUSTRATIVE PARALLEL ROOTS; ILLUSTRATIVE DEPENDENTS AND HANDOFF

Diagram details and constraints

Element	Contract
title	Child execution and dependency progress
takeaway	Children publish typed results and branch content; collective review belongs to the parent.
group-title-0	DEPENDENCY ADMISSION
group-title-1	TRIMMED CHILD EXECUTION
group-title-2	PUBLISHED CONTENT AND AGGREGATE ELIGIBILITY
Pending subtasks	Pending subtasks
Pending subtasks	Persisted dependency map
Pending subtasks	not automatically ready
Ready frontier	Ready frontier
Ready frontier	All predecessors satisfied
Ready frontier	not any terminal result
Isolated child	Isolated child
Isolated child	Launch agent execution
Isolated child	separate checkout
Agent result	Agent result
Agent result	Typed conditional output
Agent result	no child RAI executor
Assemble-ready	Assemble-ready
Assemble-ready	Successful child content
Assemble-ready	satisfies dependents
Typed turn failure	Typed turn failure
Typed turn failure	Does not satisfy dependents
Typed turn failure	no per-child review
Published branch	Published branch
Published branch	Authoritative committed tip
Published branch	not shared mutable files
Dependency base	Dependency base
Dependency base	Rebuild prerequisite content
Dependency base	new isolated dependent
Parent assembly check	Parent assembly check
Parent assembly check	Quiescence plus eligibility
Parent assembly check	collective gates later
e0	evaluate
e1	dispatch
e2	execute
e3	success
e4	failed
e5	publish
e6	integrate
e7	unlock
e8	settled
e9	blocked
groups	DEPENDENCY ADMISSION; TRIMMED CHILD EXECUTION; PUBLISHED CONTENT AND AGGREGATE ELIGIBILITY

Diagram details and constraints

Element	Contract
title	Persist the plan before dispatch
takeaway	Confirmation, selection and decomposition precede durable child dispatch.
group-title-0	INTENT AND REUSE
group-title-1	SELECTION AND DURABLE PLAN
group-title-2	DISPATCH AND COLLECTIVE HANDOFF
Submitted request	Submitted request
Submitted request	Goal + caller context
Submitted request	manual or pickup
Confirmation boundary	Confirmation boundary
Confirmation boundary	Manual or unattended policy
Confirmation boundary	autopilot-dependent
Existing plan?	Existing plan?
Existing plan?	Reuse persisted plan
Existing plan?	avoid decomposing twice
Select workflow	Select workflow
Select workflow	Available definitions
Select workflow	explicit choices honored
Decompose + validate	Decompose + validate
Decompose + validate	Outcome-complete work
Decompose + validate	compatibility check
Persist WorkPlan	Persist WorkPlan
Persist WorkPlan	Subtasks and dependencies
Persist WorkPlan	workflow identity
Ready frontier	Ready frontier
Ready frontier	Dependency satisfaction
Ready frontier	pending -> ready work
Dispatch children	Dispatch children
Dispatch children	Observe classified outcomes
Dispatch children	isolated child runs
Collective handoff	Collective handoff
Collective handoff	After child supervision
Collective handoff	assembly eligibility
e0	confirm
e1	lookup
e2	new
e3	decompose
e4	persist
e5	reuse
e6	ready
e7	dispatch
e8	handoff
groups	INTENT AND REUSE; SELECTION AND DURABLE PLAN; DISPATCH AND COLLECTIVE HANDOFF

Diagram details and constraints

Element	Contract
title	Execution and observation cooperate
takeaway	The watcher projects runtime events into durable state; it is not the executing graph.
group-title-0	START AND BIND
group-title-1	RUNTIME AND SUPERVISION
group-title-2	DURABLE PROJECTIONS
Run orchestrator	Run orchestrator
Run orchestrator	Starts factory + watcher
Run orchestrator	supervised lifetime
Effective definition	Effective definition
Effective definition	Resolve concrete workflow
Effective definition	no policy composer
Factory + binder	Factory + binder
Factory + binder	Build executable graph
Factory + binder	typed bindings
Checkpointed stream	Checkpointed stream
Checkpointed stream	MAF executes the graph
Checkpointed stream	provider-aware store
Watch loop	Watch loop
Watch loop	Consumes runtime updates
Watch loop	not graph execution
Review request	Review request
Review request	Persist pending decision
Review request	durable pause context
Typed terminal	Typed terminal
Typed terminal	Classify completed output
Typed terminal	not inferred from text
Durable run state	Durable run state
Durable run state	Persist status projection
Durable run state	watcher owns updates
Workflow-step events	Workflow-step events
Workflow-step events	Expose execution progress
Workflow-step events	client observation
e0	start
e1	resolve
e2	execute
e3	supervise
e4	stream
e5	request
e6	terminal
e7	persist
e8	publish
groups	START AND BIND; RUNTIME AND SUPERVISION; DURABLE PROJECTIONS

Diagram details and constraints

Element	Contract
title	Review API decision paths
takeaway	Authorize first. Deliver through the right path. Lock before any merge CAS.
group-title-0	ADMISSION AND REPLAY
group-title-1	DELIVERY ALTERNATIVES
group-title-2	CONTINUATION AND MERGE
Caller + access	Caller + access
Caller + access	Project contributor check
Caller + access	legacy: pending owner
Reviewable state?	Reviewable state?
Reviewable state?	Inspect status + pending
Reviewable state?	awaiting_review
Replay or conflict	Replay or conflict
Replay or conflict	Matching terminal: reuse
Replay or conflict	otherwise: 409
Live pending	Live pending
Live pending	Changes / decline use CAS
Live pending	approve: no merge CAS
Deferred pending	Deferred pending
Deferred pending	Persist the decision first
Deferred pending	then status transition
No live / no pending	No live / no pending
No live / no pending	Validate direct approval
No live / no pending	changes: 409
Consume + deliver	Consume + deliver
Consume + deliver	Send workflow response
Consume + deliver	live continuation
Repository lock	Repository lock
Repository lock	Only on reaching merge
Repository lock	lock before CAS
Merge CAS + Git	Merge CAS + Git
Merge CAS + Git	Guard reviewed tree input
Merge CAS + Git	release lock on exit
e0	check
e1	replay
e2	live
e3	deferred
e4	direct
e5	deliver
e6	on merge
e7	approve
e8	locked
groups	ADMISSION AND REPLAY; DELIVERY ALTERNATIVES; CONTINUATION AND MERGE
