Token usage monitoring — Deep Dive

Every GitHub Copilot model call has a cost: input tokens read, output tokens written, and a nano-AIU charge that maps to the AI Credits (AIC) shown on the product dashboard. Agentweaver treats that cost data as a first-class run event — an agent.turn.usage fact emitted after every model response, persisted before it is visible to any consumer, and projected into four aggregation levels: individual run, workflow run, project (time-ranged), and app-wide. Cost is not bolted on as a background batch job; it is wired into the same event stream that drives live UI updates and durable observability.

This page explains how the data flows from model response to dashboard. For the API surface see the reference; for the user flow see the user guide.

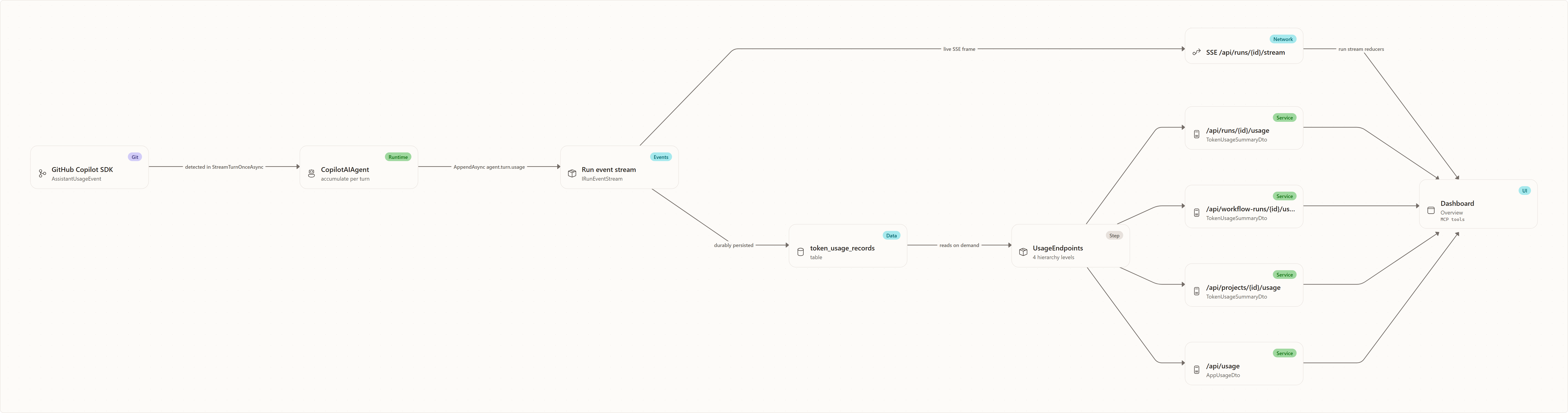

End-to-end flow

1. Model response arrives. The GitHub Copilot SDK emits an AssistantUsageEvent inside CopilotAIAgent.StreamTurnOnceAsync / ExecuteStreamingLoopAsync (packages/Agentweaver.AgentRuntime/CopilotAIAgent.cs). The agent accumulates inputTokens, outputTokens, totalTokens, totalNanoAiu, and modelId from that event.

2. agent.turn.usage event emitted. After the turn completes, CopilotAIAgent appends an agent.turn.usage event to the run's IRunEventStream. The payload is:

   Field	Type	Description
   inputTokens	long	Prompt tokens for this turn
   outputTokens	long	Completion tokens for this turn
   totalTokens	long	Sum of input + output
   totalNanoAiu	long	Cost in nano-AIU units
   modelId	string	Copilot model identifier (e.g. gpt-4o)

   The event type is EventTypes.AgentTurnUsage = "agent.turn.usage" (packages/Agentweaver.Domain/EventTypes.cs).

3. Durability before visibility. Per the core run-event invariant, the IRunEventStream.AppendAsync call writes the event row to the database before live subscribers see it. Live SSE clients — including the Watch page — receive the frame through the in-process fan-out channel after the row is committed.

4. Background projection. TokenUsageProjectionService (apps/Agentweaver.Api/Runs/TokenUsageProjectionService.cs) subscribes to active run event streams and writes a TokenUsageRecord row to token_usage_records on every agent.turn.usage event. This projection is separate from the event log itself, enabling efficient aggregation queries across runs, projects, and the entire app without scanning the raw event payload columns.

5. Aggregation hierarchy. ITokenUsageStore (packages/Agentweaver.Domain/ITokenUsageStore.cs) exposes four read methods, implemented by SqliteTokenUsageStore (apps/Agentweaver.Api/Infrastructure/SqliteTokenUsageStore.cs) and EfTokenUsageStore (apps/Agentweaver.Api/Infrastructure/Ef/EfTokenUsageStore.cs):

   Method	Scope
   GetRunUsageAsync	One run
   GetWorkflowRunUsageAsync	One workflow-run envelope (may span many child runs)
   GetProjectUsageAsync	One project, time-ranged (default: last 30 days)
   GetAppUsageAsync	Entire app, time-ranged

6. HTTP endpoints. UsageEndpoints (apps/Agentweaver.Api/Endpoints/UsageEndpoints.cs) maps each store method to an API route. Existing dashboard and overview endpoints extend their responses with token_usage fields when the store returns data.

7. MCP tools. get_run_usage (apps/Agentweaver.Mcp/Tools/RunTools.cs) and get_project_usage (apps/Agentweaver.Mcp/Tools/ProjectTools.cs) let any MCP client query usage without a browser.

8. Embedded run inspection. Run stream reducers consume agent.turn.usage SSE events and surface cost context through board cards and coordinator graph cost chips. The retired standalone Watch page no longer owns token display.

9. Dashboard, cards, and overview. CostChip converts total_nano_aiu to AIC labels and falls back to compact token labels. Run cards, workflow/coordinator DAG nodes, the dashboard leaderboard Cost column, and the Overview Cost overview all render from the same usage summaries. Source: apps/web/src/components/CostChip.tsx:18, apps/web/src/components/board/RunCard.tsx:160, apps/web/src/components/WorkflowGraphPanel.tsx:594, apps/web/src/pages/DashboardPage.tsx:461, apps/web/src/pages/OverviewPage.tsx:442.

Application Insights spans and metrics

The runtime now emits a second observability path alongside agent.turn.usage. CopilotAIAgent creates an ActivitySource named Agentweaver and a Meter counter named agentweaver.token.usage with unit nano_aiu (packages/Agentweaver.AgentRuntime/CopilotAIAgent.cs:45, :48). Each model turn starts an Agentweaver model turn client span tagged as agentweaver.span.kind=agent_turn, with run id, project id, agent name, operation name, and request model (CopilotAIAgent.cs:643). When the turn completes, the span is enriched with response model, input tokens, output tokens, total tokens, nano-AIU, and TTFT tags when available (CopilotAIAgent.cs:664). Positive nano-AIU values are also added to agentweaver.token.usage with model, run, project, and agent tags (CopilotAIAgent.cs:683).

AppInsightsMetricsService queries that telemetry for project dashboards and observability pages. It joins AppDependencies spans with agentweaver.token.usage metrics for the agent leaderboard (apps/Agentweaver.Api/Metrics/AppInsightsMetricsService.cs:190), uses the metric for model usage, agent breakdown, run-level breakdown, and AI-credit trend (AppInsightsMetricsService.cs:292, :417, :454, :493), and filters traces to agentic/LLM spans by agentweaver.span.kind, GenAI tags, agent tags, or model tags (AppInsightsMetricsService.cs:518).

This path powers the project Observability tabs: Overview renders compact model-performance panels and the AI credit usage over time chart (apps/web/src/components/dashboard/ModelPerformancePanels.tsx:160, :186), Agents aggregates cross-run token usage by agent (apps/web/src/pages/observability/ObservabilityAgentsPage.tsx:58), and Traces previews recent coordinator traces with expandable AppInsights bars (apps/web/src/pages/observability/ObservabilityTracesPage.tsx:108, apps/web/src/components/runs/TransactionTracePanel.tsx:211).

DAG card layout

Usage chips add metadata to graph cards, so the graph layout shares DAG_NODE_SEP = 96 and rendered-height hints by node type. CoordinatorTopologyGraph, WorkflowGraphPanel, and VisualWorkflowEditor pass those hints into layoutDag, which prevents overlapping cards as cost, pod, status, and action badges appear. Source: apps/web/src/utils/dagLayout.ts, apps/web/src/components/CoordinatorTopologyGraph.tsx, apps/web/src/components/WorkflowGraphPanel.tsx, apps/web/src/components/VisualWorkflowEditor.tsx.

AIC unit and display

Agentweaver reports usage in nano-AIU internally. The display unit is AIC (AI Credit):

1 AIC = 1,000,000,000 nano-AIU
display value = totalNanoAiu / 1_000_000_000  (4 decimal places)

This mapping means small model calls show as fractional AICs (e.g. 0.0012 AIC) and larger agent loops accumulate to whole credits. The 4-decimal format is the product convention set by TokenUsagePanel.tsx.

Per-model breakdown

Each TokenUsageSummaryDto carries a by_model array (TokenUsageByModelDto[]). A project or workflow may use multiple models in different agents — the breakdown lets operators see which model dominates token consumption and AIC spend. The modelId string comes directly from the Copilot SDK response and is not normalized by Agentweaver, so it matches the Copilot model identifier as returned by the provider.

Access control

Endpoint	Who may call it
GET /api/runs/{id}/usage	API key owner of the run
GET /api/workflow-runs/{id}/usage	API key owner of the project
GET /api/projects/{id}/usage	API key owner of the project
GET /api/usage	Admin key only
Dashboard token_usage field	Same as GET /api/projects/{id}/dashboard (project owner)
Overview token_usage field	Same as GET /api/overview (admin; degrades on 403)

These rules match the general API auth model: run owners see their own run data; project owners see their project data; admins see everything. Non-admin callers of /api/usage receive 403 Forbidden.

Source

Concern	File
agent.turn.usage event type	packages/Agentweaver.Domain/EventTypes.cs
Token accumulation, AppInsights span tags, and agentweaver.token.usage metric	packages/Agentweaver.AgentRuntime/CopilotAIAgent.cs:45
Domain types: TokenUsageRecord, TokenUsageSummary, TokenUsageByModel, TokenUsageByProject	packages/Agentweaver.Domain/ITokenUsageStore.cs
SQLite projection store	apps/Agentweaver.Api/Infrastructure/SqliteTokenUsageStore.cs
EF Core / Postgres projection store	apps/Agentweaver.Api/Infrastructure/Ef/EfTokenUsageStore.cs
token_usage_records schema	apps/Agentweaver.Api/Infrastructure/SqliteDb.cs
Background projection service (subscribes to event streams)	apps/Agentweaver.Api/Runs/TokenUsageProjectionService.cs
HTTP endpoints (all 4 levels)	apps/Agentweaver.Api/Endpoints/UsageEndpoints.cs
DTOs (TokenUsageSummaryDto, TokenUsageByModelDto, AppUsageDto, ProjectUsageDto, ProjectMetricsDto, RunTraceDto)	apps/Agentweaver.Api/Metrics/MetricsDtos.cs:86
AppInsights metrics and trace queries	apps/Agentweaver.Api/Metrics/AppInsightsMetricsService.cs:31
Metrics endpoints (/api/projects/{id}/metrics, /api/metrics/runs/{runId}/traces)	apps/Agentweaver.Api/Endpoints/MetricsEndpoints.cs:55
Observability model panels	apps/web/src/components/dashboard/ModelPerformancePanels.tsx:160
MCP get_run_usage tool	apps/Agentweaver.Mcp/Tools/RunTools.cs
MCP get_project_usage tool	apps/Agentweaver.Mcp/Tools/ProjectTools.cs
Embedded cost chips	apps/web/src/components/CostChip.tsx, apps/web/src/components/WorkflowGraphPanel.tsx
Dashboard token/AIC section	apps/web/src/pages/DashboardPage.tsx
Overview app-level usage section	apps/web/src/pages/OverviewPage.tsx
