Sandbox browser preview — Deep Dive ​

When an agent starts an HTTP server inside its sandbox pod — a dev server, a freshly built web app, a debug endpoint — the sandbox browser preview exposes it to the user at a public HTTPS URL, scoped to that one run. The preview is a Gateway-direct reverse proxy: a shared Gateway API gateway routes a per-preview subdomain straight to the run's sandbox pod. It is not an API-loopback kubectl port-forward (that earlier design was replica-unsafe and is retained only as a local-dev fallback).

This page explains how the proxy is wired and torn down. For the API surface see the reference; for the user flow see the user guide.

The feature is enabled by default in AKS deployments (Sandbox__Preview__Enabled=true, gateway agentweaver-preview-gateway, zone 6a41f26c75d5cf00019ef7d7.westus2.staging.aksapp.io). In local-dev environments where Sandbox:Preview:Enabled is false, the Gateway path is a no-op and the kubectl port-forward fallback is used instead (SandboxPreviewOptions.cs:21).

End-to-end flow ​

A preview is just three small Kubernetes objects the API creates at runtime, chaining the shared gateway to the run's pod:

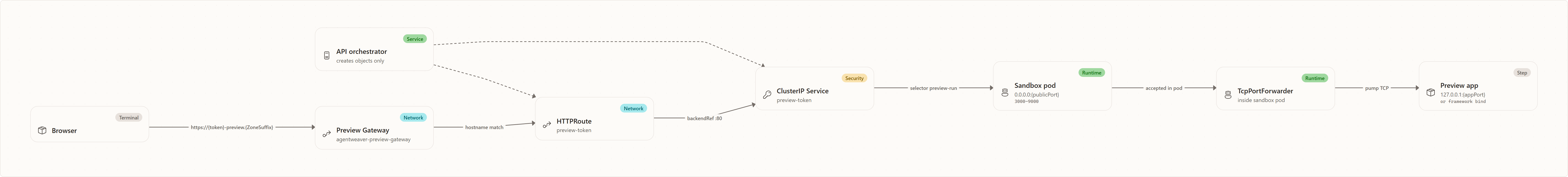

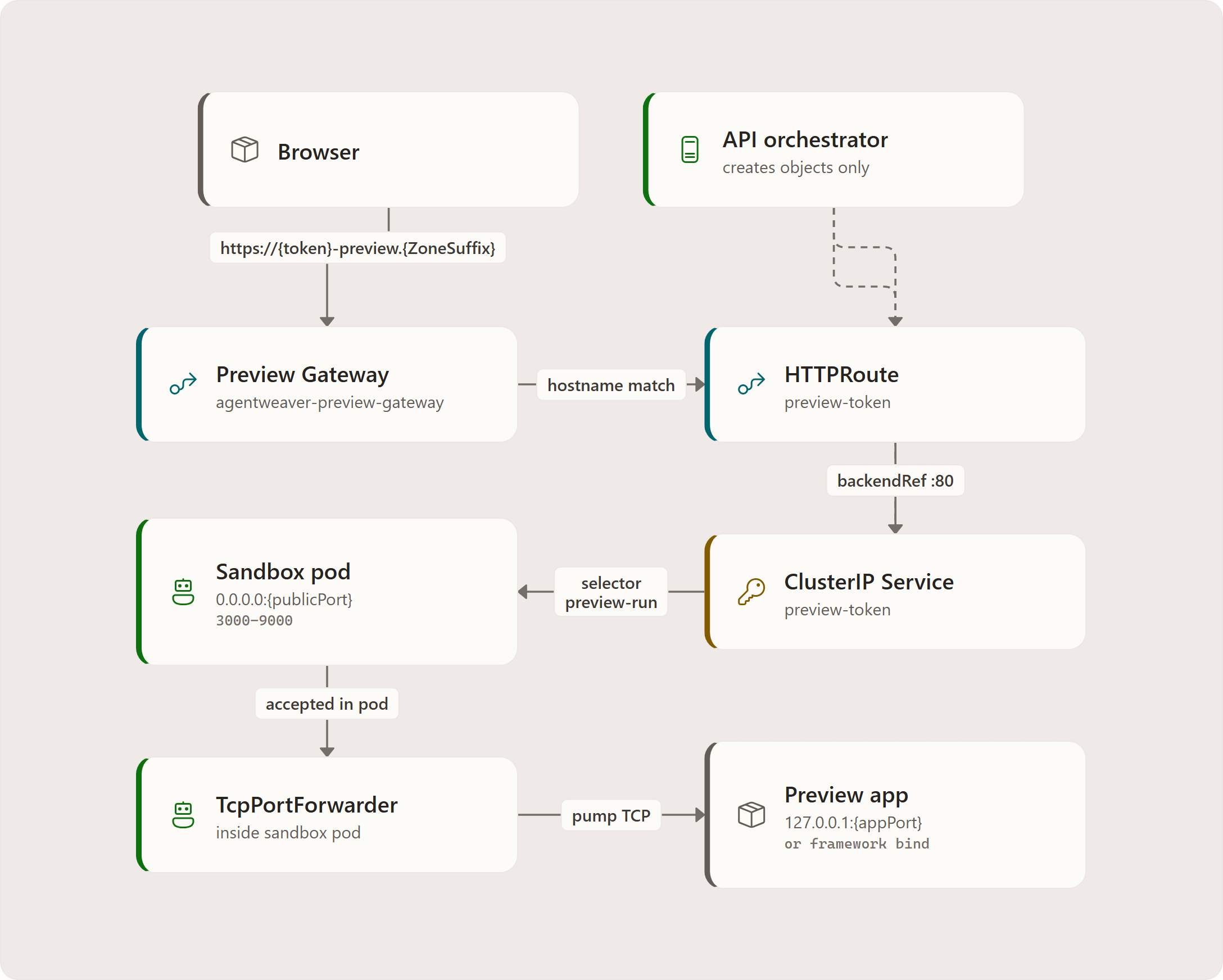

End-to-end flow: Browser, Preview Gateway, API orchestrator, HTTPRoute, ClusterIP Service, Sandbox pod, TcpPortForwarder, Preview app

When the user clicks Preview and picks a port, StartPreviewAsync (SandboxPreviewService.cs:100) does the following:

  1. Resolve the bound pod from cluster state. ResolveBoundPodNameAsync (SandboxPreviewService.cs:387) derives the run's SandboxClaim name (SandboxClaimConventions.DeriveAgentHostClaimName), reads the claim via the in-cluster custom-objects client, and returns the bound pod from status — not from any in-process registry (see Why cluster-state resolution). A missing or not-yet-Bound claim is a deterministic "not ready" → 409.
  2. Mint a capability token. PreviewToken.Generate (PreviewToken.cs:68) returns an unguessable label (three cosmetic words + a 128-bit base32 suffix). The host label is {token}-preview (PreviewToken.cs:92) and the preview URL is https://{token}-preview.{ZoneSuffix}.
  3. Patch the pod with the per-run selector label agentweaver.dev/preview-run (SandboxPreviewService.cs:122) so a Service can target it.
  4. Create a ClusterIP Service named preview-{token} whose selector is the per-run label and whose port 80 forwards to the requested target_port (SandboxPreviewService.cs:134). For operator/manual previews that is the port the user entered; for the platform-owned live-preview path it is the AgentHost forwarder's public port, not necessarily the app's own port.
  5. Create an HTTPRoute named preview-{token} that attaches to the shared preview Gateway, matches the {token}-preview.{ZoneSuffix} hostname, and backends the Service. Idle/max expiry and the run binding are stored in annotations (SandboxPreviewService.cs:168, :438). If the HTTPRoute create fails for any reason other than Conflict, the just-created Service is best-effort deleted before rethrowing, so a retry can't leak ClusterIPs (SandboxPreviewService.cs:184).

The API returns preview_url and a relative keepalive_url; the browser opens the URL (in an iframe with referrerPolicy="no-referrer") and pings keepalive every 60 s. The API does not prove readiness by connecting to podIP:{target_port}. StartPreviewAsync deliberately skips that TCP preflight because the sandbox NetworkPolicy admits preview ports only from the preview Gateway, not from API pods (SandboxPreviewService.cs:134, k8s/base/networkpolicy-sandbox.yaml). End-to-end data-path reachability is therefore exercised at the Gateway hostname (preview_url), while registration readiness comes from the in-pod AgentHost observation described next.

Live-preview forwarder: pod-IP reachability guarantee ​

The Build & Test live-preview path adds one pod-local hop before step 4 above. PreviewRunner runs inside the same sandbox pod as the preview app: it first discovers the app's real bound port using app log hints and the pod's namespace-local kernel socket tables (/proc/net/tcp and /proc/net/tcp6), health-checks that app port, then starts TcpPortForwarder in that pod. Reading /proc/net/tcp6 is required for common Node defaults such as server.listen(port), which bind IPv6-any (::) and may not appear in /proc/net/tcp. The forwarder listens on 0.0.0.0:{publicPort} and pumps TCP to 127.0.0.1:{appPort} (apps/Agentweaver.AgentHost/TcpPortForwarder.cs, apps/Agentweaver.AgentHost/PreviewRunner.cs:315). The public port is chosen by scanning the allowed preview range 3000-9000, matching both SandboxPreviewOptions.AllowedPortMin/Max and k8s/base/networkpolicy-sandbox.yaml, and that public port is the value registered with the Gateway (PreviewRunner.cs:21, SandboxPreviewOptions.cs:56).

This closes the loopback failure mode: previously an app that listened only on 127.0.0.1:3000 could pass the AgentHost health check, but Gateway registration failed because Kubernetes routes to podIP:port and nothing was listening there. The forwarder makes the registered port reachable on the pod IP regardless of whether the app bound loopback-only or all interfaces. ObserveBoundPortAsync verifies reachability inside the pod, through the forwarder public port before PreviewStep asks for approval or registers the Gateway route; if the public port cannot be reached, the outcome is sandbox.preview_failed with reason bound_unreachable, and if no port in 3000-9000 is free, the reason is no_public_port_available (PreviewRunner.cs:321, PreviewStep.cs:152). Port-discovery failures are legible and closed-set: no_listening_port_discovered when the observe timeout expires without a healthy listening port, process_exited:exit={code} when the app exits before readiness, and observe_error for an unexpected observe-endpoint error (PreviewRunner.cs:262, apps/Agentweaver.AgentHost/Program.cs:347). Failed preview paths best-effort stop the supervised process and dispose the forwarder, so preview failures do not leak listeners and never block human review (PreviewStep.cs:154, PreviewRunner.cs:776).

Single-label subdomain (no nested wildcards) ​

The host is {token}-preview.{ZoneSuffix} — a single new DNS label under the zone wildcard. AKS App Routing's managed DefaultDomainCertificate only issues a *.{zone} wildcard and does not support nested wildcards (gateway-preview.yaml:12), so the token and the -preview marker share one leftmost label ({token}-preview) rather than becoming two levels. ZoneSuffix is the managed aksapp.io zone, supplied by the deploy script.

Why cluster-state pod resolution (replica-safety) ​

The API runs at replicas:2 with no session affinity. The in-memory PodNameRegistry is populated only on the replica that launched the sandbox pod, so a preview-start request landing on the other replica would find nothing and fail — a split-brain 409. SandboxClaimConventions (SandboxClaimConventions.cs) reads the bound pod from the SandboxClaim's status (Ready condition True → status.sandbox.name), which every replica sees identically. All other per-preview state lives in HTTPRoute annotations, never in process memory, so keepalive and reaping are equally replica-safe.

Lifecycle and cleanup ​

A preview outlives the run by default (KeepAfterRun=true, SandboxPreviewOptions.cs:46) and is torn down by a background reaper, an explicit stop, or pod disappearance:

  • Sliding idle TTL. The HTTPRoute's preview-expires-at annotation is set to now + IdleTimeoutMinutes (30 min default). The frontend pings keepalive ~every 60 s, and KeepAliveAsync (SandboxPreviewService.cs:206) bumps the annotation. Stop pinging and the preview lapses within the idle window.
  • Hard lifetime cap. preview-max-until = now + MaxLifetimeHours (8 h default). A preview is always reaped after this, regardless of keepalive.
  • Pod-gone. If the backing pod no longer exists (run ended, claim released), the reaper reaps the preview as an orphan.
  • The reaper. SandboxPreviewReaperService (SandboxPreviewReaperService.cs) sweeps every ~60 s, listing preview HTTPRoutes and feeding each route's two timestamps plus a live pod-exists flag into the pure decision function PreviewReaper.Decide (PreviewReaper.cs:56) → Alive / ExpiredIdle / ExpiredMax / Orphan. Non-alive previews are deleted (HTTPRoute then Service). ListForRunAsync uses the same isolation-safe liveness proxy — a control-plane pod lookup by agentweaver.dev/preview-run label — instead of a forbidden API-pod TCP probe (SandboxPreviewService.cs:399, :768).
  • Orphan-Service sweep. The same pass also deletes any preview-* Service that has no matching HTTPRoute (e.g. the process died between Service-create and HTTPRoute-create), after a 2-minute grace, so a retry loop can never accumulate leaked ClusterIPs (SandboxPreviewService.cs:303).
  • Explicit stop. DELETE …/port-forward/{token} calls StopPreviewAsync (SandboxPreviewService.cs:245), which deletes the HTTPRoute then the Service (both idempotent / 404-tolerant).

Because every decision input is read from cluster state, both API replicas reconcile identically — there is no leader and no in-memory expiry timer.

Run ↔ token binding ​

Keepalive and stop never trust the token alone. VerifyTokenForRunAsync (SandboxPreviewService.cs:406) reads the HTTPRoute named for the token and confirms its preview-run annotation matches the runId in the URL (PreviewReaper.RunMatches, PreviewReaper.cs:143). A mismatch returns 404, so one run cannot keep alive or delete another run's preview by guessing a foreign token. The check reads cluster annotations, so it is replica-safe.

Security and containment notes ​

  • Capability URL. The URL is unauthenticated — possession grants access. All security entropy is the 128-bit CSPRNG suffix (PreviewToken.cs:35); the cosmetic words add none. Reserved labels (agentweaver, mcp, api, frontend) are denied and regenerated (PreviewToken.cs:25).
  • NetworkPolicy. sandbox-allow-preview-ingress (networkpolicy-sandbox.yaml) admits TCP 3000-9000 from a single from peer with a podSelector matching the preview gateway pods (gateway.networking.k8s.io/gateway-name=agentweaver-preview-gateway). With no namespaceSelector, the peer matches those pods in the policy's own namespace (agentweaver) — exactly where the approuting-istio preview gateway data-plane runs — so only the preview gateway can reach the sandbox preview ports. API pods are intentionally not in this data path; an API-side podIP:{target_port} probe would be denied by policy. Out-of-range ports are rejected by the endpoint, so we never provision a preview the policy would black-hole.
  • Capability token in the URL. The 128-bit token rides in the preview URL and therefore the Host header (and keepalive path). This is expected and inherent to an unguessable capability URL: app code only ever logs a non-reversible fingerprint (SHA-256[0..4]+token), never the raw token, and the URL is unguessable and short-lived (idle + hard-cap reaper) with no-referrer on preview pages.
  • RBAC. The API ServiceAccount can read sandboxclaims and create/delete the per-preview services and httproutes (rbac-api.yaml).

Agent capability awareness ​

When the feature is enabled, RunOrchestrator.ComposeCapabilities (RunOrchestrator.cs:590) appends a short Browser Preview note (RunOrchestrator.cs:64) to worker/child system prompts, telling the agent to start and verify a server, then call start_preview(port=PORT) with the actual port it observed. The prompt no longer tells the model to pick, hardcode, force, or print a specific port; the same no-hardcoded-port guidance is present in AgentBasePrompt, the project agent template, and CharterCompiler (AgentBasePrompt.cs:48, apps/Agentweaver.Api/Projects/Templates/agentweaver.agent.md, CharterCompiler.cs:74).

The note is additionally gated by RunOrchestrator.RunSupportsPreview: the orchestrating Coordinator run (a run with no parent whose agent is Coordinator) never launches a server itself — it only dispatches child worker runs — so it is not given the "you MUST launch, test, and preview a server" mandate. Child worker runs and ordinary single-agent runs still receive it when the feature is enabled.

Build & Test gets a platform-owned preview step instead of asking the model to pick a port. The command resolver deliberately avoids the old PORT=3000 / --port injection: known stacks may receive host-binding hints, but the app keeps its framework default or honors process.env.PORT if it already does so (PreviewCommandResolver.cs:25). AgentHost then observes the actual app port, fronts it with the pod-local TcpPortForwarder, and PreviewStep registers the forwarder's public port with the Gateway (PreviewRunner.cs:315, PreviewStep.cs:166). During coordinator assembly in pod-per-run mode, the step runs inside a dedicated AgentHost pod bound to the coordinator run id and configured with the detached integration worktree as its working directory (CollectiveAssemblyPipeline.cs:155, KubernetesSandboxExecutor.cs:423). The preview service therefore creates the HTTPRoute to that AgentHost pod, so the review URL reaches the server running from the assembled tree. The preview service supports this by resolving both run claim conventions: the AgentHost agent-{runId} claim and the retained command-sandbox run-{runId} claim (SandboxClaimConventions.cs:28, SandboxPreviewService.cs:432).

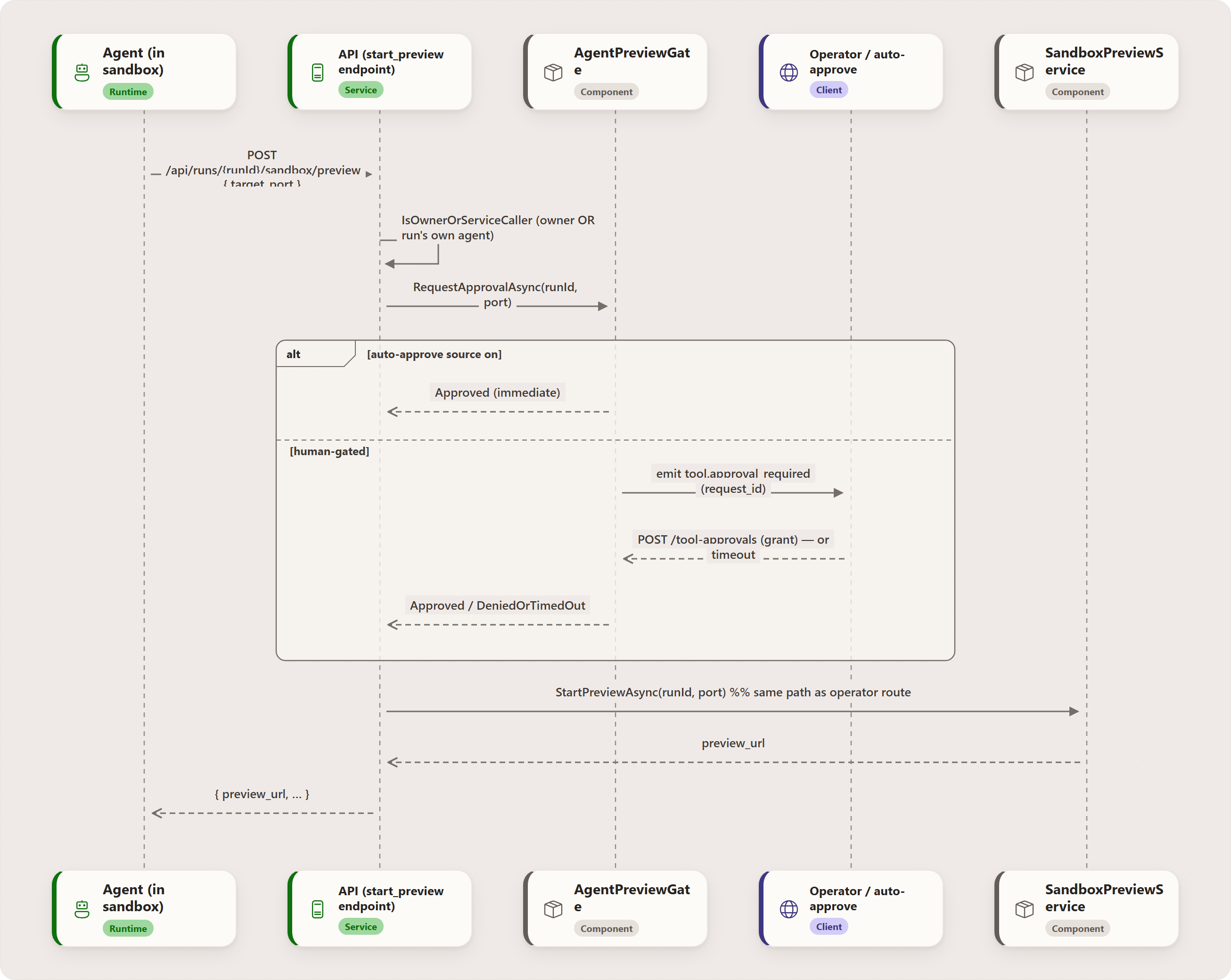

Agent-initiated preview (start_preview) ​

A running agent can also expose its server autonomously, mid-workflow, without a human picking a port in the UI — via the start_preview agent tool. The tool is produced by AgentweaverApiTools.Build and is run-scoped: it is only offered when a runId is captured in the tool closure (AgentweaverApiTools.cs:245), and the model supplies only the port. Because the runId is server-bound, the agent physically cannot target another run.

  1. The tool POSTs { target_port } to POST /api/runs/{runId}/sandbox/preview (SandboxEndpoints.cs:57) and returns the response preview_url back to the agent.
  2. Authorization accepts the run's owner or the run's own agent callback. The agent callback authenticates with the shared service key, which resolves to the hardcoded internal-service identity (ProjectAuthorization.InternalServiceUser = "agentweaver-internal") or, if configured, the Auth:User identity — not the human owner — so the human-oriented IsOwner check would block it; IsOwnerOrServiceCaller (EndpointHelpers.cs:40) delegates to ProjectAuthorization.IsInternalServiceCaller to admit that service identity without weakening security — the server-bound runId means a service caller can only ever act on the run its agent is executing. (Issue #529: this previously checked only the configured Auth:User value, which no deployment sets, so start_preview 403'd for every agent callback in production.)
  3. The HITL gate AgentPreviewGate.RequestApprovalAsync (AgentPreviewGate.cs:85) is the human-in-the-loop seam. It reuses the same IToolApprovalGate primitive as web_fetch: it emits a tool.approval_required card (AgentPreviewGate.cs:103) and suspends until an operator grants via POST /api/runs/{runId}/tool-approvals or the 5-minute window times out.
  4. Auto-approve short-circuits the wait when any of these is on (AgentPreviewGate.cs:75): the global Sandbox:Preview:AutoApprove config / env SANDBOX_PREVIEW_AUTO_APPROVE (AgentPreviewGate.cs:125), the per-run AutoApproveTools operator option, or an existing scoped allow policy. Production stays human-gated (default false); the flag exists so an automated demo can run unattended.
  5. On approval the endpoint runs the same StartPreviewForRunAsync path (SandboxEndpoints.cs:217) as the operator route — Gateway-direct preview when enabled, kubectl fallback otherwise — and returns preview_url.

Design note. The agent tool is a synchronous HTTP callback that must return a URL, so it uses the per-tool IToolApprovalGate (which persists context/decisions and returns a bool) rather than the MAF RequestPort workflow primitive — RequestPort suspends/checkpoints the whole workflow and resumes via a separately-posted decision, which cannot satisfy a synchronous tool callback.

Second surface: the MCP start_preview tool ​

The same capability is also exposed as an MCP tool on the agentweaver-mcp server, so an external MCP client (e.g. GitHub Copilot connected to the Agentweaver MCP server) can expose a run's preview without being the in-sandbox agent. Because an external caller is not bound to a single run, the MCP tool takes the run id as an explicit parameter: start_preview(run_id: string, port: int) (RunTools.cs, auto-discovered by WithToolsFromAssembly). It POSTs { target_port } to the same POST /api/runs/{runId}/sandbox/preview endpoint, so it reuses the same AgentPreviewGate and StartPreviewForRunAsync path — no port-forward or approval logic is duplicated. Authorization is enforced by the MCP server forwarding the caller's bearer token to the API (AgentweaverApiClient), so the backend sees the real human identity and the owner check (IsOwnerOrServiceCaller) applies unchanged. The auto-approve flag still governs unattended runs; production stays human-gated.

The MCP surface lives in the separate agentweaver-mcp deployable image, so changes to start_preview require rebuilding both agentweaver-api and agentweaver-mcp.

Source ​

ConcernFile
Preview provisioning, reap, orphan sweep, run↔token bindingapps/Agentweaver.Api/Sandbox/Preview/SandboxPreviewService.cs
Pod-local live-preview TCP forwarderapps/Agentweaver.AgentHost/TcpPortForwarder.cs
Supervised live-preview process, /proc/net/tcp{,6} port discovery, and forwarder observationapps/Agentweaver.AgentHost/PreviewRunner.cs
Deterministic live-preview step and failure reasonsapps/Agentweaver.Api/Coordinator/Preview/PreviewStep.cs
Config defaults & port-range checkapps/Agentweaver.Api/Sandbox/Preview/SandboxPreviewOptions.cs
Capability token (128-bit, reserved deny, DNS-1123)apps/Agentweaver.Api/Sandbox/Preview/PreviewToken.cs
Reaper decision logic & label/Service-name helpersapps/Agentweaver.Api/Sandbox/Preview/PreviewReaper.cs
Background ~60 s reaper sweepapps/Agentweaver.Api/Sandbox/Preview/SandboxPreviewReaperService.cs
SandboxClaim CRD coordinates + bound-pod parsingapps/Agentweaver.Api/Sandbox/SandboxClaimConventions.cs
HTTP endpoints (start / agent-start / keepalive / stop / list)apps/Agentweaver.Api/Endpoints/SandboxEndpoints.cs
Agent-initiated approval gate (HITL + auto-approve)apps/Agentweaver.Api/Sandbox/Preview/AgentPreviewGate.cs
start_preview agent tool (run-scoped HTTP callback)packages/Agentweaver.AgentRuntime/AgentweaverApiTools.cs
start_preview MCP tool (run_id + port, same endpoint)apps/Agentweaver.Mcp/Tools/RunTools.cs
Owner-or-agent-callback authorization helperapps/Agentweaver.Api/Endpoints/EndpointHelpers.cs
HITL approval primitive (shared with web_fetch)apps/Agentweaver.Api/Runs/DurableToolApprovalGate.cs
Agent capability note injectionapps/Agentweaver.Api/Runs/RunOrchestrator.cs
Build & Test preview activation promptpackages/Agentweaver.AgentRuntime/Workflow/BuildTestTurnExecutor.cs
Shared preview Gatewayk8s/base/gateway-preview.yaml
Sandbox NetworkPolicy (preview ingress range)k8s/base/networkpolicy-sandbox.yaml
API RBAC (claims read, service/route write)k8s/base/rbac-api.yaml
Preview button, iframe, keepalive pingapps/web/src/pages/CoordinatorRunPage.tsx
API client (startPortForward / pingKeepalive)apps/web/src/api/client.ts
PortForwardSessionDto (DTO fields)apps/web/src/api/types.ts
