Resilient assembly-review loop — Deep Dive

Shipped in v0.9.17-rc1, the resilient assembly-review loop eliminates the assembly_blocked dead-end that previously stranded coordinator runs when the autonomous steering budget was exhausted. It also makes every phase of the review cycle more robust: revisions carry full accumulated context, a rejected author's work is handed to a different agent (not discarded), and child-turn commit faults now surface as typed, recoverable events instead of silent stream-drain failures.

For config keys and status codes see the reference. For the operator-facing view of what changed see the user guide.

The problem: why runs used to dead-end

The assembly gate runs an autonomous steering loop to converge work toward approval. Before v0.9.17-rc1, when that loop exhausted its budget the coordinator wrote a terminal WorkPlanStatus.AssemblyBlocked and emitted CoordinatorAssemblyBlocked. Because assembly_blocked with reason steering_budget_exhausted is not eligibility-recoverable, the reconciler could not restart the run — it parked indefinitely waiting for an external signal that the platform never sent. The assembled work was ready; a human could not reach it (apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs:1735–1830 before this change).

Two coupled sub-problems drove that outcome:

  1. Budget-exhaustion wrote terminal instead of escalating. The steering decider's own rationale described the intent as "escalate to human review", but the code path wrote AssemblyBlocked.
  2. In-place revision fell back to context-dropping re-dispatch 2/3 of the time. A stale .git/index.lock left by a prior crashed process caused the post-turn commit to fail; the three retry attempts all hit the same lock because nothing cleared it between attempts → rethrow → the child run failed → a fresh-pod dispatch_fresh started with only the latest round's feedback and a blank worktree (all prior context lost).

Each lost context round burned steering budget faster, hitting the terminal state sooner. The two fixes are complementary: Fix-A raises the in-place convergence rate; Fix-B guarantees the tail still reaches a human.

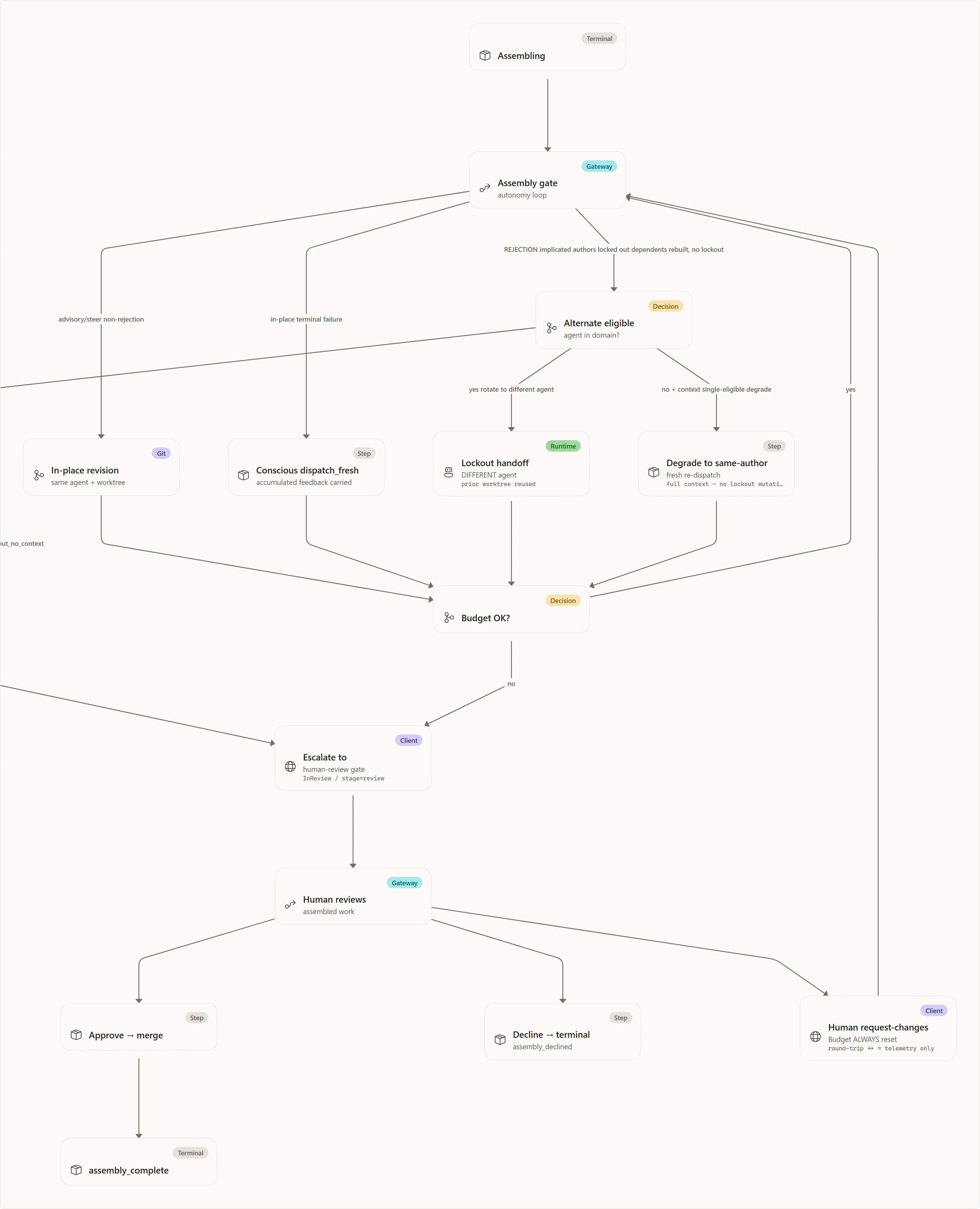

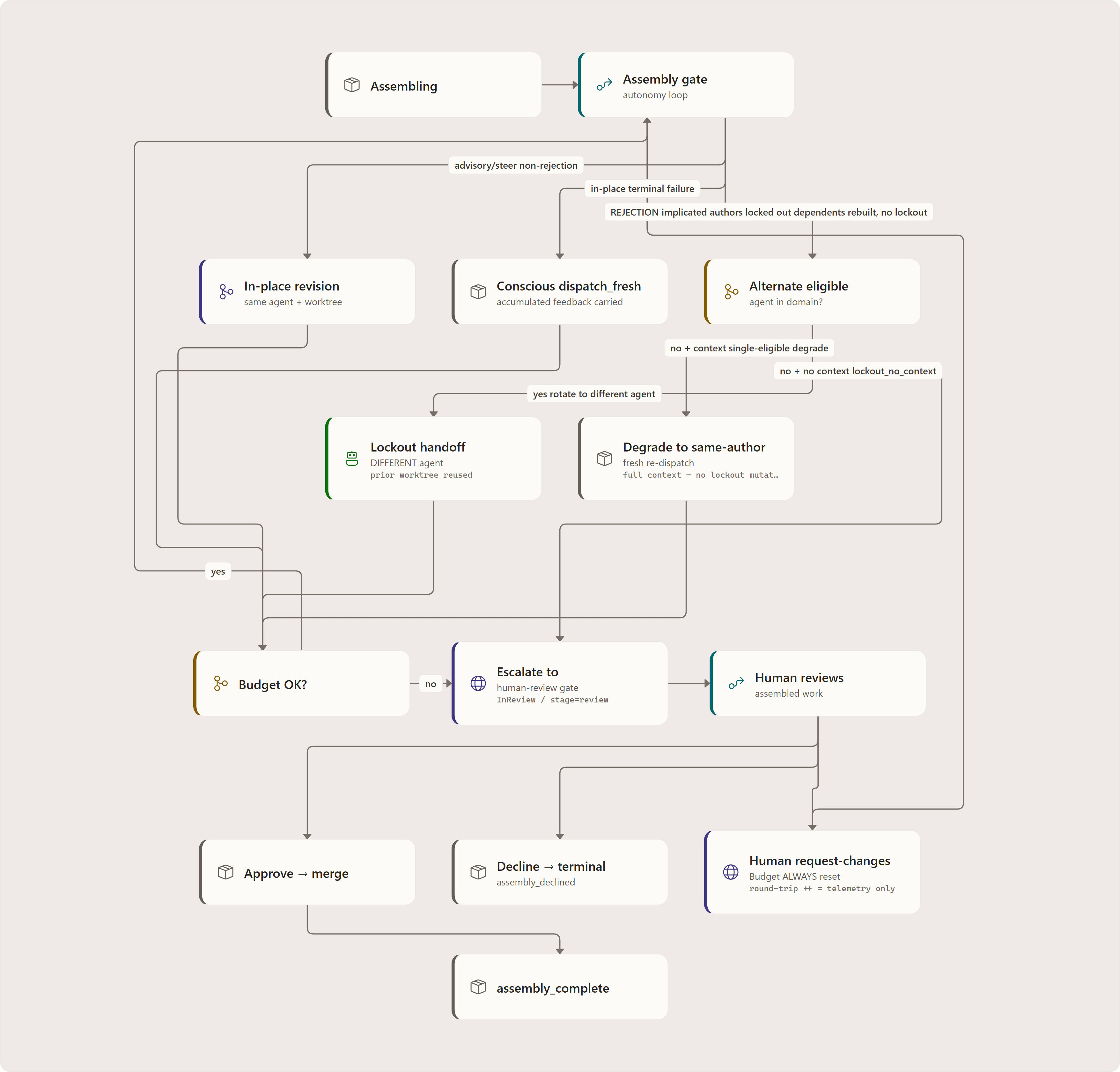

End-to-end resilient assembly flow

End-to-end resilient assembly flow: Assembling, Assembly gate, In-place revision, Conscious dispatch_fresh, Lockout handoff, Alternate eligible, Degrade to same-author, Budget OK?, Escalate to, Human reviews, Approve → merge, Decline → terminal, …

Fix-B: budget-exhausted escalation (the headline change)

When CoordinatorSteeringDecider.DecideAsync returns Proceed (budget exhausted), the coordinator now calls EscalateToHumanReviewAsync, which mirrors the existing human-review gate block verbatim:

  1. Guarded CAS transitionCoordinatorAssemblyStore.TryEscalateToInReviewAsync does an ExecuteUpdateAsync WHERE Status ∈ {AssemblySteering, Assembling} → InReview, stage "review". A concurrent replica that already set InReview no-ops (no double-escalation).
  2. Durable review-requestUpsertReviewRequestAsync persists the escalation with reason steering_budget_exhausted and all accumulated gate feedback (bounded to 32 directives × 2000 characters each, built by BuildAccumulatedGateFeedbackAsync) before settling the directive. A crash after the write recovers via the existing planStatus == InReview → ResumeInReviewAsync path at CoordinatorAssemblyService.cs:532; no new recovery code is needed.
  3. Settle the directiveMarkDirectiveAppliedAsync is called only after the review request is durably open. The human then owns the loop; the directive is never blocked on how long the human takes.
  4. Live-awaitAwaitReviewDecisionAsyncApplyReviewDecisionAsync. Approve → merge → complete. Decline → assembly_declined terminal. Request-changes → unconditional budget reset + fresh steering loop (below).

The emit sequence:

  • coordinator.steering_decision { decision="proceed", escalation="human_review" }
  • coordinator.assembly_review_requested { gateKind="human-review", reason="steering_budget_exhausted", treeHash, integrationBranch, includedSubtaskIds }

This is the same event the human-review gate emits on the normal happy path, so the UI opens the same review card with the exhaustion reason visible.

Why not make AssemblyBlocked recoverable? AssemblyBlocked semantics = "the plan can't proceed, wait for external input." InReview is the state whose full machinery (gate arm, deferred-decision poll, crash recovery) is built for "a human must decide now." Reusing it is the root-cause fix; patching AssemblyBlocked recovery would be symptom-plastering.

Human request-changes always resets the steering budget (no round-trip cap)

When the human submits request-changes after an escalation, RouteAssemblyGateThroughSteeringAsync (source human-review) unconditionally resets the autonomous steering budget via CoordinatorSteeringDecider.ResetSteeringBudgetAsync — there is no round-trip cap. The reset atomically zeros the plan's SteeringIterations and the re-dispatched subtasks' RecoveryAttempts (guarded CAS, single transaction) so autonomy can converge again under the human's specific feedback. Without the reset, the human's very first steer would immediately re-hit Proceed (a livelock).

Why the cap was dropped (DefaultMaxHumanReviewRoundTrips removed). A human request-changes is a supervised, deliberate action. The old cap (default 3) silently stopped honoring explicit human requests once the count was exceeded: the run re-parked at review and ignored the human's guidance — a dead-end. Each granted round is still bounded by the autonomous budget (DefaultMaxPlanSteeringIterations), which is exactly what bounds the unsupervised loop; only the human-round-trip ceiling was removed.

WorkPlan.HumanReviewRoundTrips is still incremented (IncrementHumanReviewRoundTripAsync) and surfaced on the coordinator.steering event (humanReviewRoundTrip), but purely as a telemetry/observability signal — it no longer gates anything.

Loop-prevention invariant: autonomous gates (rubberduck/rai/build-test/agent) can never call ResetSteeringBudgetAsync on themselves. Only source == human-review directives trigger the reset.

Operator steering at the review gate (#226)

While a run is parked at the assembly human-review gate (run.status == awaiting_review, coordinator_steerable == true), an operator can talk to the coordinator with POST /api/runs/{id}/steer. Before #226, a redirect/amend sent there returned 201 with status: queued but nothing drained it — the parked assembly loop polls the review gate, not the steering queue, so the directive was silently dropped. That contradicted the documented coordinator_steerable promise that operators can steer while the gate is open (Dtos.cs:174-176).

#226 intercepts these verbs in CoordinatorSteeringService.SteerAsync before the normal resume/queue fork (TryDeliverAtAssemblyReviewGateAsync), and delivers the human's intent through the same mechanism POST /assembly/review {request_changes} uses:

  • redirect / amend → translated into an AssemblyReviewDecision { RequestChanges = true, Feedback = instruction } and delivered via CoordinatorAssemblyReviewPersistence.DeliverDecisionAsync. The parked loop wakes and owns RouteAssemblyGateThroughSteeringAsync as the single writer, reusing the #223 file-scoped implication + transitive dependents and the cap-drop unconditional steering-budget reset. amend maps to the same request_changes; the decider still prefers in-place when resumable (it is not force-pinned to in-place). The directive settles relayed (delivered into the live gate on this pod) — never queued.
  • Scoping — a bare redirect/amend carries no target files, so it defaults to the broad all-contributors fallback (identical to /assembly/review with no target_filesScopeFallbackNoField, emitting coordinator.assembly_implicated_scope_fallback). Operators can optionally narrow by setting targetChildRunId: ResolveTargetFilesForChildAsync resolves that subtask's committed files and feeds them through the same AssemblyPlanning.ScopeImplicatedSubtasks reverse-map, scoping to that subtask ∪ any co-touching subtasks. Prose is never parsed for files or subtask ids.
  • send at the gate carries no change request, so it is delivered as an advisory note on the coordinator timeline (DeliverAdvisorySendAtReviewGateAsync): the gate stays armed, no budget reset, no decision; the directive settles applied — never left queued forever.
  • Cross-replica — if the review gate is armed on a different API replica, the decision is durably persisted (SteeringStatus.Deferred) for the owning pod's poller to drain; the directive settles deferred and the /steer endpoint returns HTTP 202 (mirroring /assembly/review's deferred 202) instead of 201.

B3 single-writer invariant: the HTTP thread only delivers the decision; it never runs RouteAssemblyGateThroughSteeringAsync itself — the parked assembly loop remains the single writer of the subtask/work-plan rows.

Fix-A: reliable child-turn terminal emission

The child run graph previously had no failure→terminal edge. A post-turn commit fault rethrew → the watcher recorded a failed step but did not terminalize → stream drained → watch_stream_completed_without_terminal_event fallback → the child fell into conscious dispatch_fresh (context dropped). Fix-A has two layers:

Layer 1 — stale lock recovery (FIX 1, the rate driver). AgentTurnExecutor.CommitChangesWithRetryAsync now calls IWorktreeOperations.TryClearStaleIndexLock(worktreePath) between retry attempts. WorktreeManager.ClearStaleIndexLock resolves the actual gitdir (handles linked-worktree .git pointer files), checks the index.lock mtime against Coordinator:StaleLockThresholdSeconds (default 15 s), verifies no live git process owns it, and only then deletes the file. The clear is best-effort: on uncertainty it does NOT delete → the persistent fault surfaces as a typed failure terminal (Layer 2). This converts lock-contention commit faults from context-dropping dispatch_fresh failures to clean assemble_ready outcomes on the same worktree.

Layer 2 — graph-native failure terminal (FIX 2, the invariant). AgentTurnOutput now carries nullable TerminalFailureReason and TerminalFailureEvidence. When all retry attempts are exhausted (persistent fault), AgentTurnExecutor returns a typed failure output instead of rethrowing. The child graph (RunWorkflowFactory.cs) routes via two conditional edges:

  • agent → child-assemble-ready when TerminalFailureReason is null (success, existing path).
  • agent → child-turn-failed (new terminal node) when TerminalFailureReason is not null.

RunWatchLoopService.HandleTerminalOutputAsync maps ChildTurnFailedOutput → child run Failed (visible, structured) → subtask Failed → coordinator's failedTargets → conscious dispatch_fresh with accumulated context. An unhandled in-turn throw still hits the watcher ExecutorFailedEvent backstop (defense-in-depth).

Invariant: for every child/revision run, after agent.turn.end the workflow yields exactly one terminal WorkflowOutputEvent. watch_stream_completed_without_terminal_event is no longer reachable via the handled commit-fault path.

Context-preserving revisions and AccumulatedReviewFeedback

Before this change, the dispatch_fresh fallback overwrote Subtask.RecoveryGuidance with only the latest round's feedback — prior feedback was silently discarded (amnesiac re-dispatch). Now both in-place and fresh-dispatch revision paths use BuildAccumulatedGateFeedbackAsync, which reads all persisted SteeringDirective rows (one per source/round, crash-safe by construction) and assembles a structured feedback bundle keyed by gate source and round number. This is the AccumulatedReviewFeedback contract shared between CoordinatorAssemblyService and RunOrchestrator.

The fresh-dispatch path (ConsciousDispatchFreshFallbackAsync) also carries a pointer to the prior child's integration-branch diff, so the new agent builds on prior committed work instead of starting blank.

Scoped re-dispatch: implicated subtasks vs. transitive dependents (#223)

Before #223, an assembly-gate request-changes (from any of rubberduck / rai / build-test / human) reset — and locked out — every subtask that had touched a file: the coordinator used the raw touchedFilesBySubtask.Keys. On a non-trivial plan this locked out every author at once, exhausting the roster and deadlocking the whole run (an all-agent lockout). #223 replaces that blast radius with a structured, reviewer-scoped selection.

The reviewer emits a structured hint. A Rubberduck or Build & Test reviewer returning a REVISE verdict may also write a dedicated TARGET_FILES: directive line listing the repo-relative paths it actually implicated. ReviewTargetFiles.Parse (called in RubberduckTurnExecutor / BuildTestTurnExecutor) parses that line into AssemblyReviewDecision.TargetFiles. This is machine-readable structured output — a line the reviewer is explicitly instructed to write — never natural-language prose scraping. The directive line is stripped from the human-facing feedback (ReviewTargetFiles.IsDirectiveLine).

The coordinator scopes to the implicated subtasks. AssemblyPlanning.ScopeImplicatedSubtasks reverse-maps the TARGET_FILES hint onto only the assembly-eligible subtasks that actually committed one of those files — a prose/PRD/UX subtask that committed only unnamed files is excluded. Then AssemblyPlanning.TransitiveDependents sweeps every subtask that depends, directly or transitively, on an implicated subtask (the (SubtaskId, DependsOnSubtaskId) edges walked in reverse).

Two distinct sets, used differently:

SetMembersAuthor lockout?Why
Implicated (lockout set)reviewer-named subtasks only (ScopeImplicatedSubtasks)Yesonly these authors produced a rejected artifact
Re-dispatch setimplicated ∪ transitive dependents (implicated.Concat(TransitiveDependents))dependents: Noa dependent did nothing wrong but must rebuild against the revised contract

Locking out a blameless dependent's author would re-create the very roster-exhaustion deadlock #223 exists to prevent, so dependents are re-dispatched (RedispatchDependentsAsync) without lockout — and only if they already reached assemble_ready/completed (a still-running dependent needs no reset, keeping crash re-drives idempotent).

Fail-safe fallback (observable). The structured hint is optional. When it is missing, or present but matching nothing, ScopeImplicatedSubtasks returns the whole contributor set (a request-changes must always reset something) and sets an out-param so the reversion is visible rather than silent. The coordinator then emits coordinator.assembly_implicated_scope_fallback (EmitImplicatedScopeFallback) with the reason:

  • no_target_files_field — the reviewer emitted no TARGET_FILES: directive at all.
  • target_files_matched_nothing — a directive was present but reverse-mapped to no subtask.

Both branches fall back to the prior broad touched-files behavior — fail-safe, just observable.

Both the live steering path (RouteAssemblyGateThroughSteeringAsync) and the conscious fresh-dispatch executor (RequestChangesAsync) use the same ScopeImplicatedSubtasks + TransitiveDependents helpers, and the persisted steering directive carries the implicated set so a crash-recovery re-drive recomputes an identical re-dispatch closure from the same plan edges.

Strict reviewer-rejection lockout

A rejection (any gate source with severity request-changes) triggers the lockout protocol, scoped to the implicated subtasks only (#223 — the reviewer-named set, never every file-toucher):

  1. For each implicated subtask, the current author is atomically appended to Subtask.LockedOutAgents (a dormant column that existed in the schema since the initial migration but was never read/written; no new migration needed).
  2. The coordinator selects a DIFFERENT eligible agent — roster \ LockedOutAgents via CoordinatorOrchestratorExecutor.ResolveRoster + SelectRosterMember.
  3. The revision is dispatched via RunOrchestrator.StartChildRevisionHandoffAsync: the new agent reuses the prior child's worktree and branch (the work is preserved; only authorship rotates) and receives the full accumulated feedback bundle injected via the task path. A new SDK session is minted — the rotated agent never inherits the locked-out author's session identity.
  4. The re-dispatched child honors the FIX 2 terminal-emission invariant identically (same conditional edge routing; same one-terminal guarantee).

The implicated subtasks' transitive dependents are additionally re-dispatched to rebuild against the revised contract, but their authors are never locked out (#223).

Single-eligible-agent deadlock: degrade vs. escalate (#233)

ExecuteLockoutRotationAsync cannot always rotate. A domain whose blueprint has exactly one eligible agent has no other author to hand the revision to once the rejected author is appended to LockedOutAgents: RotationSelector.SelectRotationAuthor returns null and the sole author is recorded in the deadlock roster. Before #233 this dead-ended autopilot — the first rejection in a single-eligible domain escalated straight to human review (lockout_deadlock) even though the revision was otherwise recoverable, exactly the systemic wedge #233 reports (live staging incident, run 825ea158).

#233 splits the deadlock branch by whether there is accumulated context to carry — hasContext = a non-empty latest feedback or ≥1 prior review round (BuildPriorReviewRoundsAsync):

Deadlock causeRationaleWhat happens
No alternate eligible agent and context to carry (single-eligible domain — the norm for a one-agent blueprint domain)single_eligible_agentDegrade the strict cross-agent lockout to a same-author fresh re-dispatch with full context via ConsciousDispatchFreshFallbackAsync. The sole author revises in a fresh pod carrying the accumulated feedback + prior worktree branch; AssignedAgent is kept, LockedOutAgents is not mutated (locking the only author would just re-create the deadlock); dependents are re-dispatched without lockout. Emits coordinator.steering_decision { decision="dispatch_fresh", rationale="single_eligible_agent…" }.
No context to carry (!hasContext — the initial deadlock value)lockout_no_contextEscalate to the Fix-B human-review gate. Degrading here would carry nothing and reproduce the amnesia loop the #220/#223 context-carry prevents. Emits coordinator.steering_decision { decision="proceed", disposition="rejection", rationale="lockout_no_context…" }.

The degrade is not an unbounded loop. ResetSubtasksToPendingAsync does not reset Subtask.RecoveryAttempts, so the same-author revision keeps consuming the per-subtask recovery budget (CoordinatorSteeringService.MaxRecoveryAttempts = 3). Once that budget is exhausted, CoordinatorSteeringDecider.DecideAsync (via SteeringPolicy.Decide, over-budget → Proceed) flips the directive and this gate escalates to human review — never a terminal wedge, never a blind rotation to an unrelated agent. A mixed directive (some targets rotatable, some single-eligible deadlocked) degrades all its targets uniformly to a same-author fresh re-dispatch (the rotatable ones simply keep their current author), so no target is silently dropped.

This makes the pod-per-run single-eligible path consistent with the already-accepted warm-pool path: when ReleasePodOnSuspend=false the target's pod stays alive and resumable, so the decider already picks InPlaceSteer (same author, context preserved, no lockout — PodPerRunResumabilityProbe). A single-role rejection now self-heals with a same-author revision instead of parking at a human on round one.

Advisory / steer feedback (not a rejection) keeps the same agent in place via the normal in_place_steer path (StartRevisionAsync). The lockout disposition is derived from (source, severity): request-changes from a reviewer ⇒ rejection; everything else ⇒ guidance.

RAI verdict contract: a machine-readable sentinel, not prose (#231)

The RAI gate that fronts the software assembly path has the same "structured output, not heuristics" requirement as the #223 TARGET_FILES: hint — and for the same reason. Before #231, the RAI verdict was recovered by scanning every line of the reviewer's response and treating any line that started with a verdict token as a vote, then taking the max severity. That heuristic could not tell a decision from prose: a legend echo (- RED — critical violation that must block shipping…) or a section header (RED: none) counted as a RED vote, so a perfectly benign review false-escalated to RED and dead-ended the run at a blocking content-safety failure.

The fix replaces the prose scan with a single machine-readable sentinel:

  • Prompt contract. The RAI reviewer prompt now requires the last line of its response to be exactly `VERDICT: <GREEN|YELLOW|REVISE|RED>` and states plainly that only that line is read as the decision — the human-readable explanation (including the verdict legend) is never parsed for the verdict.
  • Sentinel-only parse. TryParseVerdict consults TryParseSentinelVerdict first: it matches only lines that begin with the VERDICT: keyword (after stripping bullet/** markers). When multiple sentinel lines are present the last one wins; if a single sentinel line names more than one token the most-severe wins. Because the sentinel is authoritative, prose is not scanned at all — so a legend echo or a RED: none header can no longer produce any verdict, and prose can never yield a passing verdict.
  • Emoji fallback only. The single non-sentinel fallback is an unambiguous verdict emoji (TryParseEmojiVerdict): 🔴 escalates to a blocking RED, 🟡 is an advisory (non-blocking) YELLOW. Nothing else in the prose is consulted.
  • One bounded re-ask, then fail safe to RED. If neither a sentinel nor an emoji is found, HandleAsync issues exactly one bounded re-ask (ReAskPrompt) demanding only the sentinel line. If the verdict is still unparseable, the executor fails safe to a blocking RED (reason unparseable_after_reask, emitted as run.rai_error) rather than silently passing a YELLOW/GREEN — a rare, visible, recoverable false-block is strictly preferable to shipping a real RED (credentials, PII, harmful content).
  • A genuine RED still blocks. A RED from the sentinel or 🔴 sets ContentSafetyFlagged on the turn output, which the collective-assembly pipeline (RunRaiAsync) surfaces as SafetyFlagged, routing the coordinator into RaiBlockAsync — the safety block is unchanged; only the parsing is now deterministic.
  • The surfaced rationale/feedback (ExtractRationale / ExtractFeedback) deliberately skip the sentinel line, so the human sees the explanation instead of a degenerate VERDICT: REVISE.

Source

ConcernFile
Budget-exhausted escalation, EscalateToHumanReviewAsync, ParkAtHumanReviewAsyncapps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs
BuildAccumulatedGateFeedbackAsync, human round-trip wiring, IsEscalationDurablyOpenAsyncapps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs
#223 scoped re-dispatch: RequestChangesAsync, RouteAssemblyGateThroughSteeringAsync, RedispatchDependentsAsync, EmitImplicatedScopeFallbackapps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs
#233 lockout rotation + single-eligible degrade-vs-escalate split: ExecuteLockoutRotationAsync (if (deadlocked)if (hasContext) degrade branch at :2218; lockout_no_context escalation at :2243)apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs:2106
#233 same-author fresh re-dispatch executor ConsciousDispatchFreshFallbackAsync (rationale single_eligible_agent)apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs:2883
#233 recovery-budget bound: CoordinatorSteeringDecider.DecideAsyncSteeringPolicy.Decide (over-budget → Proceed); MaxRecoveryAttempts = 3apps/Agentweaver.Api/Coordinator/CoordinatorSteeringDecider.cs:119, :38; apps/Agentweaver.Api/Coordinator/CoordinatorSteeringService.cs:1049
#226 steer-at-review-gate delivery: SteerAsync, TryDeliverAtAssemblyReviewGateAsync, DeliverAdvisorySendAtReviewGateAsync, ResolveTargetFilesForChildAsyncapps/Agentweaver.Api/Coordinator/CoordinatorSteeringService.cs
#226 shared review-decision delivery DeliverDecisionAsync; SteeringStatus.Deferredapps/Agentweaver.Api/Coordinator/CoordinatorAssemblyReviewPersistence.cs; CoordinatorSteeringService.cs
#226 /steer 201/202 (deferred) response mappingapps/Agentweaver.Api/Endpoints/CoordinatorEndpoints.cs
#223 implicated scoping: ScopeImplicatedSubtasks, TransitiveDependentsapps/Agentweaver.Api/Coordinator/AssemblyPlanning.cs
#223 structured TARGET_FILES: parser ReviewTargetFiles.Parse / IsDirectiveLinepackages/Agentweaver.AgentRuntime/Workflow/ReviewTargetFiles.cs
#231 RAI verdict sentinel prompt + one-re-ask → fail-safe-RED flow HandleAsync, ReAskPrompt, reason unparseable_after_reaskpackages/Agentweaver.AgentRuntime/Workflow/RaiTurnExecutor.cs
#231 sentinel-only parse TryParseVerdict / TryParseSentinelVerdict / TryParseSentinelLine / TryParseEmojiVerdict; sentinel-skipping ExtractRationale / ExtractFeedbackpackages/Agentweaver.AgentRuntime/Workflow/RaiTurnExecutor.cs
#231 verdict consumption at the gate: RunRaiAsync (→ SafetyFlagged), RAI gate → RaiBlockAsyncapps/Agentweaver.Api/Coordinator/CollectiveAssemblyPipeline.cs; apps/Agentweaver.Api/Coordinator/CoordinatorAssemblyService.cs
Reviewer TARGET_FILES: emissionpackages/Agentweaver.AgentRuntime/Workflow/RubberduckTurnExecutor.cs; BuildTestTurnExecutor.cs
coordinator.assembly_implicated_scope_fallback event constantpackages/Agentweaver.Domain/EventTypes.cs
TryEscalateToInReviewAsync, IncrementHumanReviewRoundTripAsyncapps/Agentweaver.Api/Coordinator/CoordinatorAssemblyStore.cs
Unconditional human-review budget reset (no cap), ResetSteeringBudgetAsync, BuildRationaleapps/Agentweaver.Api/Coordinator/CoordinatorSteeringDecider.cs
HumanReviewRoundTrips column (telemetry only); migrationsapps/Agentweaver.Api.Data/Memory/WorkPlan.cs; migrations/20260710004451_AddHumanReviewRoundTrips.cs
Stale lock recovery ClearStaleIndexLock, ResolveGitDir, IsAnyGitProcessRunningapps/Agentweaver.Api/Git/WorktreeManager.cs
TryClearStaleIndexLock seampackages/Agentweaver.AgentRuntime/Workflow/IWorktreeOperations.cs; apps/Agentweaver.Api/Runs/WorktreeOperationsAdapter.cs
AgentTurnOutput.TerminalFailureReason/Evidence; ChildTurnFailedOutputpackages/Agentweaver.AgentRuntime/Workflow/WorkflowMessages.cs
Child graph failure→terminal edge; child-turn-failed terminal bindingapps/Agentweaver.Api/Runs/RunWorkflowFactory.cs
ChildTurnFailedOutput → Failed(reason) in watch loopapps/Agentweaver.Api/Runs/RunWatchLoopService.cs
StartChildRevisionHandoffAsync (lockout context-carrying handoff)apps/Agentweaver.Api/Runs/RunOrchestrator.cs
Subtask.LockedOutAgents (existing dormant column, now used)apps/Agentweaver.Api.Data/Memory/Subtask.cs
CommitChangesWithRetryAsync stale-lock clear between attemptspackages/Agentweaver.AgentRuntime/Workflow/AgentTurnExecutor.cs
