API Host Core — Conceptual Deep Dive

Purpose & Scope

The Agentweaver API host is the composition shell for the product. It does not own every domain algorithm; instead, it makes the system runnable and observable by wiring services together, enforcing cross-cutting policy, exposing HTTP capabilities, and preparing durable state before traffic is accepted.

The API core architecture centers on:

• host bootstrap and readiness;
• dependency injection and service lifetimes;
• middleware and request authorization flow;
• the minimal API endpoint architecture;
• request/response contract principles;
• configuration selection;
• diagnostics and metrics;
• host-level invariants and extension seams.

Domain internals are covered by the focused deep dives for Auth & security, orchestration, sandboxing, memory and decisions, data persistence, and Git integration. The API core composes those domains rather than reimplementing their internal logic.

Effective model provider admission

EffectiveModelProviderResolver remains the selection authority. AiExecutionPlanService encrypts caller-, project-, and operation-bound acceptance with an authenticated execution key. BYOK configuration fingerprints include execution parameters. Copilot identity includes the binding credential version. The public provider fingerprint does not grant execution authority.

Covered synchronous actions reject changed provider configuration with 409 model_provider_changed before model invocation. Run continuations compare current resolver output with durable provenance. They never reconstruct provider authority from event identifiers. The runtime guard awaits provenance persistence before the next covered model call. Multi-pass generators retain the accepted BYOK configuration rather than select another ambient provider. Repository-only retry inheritance does not carry stale Copilot credentials into a newly accepted retry.

The admission contract covers these boundaries:

Path	Boundary
Generation, casting, backlog decomposition	Opaque admission, configuration fence, accepted configuration, pre-call provenance
Coordinator spec drafting	Effective-provider boundary, accepted BYOK configuration, and runtime invocation guard
Preview classifiers and preview command proposal	Effective-provider run fence, accepted BYOK configuration, and pre-call provenance
Other coordinator selection/classifier actions	Copilot-only run fence and pre-call provenance
Worker and reviewer turns, including AgentHost	Accepted provider context and guard before application-issued calls, re-asks, and SDK retries
Assistant and RemoteOperator dispatch	Opaque admission, platform scope, launch fence, pre-dispatch revalidation
Retry, revision, restart, queued pickup	Current resolver comparison against accepted fingerprints
MCP actions	API execution-key preparation and forwarding
Web provider context	Accessible Expected/Using/Used labels and stable fingerprint comparison

AgentHost revalidates before each application-issued model attempt through POST /api/runs/{id}/model-provider/validate. The callback requires the existing run capability and the immutable provider fingerprint from pod configuration. The API compares that fingerprint with the current resolver and accepted run provenance. It awaits provenance persistence before it permits the call. Provider changes return 409 model_provider_changed without a model call. The pod callback has no independent selection authority.

Public provider context contains redacted provider kind, scope, type, model, availability, and an opaque comparison fingerprint. It does not contain credentials, account names, or provider-binding identities. The UI maps prepared, active, and completed phases to Expected provider, Using, and Used.

There is no registered /api/console/turn route in this host. GET /api/auth/session returns authentication metadata and ai_configured, not a model response. ResolveForSessionAsync supplies that metadata and execution-context preparation. It has no direct production model-call consumer. The production conversation routes use the guarded Assistant and AgentHost path.

This is not proof of every request inside the external Copilot service. Focused tests use fake model providers. They do not prove live SDK, Kubernetes, or MCP process behavior.

Execution-key configuration

AiExecution:ProviderKeySigningKey takes precedence when configured. Otherwise, the service derives a purpose-specific key from the existing server-only Auth:CopilotApp:ClientSecret. Auth:RepoApp:ClientSecret is the next fallback. Existing Kubernetes deployments already provision these App secrets. This change does not add a required mounted secret. Production deployments without either App secret require an explicit execution signing key. Development and test environments also permit Auth:ApiKey as a fallback.

All API and worker replicas must use the same secret. Secret rotation invalidates prepared and queued execution keys. Queued work then requires fresh submission.

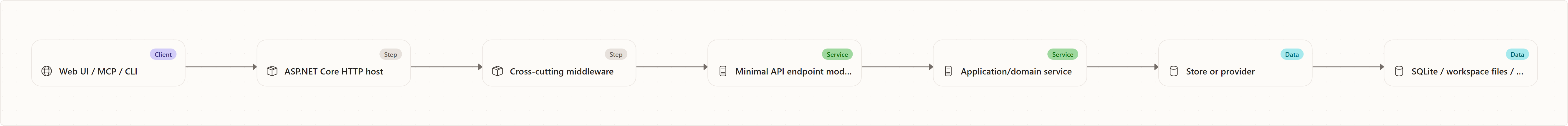

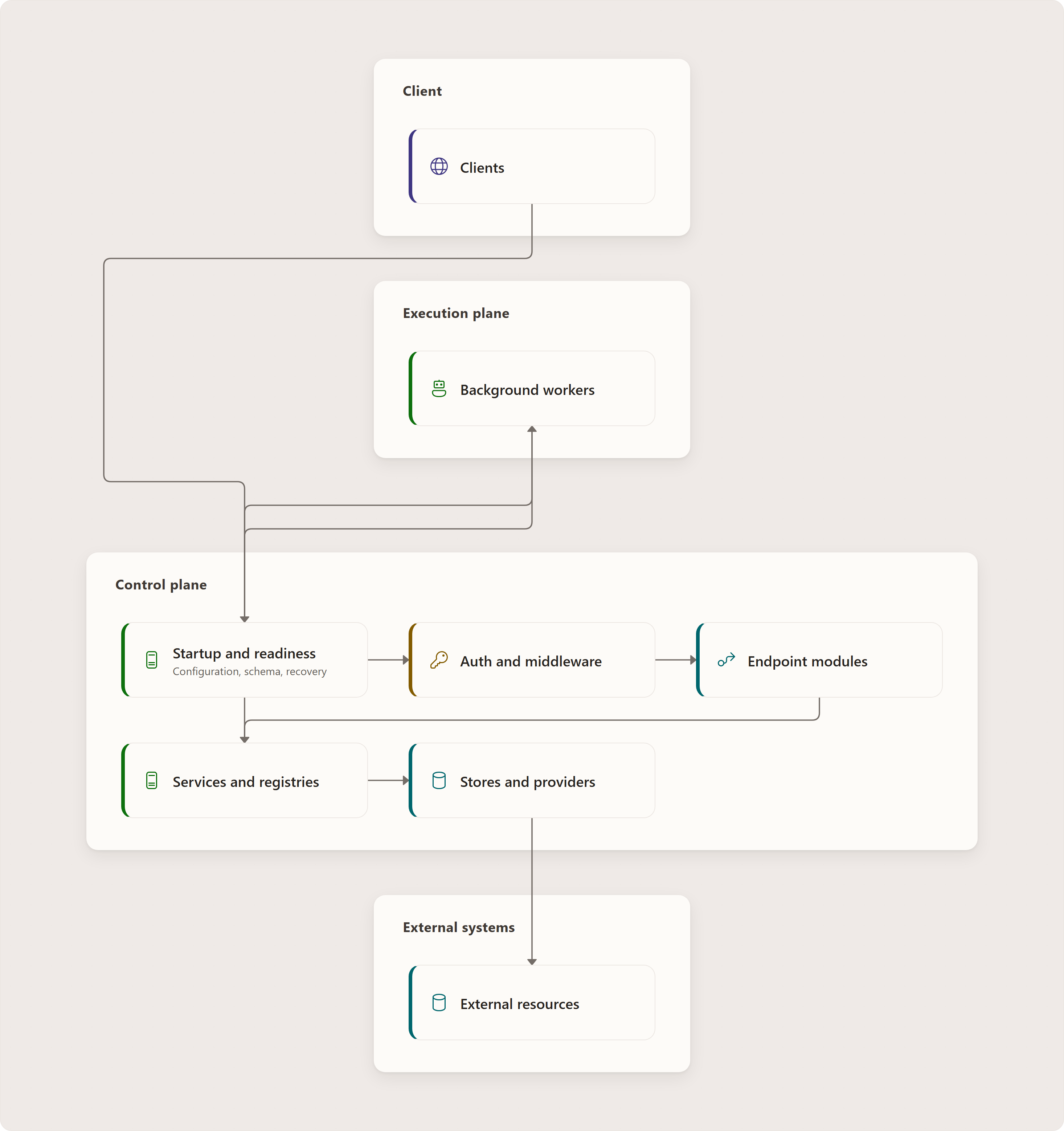

The Host in One Picture

Agentweaver uses a minimal API + endpoint modules + stores/services architecture. The host is a thin, explicit composition root; endpoint modules are thin adapters; services and stores contain the actual behavior.

The important separation is:

• Program startup decides what exists: configuration, DI registrations, boot checks, middleware, and endpoint groups.
• Endpoint modules decide what HTTP surface exists: routes, verbs, request DTOs, response DTOs, and per-resource authorization checks.
• Services decide what a business operation means.
• Stores/providers decide how data and external resources are accessed.

This shape keeps the host easy to reason about. Adding a feature should usually mean adding a contract, a service/store if needed, and one endpoint registration module; it should not require changing middleware or unrelated route handlers.

Why Minimal APIs Here

Agentweaver's API is a command-and-control surface with many focused operations: start a run, stream a run, approve a tool request, list project files, read diagnostics, update a review policy, and so on. Minimal APIs fit that shape because they make route registration direct and avoid controller ceremony.

The design only works because route registration is modularized. Each feature area exposes a method that maps its routes, and startup calls those methods explicitly. That gives the project most of the clarity of controllers without forcing every small route into a controller class.

The trade-off is discipline. Minimal APIs do not automatically prevent a handler from becoming a large blob of logic. Agentweaver's intended invariant is: endpoint handlers adapt HTTP to the domain; they do not become the domain. If a handler starts coordinating multiple stores, retry rules, or lifecycle transitions, that logic belongs in a service.

Where this lives: apps/Agentweaver.Api/Program.cs; apps/Agentweaver.Api/Endpoints/; domain endpoint folders such as Workflows/ and ReviewPolicies/.

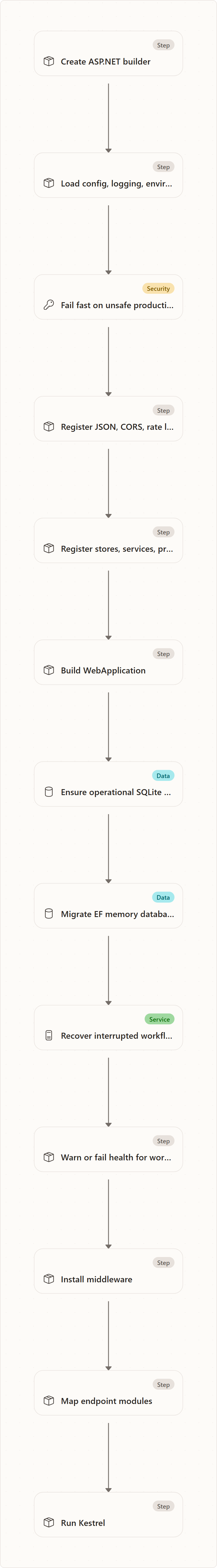

Bootstrap & Readiness Lifecycle

Problem solved

The API cannot safely accept traffic until three things are true:

1. dangerous development-only bypasses are rejected in production;
2. persistent schemas are present and up to date;
3. interrupted long-running work has been reconciled enough that new requests see a coherent world.

Startup therefore behaves like a readiness gate, not just a web-server launch.

Why this order

• Security checks happen before service construction so a bad production deployment dies obviously instead of exposing a partially running host.
• Schemas are ensured before middleware and routes matter so the first real request does not pay for schema creation or discover a missing table.
• Recovery runs before traffic so clients do not see stale "in progress" state that the host already knows how to reconcile.
• Middleware is installed before endpoints are mapped as executable request handlers so every route shares the same cross-cutting behavior.

Trade-offs

This makes startup heavier, especially when database migrations or recovery scans are non-trivial. The benefit is a simpler runtime: handlers can assume the host is initialized, stores exist, and background recovery has already had a chance to normalize old state.

Invariants

• Startup database work must be idempotent.
• Recovery must be safe to run after a crash or restart.
• Production auth bypasses must fail closed.
• The host should never depend on system temporary directories for application data.

Where this lives: apps/Agentweaver.Api/Program.cs; apps/Agentweaver.Api/Infrastructure/; apps/Agentweaver.Api/Memory/.

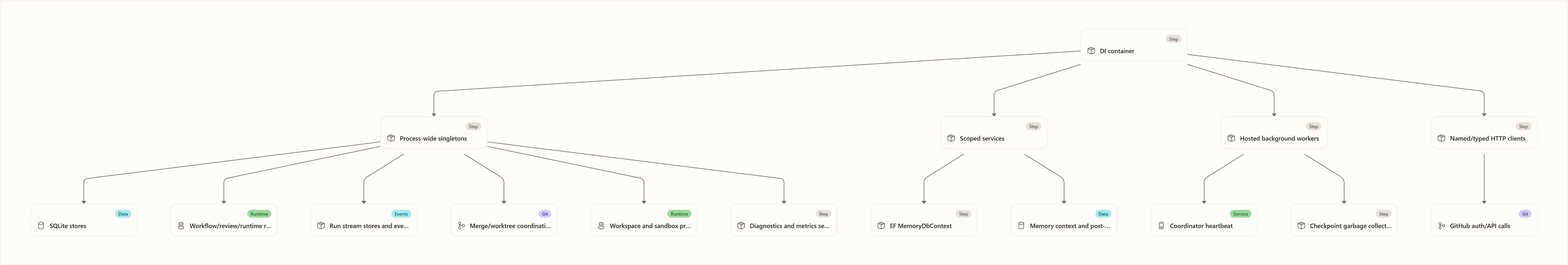

Dependency Injection as the Service Graph

Problem solved

The host coordinates long-lived state: run streams, locks, registries, background services, SQLite stores, workspace providers, GitHub clients, sandbox routing, and EF contexts. Dependency injection makes those dependencies explicit and gives each category the right lifetime.

Lifetime logic

• Singletons are used for components that are stateless, internally synchronized, or intentionally process-wide: registries, locks, stream stores, provider selectors, and most raw SQLite stores. When a singleton touches SQLite, the safe pattern is connection-per-operation rather than keeping one shared connection forever.
• Unit-of-work contexts are isolated because EF DbContext is not thread-safe. Production singleton stores use IDbContextFactory<MemoryDbContext> to create a fresh context per operation rather than retaining a shared context.
• Hosted services are used for autonomous loops that are part of the host lifecycle, such as heartbeat pickup and cleanup.
• Factories are used when configuration chooses an implementation, such as local versus persistent-volume workspaces or sandbox execution routing.

Trade-offs

The singleton-heavy approach makes in-process coordination straightforward and avoids repeatedly constructing expensive infrastructure. The risk is hidden shared mutable state. Agentweaver mitigates that by keeping stores connection-per-call, bounding in-memory buffers, and making coordination objects explicit.

Rebuild rule

When adding a dependency, first decide whether it represents process-wide coordination, per-request/unit-of-work state, an external HTTP client, or a background loop. Register it according to that role; do not choose a lifetime just because another nearby service uses it.

Where this lives: apps/Agentweaver.Api/Program.cs.

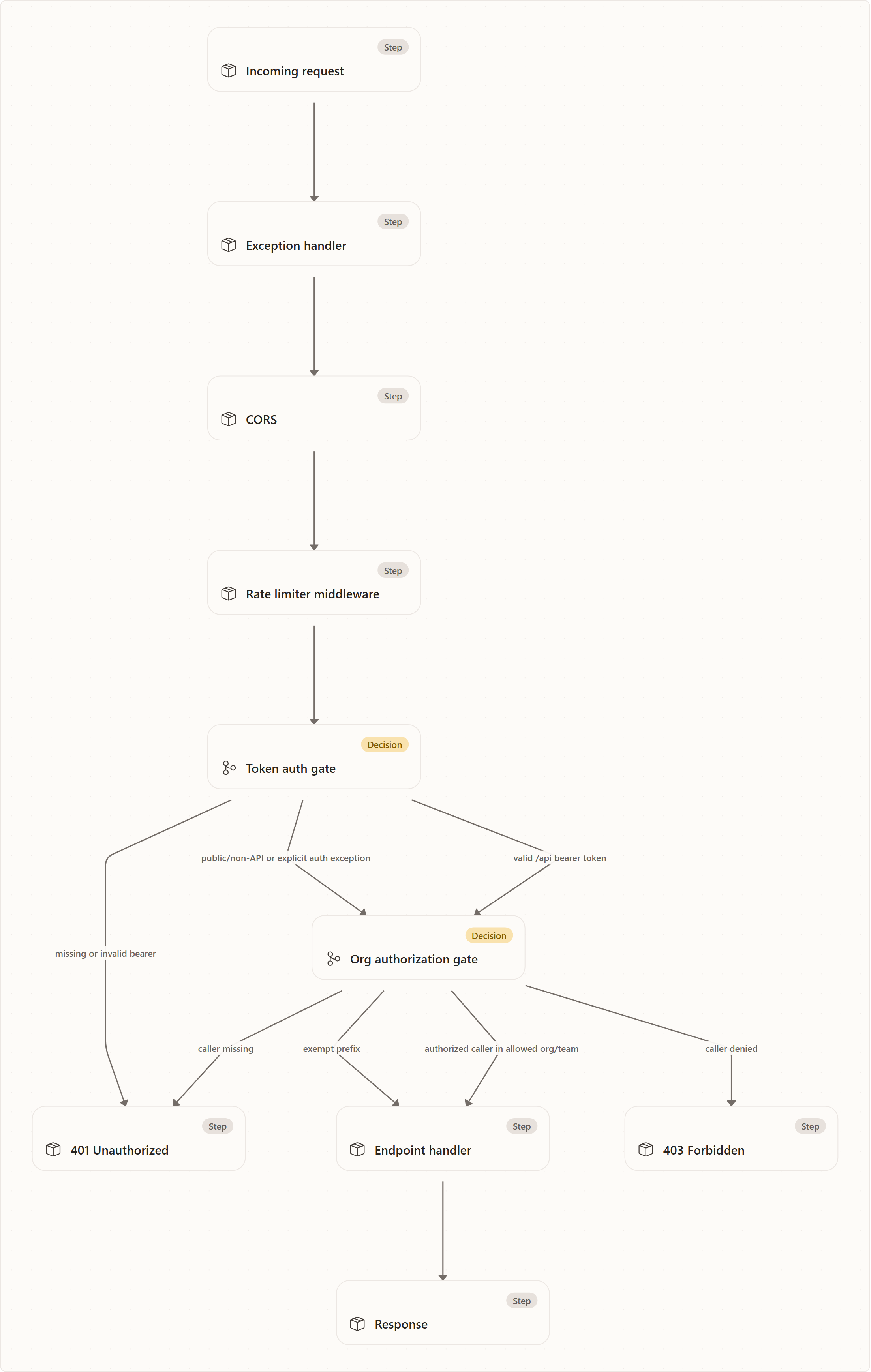

Middleware Pipeline

Problem solved

Endpoints share exception handling, CORS, rate limiting, authentication, and endpoint-policy authorization. Project/resource role checks remain in the endpoint or service that knows the resource.

Endpoint classification and authentication

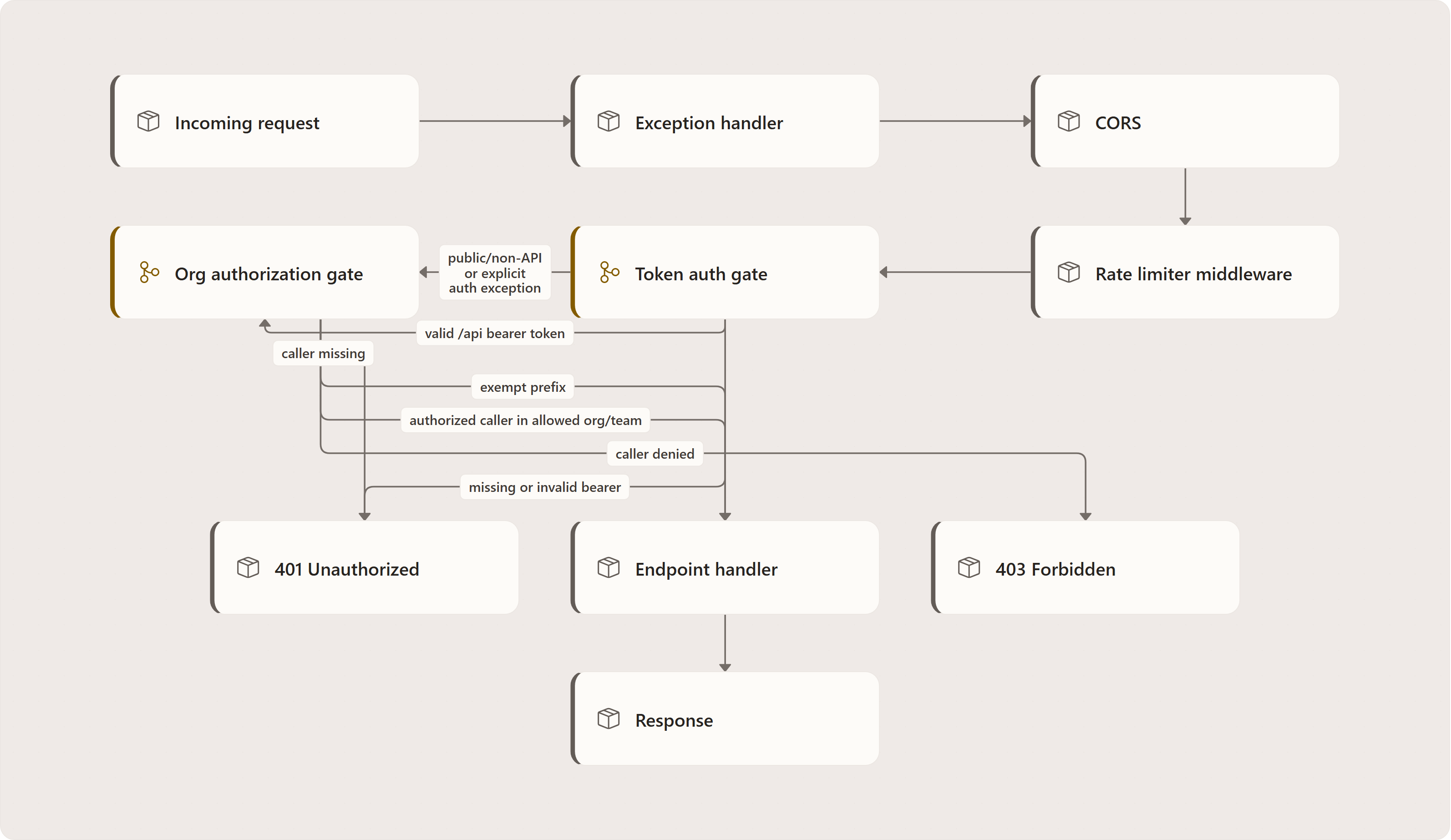

The web-role request order is forwarded headers, exception handling, routing, CORS, rate limiting, endpoint-authorization integrity, authentication, unmatched-endpoint handling, and authorization. Endpoint integrity validates the selected route's authorization classification before dispatch. Missing or contradictory metadata fails closed; URL-prefix exemptions are not the authorization model.

Authentication selects a credential scheme allowed by the endpoint. Entra validation includes the configured tenant; broker-capable routes independently validate Agentweaver broker tokens. Neither GitHub organization membership nor a GitHub username grants platform access.

Resource authorization

After endpoint-policy authorization, handlers load the relevant resource and enforce the required project role: Viewer, Contributor, or Owner. Input validation and resource lookup order varies by endpoint; this is not a second global organization middleware. Internal-service and run-capability endpoints have explicit, separate classifications.

Rate limiting

The rate limiter middleware is globally installed, but named policies apply to endpoints that opt in. OAuth protocol endpoints opt in because they are public and abuse-sensitive. Merely installing the middleware does not rate-limit every API endpoint.

Middleware rules

• Classify public, protocol-managed, platform, broker, internal-service, and run-capability endpoints explicitly.
• Do not infer authorization from /api or any other path prefix.
• Resource authorization depends on the authenticated identity and the requested resource.
• The worker role exposes /healthz and /readyz, not the web role's application API. The role split does not by itself prove that every background service is worker-exclusive.

Where this lives: apps/Agentweaver.Api/Program.cs:1255-1326; apps/Agentweaver.Api/Auth/EndpointAuthorization.cs; apps/Agentweaver.Api/Auth/EntraAccessTokenValidator.cs; apps/Agentweaver.Api/Security/ProjectAuthorization.cs.

Endpoint Surface & Request Handling Structure

Problem solved

The API surface is broad, but it is not arbitrary. Routes are organized around resources and capabilities so clients can predict where operations live.

The main route families are:

Capability family	Route shape	What the handler should do
Health/readiness	/health, /api/health, /api/ping, /healthz/workspace	Return cheap public liveness/readiness answers for load balancers and operators.
Diagnostics/metrics/system	/api/diagnostics*, /api/overview, /api/projects/{id}/dashboard, /api/system/runtime	Return protected operational projections assembled from live stores and host state.
Auth and OAuth	/api/auth/*, /.well-known/*, /oauth/*	Bootstrap Entra authentication, expose OAuth/OIDC metadata, exchange tokens, and manage sessions.
Projects/workspaces	/api/projects*, /api/projects/{id}/workspace*	Create/list/update projects and expose workspace refs, trees, and file content through project ownership checks.
Runs	/api/runs*, /api/projects/{id}/runs*, /api/projects/{id}/orchestrations	Read run state, stream events, inspect files/diffs/history, retry, archive, delete, or start coordinator work.
Human-in-the-loop actions	/api/runs/{id}/review, /commit, /request-changes, approvals/denials/questions/autopilot	Convert user decisions into run lifecycle transitions.
Sandbox	/api/sandbox-policy, /api/runs/{id}/sandbox/port-forward*	Read/update project-scoped sandbox policy and manage sandbox port-forward sessions.
Workflow and review policy definitions	/api/projects/{id}/workflows*, /api/projects/{id}/review-policies*	Manage project-defined workflow and review policy configuration.
Backlog/board/decompose	/api/projects/{id}/backlog*, /board, /workflow-stages, /backlog/decompose	Expose orchestration planning queues and decomposition helpers.
Coordinator	/api/projects/{id}/orchestrations, /api/runs/{id}/outcome-spec*, /work-plan, /children, /steer, /assembly/*	Expose multi-agent orchestration state and control surfaces.
Team/casting/blueprints	/api/projects/{id}/team*, /api/casting*, /api/blueprints*	Manage project team model, role proposals, and blueprint generation/validation.
Decisions/memory/sessions	/api/projects/{id}/decisions*, /memory*, /agents/{name}/memory*, /sessions*	Expose decision inbox, decision ledger, agent memory, session context, and file interop.

Handler pattern

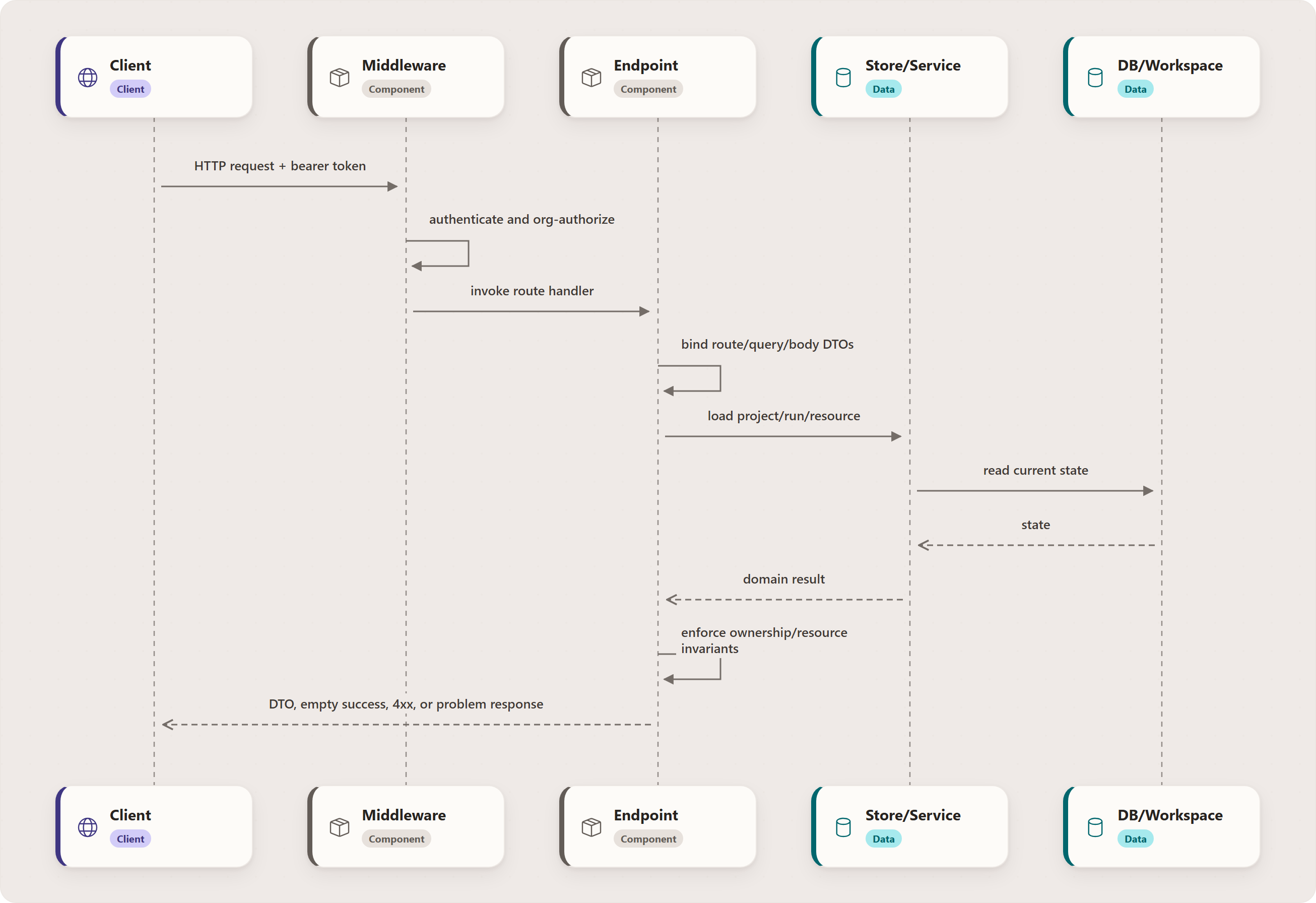

A typical protected handler follows the boundaries in The host in one picture. A second generic client-to-store chain adds no distinct information.

The exact service/store calls differ by feature, but the responsibilities stay stable:

1. Authenticate and authorize the endpoint through middleware before handler execution.
2. Bind and validate route values, query values, and JSON bodies; load the resource needed for the operation.
3. Authorize the resource using the required project role and resource relationship. Do not special-case GitHub usernames such as admin; there is no built-in username-derived superuser role.
4. Validate dangerous inputs centrally, especially filesystem-relative paths used by workspace and file routes.
5. Delegate behavior to a service or store.
6. Project the result into a DTO that is safe and stable for clients.

Route design rules

• Use /api/projects/{id}/... for project-scoped resources.
• Use /api/runs/{id}/... for run-scoped resources.
• Use GET for projections, POST for commands/state transitions, PATCH for partial updates, PUT when replacing/updating a named configuration, and DELETE only when deletion semantics are intended.
• Model command endpoints as subresources or actions (/retry, /review, /commit) when the operation is not a simple CRUD update.
• Give public protocol routes explicit endpoint authorization metadata rather than path-based exemptions.

Where this lives: apps/Agentweaver.Api/Endpoints/; apps/Agentweaver.Api/Workflows/; apps/Agentweaver.Api/ReviewPolicies/; apps/Agentweaver.Api/Diagnostics/; apps/Agentweaver.Api/Metrics/.

Effective model-provider context

Before a first-party UI starts a generative action, it calls POST /api/ai/execution-context with the operation name and, for project-scoped work, the project id. The endpoint does not accept prompts and does not start execution. It resolves the same project, platform, or user provider context used by the execution layer and returns a redacted effective_model_provider object for an accessible Expected provider hint.

The contract distinguishes where the action was resolved from where the provider is configured. For example, a workflow-generation action in a project can return resolution_scope: "project", provider_scope: "platform", and provider_kind: "byok" when the project inherits deployment-wide BYOK. provider_key is an opaque comparison value and must never be displayed.

Run-associated execution persists run.model_provider_resolved. GET /api/runs/{id} projects the latest durable event as effective_model_provider; it returns null when no resolution was recorded and never invents provider identity from the coarse Run.ModelSource field. Assistant creation and every Assistant turn emit the event so a provider switch is visible even when the conversation keeps the same run id.

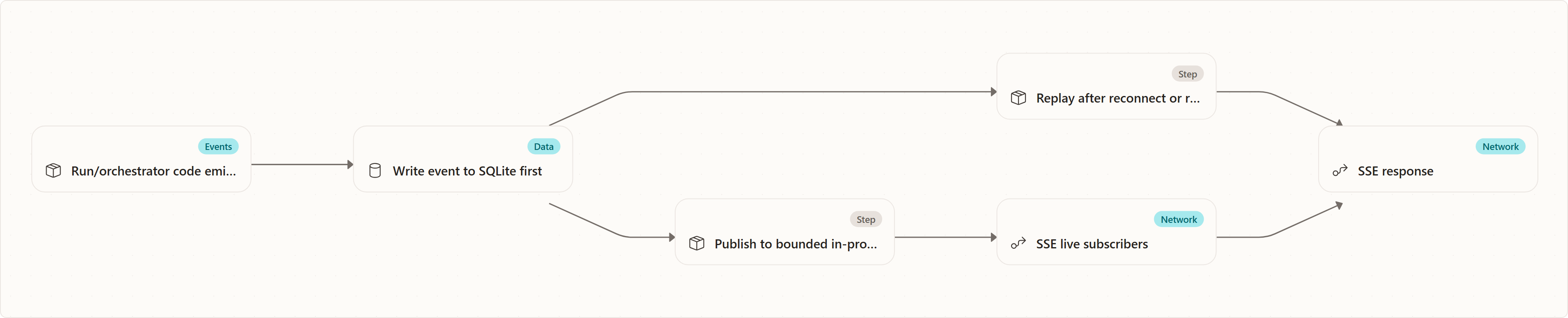

Streaming and Durable Run Events

Problem solved

Agent runs are long-lived and interactive. The UI needs low-latency updates while a run is active, but users also refresh browsers, reconnect, and inspect completed runs. A purely in-memory stream would be fast but fragile; a purely database-polled stream would be durable but less responsive.

Agentweaver durably appends events before exposing them to subscribers. Delivery then depends on the selected store and whether this replica has a local run-stream entry:

Control flow

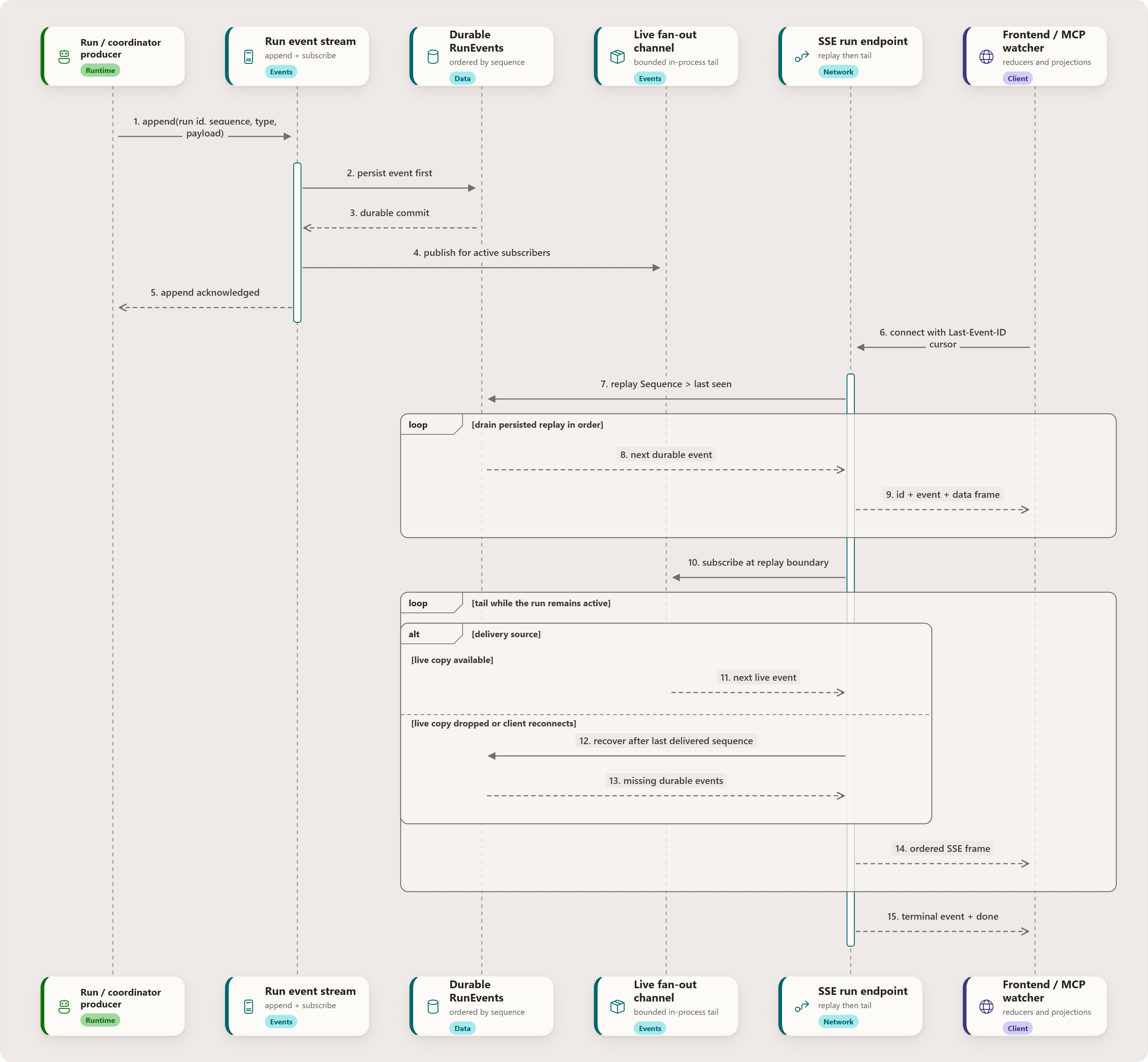

1. A run event is appended with a run id, sequence, type, and payload.
2. The event is written durably before it is acknowledged to the producer.
3. With a local RunStreamStore entry, the endpoint reads an atomic snapshot and waits for local changes.
4. Without that entry, it subscribes to the durable provider. EfRunEventStream polls shared rows after the cursor (250 ms when empty); SqliteRunEventStream uses durable replay and a bounded process-local channel.
5. Terminal replay ends the transport after draining its batch. Some human-review gates also emit transport done; that is not durable run completion.

Why this design

• Durable-first append means a client cannot observe an event that would be lost on crash.
• Local buffers/channels bound memory; they are not a cross-replica message bus.
• Shared-table polling lets a different replica observe committed events without owning the producer's local stream.
• Sequence-based replay makes browser reconnects and Last-Event-ID style cursors practical.

Invariants

• Never stream a run to a caller who cannot read that run.
• Durable append precedes live fan-out.
• Reconnects should not miss events; duplicates should be tolerable or skipped by sequence.
• Terminal events should cause clean completion rather than endless idle streams.

Where this lives: apps/Agentweaver.Api/Infrastructure/RunStreamStore.cs; apps/Agentweaver.Api/Infrastructure/EfRunEventStream.cs; apps/Agentweaver.Api/Infrastructure/SqliteRunEventStream.cs; apps/Agentweaver.Api/Endpoints/RunEndpoints.cs:457-555.

Contracts and DTOs

Problem solved

The API is consumed by web UI, MCP tools, and automation clients. Internal entity names, enum values, and persistence details can evolve, but the wire contract must remain stable.

Agentweaver therefore treats DTOs as a boundary layer rather than returning database entities directly.

Contract principles

• Explicit JSON names. Public field names are pinned with explicit JSON metadata where needed instead of relying entirely on ambient naming policy.
• Stable enum strings. Domain states are translated to client-facing strings such as run status and model source values. Clients should not depend on internal enum names.
• Projection over leakage. Response DTOs include fields useful to clients: ids, statuses, timestamps, flags, summaries, diffs, sandbox state, and workflow metadata. They should not expose internal persistence-only columns unless those columns are intentionally part of the API.
• Nullable means meaningfully absent. Optional fields represent genuinely unavailable or inapplicable data, not handler laziness.
• Requests describe intent. A command request should contain the minimum information needed to perform the operation and should let the service derive the rest from current state.

Trade-offs

DTO mapping adds code, but it preserves compatibility. Without DTOs, database refactors and domain enum changes would become accidental API breaking changes.

Where this lives: apps/Agentweaver.Api/Contracts/.

Configuration Model

Problem solved

The same host runs locally, in tests, and in hosted/containerized environments. Configuration decides which roots, databases, auth settings, workspace providers, and sandbox providers are active without changing code paths.

ASP.NET Core's normal configuration stack is used: appsettings, environment-specific settings, environment variables, secrets, and command-line arguments. Environment variable names can use the standard double-underscore form for nested keys.

Important configuration families

Family	Conceptual role
Logging	Controls host and framework log verbosity.
CORS	Declares browser origins allowed to call the API. Empty means no configured browser origins.
Auth:Entra	Defines platform identity and tenant validation; GitHub capabilities do not grant platform/project roles.
Auth:RepoApp / Auth:CopilotApp	Defines separate repository and Copilot capability integrations.
Auth:OAuth	Defines OAuth issuer/audience/signing/redirect behavior for MCP/API token flows. Production guards require safe pinned values.
Database	Postgres selects EF operational stores, durable events, shared checkpoints, and leases. Local SQLite uses raw operational stores plus a separate EF memory database and file checkpoints. Other EF provider options are not equivalent to the Postgres operational topology.
Workspace	Selects how project workspaces are resolved. Local mode honors caller-provided paths; persistent-volume/kubernetes mode maps project ids under a configured mount root.
Runs	Restricts allowed local repository roots for filesystem safety.
Coordinator	Controls heartbeat enablement and cadence.
Sandbox	Supplies sandbox execution settings, especially Kubernetes execution details.
Testing bypass flags	Development/test-only switches that must not be accepted in production.

Database split

There are two important persistence surfaces:

• the operational database for projects, runs, backlog, workflow state, and other host operations;
• the memory database for EF-managed memory/decision data and durable run events.

In production Postgres, both surfaces use MemoryDbContext and one database, with a fresh context per operation. The two-file operational/EF split applies to local SQLite. Workspace files remain a separate backup and recovery concern in either mode.

Workspace provider split

Local workspaces and mounted/container workspaces solve different problems. Local mode is convenient for desktop development because the caller can point the project at an existing checkout. Persistent-volume/kubernetes mode is safer for hosted execution because project ids map deterministically under a known mount root, and the caller does not control arbitrary filesystem paths.

Workspace health is based on practical write probes, not only directory existence, because mounted filesystems can report misleading metadata while still failing real writes.

Where this lives: apps/Agentweaver.Api/appsettings.json; apps/Agentweaver.Api/Program.cs; apps/Agentweaver.Api/Infrastructure/; apps/Agentweaver.Api/Sandbox/.

Diagnostics & Metrics

Problem solved

Operators need to know whether the host is healthy and what work is happening without trusting client-side guesses. Diagnostics answer "can the system function right now?" Metrics answer "what has the system been doing?"

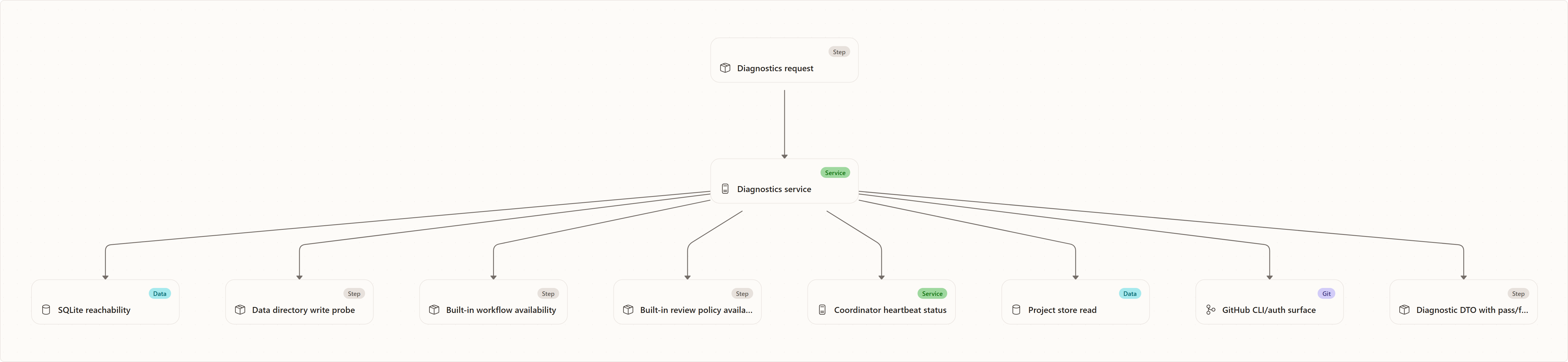

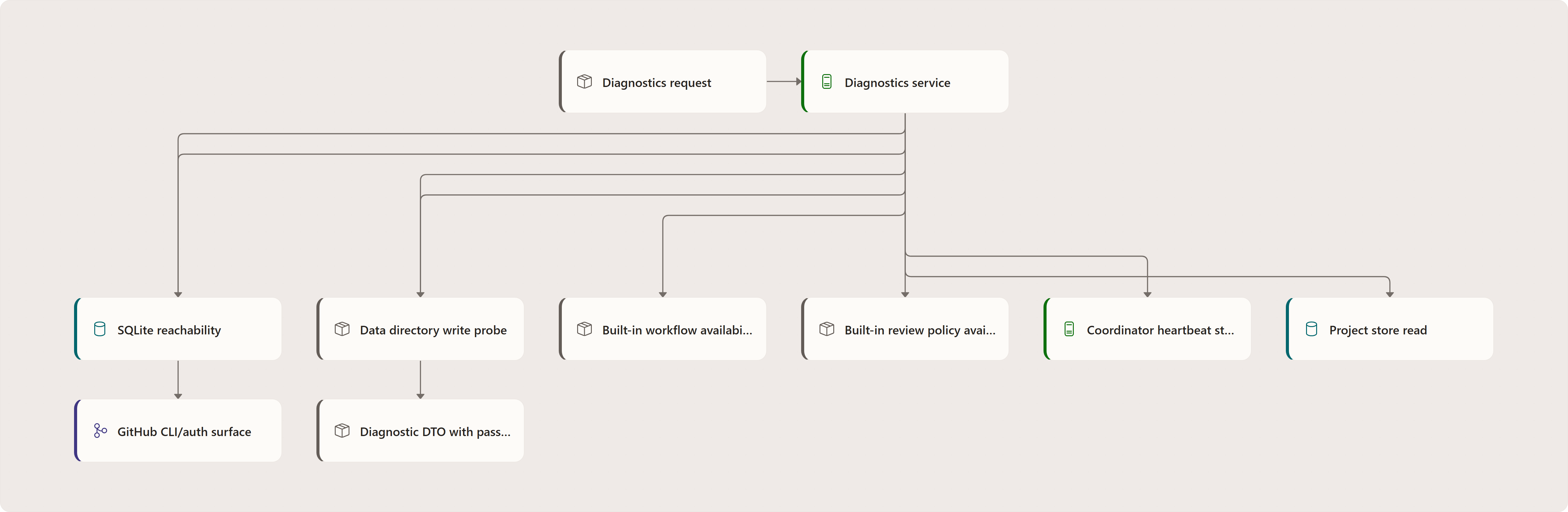

Diagnostics model

Diagnostics are live checks assembled server-side:

There are three levels:

• Public health/readiness endpoints are cheap and suitable for load balancers.
• System diagnostics are protected and include database, data directory, registry, heartbeat, project-store, and GitHub checks.
• Project diagnostics are protected and scoped to one project: workspace availability, workflow directory, review-policy directory, active workflow, and active review policy.

The heartbeat endpoint exposes automation status: whether heartbeat is enabled, its cadence, last tick, last error, recent activity, and a catalog of host automations.

Metrics model

Metrics are derived from live stores and known in-process state. They are not fabricated. If the system lacks a real source for a value, the API omits it rather than inventing it.

The project dashboard summarizes:

• run counts and active work;
• 30-day created/done throughput;
• agent leaderboard and success/duration data.

The global overview summarizes:

• at-a-glance host/project/run counters;
• live sessions and active workflow runs;
• active projects and recent activity;
• degraded health signals such as heartbeat problems or merge failures.

Run duration metrics subtract human-review wait time where that wait is tracked. That keeps automation performance from being distorted by time spent waiting for a person.

Invariants

• Diagnostics and metrics should read real host state.
• Expensive checks should be bounded and explicit.
• Singleton diagnostics/metrics services must remain safe under concurrent requests.
• Do not report cost or other synthetic values without an authoritative source.

Where this lives: apps/Agentweaver.Api/Diagnostics/; apps/Agentweaver.Api/Metrics/; apps/Agentweaver.Api/Endpoints/MetricsEndpoints.cs.

Host-Level Invariants & Edge Cases

These rules are the practical knowledge needed to rebuild or extend the host safely:

• The endpoint mapping list is the routing seam. A new feature should add a mapping extension and be called from startup explicitly.
• Authorization is endpoint-classified. Integrity checks reject unclassified or conflicting metadata; public access is not a prefix exemption.
• Resource access is layered. Authentication establishes identity; handlers/services enforce project roles and resource relationships. A GitHub login never implies platform or project access.
• Filesystem paths are dangerous inputs. File and diff routes should use centralized relative-path validation and reject rooted, parent-traversal, device, UNC, drive-relative, control-character, or alternate-data-stream tricks.
• SSE has both live and durable layers. Live buffers optimize active UI sessions; durable run events support replay and restart recovery.
• Database split matters. Operational state and EF memory/run-event state may live in different databases.
• Workspace provider choice changes trust boundaries. Local mode can honor caller paths after validation; mounted/kubernetes modes should derive paths from project ids.
• Persistent-volume health should test real writes. Existence checks alone are not enough for mounted filesystems.
• Sandbox policy is project-scoped configuration. It should preserve unrelated settings and only write for known project workspaces.
• Checkpoints are shared in Postgres for multi-replica safety. The production checkpoint store is PostgresJsonCheckpointStore (rows in workflow_checkpoints, selected by ICheckpointStoreFactory when Database:Provider=postgres): each checkpoint is an independent unique-PK row, so the two API replicas write concurrently with no exclusive lock and MVCC gives cross-pod resume. The file store (FileSystemJsonCheckpointStore wrapped by ResilientCheckpointStore) is the SQLite/dev fallback only. For that fallback, startup must stay defensive: corrupt index metadata is quarantined, and expected non-corruption failures (lock contention; shared-volume permission denial) fall back quietly to a per-pod directory (ResilientCheckpointStore.Create never throws) — at most one warn per store, no fail/stacktrace — so they do not flood the logs.
• Application data should not use system temp. Stable data belongs in the configured/local app data directory.

Where this lives: apps/Agentweaver.Api/Endpoints/EndpointHelpers.cs; apps/Agentweaver.Api/Infrastructure/; apps/Agentweaver.Api/Sandbox/.

How to Add a New API Capability

A safe extension normally follows this sequence:

1. Define the contract. Add request/response DTOs or reuse existing ones only if the wire meaning is identical.
2. Choose the state boundary. Decide whether the capability uses provider-selected operational/EF stores, workspace files, GitHub, Kubernetes, or only in-memory state.
3. Create or extend a service. Put lifecycle, transaction, retry, and multi-store coordination logic outside the endpoint handler.
4. Register dependencies. Pick singleton/scoped/hosted/client lifetimes based on actual behavior, not convenience.
5. Map endpoints in a feature module. Keep route definitions together and call the module from startup.
6. Apply auth and ownership. Confirm both global middleware behavior and resource-specific authorization. Resource authorization should be ownership-based and must not depend on magic usernames.
7. Add diagnostics or metrics only if they are real. Avoid placeholder health checks and fabricated counters.
8. Validate with the smallest relevant test/build path. Endpoint changes should prove request binding, auth behavior, ownership behavior, and persistence effects where applicable.

The core design goal is not to make every feature small; it is to keep each responsibility in the layer that can own it cleanly.

Diagram details and constraints

Element	Contract
title	API middleware · endpoint metadata is authority
takeaway	The request pipeline classifies endpoints before authentication; handlers enforce resource roles.
group-0-title	TRANSPORT / CLASSIFICATION
group-1-title	IDENTITY / RESOURCE
Forwarded headers	Forwarded headers
Forwarded headers	Then exception handler
Forwarded headers	Normalize proxy context; map unhandled errors
Forwarded headers	Program.cs:1266–1273
Routing → CORS	Routing → CORS
Routing → CORS	Then rate limiter
Routing → CORS	Route selection precedes endpoint metadata checks
Routing → CORS	Program.cs:1274–1276
Endpoint integrity	Endpoint integrity
Endpoint integrity	Classified authorization metadata
Endpoint integrity	Unclassified application endpoint fails closed
Endpoint integrity	EndpointAuthorization:139–174
Authentication	Authentication
Authentication	Validate selected credential
Authentication	Entra tenant check lives inside token validation
Authentication	Program.cs:1278
Unmatched endpoint	Unmatched endpoint
Unmatched endpoint	Explicit unmatched-route handling
Unmatched endpoint	Runs after authentication, before authorization
Unmatched endpoint	Program.cs:1279
Authorization	Authorization
Authorization	Endpoint policy evaluation
Authorization	Anonymous operational endpoints are classified
Authorization	Program.cs:1280
Endpoint handler	Endpoint handler
Endpoint handler	Bind, validate, load resource
Endpoint handler	Ordering varies; apply project / resource role
Endpoint handler	RunEndpoints:429–445
Service → DTO / result	Service → DTO / result
Service → DTO / result	Delegate governed work
Service → DTO / result	Return the handler result to caller
Service → DTO / result	Program.cs:1282–1295
Forwarded headers	next
Routing → CORS	endpoint
Endpoint integrity	valid
Unmatched endpoint	matched
Authorization	allowed
Endpoint handler	map
scope	Request lane only: startup migration/recovery is separate. Worker role exposes probes, not this app surface.
groups	TRANSPORT / CLASSIFICATION; IDENTITY / RESOURCE

Diagram details and constraints

Element	Contract
title	System diagnostics · a narrow live check map
takeaway	The protected system snapshot combines checks and counts; it is not the detailed-health surface.
group-0-title	SYSTEM CHECKS
group-1-title	STATUS / COUNTS
Diagnostics request	Diagnostics request
Diagnostics request	Protected endpoint
Diagnostics request	DiagnosticsService.GetSystemDiagnosticsAsync
Diagnostics request	DiagnosticsEndpoints:52
Diagnostics service	Diagnostics service
Diagnostics service	Ordered live checks
Diagnostics service	Capture generated time and total duration
Diagnostics service	DiagnosticsService:89–136
SQLite + data directory	SQLite + data directory
SQLite + data directory	Reachability / write probe
SQLite + data directory	SQLite check is not universal PG health proof
SQLite + data directory	DiagnosticsService:1192–1230
Built-in definitions	Built-in definitions
Built-in definitions	Workflow + review-policy checks
Built-in definitions	Report registry availability, not a live run
Built-in definitions	DiagnosticsService:97–103
Heartbeat + project store	Heartbeat + project store
Heartbeat + project store	Status and project-store read
Heartbeat + project store	Report coordinator heartbeat service state
GitHub CLI / auth	GitHub CLI / auth
GitHub CLI / auth	Local CLI diagnostic surface
GitHub CLI / auth	Do not equate CLI auth with platform sign-in
GitHub CLI / auth	DiagnosticsService:1292+
Counts + pod quota	Counts + pod quota
Counts + pod quota	Provider-aware run/project counts
Counts + pod quota	Quota optional; missing/read failure → unknown
Counts + pod quota	DiagnosticsService:105–138
SystemDiagnosticsDto	SystemDiagnosticsDto
SystemDiagnosticsDto	Checks / details / durations
SystemDiagnosticsDto	API version, uptime, totals and generatedUtc
SystemDiagnosticsDto	DiagnosticsService:116–134
Diagnostics request	collect
Diagnostics service	check
Diagnostics service	counts
Counts + pod quota	summary
scope	Detailed health separately checks PostgreSQL, Key Vault, warm pool and Kubernetes; probes are cheaper.
groups	SYSTEM CHECKS; STATUS / COUNTS

Diagram details and constraints

Element	Contract
title	API host: compose once, authorize each request
takeaway	Startup prepares the host. Requests never flow through migrations or recovery.
Startup composition	BOOTSTRAP
request-group-title	PER REQUEST
classification-guard	Unclassified endpoint? Fail closed.
Startup composition	Startup composition
Startup composition	Configuration and service registration
Startup composition	Provider selection, migrations, recovery, workspace checks
Startup composition	Program.cs:1200-1254
Role-specific HTTP host	Role-specific HTTP host
Role-specific HTTP host	Web API or worker probes
Role-specific HTTP host	The worker does not expose application endpoint groups
Role-specific HTTP host	Program.cs:1255-1326
Client request	Client request
Client request	Browser / MCP adapter / automation
Client request	MCP forwards a validated broker token, not GitHub auth
Client request	AgentweaverApiClient.cs:359
Cross-cutting policy	Cross-cutting policy
Cross-cutting policy	Integrity, authentication, authorization
Cross-cutting policy	Routing / CORS / rate limiting precede identity checks
Cross-cutting policy	Program.cs:1274-1295
Application services	Application services
Application services	Own operation semantics
Application services	Coordinate lifecycle, transactions, and external effects
Application services	Endpoint modules -> services
Endpoint adapter	Endpoint adapter
Endpoint adapter	Bind, load, check resource role
Endpoint adapter	Viewer / Contributor / Owner; return a safe DTO
Endpoint adapter	ProjectAuthorization.cs:56-86
Provider-selected stores	Provider-selected stores
Provider-selected stores	Production Postgres / local SQLite
Provider-selected stores	Fresh context or connection per operation
Provider-selected stores	Program.cs:1026-1075
Workspace and integrations	Workspace and integrations
Workspace and integrations	Git, AgentHost, model-provider adapters
Workspace and integrations	Files and execution remain separate from database rows
Workspace and integrations	Explicit capability boundaries
Startup composition	prepares
request-policy	request
policy-handler	dispatch
Endpoint adapter	delegate
service-store	read / write
service-adapters	invoke
store-result	rows
service-result	result
Endpoint adapter	DTO / HTTP response
scope	Worker HTTP: healthz / readyz only. Background registrations are not necessarily worker-exclusive.

Diagram details and constraints

Element	Contract
notes	LOOP · repeat durable reads; idle wait = 250 ms; Drain the whole batch before terminal close. Retryable assembly_blocked is not terminal.; Explicit-sequence reuse is idempotent only for matching type/payload. SQLite live channels are a separate lane.

Diagram details and constraints

Element	Contract
title	Accept a provider before invoking it
takeaway	Signed admission context freezes execution choice; live capability checks remain separate.
group-title0	PREPARE AND ACCEPT
group-title1	RUN BOUNDARY AND LIVE FENCES
Prepare context	Prepare context
Prepare context	Resolve effective provider
Prepare context	Bind operation + project
Prepare context	Bind subject + provider key
Prepare context	Signed • expires in 5 min
Accept request	Accept request
Accept request	Re-resolve and compare
Accept request	Verify signature + expiry
Accept request	Reject mismatched context
Accept request	Replacement context on error
Accepted plan	Accepted plan
Accepted plan	One execution provider
Accepted plan	Freeze BYOK configuration
Accepted plan	Provider choice is immutable
Accepted plan	Copilot OR BYOK
Run snapshot	Run snapshot
Run snapshot	Private durable ownership
Run snapshot	Database owner → secret ref
Run snapshot	Secret store holds snapshot
Run snapshot	Child / retry inheritance
Invocation guard	Invocation guard
Invocation guard	Check accepted run boundary
Invocation guard	Match operation and provider
Invocation guard	Reject inconsistent execution
Invocation guard	No silent provider fallback
Capability fences	Capability fences
Capability fences	Separate live permission checks
Capability fences	Before / after mint or read
Capability fences	Reject revoked or changed grant
Capability fences	Snapshot is not a bypass
relation-0	1 signed context
relation-1	2 match
relation-2	3 capture
relation-3	4 load boundary
relation-4	5 Copilot capability
assurance	Mismatch rejects with replacement context. A frozen provider snapshot does not bypass live GitHub capability fences.
assurance-0-label	Prepared key
assurance-0-fact	Five minutes; operation / subject bound.
assurance-0-source	AiExecutionPlanService.cs
assurance-1-label	Private snapshot
assurance-1-fact	DB ownership points to secret storage.
assurance-1-source	RunModelProviderSnapshotStore.cs
assurance-2-label	Live capability
assurance-2-fact	Recheck before and after mint / read.
assurance-2-source	GitHubCapabilityBroker.cs
n0	Bind operation + project; Bind subject + provider key
n1	Verify signature + expiry; Reject mismatched context
n2	Freeze BYOK configuration; Provider choice is immutable
n3	Database owner → secret ref; Secret store holds snapshot
n4	Match operation and provider; Reject inconsistent execution
n5	Before / after mint or read; Reject revoked or changed grant
groups	PREPARE AND ACCEPT; RUN BOUNDARY AND LIVE FENCES
