Sandboxed execution

This document describes the design of mxc-based sandboxed command execution in Agentweaver — how the sandbox engine plugs into the existing governance and runner layers, how executor selection works, and the security model behind it.

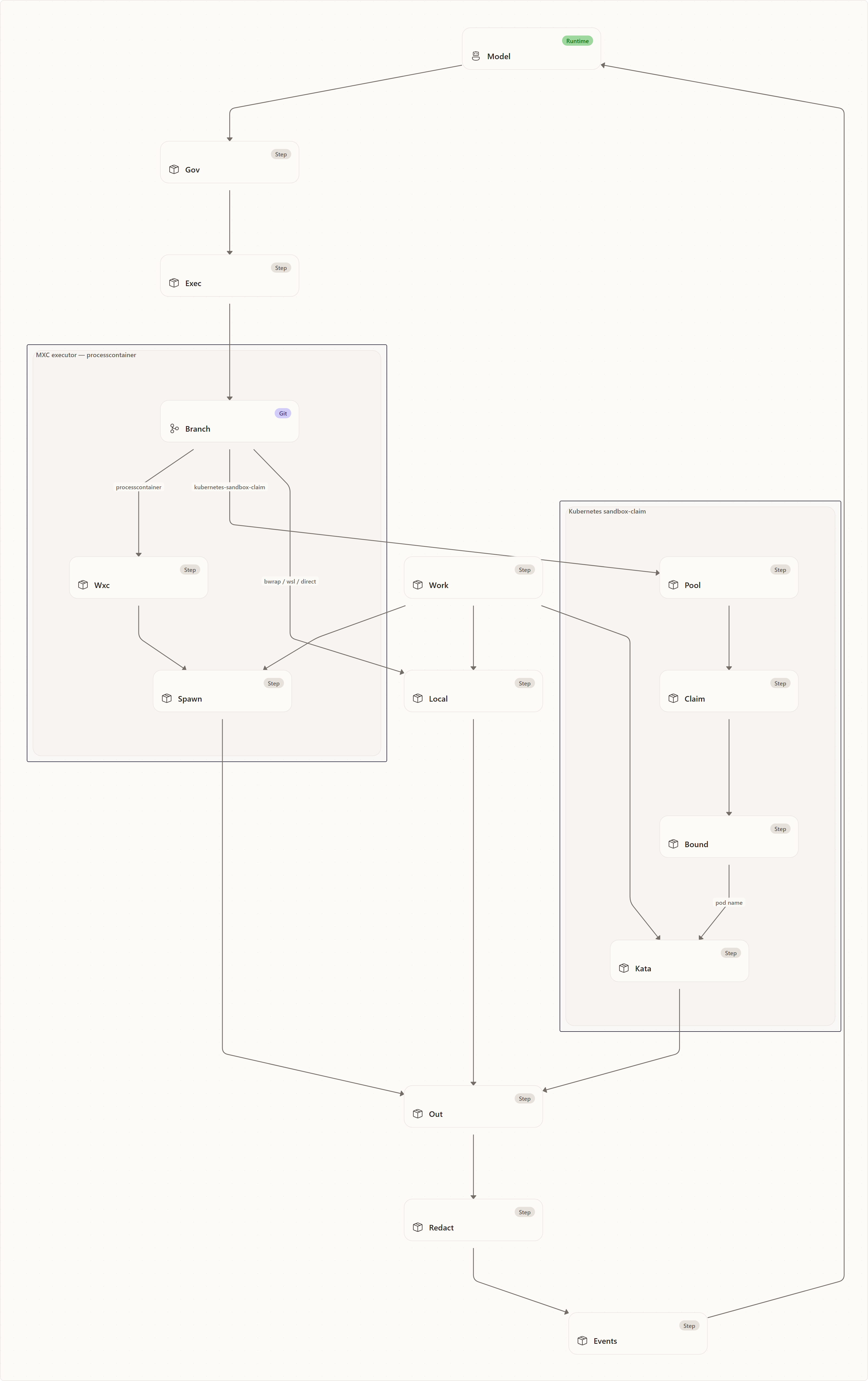

Overview

Agentweaver originally permitted no shell execution. The governance policy categorically denied any shell tool call, and agents were restricted to path-contained in-process file operations.

This feature adds sandboxed shell execution by adopting Microsoft's mxc sandboxing engine. The key constraint is that mxc is an early preview and its own documentation says its profiles are not yet hardened security boundaries. It is therefore adopted as a defense-in-depth layer only — it augments the existing in-process path containment and deny-by-default governance, and never replaces them.

Live run_command registration requires ShellEnabled and either real isolation or direct. The local factory may fall back to direct automatically, not only through explicit opt-in. Direct is not isolation and requires a trusted/disposable surrounding environment. Native shell stays denied.

Once a backend is selected (see the sandbox deep dive), a run_command invocation flows through the triple-layer governance gate, into the chosen executor, and back out as redacted output events:

Executor selection

Executor selection happens at startup via SandboxExecutorFactory.Create. The factory probes the host in order and returns the first available executor:

Order	Backend name	Platform condition
1	processcontainer	Windows + wxc-exec.exe found + MxcSdk.GetPlatformSupport().IsSupported
2	wsl-bwrap / wsl-unshare	Windows + WSL2 available (wsl-bwrap when bubblewrap is present in the distro, otherwise wsl-unshare)
3	linux-bwrap	Linux + bubblewrap (bwrap) available — preferred Linux backend (selective mount allowlist)
4	lxc-native-linux	Linux + lxc-exec found at /usr/local/bin/lxc-exec or /usr/bin/lxc-exec (only when bwrap is unavailable)
5	direct	Fallback when no isolation backend is available, or selected explicitly via direct: true in .agentweaver/settings.yml

The API router first chooses Kubernetes versus local from Sandbox:Backend and cluster detection. Explicit local bypasses cluster selection; selected Kubernetes initialization fails closed. Only then does the local path invoke the factory. See the host selector.

The selected executor is injected into the per-run governance context and GitHub Copilot SDK runner. Its key properties are:

• IsRealIsolation — true for processcontainer, wsl-bwrap, linux-bwrap, lxc-native-linux, and kubernetes-sandbox-claim; false for wsl-unshare and the direct fallback. Shell execution requires this to be true, except for the direct backend, which can be an explicit choice or automatic fallback (see Layer C).
• HasNetworkWarning — true for the Windows processcontainer and wsl-unshare tiers, whose backends cannot enforce a network allowlist. When set, the runner emits a sandbox.warning event (see Limitations).

The executor selection decision, backend name, and probe reason are emitted as a sandbox.selected event when a run starts.

Command timeouts

run_command uses a five-minute timeout when the caller does not provide timeout_ms. An explicit caller timeout is used as requested unless the active runtime policy has a minimum or maximum limit. The controlled Build/Test shell keeps its ten-minute minimum and maximum limit.

The GitHub Copilot SDK runner adds a separate five-minute grace period after the effective command timeout. The executor cancels the command first and returns timed_out: true. Its streaming watchdog stops the agent turn only when the process still has not exited after that grace period and emits shell-progress heartbeats while waiting. This extra time is important for Kata VM pods, where process termination can take longer while the Kata agent relays the signal.

Tool architecture

This table is the canonical tool catalog, not a fixed live count. The runner selects intent/outcome, optional question and controlled-command tools; native file tools avoid duplicate custom exposure. AgentHost adds purpose-appropriate preview tools.

Tool	Purpose	Conditional
run_command	Run a shell command in the sandbox	`ShellEnabled && (IsRealIsolation
read_file	Read a file inside the sandbox root	No
grep_search	Search file contents with a regex	No
file_search	Find files by name pattern	No
str_replace_editor	Make targeted line or text replacements	No
apply_patch	Apply a unified-diff patch	No
create_file	Create a new file	No
write_file	Write a file inside the sandbox root	No
report_intent	Emit an agent.intent event for UI display	No
report_outcome	Report the completed outcome	No
ask_question	Request a user answer through the run gate	No

Permission-gated native tools

The Copilot runner intentionally does not set the SDK AvailableTools allowlist: the SDK's native file tool names differ from Agentweaver's logical tool names, and setting the logical allowlist would hide usable file tools from the model. Instead, the deny-by-default OnPermissionRequest handler is the authoritative gate for every native file, shell, MCP, or other tool request.

When shell access is not allowed, the permission handler denies shell-like requests before execution.

Why native shell is always denied

The YAML policy loaded into the governance kernel has an explicit deny-native-shell rule that matches tool_name == 'shell' with action Deny. This fires before the executor gate and before any path check, unconditionally. Shell execution must go through the run_command custom tool, which routes through ISandboxExecutor under the triple-layer evaluation described in the security model.

Sandbox policy

Each project stores its SandboxPolicy as .agentweaver/settings.yml in the project repository root (GitOps). The file is version-controlled alongside the code: policy changes are reviewable via PR and auditable via git log. When the file does not exist, SandboxPolicy.Default(repositoryPath) applies automatically.

The API (GET /api/sandbox-policy, PUT /api/sandbox-policy) reads and writes this file. PUT writes the YAML file; the operator should commit and push the change to record it in the project history. No database row is required.

Field	Type	Default	Purpose
RepositoryPath	string	—	Lookup key
ShellEnabled	bool	true	Whether run_command is permitted at all. false disables shell regardless of isolation state.
AllowedRepositoryRoots	string[]	[]	Additional paths mounted read-only inside the sandbox. If empty, only the run's working directory is accessible.
DestructiveCommandPatterns	string[]	["rm -rf", "del /s", "format ", ...]	Patterns that trigger human approval before execution.
RequireApprovalForAllShell	bool	false	When true, every shell command requires human approval, not just destructive ones.
RedactPii	bool	true	Whether to redact emails and IP addresses from command output in addition to secrets.
MaxOutputBytes	int	4194304 (4 MB)	Output cap. Results exceeding this are truncated and marked with OutputTruncated: true.

The policy is read through ISandboxPolicyStore.GetPolicyAsync and is configurable via the API at GET /api/sandbox-policy and PUT /api/sandbox-policy. See sandbox-setup.md for operator instructions. When the settings file has no sandbox section, or its sandbox section omits destructive_command_patterns, the canonical default approval patterns apply. An explicit list, including [], is an intentional override.

The API sends one short-lived installation credential for the selected repository and run. When that credential is used, the sandbox parses the command and starts the approved git or gh executable directly instead of placing the credential in a shell environment. Credential-bearing Git is limited to argument-free git status; all other Git subcommands and flags are rejected. This prevents repository configuration from selecting external diffs, signing programs, filters, merge drivers, hooks, aliases, helpers, or remote helpers. The direct Git process disables hooks, credential helpers, filesystem monitors, and recursive submodules. Its GitHub authorization header is scoped to that process; it is never supplied to a child process.

Credential-bearing gh invocations must also match a narrow parsed allowlist. It permits direct gh api and gh status calls; explicitly named repository list, view, and fork calls; and explicitly repository-scoped issue, pull-request, and workflow forms that do not launch another program. gh issue develop is limited to its --list form. Repository forks that clone or alter remotes, pull-request creation and checkout, branch-deleting close or merge commands, and browser/editor forms are rejected even after operator approval, so they never receive GH_TOKEN. gh config set is not allowlisted: editor and pager settings persist and can make a later command start an external program. Likewise, gh gist edit and every other editor-facing gist form remain outside the allowlist.

The approval policy gates git push, remote changes, gh pr changes, gh repo changes, gh workflow run, gh api, gh secret set, and gh auth commands (including gh auth token). The API does not inspect or proxy these commands.

The system keeps this credential out of pod specs, files, logs, events, annotations, shared environments, and credential-helper files. Normal release and orphan cleanup log failed revocations. The registry retains failed revocations independently of their SandboxClaim, and each reaper sweep retries due revocations with capped exponential backoff until they succeed or the credential actually expires.

Security model

A run_command invocation passes three layers before the sandbox engine sees it.

Layer A — YAML policy

The GovernanceKernel evaluates the tool call against the embedded YAML policy. The policy allows run_command and all custom file tools by name; everything else is denied by the default Deny action. The policy also has an explicit deny-native-shell rule for tool_name == 'shell' that fires before the default.

At kernel construction, the runtime asserts that the loaded policy's defaultAction is Deny. If it is not, the run is refused.

Layer B — path containment backend

SandboxPolicyBackend runs unconditionally and independently of layer A. It validates that every file path argument is contained within the sandbox root, and denies any call with no identifiable path argument. For run_command, it validates that the directory argument resolves inside the sandbox root. Layer B cannot be bypassed by layer A passing.

Layer C — executor gate

Only for run_command, after both A and B allow. SandboxGovernance.EvaluateToolCall checks:

1. executor.IsRealIsolation — must be true.
2. policy.ShellEnabled — must be true.

These governance checks deny execution except for direct, which bypasses them. Direct can be explicit or an automatic local fallback. Live registration still requires ShellEnabled, including direct; approval cannot override policy denial.

Any exception in any layer produces a deny result (fail-closed).

TOCTOU mitigations

The sandbox root is validated as a non-reparse-point at construction time (SandboxedFileTools asserts this). For file operations, the runtime performs an open-then-verify pass: after opening a file handle, it resolves the final path from the handle (GetFinalPathNameByHandle on Windows, /proc/self/fd/<fd> on Linux) and checks it against the sandbox root again. A handle resolving outside the root is rejected before any bytes are read or written.

Output redaction

SandboxOutputRedactor runs on stdout and stderr before the content reaches log or event streams. It always removes secrets (Bearer tokens, AWS access key IDs, GitHub PATs, PEM private key headers, connection string passwords, generic API key patterns). When SandboxPolicy.RedactPii is true, it also removes email addresses and IPv4/IPv6 addresses.

Destructive command detection

Before a run_command invocation reaches the executor, the runner checks SandboxPolicy.DestructiveCommandPatterns against the command line. If any pattern matches, or if RequireApprovalForAllShell is set, the runner computes a deterministic SHA-256 hash (first 16 hex characters, lowercase) of the command and checks whether the operator has already approved it for this run.

• Not yet approved — the runner emits a shell.approval_required event and returns a message to the model with the approval endpoint (POST /api/runs/{id}/shell-approvals) and the command_hash to submit. The model retries the same command on the next turn; because the hash is deterministic, it will find the approval.
• Already approved — the runner logs the approval and falls through to execution immediately without re-emitting the event.

Approvals are scoped by (runId, commandHash). Local runtime defaults may use an in-memory store; API-hosted runs register durable approval implementations. Not every live approval is process-local or universally cleared at completion.

Deployment parity

The API router chooses Kubernetes or local first. Local tiers differ; wsl-unshare and direct do not report real isolation:

Target	Executor backend	Notes
Windows ARM64 (developer)	processcontainer	Requires wxc-exec.exe on PATH or MXC_BIN_DIR set
Windows with WSL2	wsl-bwrap / wsl-unshare	Falls through to this when processcontainer is unavailable; wsl-bwrap when bubblewrap is installed in the distro
Linux cloud	linux-bwrap	Preferred Linux backend; requires bwrap (bubblewrap)
Linux cloud (no bwrap)	lxc-native-linux	Used when bwrap is unavailable; requires lxc-exec at a known absolute path
AKS / in-cluster	kubernetes-sandbox-claim	Auto-selected when KUBERNETES_SERVICE_HOST is set; per-run Kata VM pod from a warm pool

Both clients (MCP server and Web UI) reach the same endpoints. Executor selection happens in the backend, not the client. There is no client-side isolation logic.

Windows ARM64 runbook

This covers local developer setup and CI pipelines on Windows ARM64.

Download and extract binaries

Download mxc-release-binaries.zip from https://github.com/microsoft/mxc/releases. The spike was validated against v0.6.1.

Expand-Archive mxc-release-binaries.zip -DestinationPath C:\mxc-bin

The zip extracts to arm64\wxc-exec.exe (and equivalent per-arch subdirectories).

Set MXC_BIN_DIR

Set the environment variable system-wide or in your CI pipeline:

[System.Environment]::SetEnvironmentVariable("MXC_BIN_DIR", "C:\mxc-bin", "Machine")

The SDK resolves the binary at %MXC_BIN_DIR%\arm64\wxc-exec.exe (where arm64 matches the process architecture). This variable takes priority over the assembly-adjacent bin\<arch>\wxc-exec.exe path.

Verify

& "C:\mxc-bin\arm64\wxc-exec.exe" --probe

Expected output:

{
  "tier": "base-container",
  "needsDaclAugmentation": false,
  "warnings": [],
  "probes": {
    "baseContainerApiPresent": true,
    "bfscfgPresent": false,
    "bfsCompiledIn": false
  }
}

Policy version

MxcSandboxExecutor pins SandboxPolicy.Version = "0.5.0-alpha" when calling MxcSdk.SpawnSandboxAsync. This schema provides improved path normalization over 0.4.0-alpha while still routing to the AppContainer fallback tier. ClearPolicyOnExit = true is always set so AppContainer ACL grants are cleaned up on process exit.

At executor construction (once per process start), SandboxPolicyEnrichment.BuildForWindows() calls three PolicyDiscovery helpers from the mxc SDK:

• GetAvailableToolsPolicy — minimal PATH-based tool directories (excludes paths already accessible to ALL_APPLICATION_PACKAGES)
• GetUserProfilePolicy — safe user-profile directories (LocalAppData\Programs subdirectories, not the full home directory)
• GetTemporaryFilesPolicy — the platform temp directory as read-write

These enrichment paths are merged into the sandbox filesystem policy on every command, replacing the need for broad mounts.

SDK execution path

MxcSandboxExecutor uses MxcSdk.SpawnSandboxAsync(script, policy, options) with SandboxSpawnOptions { UsePty = false }. This returns a SandboxProcessResult with public Stdout, Stderr, and ExitCode. The alternative SpawnSandboxProcessFromConfig path is not used because ProcessConnection.GetStdout() and GetStderr() are declared internal in SDK v0.1.1.

Optional: DACL augmentation

For the appcontainer-dacl isolation tier (higher than 0.4.0-alpha), run elevated once:

& "C:\mxc-bin\arm64\wxc-host-prep.exe" prepare-system-drive   # one-time
& "C:\mxc-bin\arm64\wxc-host-prep.exe" prepare-null-device    # per-boot

This is not required for the default 0.4.0-alpha AppContainer path.

Linux cloud runbook

On Linux hosts, SandboxExecutorFactory prefers bubblewrap. LinuxBwrapExecutor is selected when bwrap is available (the SDK platform probe reports the Bubblewrap backend, or bwrap is found on PATH); it applies a selective mount allowlist scoped to the run's working directory.

Only when bubblewrap is unavailable does the factory fall back to LinuxNativeMxcSandboxExecutor, which probes the following absolute paths in order:

1. /usr/local/bin/lxc-exec
2. /usr/bin/lxc-exec

PATH is never consulted for lxc-exec. If neither isolation backend exists, the factory automatically falls back to direct. Live registration still requires ShellEnabled; explicit direct: true is not required for fallback.

Limitations

mxc is not a hardened security boundary

The mxc project's own documentation states that profiles are not yet hardened security boundaries. Agentweaver adopts mxc as a defense-in-depth layer on top of the existing path containment and deny-by-default governance. mxc is not and must not be presented as the primary security layer.

Network allowlist enforcement on Windows

The Windows AppContainer backend cannot enforce a per-host network allowlist. The default network posture for the processcontainer backend is unrestricted outbound. MxcSandboxExecutor.HasNetworkWarning returns true on Windows, which causes the runner to emit a sandbox.warning event with category: "network-unrestricted". Operators who need network restriction must either configure a proxy (set Network.Proxy on the mxc policy) or use the WSL2/Linux path, which supports real allowlisting.

hyperlight and microvm unavailable on ARM64

hyperlight is x86-64 only. microvm requires the nanvixd daemon, which is not distributed in the public release zip. Neither backend is in scope for ARM64.

Executor path artifact in SDK stdout

SDK v0.1.1 dev-artifacts builds append the executor binary path as a trailing line on stdout. MxcSandboxExecutor.StripExecutorArtifact removes any trailing line that ends in .exe and contains a path separator. This workaround is in place until the upstream artifact is confirmed fixed or a clean release binary is used.

Known gaps

ID	Description	Status
T012	Binary bundling. The spec (FR-034) calls for bundling wxc-exec.exe per-arch under bin/<arch> for zero-configuration discovery. This is blocked pending redistribution license review for the mxc binaries. Until resolved, operators must set MXC_BIN_DIR manually.	Open

Diagram details and constraints

Element	Contract
title	Several checks contain each action
takeaway	Native shell is denied; governed tools combine AGT policy, direct containment and execution isolation.
group-title0	TOOL SELECTION / POLICY
group-title1	POINT-OF-USE CONTAINMENT
Model tool request	Model tool request
Model tool request	Permission dispatch
Model tool request	Native shell: always denied
Model tool request	URL approvals handled apart
Model tool request	Custom reporting bypass
Governance	Governance
Governance	Deny-by-default policy
Governance	AGT policy must allow
Governance	Direct backend must allow
Governance	Both checks, not either
Registered tools	Registered tools
Registered tools	Explicit capability surface
Registered tools	Files revalidate at use
Registered tools	run_command gates shell
Registered tools	Unknown tools denied
Workspace boundary	Workspace boundary
Workspace boundary	Sandbox filesystem
Workspace boundary	Lexical + real-path checks
Workspace boundary	Reject symlink escapes
Workspace boundary	Bounded / redacted output
Execution boundary	Execution boundary
Execution boundary	Selected isolation backend
Execution boundary	Shell policy + approval
Execution boundary	Kata pod in AKS
Execution boundary	Direct mode is opt-in
Credential handling	Credential handling
Credential handling	Current implementation
Credential handling	Host + tool options hold token
Credential handling	Direct git status / allowed gh
Credential handling	No blanket shell injection
relation-0	1 governed calls
relation-1	2 both allow
relation-2	3 file operation
relation-3	4 run_command
relation-4	5 eligible git / gh
assurance	Current code delivers repository credentials into Host/tool options; the normative no-credential contract is NOT met.
assurance-0-label	Dispatch exceptions
assurance-0-fact	Native shell denied; URL path separate.
assurance-0-source	CopilotAIAgent.cs
assurance-1-label	Execution isolation
assurance-1-fact	Sidecar: separate PID namespace.
assurance-1-source	sandbox-template-agenthost.yaml
assurance-2-label	Credential reality
assurance-2-fact	No blanket shell credential inheritance.
assurance-2-source	RunCommandTool.cs
n0	Native shell: always denied; URL approvals handled apart
n1	AGT policy must allow; Direct backend must allow
n2	Files revalidate at use; run_command gates shell
n3	Lexical + real-path checks; Reject symlink escapes
n4	Shell policy + approval; Kata pod in AKS
n5	Host + tool options hold token; Direct git status / allowed gh
groups	TOOL SELECTION / POLICY; POINT-OF-USE CONTAINMENT

Diagram details and constraints

Element	Contract
title	Choose Kubernetes before local probing
takeaway	The API router owns cluster selection; the local factory can fall back to direct.
API executor router	API executor router
API executor router	Backend override / cluster detect
API executor router	Explicit local bypasses cluster
Kubernetes selected	Kubernetes selected
Kubernetes selected	Initialize claim executor
Kubernetes selected	Failure throws; no local fallback
Claim backend	Claim backend
Claim backend	Bound pod command contract
Claim backend	Not the in-pod PodExec client
Local factory	Local factory
Local factory	Only when router selects local
Local factory	Probe host-supported backends
Windows ladder	Windows ladder
Windows ladder	processcontainer -> WSL
Windows ladder	wsl-bwrap real; unshare not real
Linux ladder	Linux ladder
Linux ladder	bubblewrap -> LXC
Linux ladder	Host tools must be available
No usable isolation	No usable isolation
No usable isolation	Automatic local fallback
No usable isolation	Also explicit direct option
Direct passthrough	Direct passthrough
Direct passthrough	IsRealIsolation = false
Direct passthrough	Trusted/disposable host only
Command registration	Command registration
Command registration	ShellEnabled AND real or direct
Command registration	wsl-unshare: no controlled shell
arrow-1	select
arrow-2	ready
arrow-3	local
arrow-4	Windows
arrow-5	Linux
arrow-6	unavailable
arrow-8	warn
arrow-9	gate
note-0	The local platform ladders are alternatives, not a Windows-to-Linux chain.
note-1	Kubernetes failure never silently descends into the local ladder.
note-2	Runtime emits sandbox.selected; factory choice is not an isolation guarantee.
notes	The local platform ladders are alternatives, not a Windows-to-Linux chain.; Kubernetes failure never silently descends into the local ladder.; Runtime emits sandbox.selected; factory choice is not an isolation guarantee.
